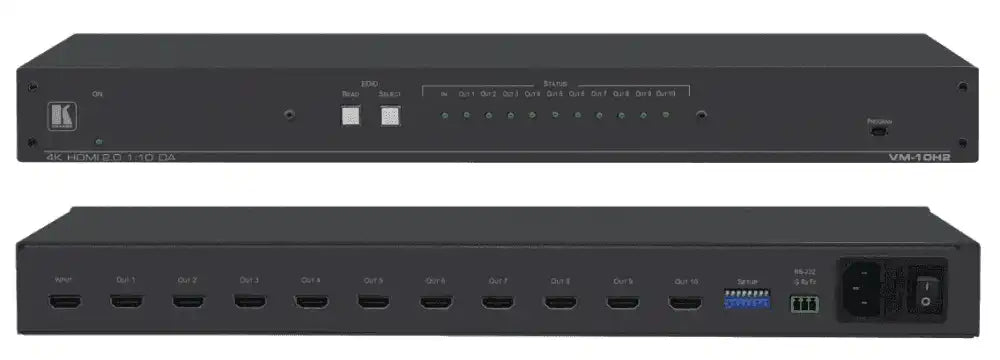

Kramer VM-10H2 1:10 4K HDR HDMI Distribution Amplifier
Product Overview
The Kramer VM-10H2 is a 1:10 distribution amplifier for 4K HDR HDMI signals, distributing a single HDMI 2.0 source to ten identical outputs for large-scale commercial AV installations in corporate campuses, education facilities, auditoriums, and digital signage networks. It supports resolutions up to 4K@60Hz (4:4:4) with HDCP 2.2 compliance and HDR10, making it suitable for distributing protected 4K content from a single Blu-ray player, media server, or AV-over-IP decoder to multiple displays simultaneously. Kramer's Equalization and re-Klocking technology rebuilds signal integrity on each output, extending cable reach beyond standard HDMI passive distances. The 1U rack-mount form factor and universal 100–240V AC power supply make it straightforward to install in any centralized AV equipment room.
Product Description
The VM-10H2 takes one HDMI 2.0 input and equalizes, reclocks, and amplifies the signal before distributing it to ten identical HDMI 2.0 outputs — each rebuilt from scratch to guarantee signal integrity over the full output cable run. Kramer's I-EDIDPro Intelligent EDID Processing ensures plug-and-play compatibility between the source and all ten connected displays, with EDID acquisition via front panel buttons and Auto-EDID for even simpler commissioning. When a connected display lacks YCbCr capability, the VM-10H2 can force RGB delivery on the output to resolve compatibility issues. HDCP 2.2 authorization is managed per output, with status indicated via front panel LEDs. An RS-232 port provides serial control for integration with room control systems. A mini USB port supports firmware upgrades using the Kramer K-Upload tool and EDID management via the Kramer EDID-Designer tool without requiring network access. CEC pass-through on Output 1 supports display on/off control from the source device. The VM-10H2 is well-suited for video wall feed distribution, multi-display conference presentations, and 1-to-many digital signage delivery from a central AV rack.
Key Features
- 1:10 4K@60Hz (4:4:4) Distribution — Distributes one HDMI 2.0 input to ten identical HDMI outputs at full 4K HDR resolution.
- HDCP 2.2 and HDR10 Compliant — Handles protected 4K HDR content from premium HDMI sources.
- Kramer Equalization and re-Klocking — Rebuilds signal integrity on every output for maximum cable reach.
- I-EDIDPro Intelligent EDID Processing — Automatic EDID handling ensures plug-and-play operation with all ten connected displays.
- RGB Force Option — Forces RGB output on connected displays that lack YCbCr support for reliable compatibility.
- HDMI 2.0 Audio Support — Passes 7.1 PCM, Dolby TrueHD, DTS-HD, deep color, and 3D per HDMI 2.0 specification.
- CEC Pass-Through (Output 1) — Enables display on/off control from the source device via CEC on the first output.
- RS-232 Control Port — Serial control for integration with Kramer Control and third-party AV control systems.
- Mini USB for Firmware and EDID — Field firmware upgrades and EDID management via Kramer K-Upload and EDID-Designer tools.
- 1U Rack-Mount, Universal PSU — 19-inch 1U rack-mount with included rack ears and 100–240V AC universal power supply.
Typical Applications
- Corporate all-hands room and boardroom multi-display distribution
- University lecture hall and auditorium display feed
- Digital signage multi-screen distribution from a central rack
- Conference center and convention hall AV distribution
- House of worship IMAG and overflow display systems
- Government and municipal multi-display AV installations
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI connector |
| Outputs | 10x HDMI connectors |
| Max Data Rate | 17.82Gbps (5.94Gbps per graphic channel) |
| Max Resolution | 4K@60Hz (4:4:4) |
| Standards | HDMI 2.0, HDR10, HDCP 2.2 |
| Audio | 7.1 PCM, Dolby TrueHD, DTS-HD, deep color, lip sync, 3D |
| CEC | Pass-through on Output 1 only |
| Control Ports | 1x RS-232; 1x mini USB (firmware/EDID) |
| EDID Management | I-EDIDPro; front panel buttons; Auto-EDID; RGB force; Kramer EDID-Designer via mini USB |
| Power | 100–240V AC universal (included power supply) |
| Form Factor | 19-inch, 1U rack-mount (rack ears included) |
| Product Dimensions (W×D×H) | 48.3cm × 18.3cm × 4.4cm (19.0" × 7.20" × 1.73") |
| Product Weight | 1.8kg (3.9 lbs) approx. |
Frequently Asked Questions
Can all 10 outputs display different resolutions?
No. The VM-10H2 distributes one input to ten identical outputs — all outputs carry the same signal. EDID management determines the resolution negotiated between the source and the displays. The I-EDIDPro system handles EDID from multiple connected displays to present a compatible common EDID to the source.
Does the VM-10H2 support HDR content?
Yes. The VM-10H2 supports HDR10 and is HDCP 2.2 compliant, allowing distribution of HDR-graded 4K content from protected sources such as 4K Blu-ray players and streaming devices.
What happens if a connected display doesn't support 4K?
The I-EDIDPro system negotiates a compatible resolution between the source and displays. If a display cannot accept 4K, the source will step down to a supported resolution. For mixed 4K and 1080p display environments, consult the EDID management options via the front panel or Kramer EDID-Designer tool.
How is firmware updated in the field?
Firmware is updated via the mini USB port using the Kramer K-Upload tool, without requiring network access or removing the unit from the rack.
Is there a 1:8 or 1:4 version of this unit?
Yes. Kramer offers the VM-2H2 (1:2), VM-4H2 (1:4), and VM-16H (1:16) in the same 4K HDR HDMI distribution amplifier family. Browse the full range at https://creationnetworks.net.
