Kramer TP-873XR 4K HDR HDMI PoC Transmitter with RS–232 & IR over Long–Reach DGKat 2.0
Kramer TP-873XR 4K HDR HDMI PoC Transmitter with RS–232 & IR over Long–Reach DGKat 2.0 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer TP-873XR 4K HDR HDMI PoC Transmitter with RS–232 & IR ov...
Product Overview

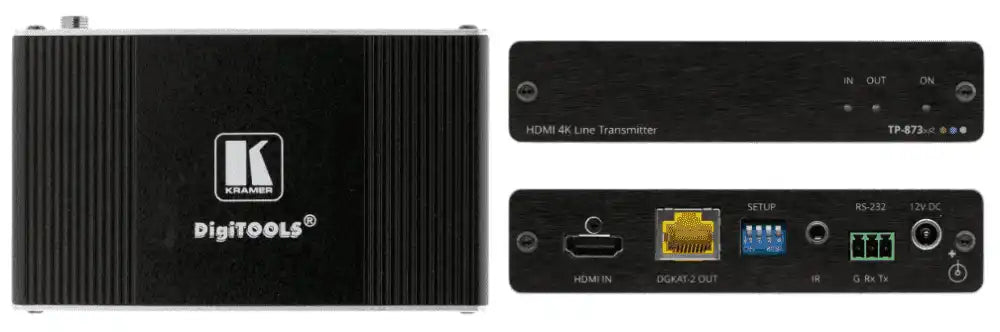

The Kramer TP-873XR is a long-reach DGKat 2.0 transmitter for 4K@60Hz (4:4:4) HDR HDMI with HDCP 2.2, bidirectional RS-232, IR, and two-way Power over Cable (PoC) — extending 4K@60Hz (4:4:4) up to 50m over Kramer shielded Cat cable. DGKat 2.0 uses low-level visually lossless compression to achieve 4K@60Hz (4:4:4) distances that standard HDBaseT cannot, while remaining backwards compatible with standard HDBaseT receivers at lower resolutions. AV integrators specify the TP-873XR where 4K@60Hz (4:4:4) — rather than 4:2:0 — must be delivered to the display over Cat cable, and bi-directional PoC simplifies powering by allowing either the transmitter or receiver to supply power to the other unit.
Key Features
- 4K@60Hz (4:4:4) HDR at 50m — Delivers full 4:4:4 chroma 4K HDR over shielded Cat cable using visually lossless compression.
- HDCP 2.2 Compliant — Protected 4K HDR content extension.
- Bidirectional Power over Cable (PoC) — Either transmitter or receiver can supply power to the other unit.
- Bidirectional RS-232 and IR — Control signal extension in both directions.
- DGKat 2.0 / HDBaseT Backwards Compatible — Auto-adapts to standard HDBaseT receivers at lower resolutions.
- DigiTOOLS Form Factor — 3 units fit in 1U rack with optional adapter.
Typical Applications
- Boardroom 4K@60Hz (4:4:4) HDR display feed over Cat cable
- Professional AV installation requiring full 4:4:4 chroma at the display
- Large conference room 4K HDR extension with PoC powering
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI 2.0; RS-232; IR |
| Output | 1x DGKat 2.0 (RJ-45) with bidirectional PoC |
| Max Resolution | 4K@60Hz (4:4:4) HDR, HDCP 2.2 |
| System Range | Up to 50m (160ft) at 4K@60Hz (4:4:4); up to 70m at 4K@30Hz (4:4:4) over Kramer cables |
| Compression | Visually lossless, near-zero latency |
| Recommended Pair | Kramer TP-874XR receiver |
