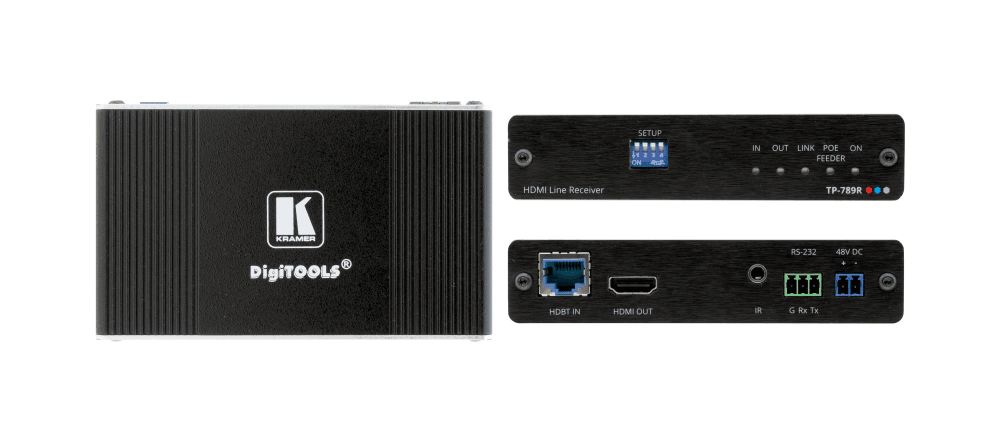

Kramer TP-789R 4K60 4:2:0 HDMI Bidirectional PoE Receiver with RS–232 & IR over Long–Reach HDBaseT
Kramer TP-789R 4K60 4:2:0 HDMI Bidirectional PoE Receiver with RS–232 & IR over Long–Reach HDBaseT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer TP-789R 4K60 4:2:0 HDMI Bidirectional PoE Receiver with RS–2...
Product Overview
The Kramer TP-789R is a long-reach HDBaseT receiver for 4K@60Hz (4:2:0) HDMI, RS-232, and IR signals with bidirectional PoE (Power over Cable) — meaning it can either receive power from the TP-780T transmitter over the Cat cable, or supply power back to the transmitter, providing installation flexibility at both ends of the HDBaseT link. AV integrators install the TP-789R at the display location in conference rooms, boardrooms, and classrooms where the TP-780T transmitter provides 4K HDMI, Ethernet, and PoE from the equipment rack to a display without a local power supply at the display mounting location.
Key Features
- 4K@60Hz (4:2:0) HDBaseT Receiver — Receives 4K HDMI at up to 40m from a compatible TP-780T or HDBaseT transmitter.
- Bidirectional PoE (Power over Cable) — Receives power from transmitter end OR provides power back to the transmitter; flexible powering configuration.
- HDCP 2.2 Compliant — Passes 4K protected content from premium sources.
- Bidirectional RS-232 and IR — Full control signal extension at the display end.
- I-EDIDPro EDID Processing — Automatic EDID management.
Typical Applications
- Conference room display-end HDBaseT receiver powered by transmitter PoE
- Boardroom TP-780T/TP-789R installation with no local power at display
- Classroom projector feed with PoE from equipment rack
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDBaseT (RJ-45) with bidirectional PoE |
| Output | 1x HDMI; RS-232; IR |
| Max Resolution | 4K@60Hz (4:2:0) |
| HDCP | 2.2 compliant |
| System Range | Up to 40m (130ft) at 4K; further at lower resolutions |
| PoE | Bidirectional — receives from or provides to transmitter end |
| Recommended Pair | Kramer TP-780T transmitter |
