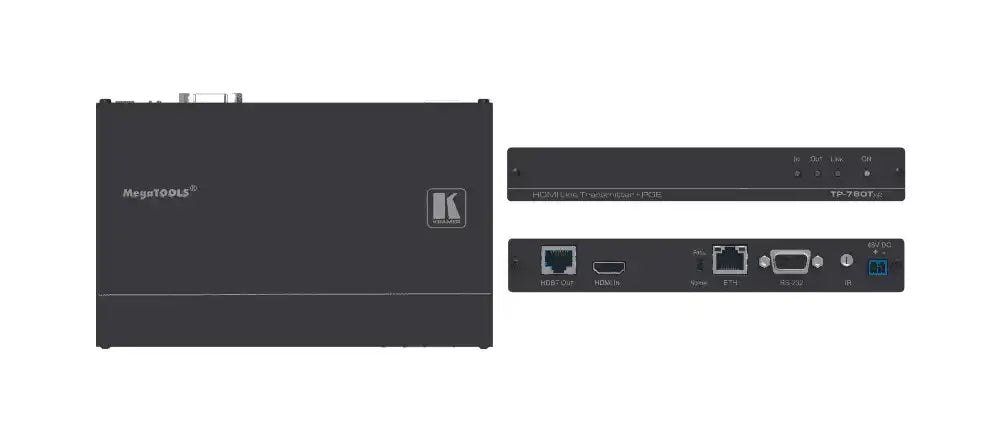

Kramer TP-780T 4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with RS–232 & IR over Long–Reach HDBaseT
Kramer TP-780T 4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with RS–232 & IR over Long–Reach HDBaseT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer TP-780T 4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with RS–232...
Product Overview
The Kramer TP-780T is a long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, Ethernet, RS-232, and IR signals with HDCP 2.2 compliance and PoE output to power a compatible receiver over the same Cat cable. AV integrators use the TP-780T in conference rooms, boardrooms, and classrooms where HDCP 2.2 protected 4K content and full Ethernet extension over HDBaseT are required in a single cable run — without the USB extension of the TP-590 series. The PoE output allows the TP-780T to power a TP-789R or compatible receiver at the display end, eliminating a local power supply at the display mounting location.
Key Features
- 4K@60Hz (4:2:0) HDCP 2.2 HDBaseT Transmitter — Full 4K protected content with Ethernet extension, up to 40m at 4K.
- PoE Output — Powers a compatible HDBaseT receiver over the Cat cable (no local power at display end).
- Full Ethernet Extension — Bidirectional Ethernet for IP device access at the receiver location.
- HDCP 2.2 Compliant — Protected 4K content from premium streaming and Blu-ray sources.
- Bidirectional RS-232 and IR — Control signal extension in both directions.
- I-EDIDPro EDID Processing — Automatic EDID management for reliable source-display handshaking.
Typical Applications
- Conference room 4K HDBaseT extension with Ethernet and PoE to display receiver
- Boardroom HDCP 2.2 content distribution over HDBaseT with network access
- University classroom 4K projector feed with display-end Ethernet
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI; Ethernet; RS-232; IR |
| HDBaseT Output | 1x RJ-45 with PoE output |
| Max Resolution | 4K@60Hz (4:2:0) 24bpp |
| HDCP | 2.2 compliant |
| System Range | Up to 40m (130ft) at 4K; further at lower resolutions |
| Ethernet | Bidirectional Ethernet extension over HDBaseT |
| PoE | Provides PoE to compatible HDBaseT receiver |
| Recommended Pair | Kramer TP-789R receiver |
Frequently Asked Questions
What is the difference between TP-780T and TP-580T?
The TP-780T adds HDCP 2.2, Ethernet extension, and PoE output to the TP-580T's feature set. Choose TP-780T when HDCP 2.2, Ethernet at the receiver end, or PoE powering of the receiver is required. Choose TP-580T for standard HDBaseT at 4K@60Hz (4:2:0) without Ethernet extension.
