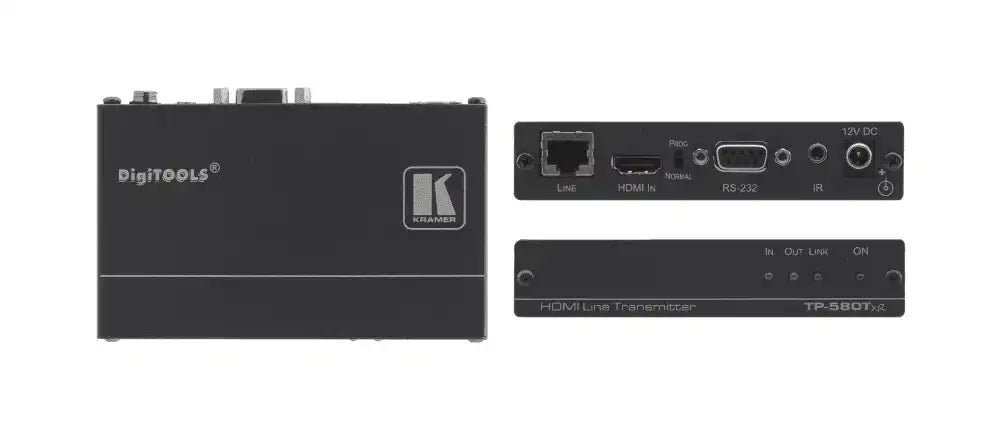

Kramer TP−580TXR Extended Range HDBaseT Twisted Pair Transmitter
Kramer TP−580TXR Extended Range HDBaseT Twisted Pair Transmitter is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer TP−580TXR Extended Range HDBaseT Twisted Pair Transmitter
Product Overview
The Kramer TP-580TXR is an extended-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, RS-232, and IR signals over twisted pair, supporting runs up to 100m at 4K or 180m at 1080p — double the reach of the standard TP-580T. AV integrators specify the TP-580TXR in installations where the display or projector is farther from the equipment rack than standard HDBaseT permits, including large auditoriums, convention halls, and campus buildings. It pairs with the TP-580RXR extended-reach receiver for a matched extended-reach transmitter/receiver pair.
Key Features
- Extended-Reach HDBaseT Transmission — Up to 100m at 4K@60Hz (4:2:0); up to 180m at 1080p over Cat6/7.
- Bidirectional RS-232 and IR — Full control signal extension on the HDBaseT link.
- 4K@60Hz (4:2:0) with HDCP 2.2 — Protected 4K content pass-through.
- I-EDIDPro EDID Processing — Automatic EDID management for reliable compatibility.
- HDBaseT Certified — Compatible with any HDBaseT-compliant extended-reach receiver.
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDMI; RS-232 (bidirectional); IR |
| Output | 1x HDBaseT (RJ-45) |
| Max Resolution | 4K@60Hz (4:2:0) |
| System Range | Up to 100m (330ft) at 4K; up to 180m (590ft) at 1080p over Cat6/7 |
| Recommended Pair | Kramer TP-580RXR receiver |
Frequently Asked Questions
What is the difference between TP-580T and TP-580TXR?
The TP-580T is the standard long-reach transmitter: 40m at 4K, 70m at 1080p. The TP-580TXR is the extended-reach version: 100m at 4K, 180m at 1080p. Choose TP-580TXR when cable runs exceed the standard model's range.
