Product Overview

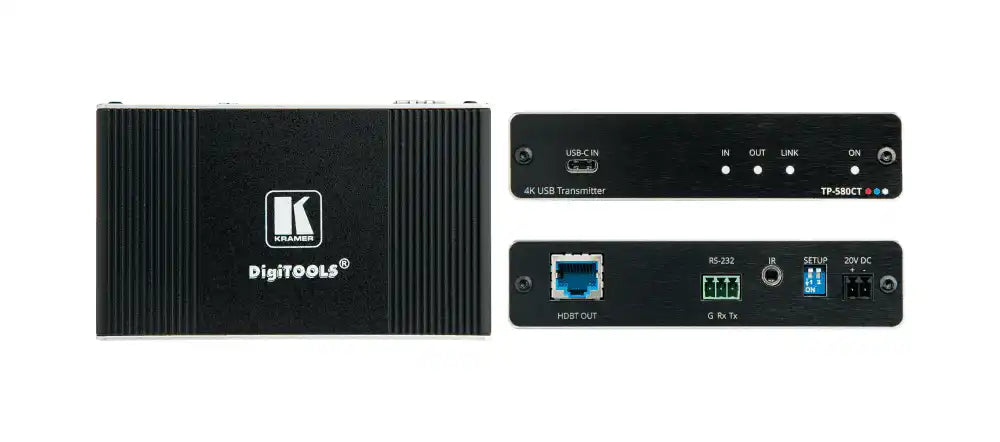

The Kramer TP-580CT is a long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) USB-C (DisplayPort Alt Mode) video signals, RS-232, and IR, allowing USB-C laptops and devices to connect to an HDBaseT infrastructure without a separate dongle or adapter at the presenter position. AV integrators use the TP-580CT in BYOD conference rooms and presentation spaces where USB-C is the primary laptop connection standard, providing both the HDBaseT signal extension and up to 60W of USB Power Delivery (PD 2.0) charging back to the connected laptop over the same USB-C cable. It is compatible with any HDBaseT-certified receiver including the Kramer TP-580R.
Key Features
- USB-C (DP Alt Mode) to HDBaseT Transmission — Converts USB-C DisplayPort Alt Mode video to HDBaseT at 40m 4K or 70m 1080p.
- Up to 60W USB Power Delivery (PD 2.0) — Charges the connected USB-C laptop over the same cable while extending video.
- 4K@60Hz (4:2:0), HDCP 2.2 — Full HDMI 2.0 signal feature set via USB-C input.
- BYOD Single-Cable Connection — USB-C presenter cable provides video, audio, and charging in one connection.
- Bidirectional RS-232 and IR — Control signals extended over the HDBaseT link.
- HDBaseT Certified — Compatible with any HDBaseT receiver.
Typical Applications
- BYOD conference room USB-C laptop single-cable HDBaseT connection
- Boardroom USB-C presenter table connection with laptop charging
- University classroom USB-C presentation with display extension
- Training room BYOD USB-C presenter connection point
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x USB-C (DP Alt Mode and PD 3.0); RS-232; IR |
| Output | 1x HDBaseT (RJ-45) |
| Max Resolution | 4K UHD @60Hz (4:2:0) 24bpp |
| Max Data Rate | 10.2Gbps (3.4Gbps per graphic channel) |
| HDCP | 2.2 compliant |
| USB-C Power Delivery | Up to 60W (PD 2.0 capable devices) |
| System Range | Up to 40m (130ft) at 4K@60Hz (4:2:0); 70m at 1080p |
| HDBaseT Compliance | HDBaseT 1.0 |
Frequently Asked Questions
Does the TP-580CT charge the connected laptop?
Yes. If the connected USB-C device supports USB Power Delivery 2.0, the TP-580CT provides up to 60W of charging power over the USB-C cable while simultaneously extending the video signal over HDBaseT.
What receiver pairs with the TP-580CT?
The TP-580CT pairs with any HDBaseT-certified receiver. The Kramer TP-580R is the standard pairing recommendation. Contact Creation Networks at https://creationnetworks.net for configuration guidance.
Does the USB-C device need DP Alt Mode?
Yes. The USB-C source device must support DisplayPort Alternate Mode (DP Alt Mode) to output video through the USB-C connector. USB-C connectors that only carry USB data or charging cannot transmit video.
