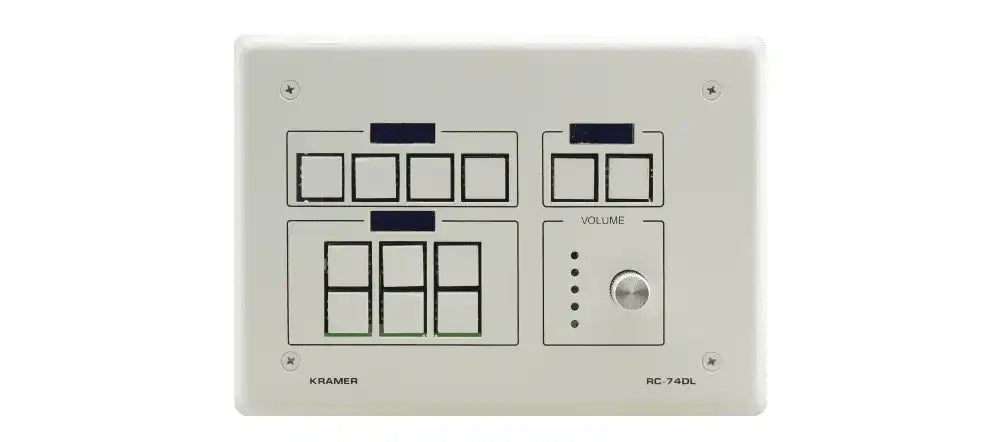

Kramer RC74DLW 12–button Ethernet and KNET Control Keypad with Knob and Displays (US, White)
Kramer RC74DLW 12–button Ethernet and KNET Control Keypad with Knob and Displays (US, White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer RC74DLW 12–button Ethernet and KNET Control Keypad with Knob...
Product Overview
The Kramer RC74DL(W) is the white-finish variant of the 12-button KNET and Ethernet control keypad with LCD displays and volume knob, for in-wall installation in conference rooms, boardrooms, and auditoriums with white or light-colored wall plates and room finishes. Functionally identical to the RC-74DL(B) and RC-74DL(G), it delivers full RS-232, KNET, Ethernet, IR, relay, and GPI/O room control from a 3-gang US wall box mount. AV integrators specify the white finish for environments where white electrical hardware, white wall plates, or clean, light-toned room aesthetics are specified by the designer or facility manager. Programming and control platform compatibility are shared across the full RC-74DL family.
Key Features
- 12 RGB-Backlit Buttons with LCD Labels — Three groups of four buttons, each with an 8-character programmable LCD display.
- White Finish Faceplate — Clean white color for rooms with white electrical hardware and light-toned wall finishes.
- Volume Knob with LED Bar — Bidirectional rotary digital knob with 5-LED volume level indicator.
- Ethernet + KNET + RS-232 — Site-CTRL Ethernet management, KNET master controller integration, and 3x RS-232 serial control ports.
- 2 IR Emitter Outputs + IR Receiver — Full IR device control with remote learning capability.
- 4 Relay Outputs — Contact closure for screens, shading, and blinds.
- 3-Gang US Wall Mount — Standard in-wall installation in US 3-gang junction boxes.
- K-Config Software Programming — All macros, labels, and control logic set via Kramer K-Config.
Typical Applications
- Conference room and boardroom AV control
- Auditorium and multi-purpose room management
- University lecture hall and classroom control interfaces
- Commercial meeting space room automation
Technical Specifications
| Parameter | Value |
|---|---|
| Ports | 1x RS-485, 3x RS-232, 2x GPI/O, 2x KNET (terminal blocks); 1x Ethernet (RJ-45); 1x IR sensor; 1x mini USB |
| Outputs | 2x IR emitter; 4x relay (36V AC/DC, 2A) on terminal blocks |
| Buttons | 12 RGB-backlit with custom-labeled removable caps |
| Displays | 3x 8-character LCD, one per button group |
| Volume Knob | Bidirectional rotary with 5-LED bar |
| Power Consumption | 12V DC, 570mA |
| Mounting | In-wall, standard 3-gang US wall junction box |
| Finish | White |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
Frequently Asked Questions
Is the white finish the only difference from the black and grey versions?
Yes. The RC74DL(W), RC-74DL(B), and RC-74DL(G) are functionally identical. Select the finish — white, black, or grey — that matches the room's wall plate and electrical hardware specification.
What programming software is required?
All RC-74DL variants are programmed using Kramer K-Config software, available from kramerav.com. K-Config handles button macro programming, LCD label configuration, KNET ID assignment, and I/O port setup.
Where can I order or get a quote?
Contact Creation Networks at https://creationnetworks.net for pricing, lead times, and system design assistance for RC-74DL keypad deployments.
