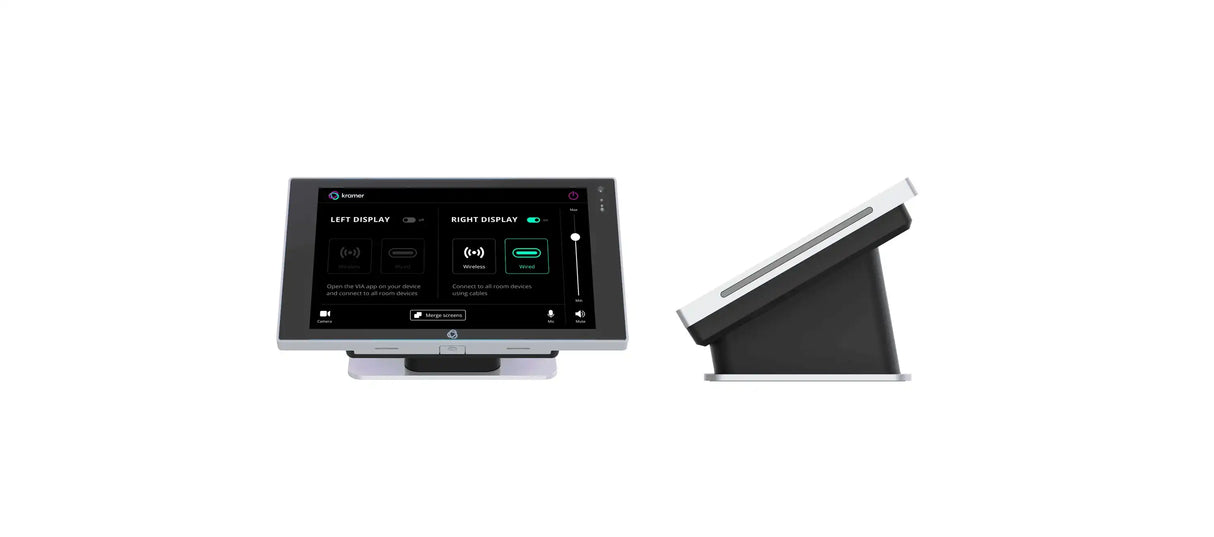

Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel
Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer KT-208WM 8-Inch Wall Mount PoE Touch Panel
Product Overview
The Kramer KT-208WM is the wall-mount variant of the 8-inch IPS PoE touch panel, designed for permanent installation beside conference room entrances, boardroom doors, and commercial meeting space thresholds as a room control interface and scheduling display. Functionally identical to the KT-208, it adds LED sidebars on the faceplate that provide visual room status indication for third-party room booking integrations, making it the preferred choice for deployment as a meeting room sign or availability panel. A single Ethernet cable provides both PoE power and network connectivity, with no local power supply required at the wall mounting point. Running Android 11 with Kramer Control support, it accepts fully customizable room control interfaces designed in Kramer's configuration software.
Key Features
- 8-inch IPS PCAP Touch Display — 1280×800 resolution, 10-point multi-touch, ±80° viewing angles.
- LED Sidebars for Room Status — Visual availability indicator compatible with third-party room booking platforms (requires integration).
- Wall-Mount Only Form Factor — Dedicated wall mounting bracket for permanent installation at room entrances.
- Single-Cable PoE Installation — IEEE 802.3at PoE via RJ-45 eliminates local power supply.
- i.MX8M Plus Quad Core A53, 4GB RAM, 32GB Storage — Full-performance processing for Kramer Control and scheduling apps.
- Android 11 OS — Kramer Control native support; compatible with third-party room management applications.
- Wi-Fi 6 and Bluetooth 5.0 — Wireless fallback connectivity for flexible installation.
- Built-in 5MP Camera, Dual Mic, 2×1W Speaker — Video intercom and occupancy detection capability.
- Locking Wall Bracket — Prevents unauthorized removal with secure mounting design.
Typical Applications
- Conference room entrance room scheduling display
- Boardroom availability and booking panel
- Corporate meeting space room sign with status LED
- University seminar room scheduling interface
- Commercial meeting space room management display
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 8 inch (16:10 diagonal) |
| Resolution | 1280×800 |
| Touch Technology | PCAP multi-touch, 10-point |
| Processor | ARM Quad-core Cortex-A53, up to 1.8GHz (64-bit) |
| RAM / Storage | 4GB LPDDR4 / 32GB eMMC |
| OS | Android 11 |
| Network | 1x RJ-45, 10/100/1000 Mbps, PoE 802.3at |
| Wireless | Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
| Camera / Microphones / Speaker | 5MP front camera; 2x built-in mic; 2x 1W speaker |
| Display Brightness | 350 cd/m²; 1000:1 contrast ratio |
| Status Indicators | LED sidebars (requires 3rd-party integration for room status) |
| Mounting | Wall-mount only (bracket included, locking options) |
| Operating Temperature | 0° to +40°C, 5% to 85% RH |
Frequently Asked Questions
What is the difference between the KT-208WM and KT-208?
The KT-208WM is wall-mount only and adds LED sidebars for room status indication — making it the right choice for conference room entrance scheduling displays. The KT-208 ships with both tabletop and wall mounting hardware but does not include LED sidebars.
Do the LED sidebars work automatically with room booking platforms?
The LED sidebars require third-party integration to display room availability status. They are compatible with room booking platforms when configured through the appropriate Kramer Control or API integration. Consult Creation Networks at https://creationnetworks.net for supported platform configurations.
Is a PoE switch required?
Yes. The KT-208WM is powered via IEEE 802.3at PoE from the network switch. An optional 12V DC adapter supports non-PoE environments.
Can the KT-208WM run Microsoft Teams Rooms or similar platforms?
The KT-208WM runs Android 11 and Kramer Control. For Microsoft Teams Rooms, dedicated certified hardware is recommended. For Teams room scheduling panels, consult Creation Networks at https://creationnetworks.net for the appropriate certified solution.
