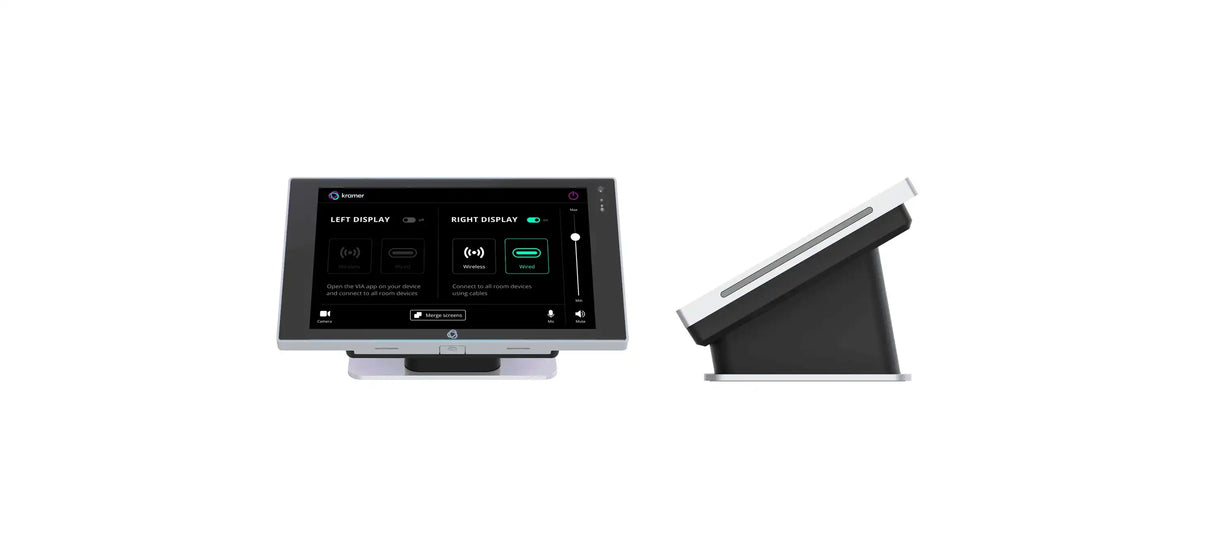

Kramer KT-208 8" Table Mount PoE Touch Panel

Product Overview

The Kramer KT-208 is an 8-inch IPS PoE touch panel for commercial AV control and room scheduling, designed for table or wall deployment in conference rooms, meeting spaces, and managed corporate environments where a compact, mid-size control interface is preferred over a 10-inch panel. Running Android 11 with Kramer Control support, it delivers a fully customizable room control interface via a single Ethernet cable providing both data and PoE power. AV integrators and IT managers deploy the KT-208 in huddle rooms, small conference rooms, and at presenter stations where the 8-inch form factor fits the furniture and room design better than a larger panel, without sacrificing processing power or connectivity. The built-in 5MP camera, dual microphone, and 2×1W speaker support video intercom and occupancy detection integrations.

Product Description

The KT-208 uses an IPS 1280×800 display with PCAP multi-touch and ±80° horizontal and vertical viewing angles, ensuring readable control interfaces from typical meeting room seating positions. The i.MX8M Plus Quad Core A53 processor with 4GB LPDDR4 RAM and 32GB eMMC storage handles Kramer Control interfaces, H.265 video, and room scheduling applications without lag. PoE 802.3at via the RJ-45 connector eliminates the need for a separate power adapter at the panel location. Wi-Fi 6 (802.11ax) and Bluetooth 5.0 provide wireless connectivity options when wired Ethernet at the panel mounting position is not feasible. An ambient light sensor adjusts display brightness automatically based on room lighting, and a proximity sensor wakes the screen when someone approaches, conserving power when the room is unoccupied. Both tabletop and wall mounting hardware are included, with locking options to prevent unauthorized removal. The KT-208WM is the wall-mount-only variant with LED sidebars for room status indication.

Key Features

• 8-inch IPS PCAP Touch Display — 1280×800 resolution, 10-point multi-touch, ±80° viewing angles for clear control interfaces in meeting rooms.
• Single-Cable PoE Installation — IEEE 802.3at PoE over RJ-45 delivers power and network data; no local power adapter required.
• i.MX8M Plus Quad Core A53 Processor — 4GB LPDDR4 RAM, 32GB eMMC for smooth Kramer Control and scheduling operation.
• Android 11 OS — Open platform for Kramer Control and compatible third-party room management applications.
• Wi-Fi 6 and Bluetooth 5.0 — Advanced wireless connectivity for flexible installation.
• Built-in 5MP Camera, Dual Mic, 2×1W Speaker — Supports video intercom, occupancy detection, and audio interaction.
• Ambient Light and Proximity Sensors — Auto-adjusts brightness and wakes on approach to reduce idle power consumption.
• Table and Wall Mounting — Both tabletop and wall mounts included with locking options.
• Kramer Control Compatible — Native support for Kramer Control AV room automation platform.

Typical Applications

• Huddle room and small conference room AV control
• Corporate meeting room scheduling display
• University classroom AV control interface
• Commercial meeting space room booking panel
• Government meeting room control point
