Kramer KT-205WM 5.5 Inch Wall Mounted PoE Touch Panel
Product Overview

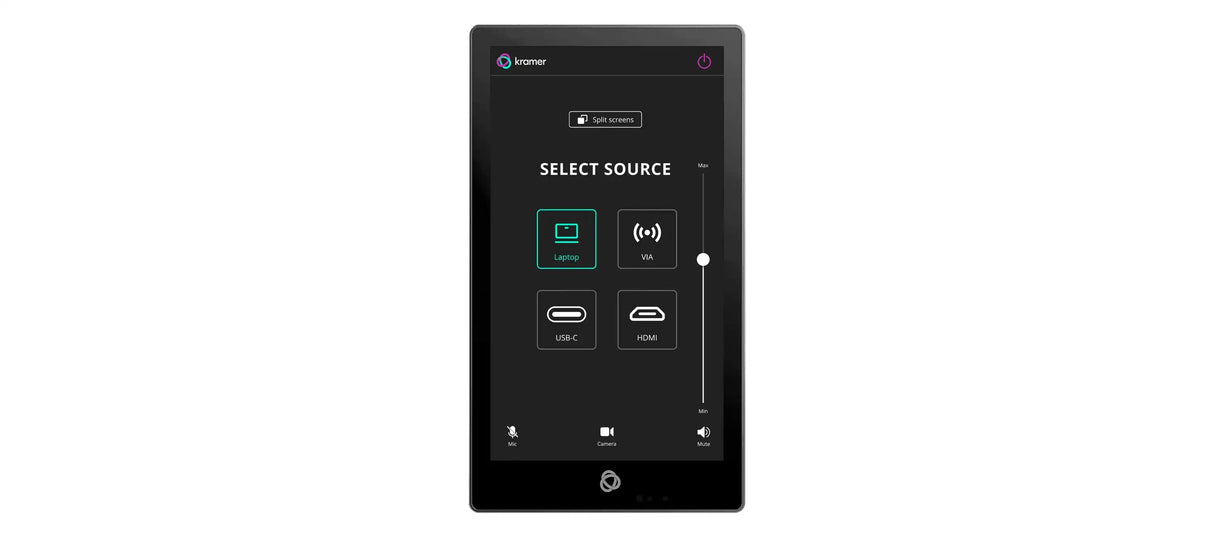

The Kramer KT-205WM is a 5.5-inch wall-mounted IPS PoE touch panel for commercial AV room control and meeting room scheduling at space-constrained room entrances where a smaller panel footprint is required. Running Android 11 with Kramer Control support, it delivers a fully customizable control interface via a single Ethernet cable providing PoE power and network data — with no local power supply required at the wall. AV integrators and IT managers deploy the KT-205WM at narrow doorframes, corridor walls, and office cubicle entrances where the 8-inch and 10-inch panels are too large for the available wall space or room aesthetic. The built-in speaker, dual microphone, ambient light sensor, and proximity sensor provide the same intelligent room awareness features as the larger KT-208WM and KT-2010 panels in a significantly smaller form factor.
Key Features
- 5.5-inch IPS Portrait Touch Display — 720×1280 (9:16) resolution with PCAP 10-point multi-touch and ±80° viewing angles.
- Wall-Mount Only Form Factor — Dedicated wall bracket for space-constrained room entrance installations.
- Single-Cable PoE Installation — IEEE 802.3at PoE via RJ-45; no local power supply required.
- i.MX8M Plus Quad Core A53, 2GB RAM, 32GB Storage — Sufficient processing for Kramer Control and room scheduling applications.
- Android 11 OS — Kramer Control native support; open platform for compatible scheduling apps.
- Wi-Fi 6 and Bluetooth 5.0 — Wireless connectivity for flexible deployment.
- Built-in Speaker and Dual Microphone — Audio capability for control interaction and intercom integrations.
- Ambient Light and Proximity Sensors — Auto-brightness adjustment and screen wake on approach.
- Locking Wall Bracket — Secure mounting prevents unauthorized removal.
Typical Applications
- Conference room and meeting room scheduling panel at narrow doorframes
- Huddle room availability display
- Corporate office cubicle and open-plan room control point
- University classroom and study room booking interface
- Commercial meeting space compact scheduling display
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 5.5 inch (9:16 diagonal, portrait orientation) |
| Resolution | 720×1280 |
| Touch Technology | PCAP multi-touch, 10-point |
| Processor | i.MX8M Plus Quad Core A53, up to 1.8GHz (64-bit) |
| RAM / Storage | 2GB RAM / 32GB eMMC |
| OS | Android 11 |
| Network | 1x RJ-45, 10/100/1000 Mbps, PoE 802.3at |
| Wireless | Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 |
| Audio | Built-in speaker; 2x built-in microphone |
| Sensors | Ambient light sensor, proximity sensor |
| Mounting | Wall-mount only (bracket included) |
| Operating Temperature | 0° to +40°C, 5% to 85% RH |
Frequently Asked Questions
How does the KT-205WM differ from the KT-208WM?
The KT-205WM has a 5.5-inch portrait-orientation display at 720×1280 — suited for very narrow wall spaces. The KT-208WM has an 8-inch landscape display at 1280×800 with LED status sidebars. Both are wall-mount-only PoE panels running Android 11 with Kramer Control support. Choose based on available wall space and whether LED status sidebars are required.
Is the KT-205WM suitable for room scheduling?
Yes. The 5.5-inch display, Kramer Control support, and Android 11 OS make it compatible with room scheduling applications. Its portrait orientation is well-suited for room availability displays at narrow doorframes and office entrances.
Does it require a PoE switch?
Yes. IEEE 802.3at PoE from the network switch powers the unit over the RJ-45 cable. An optional power adapter is available for non-PoE environments.
Can the KT-205WM display video content?
The KT-205WM supports H.265 video decoding via its Android 11 OS and is capable of playing H.264/H.265 video streams as part of Kramer Control interfaces or compatible applications.
