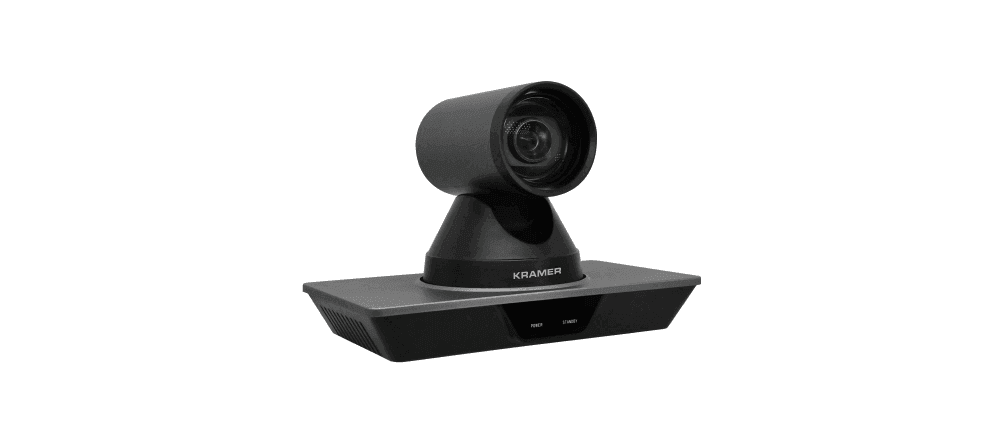

Kramer K-CAM4K 4K PTZ Camera & 4K UHD Camera, 71–Degree Wide–Angle Lens & 12 Times Optical Zoom

Product Overview

The Kramer K-CAM4K is a commercial-grade 4K PTZ camera designed for large meeting spaces, conference rooms, boardrooms, and auditoriums where Ultra-HD video capture and precise pan-tilt-zoom control are required for video conferencing and hybrid collaboration. It delivers 4K@30fps over HDMI, 3G-SDI, USB 3.0, and IP streaming outputs simultaneously, giving AV integrators maximum flexibility when routing camera feeds to conferencing codecs, matrix switchers, and recording systems. The 71-degree wide-angle lens and ±170° pan / ±30° tilt range provide complete spatial coverage of medium to large rooms with 12x optical zoom and 16x digital zoom for accurate close-up framing of presenters and whiteboards. With 255 programmable preset positions, the K-CAM4K supports rapid, repeatable camera movements across all standard AV control platforms via RS-232, RS-485, and IP.

Product Description

The K-CAM4K uses a 1/2.5-inch, 8.51 megapixel CMOS sensor with 2D and 3D digital noise reduction (DNR), delivering sharp, low-noise images in the variable lighting conditions typical of conference rooms and classrooms. The built-in gravity sensor automatically corrects image orientation when the camera is ceiling- or wall-mounted, simplifying installation in both standard and inverted configurations. Multiple simultaneous outputs — HDMI 1.4, 3G-SDI, USB 3.0 Type-B, and RJ-45 IP streaming — allow a single camera to feed a conferencing codec, local display, recording system, and IP distribution endpoint concurrently. Control is available via the included IR remote, OSD menu, RS-232 (VISCA, Pelco-D, Pelco-P protocols), RS-485, or embedded web pages over Ethernet — making the K-CAM4K compatible with Kramer Control and virtually all third-party AV control systems. The included wall bracket kit enables standard mounting at the front of the room above the display. An optional 5-year warranty (K-CAM4K-5YW) is available for organizations requiring extended coverage.

Key Features

• 4K@30fps Ultra-HD Capture — 1/2.5-inch, 8.51MP CMOS sensor delivers 4K resolution over HDMI, 3G-SDI, USB 3.0, and IP outputs simultaneously.
• 12x Optical Zoom + 16x Digital Zoom — 71° to 8.2° horizontal field of view for wide room coverage and accurate presenter close-ups.
• ±170° Pan / ±30° Tilt — Full room coverage with smooth motorized PTZ movement controlled from any Kramer or third-party interface.
• 2D and 3D Digital Noise Reduction — Delivers clear, low-noise images under variable conference room lighting conditions.
• 255 Programmable Preset Positions — Enables instant recall of camera angles for multi-presenter and multi-zone coverage scenarios.
• Multiple Output Ports — Simultaneous HDMI 1.4, 3G-SDI (1080p), USB 3.0 Type-B, and IP streaming outputs for maximum integration flexibility.
• Multi-Protocol Control — RS-232 and RS-485 with VISCA, Pelco-D, and Pelco-P support plus Ethernet/IP for integration with Kramer Control and third-party systems.
• Auto-Orientation Correction — Built-in gravity sensor adjusts image automatically for wall, ceiling, or tabletop mounting.
• Broad UC Platform Compatibility — Works with Microsoft Teams, Zoom, Cisco Webex, and other major video conferencing platforms via USB 3.0 output.

Typical Applications

• Corporate boardroom and large conference room video conferencing
• University lecture hall and auditorium camera systems
• House of worship broadcast and IMAG production
• Government and municipal chamber recording
• Training room hybrid collaboration systems
• Broadcast studio and live event production

Technical Specifications

Frequently Asked Questions
