Kramer FC-69 4K60 4:2:0 HDMI Audio Embedder/De–Embedder

Product Overview

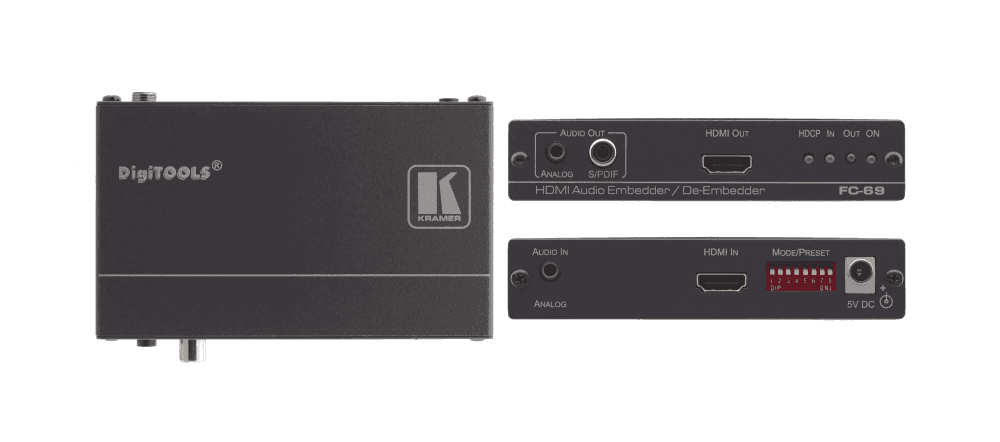

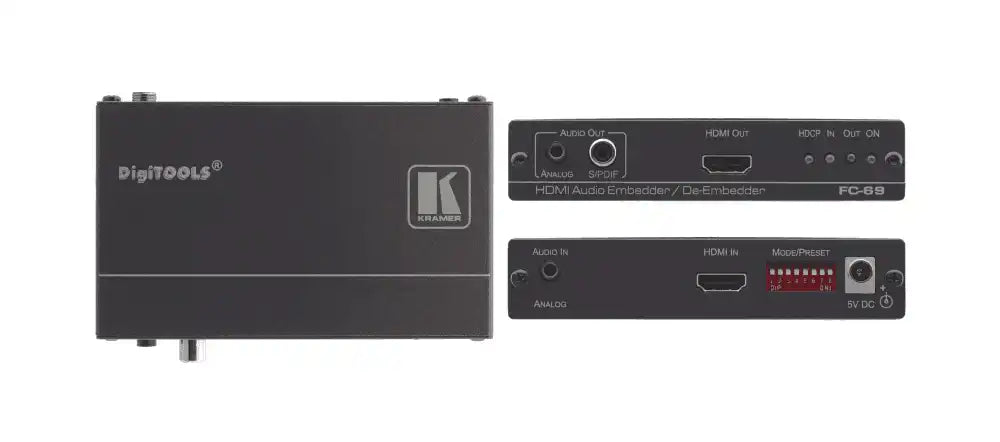

The Kramer FC-69 is a bidirectional 4K@60Hz (4:2:0) HDMI audio embedder and de-embedder in a compact DigiTOOLS form factor, serving conference rooms, boardrooms, and presentation spaces that need both audio embedding and de-embedding capability from a single in-line HDMI device. It can embed analog audio into the HDMI output signal, or de-embed audio from the HDMI input or ARC simultaneously to S/PDIF and unbalanced stereo analog outputs — covering the most common audio routing requirements in commercial AV installations without a separate audio processor. DIP-switch configuration controls all operating modes without requiring software access, making setup and field adjustment straightforward for integrators.

Product Description

In embedding mode, the FC-69 accepts a 3.5mm analog stereo audio input and embeds it into the HDMI output stream — even in the absence of an HDMI video source, allowing audio-only embedding for applications where the audio system is independent of the video source. In de-embedding mode, audio is extracted from the HDMI input signal or from the ARC return channel from the connected display, and output simultaneously on the RCA S/PDIF digital connector and the 3.5mm unbalanced stereo analog output. The 8-way DIP switch controls mode selection (embed/de-embed), EDID locking/modification, HDCP settings, and sleep mode behavior — allowing the unit to pass 5V output state through from the input, enabling the connected display to enter sleep mode when no video is present. Max data rate of 8.91Gbps (2.97Gbps per channel) supports 4K@60Hz (4:2:0) and 4Kx2K resolutions. The DigiTOOLS form factor fits three units side-by-side in a 1U rack space with the optional rack adapter.

Key Features

• Bidirectional Audio Processing — Embeds analog audio into HDMI output, or de-embeds audio from HDMI input or ARC to S/PDIF and analog outputs.
• 4K@60Hz (4:2:0) Pass-Through — Full HDMI signal pass-through at up to 4K@60Hz (4:2:0), 4Kx2K resolution.
• Audio Embedding Without HDMI Source — Embeds analog audio even when no HDMI video source is connected.
• Input or ARC De-Embedding — Selectable de-embedding from HDMI input or display ARC return channel.
• Simultaneous S/PDIF and Analog Outputs — Both digital (RCA S/PDIF) and unbalanced analog (3.5mm) outputs active simultaneously in de-embed mode.
• Sleep Mode Support — Passes 5V state from input to output, allowing display to sleep when no video is present.
• DIP-Switch Configuration — All modes configured via 8-way DIP switch; no software required.
• HDMI Support — ARC, 7.1 PCM, deep color, CEC.
• DigiTOOLS Form Factor — 3 units fit in 1U rack with optional adapter.

Typical Applications

• Conference room HDMI audio de-embedding to room amplifier and S/PDIF processor
• Boardroom ARC audio extraction from display to DSP system
• Presentation room audio embedding from room mic into HDMI path
• Training room audio integration with HDMI video distribution
• Digital signage audio routing from HDMI player
