Kramer FC-102NET Dual Dante Interface Encoder
Kramer FC-102NET Dual Dante Interface Encoder is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

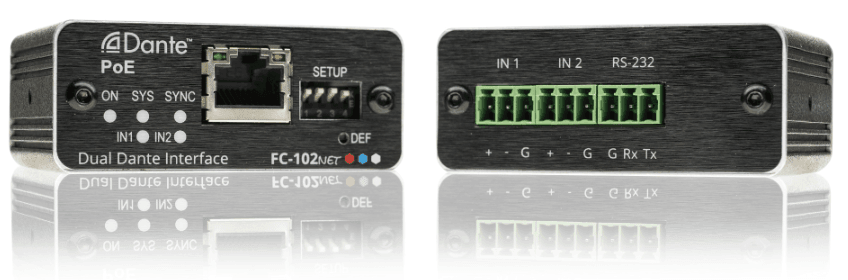

Kramer FC-102NET Dual Dante Interface Encoder
Product Overview
The Kramer FC-102NET is a compact 2-channel Dante encoder and PoE acceptor that connects non-Dante audio sources — microphones, laptops, CD players, and line-level devices — to a Dante audio network over standard Ethernet. AV integrators use the FC-102NET as the input gateway for Dante audio systems where analog source devices need to feed into a Dante distribution network without replacing the source equipment. Supporting both line-level and microphone-level inputs with selectable 48V phantom power per channel, it accommodates condenser microphones directly alongside line-level signals in the same two-channel unit. Like its decoder counterpart the FC-101NET, it is powered over Ethernet and shares the same PicoTOOLS form factor for rack or surface mounting.
Product Description
The FC-102NET accepts two balanced mono analog audio inputs on 3-pin terminal block connectors and encodes them as Dante audio channels transmitted over the Ethernet network. Input source type — line level or microphone level — is selectable per channel, and 48V phantom power is available per input for condenser microphone connectivity without requiring a separate microphone preamp or phantom power supply. AES67 interoperability support ensures the encoded streams are compatible with both Dante and AES67 IP audio systems on the same network. The 32-bit ADC architecture with selectable sampling rates up to 96kHz captures the analog signal with high dynamic performance and low clock jitter for professional-grade conversion quality. PoE power via the Ethernet port eliminates the need for a local power supply at each microphone or source position — critical for clean, low-infrastructure installations in conference rooms and classrooms. Dante Controller software is used to route the encoded channels to any Dante receiver on the network, including DSP processors, amplifiers, and recording systems.
Key Features
- 2-Channel Dante Encoder — Accepts 2 balanced mono analog inputs and encodes them as Dante audio channels on the network.
- Line and Mic Level with 48V Phantom Power — Each input independently selectable for line or mic level; 48V phantom power per channel for condenser mics.
- PoE Powered — Powered over Ethernet from any standard PoE switch; no local power supply required.
- Balanced Analog Inputs — 2x balanced mono on 3-pin terminal block connectors.
- AES67 Interoperability — Compatible with AES67 IP audio networks alongside Dante.
- 32-Bit ADC, up to 96kHz — Studio-grade analog-to-digital conversion with selectable sampling rates.
- PicoTOOLS Form Factor — Four units rack-mount side-by-side in 1U with optional adapter; dual-lock tape for surface mount.
Typical Applications
- Conference room microphone feeds into Dante audio networks
- Classroom and lecture hall microphone-to-Dante integration
- House of worship stage microphone Dante encoding
- Corporate boardroom line-level source Dante distribution
- University campus Dante audio contribution point
Technical Specifications
| Parameter | Value |
|---|---|
| Inputs | 2x balanced mono audio on 3-pin terminal block connectors |
| Output | 2x Dante channels on RJ-45 connector |
| Input Level | Line level or microphone level (selectable per channel) |
| Phantom Power | 48V per input (selectable) |
| Audio Protocol | Dante; AES67 interoperability |
| ADC Architecture | 32-bit advanced ADC, selectable sampling rates up to 96kHz |
| Power Source | PoE (standard IEEE 802.3af/at from PoE network switch) |
| Form Factor | PicoTOOLS — 4 units fit in 1U rack with optional adapter |
| Included | Double-sided dual-lock tape, bracket set |
Frequently Asked Questions
Can the FC-102NET accept condenser microphones directly?
Yes. Each input supports selectable 48V phantom power, allowing direct connection of condenser microphones without a separate phantom power supply or microphone preamp.
Can line-level and mic-level sources be used simultaneously on the two inputs?
Yes. Input level (line or mic) and phantom power are independently selectable per channel, so one input can be configured for a condenser microphone while the other accepts a line-level source simultaneously.
What equipment is needed to route the FC-102NET's Dante streams?
Dante Controller software (free from Audinate) is used to assign and route the FC-102NET's encoded channels to any Dante receiver on the same network, including DSP processors, Dante decoders, amplifiers, and recording systems.
Does the FC-102NET pair directly with the FC-101NET?
Yes. The FC-102NET (encoder) and FC-101NET (decoder) are designed as a complementary pair for Dante audio bridging. The FC-102NET captures analog audio and puts it on the Dante network; the FC-101NET receives Dante streams and outputs analog audio to speakers and amplifiers.
