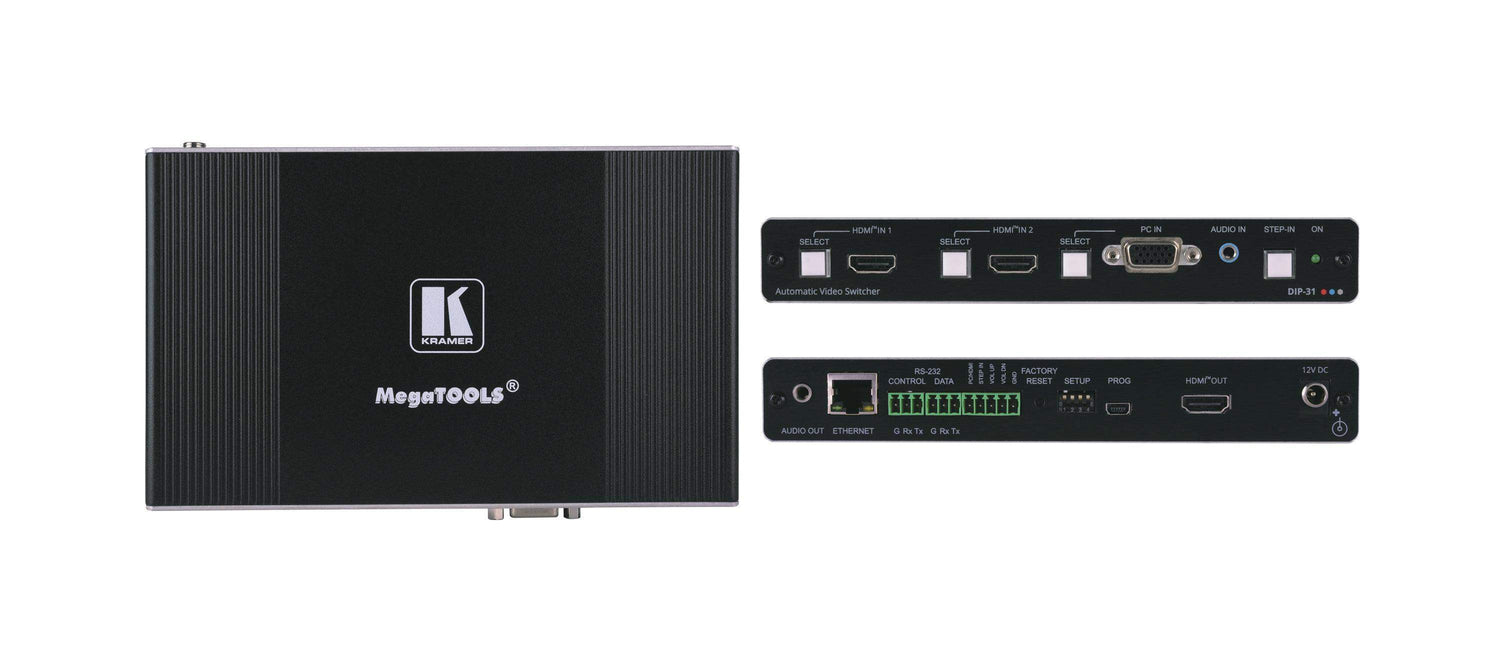

Kramer DIP-31 4K60 4:2:0 HDMI & Computer Graphics Automatic Video Switcher

Product Overview

The Kramer DIP-31 is a multi-format 3-input HDMI/VGA auto-switching scaler with Maestro room automation, designed for conference rooms and presentation spaces where automatic display control on source connect and disconnect is required alongside 4K@60Hz (4:2:0) signal scaling. Unlike the DIP-20, the DIP-31 outputs HDMI locally rather than extending over HDBaseT — making it the right choice when the display is co-located with the switcher, or when a downstream HDBaseT transmitter handles the extension separately. AV integrators deploy the DIP-31 in BYOD conference rooms, huddle rooms, and executive offices where priority or last-connected auto-switching between HDMI and VGA laptops, along with Maestro-driven display power control, eliminates the need for manual AV system operation by end users. Kramer Protocol 3000 over Ethernet and RS-232 provides full integration with room control systems for more advanced automation scenarios.

Product Description

The DIP-31 accepts two HDMI inputs and one VGA input with a 3.5mm analog audio input, covering the full range of laptop and presentation device connectivity in a modern conference room. Maestro automation powers the display on when a source connects and powers it off after a configurable idle period when all sources disconnect — requiring zero end-user AV interaction for standard meeting use. The priority and last-connected switching modes handle multi-presenter scenarios: the unit automatically routes the active or most recently connected source to the output, with manual override available via front panel button or remote contact closure switches. Analog audio from the 3.5mm input is embedded into the HDMI output stream or output separately via the 3.5mm audio output connector. I-EDIDPro Intelligent EDID Processing ensures stable EDID negotiation between sources and the connected display, with EDID lock for consistent resolution output across multiple sessions. RS-232 pass-through allows control of a projector or display directly from the DIP-31's data port for installations where direct serial display control is needed alongside Maestro automation.

Key Features

• 3-Input Auto-Switching (2x HDMI + 1x VGA) — Priority or last-connected auto-switching with manual button and contact closure override.
• Maestro Room Automation — Auto powers display on/off based on source connect/disconnect with configurable idle timeout.
• 4K@60Hz (4:2:0) HDMI Output — Scales and outputs up to 4K@60Hz (4:2:0) to a locally connected display.
• HDMI 2.0 and HDCP 2.2 Compliant — Handles protected content and the full HDMI 2.0 feature set including deep color and 3D.
• Analog Audio Embedding and Output — 3.5mm audio input embedded into HDMI stream; separate 3.5mm audio output available.
• I-EDIDPro Intelligent EDID Processing — Automatic and lockable EDID management for consistent source-display compatibility.
• RS-232 Data Port — Direct serial control of a connected display or projector.
• Ethernet Control — Kramer Protocol 3000 over Ethernet for room control system integration.
• Contact Closure Remote Switching — Remote input selection via contact closure switches for podium or table-mount button panels.

Typical Applications

• BYOD conference room HDMI/VGA auto-switching with display automation
• Huddle room and small meeting space auto-switching presenter system
• Executive office presentation switching with Maestro automation
• University classroom HDMI/VGA auto-switch with projector control
• Training room multi-input presentation switching
