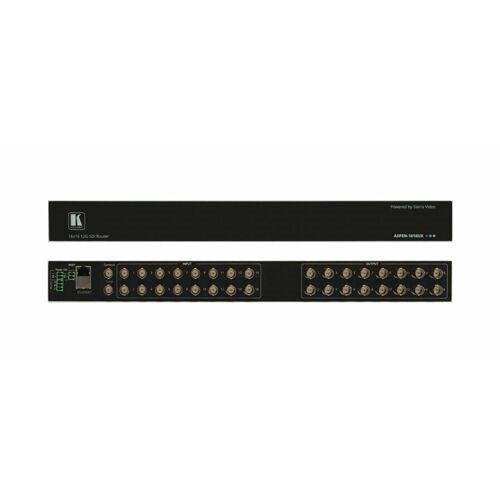

Kramer 16x16 12G-SDI Matrix Switcher - ASPEN-1616UX
Roll over image to zoom in Click on image to zoom
Kramer 16x16 12G-SDI Matrix Switcher - ASPEN-1616UX
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Kramer 16x16 12G-SDI Matrix Switcher - ASPEN-1616UX

Kramer SKU: ASPEN-1616UX
No reviews
Price:
$2,240.00 $2,800.00

Description

ASPEN-1616UX is a 16x16 matrix switcher for SDI signals of up to 12G. It equalizes the input signal and reclocks the output signal to gain extended-reach signal extension. ASPEN-1616UX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.

  • High-Performance Matrix Switcher - Switches 16 12G SDI inputs to 16 12G SDI outputs with a maximum resolution of 4K@60Hz (4:2:2). Features Kramer Equalization & reKlocking™ Technology that rebuilds the digital signal to travel longer distances.
  • HDTV Compatible.
  • SDI Multi Rate Signals - Auto-adapts from 270Mbps to 12Gbps data rates, accepts SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant input signals with video resolution of up to 4K@60Hz (4:2:2) 30bpp. Complying with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards, it supports pass-through of standard embedded audio channels with ancillary ID and metadata information.
  • Extended-Reach Input Extension - Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using coaxial cables that are not high-quality.
  • Genlock Clean Switching and Versatility - Clean switching when the sources are genlocked to the selected genlock input with a difference of no more than two lines of video. Versatile Genlocking using an analog signal.
  • Convenient and Comprehensive Control - Control the unit using intuitive embedded web pages via the Ethernet or Protocol 3000 API commands via RS-232 serial communication transmitted by a PC, touch screen system or other serial controller. Stores 8 multiple switches as presets to be recalled and executed when needed. Upgrade firmware via the embedded webpages.
  • Compact and Easy to Install - 19" wide and only 4" deep enclosure for rack mounting a unit in a 1U rack space with included rack ears.
General Information
Manufacturer Kramer Electronics LTD
Manufacturer Part Number ASPEN-1616UX
Manufacturer Website Address http://www.kramerelectronics.com
Brand Name Kramer
Product Model ASPEN-1616UX
Product Name ASPEN-1616UX 16X16 12G SDI Matrix Switcher
Product Type Audio/Video Switchbox
Technical Information
Connectivity Technology Cable
Number of Input Devices Supported 16
Device Supported Display
Number of Displays Supported 16
Video
Graphics Modes 4K
Interfaces/Ports
Connectivity (RJ-45) Yes
Number of Connectivity (RJ-45) Ports 1
Media & Performance
Media Type Supported Twisted Pair
Maximum Operating Distance 984.25 ft
Physical Characteristics
Form Factor Rack-mountable
Miscellaneous
Package Contents ASPEN-1616UX 16X16 12G SDI Matrix Switcher Power Adapter Belden 4794R and 4855R 12G SDI Coax Cables Rack Ears
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
