K-Array Pinnacle KR102 II – Powered Stereo Column Array System (Black)

Product Overview

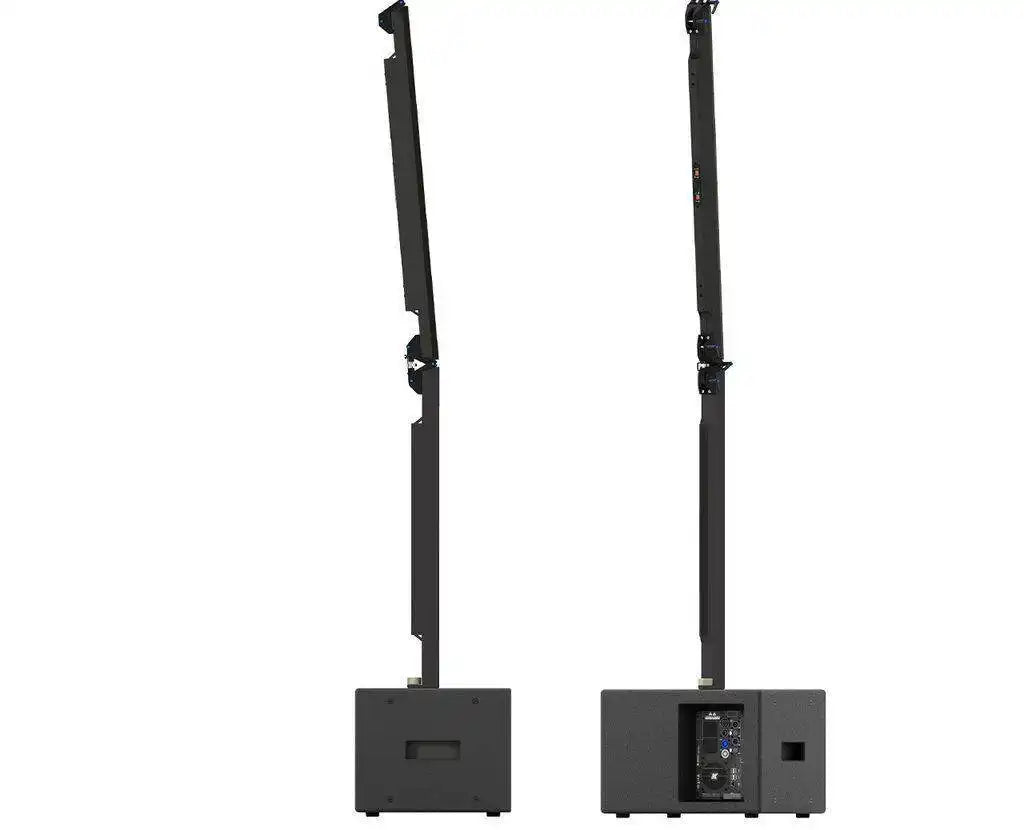

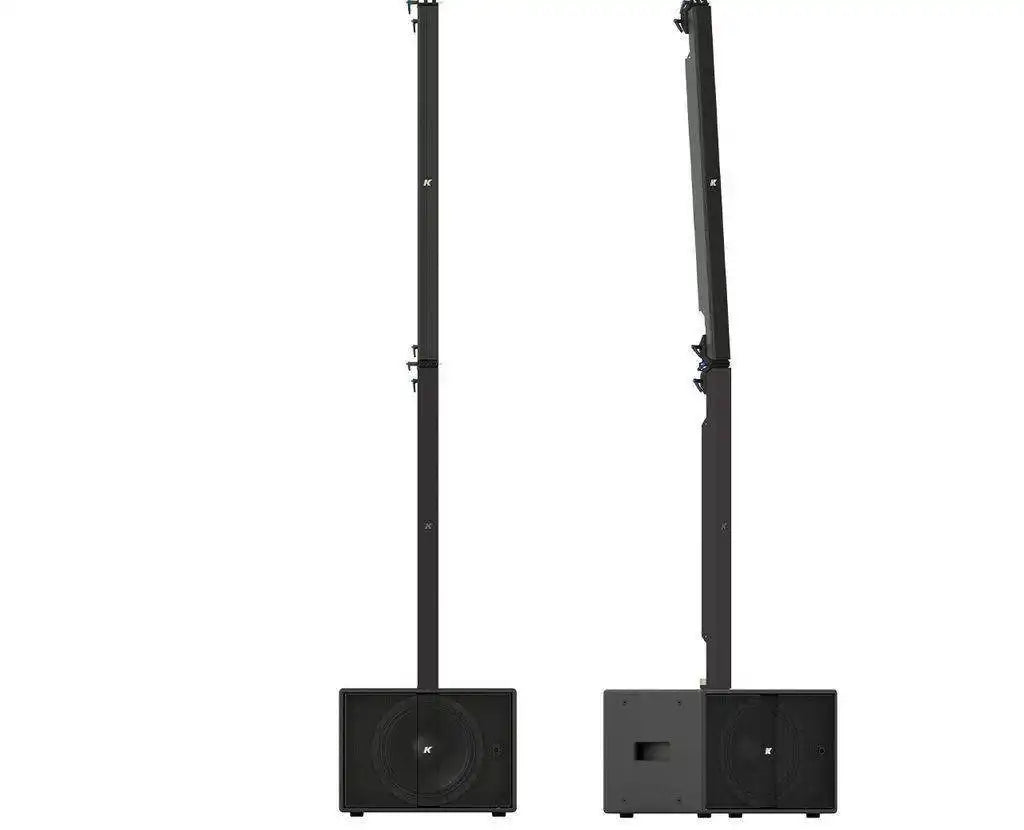

The K-Array Pinnacle KR102 II is a powered stereo column array system built for commercial AV installations and portable sound reinforcement in houses of worship, corporate meeting spaces, and multi-purpose rooms. This complete powered PA package pairs one self-powered Thunder KS1 I 12-inch DSP subwoofer and one passive Thunder KS1P I subwoofer with two Kobra KK102 I line array column loudspeakers and the mounting hardware needed for fast deployment. As a portable line array column speaker system with onboard amplification and processing, it removes the need for external racks, making commercial deployment fast for integrators and end users alike. Its slim stainless steel columns deliver intelligible, full-range coverage while staying visually discreet in architecturally sensitive spaces.

Product Description

At the heart of the KR102 II is the self-powered Thunder KS1 I subwoofer, which houses a 12-inch neodymium magnet woofer in a polyurea-coated birch plywood enclosure and drives both the Kobra KK102 I column on its top and the second passive column stack built on the Thunder KS1P I subwoofer. Built-in DSP manages crossover, presets, and system tuning, and the K-array Connect mobile app gives operators a straightforward interface for remote control of DSP parameters during setup and live operation. Each Kobra KK102 I column packs sixteen 2-inch neodymium magnet transducers into a one-meter stainless steel chassis, producing true line array behavior with consistent phase response in both the near field and far field. Vertical coverage spans 7 to 35 degrees with 120-degree horizontal dispersion, so the system projects speech and music evenly across seated audiences without exciting reflective ceilings and rear walls. The included poles, adapters, and angle hardware let a single technician assemble the stereo system in minutes, which suits rental inventories, traveling worship teams, and facilities that reconfigure rooms frequently. K-array publishes control plugins for Q-SYS, Crestron, Control4, and other platforms, so the system integrates into managed commercial AV environments rather than operating as an island.

This listing is the black finish; a white version is available as the K-Array Pinnacle KR102W II. Browse the full K-Array collection at Creation Networks for matching subwoofers, line array elements, and accessories.

Key Features

• Complete Powered Stereo Package — The bundle includes one Thunder KS1 I self-powered subwoofer, one Thunder KS1P I passive subwoofer, two Kobra KK102 I column elements, and mounting hardware, so one purchase covers an entire stereo system installation.
• Self-Powered DSP Core — The Thunder KS1 I integrates a Class D amplifier with onboard DSP that powers and processes both column stacks, eliminating external amplifier racks and processors from the commercial deployment.
• K-array Connect App Control — The dedicated mobile app provides a user-friendly interface for remote control of DSP parameters, letting technicians tune the system from the listening position.
• True Line Array Columns — Each Kobra KK102 I uses sixteen closely spaced 2-inch neodymium transducers to deliver phase-coherent coverage and consistent intelligibility from the front row to the back of the room.
• Controlled Coverage Pattern — Vertical dispersion of 7 to 35 degrees and 120-degree horizontal coverage direct energy at the audience and away from reflective surfaces, improving speech clarity in live rooms.
• Discreet Stainless Steel Design — The slim 59 mm wide column profile and durable stainless steel chassis keep the system visually unobtrusive in design-conscious venues and government spaces.
• Fast Tool-Free Assembly — Included extension poles, pole adapters, and angle regulators allow one person to configure the full stereo system without special tools.
• Control System Integration — Published K-array plugins for Q-SYS, Crestron, and Control4 allow the system to be monitored and controlled within managed commercial AV installations.

Typical Applications

• House of worship
• Multi-purpose room
• All-hands room
• Commercial meeting space
• Auditorium
• Government space

Technical Specifications

Frequently Asked Questions

What is included in the K-Array Pinnacle KR102 II system?

The system includes one self-powered Thunder KS1 I 12-inch subwoofer with built-in DSP, one passive Thunder KS1P I 12-inch subwoofer, two Kobra KK102 I line array column loudspeakers, and the mounting hardware required to assemble both stereo column stacks.

Does the KR102 II require external amplifiers or processors?

No. The Thunder KS1 I contains the Class D amplification and DSP for the entire system, driving the column on its own top as well as the passive KS1P I stack, so no external amplifier rack or processor is required for a standard stereo installation.

Can the system integrate with Q-SYS or Crestron control systems?

Yes. K-array publishes control plugins for Q-SYS, Crestron, Crestron Home, and Control4, allowing integrators to bring the system into managed commercial AV environments alongside other room devices.

How is the system controlled during setup and operation?

The K-array Connect mobile app provides remote control of the DSP parameters, including system presets and tuning, so a technician can adjust the system from anywhere in the room.

Is the KR102 II suitable for permanent installation as well as portable use?

Yes. The included poles and hardware support rapid portable deployment, while K-array offers wall brackets, floor bases, and fly hardware for the Kobra KK102 I that support fixed installations in worship, corporate, and government venues.

What warranty applies to this system?

K-array products are covered by the manufacturer's 5-year warranty policy. Creation Networks supports commercial buyers with pre-sale system design assistance and post-sale support throughout the warranty period.

Is a white version available?

Yes. The same system is offered in a white finish as the K-Array Pinnacle KR102W II, which suits bright interiors and architectural installations.
