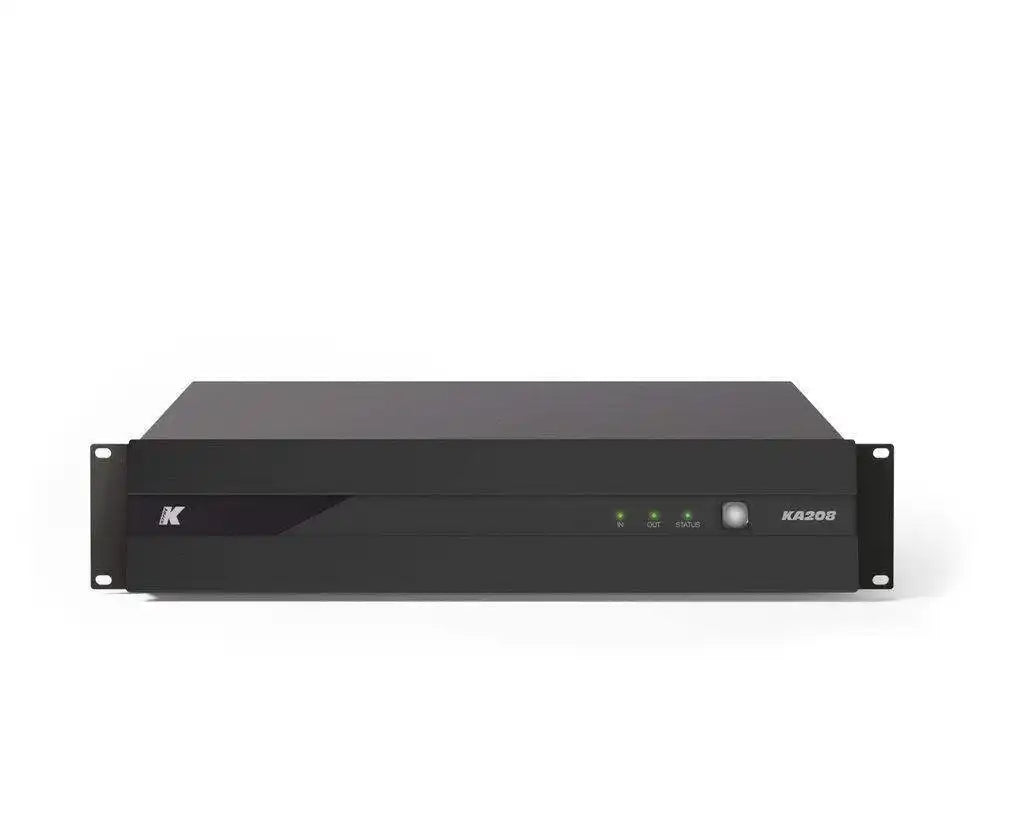

K-Array Kommander KA208LIVE – 8-Channel Touring Amplifier with DSP

Product Overview

The K-Array Kommander KA208LIVE touring amplifier is an 8-channel Class D power amplifier built for rack-mount live event production, delivering 8x2500W at 4 ohms from a single 2U chassis with onboard DSP. As the LIVE variant of the Kommander KA208 platform, it replaces install-style terminal blocks with SpeakON NL4 and CA-COM connectors so touring crews can patch line arrays and subwoofers quickly between shows. With 20,000 watts of total output, integrated loudspeaker presets, and Ethernet and Wi-Fi remote control, this 2U rack amplifier for live events powers complete K-array systems without external processors. It is equally at home in a touring amp rack or a production-grade auditorium installation.

Product Description

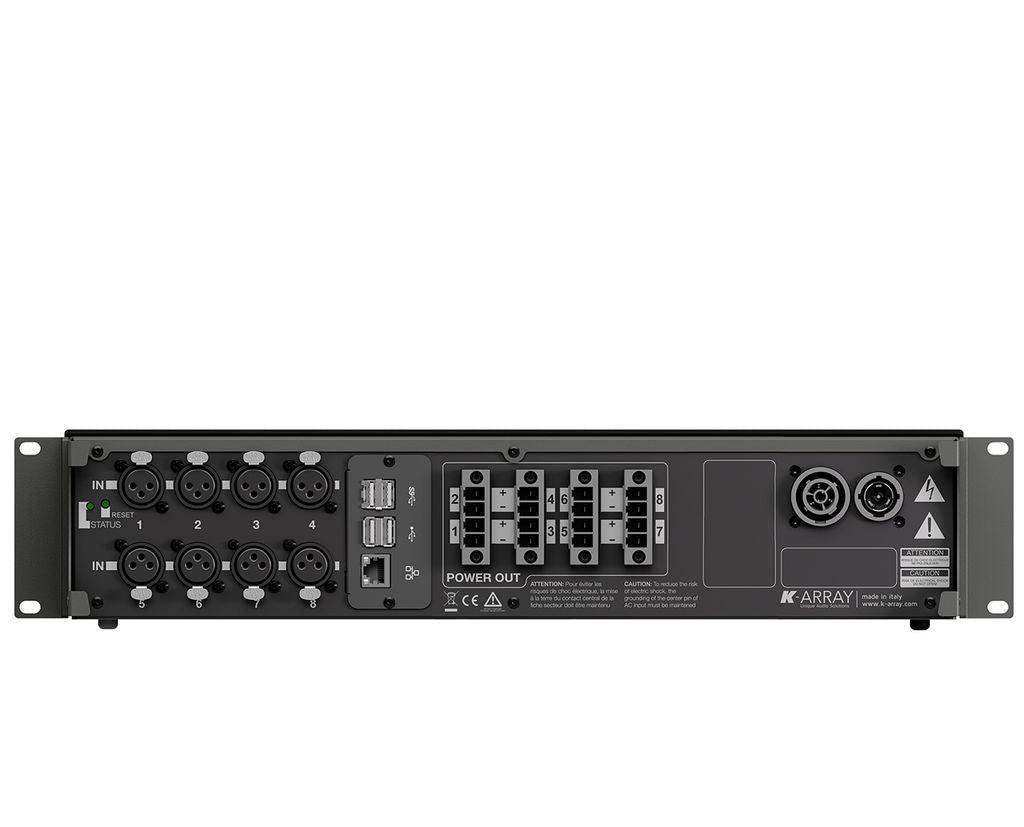

The KA208LIVE pairs eight channels of high-density Class D amplification with a full onboard DSP engine covering grouping, equalization, limiters, signal routing, level control, and factory loudspeaker presets tuned for K-array passive speakers. Eight balanced XLR-F inputs feed a freely assignable routing matrix, while four SpeakON NL4 outputs and two CA-COM multi-channel connectors carry amplified signal to arrays on the deck or in the air. PowerCon TRUE IN and Link connectors let you daisy-chain mains power across multiple amplifiers in a touring rack, and the universal 100-240V power supply with PFC keeps the rig road-ready worldwide.

Remote management runs over Ethernet RJ45 or built-in Wi-Fi: the K-array Connect mobile app handles day-to-day DSP adjustments, while K-framework3 desktop software manages system design, tuning, and monitoring of large multi-amplifier networks over a wired LAN. The stainless steel chassis weighs just 10 kg (22 lb), keeping truck pack and rack weight down on tour. For the fixed-install version of this platform with terminal-block outputs, see the Kommander KA208, or browse the full K-array collection at Creation Networks.

Key Features

• 8x2500W Class D Output — Eight channels deliver 2500 watts each at 4 ohms, providing 20,000 watts of total system power from a single 2U rack space.
• Live Event Connectors — Four SpeakON NL4 outputs and two CA-COM multi-channel connectors enable fast, secure loudspeaker patching during load-in and changeover.
• Onboard DSP Engine — Integrated grouping, equalization, limiters, routing, and level control eliminate the need for an external loudspeaker processor.
• K-array Loudspeaker Presets — Factory presets match the amplifier to K-array passive speakers and subwoofers for accurate, protected system performance.
• Network and Wireless Control — Ethernet RJ45 and IEEE 802.11 b/g/n Wi-Fi support remote operation through the K-array Connect app and K-framework3 software.
• Linkable PowerCon TRUE Power — PowerCon TRUE IN and Link connectors distribute mains power across multiple amplifiers in a touring rack.
• Comprehensive Protection Suite — Thermal, short-circuit, RMS output current, high-frequency, power limiter, and clip limiter protections safeguard the amplifier and connected speakers.
• Lightweight Touring Build — The stainless steel 2U chassis weighs only 10 kg (22 lb), reducing rack weight without sacrificing durability.
• 2-Ohm Tolerant Outputs — A minimum 4-ohm rating with 2-ohm tolerance gives system designers flexibility when paralleling loudspeaker loads.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room
• Broadcast studio

Technical Specifications

How It Compares

Frequently Asked Questions

Which K-array speakers does the KA208LIVE power?

The KA208LIVE includes factory loudspeaker presets for K-array passive products, including Kobra and Python line array elements, Firenze and Mugello touring systems, and Thunder subwoofers. Consult the K-array amp-to-speaker matching table or contact Creation Networks for configuration guidance on your specific system.

What makes the LIVE version different from the standard KA208?

The standard Kommander KA208 uses Phoenix-style terminal block outputs suited to fixed installation. The KA208LIVE substitutes four SpeakON NL4 outputs and two CA-COM connectors for fast, lockable patching in touring and production environments. Amplifier power, DSP, and control features are identical.

How do I install the KA208LIVE in an equipment rack?

The amplifier occupies 2U of standard 19-inch rack space at 430 mm deep and weighs 10 kg. PowerCon TRUE Link output lets you chain mains power to additional Kommander amplifiers in the same rack, simplifying touring rack wiring.

Does the KA208LIVE integrate with AV control systems?

Yes. K-array publishes control plugins for Q-SYS, Crestron, Control4, Symetrix, RTI, and Kramer Control, and the Kommander platform participates in K-array's Dante licensing program through Audinate. Network control runs over the rear Ethernet RJ45 port or built-in Wi-Fi.

What warranty applies to this amplifier?

K-array backs its products with a 5-year manufacturer warranty. Creation Networks is an authorized dealer, so your KA208LIVE purchase is fully covered and supported by our commercial AV team.

Can I run the amplifier at loads below 4 ohms?

The KA208LIVE is rated for a minimum 4-ohm load per channel and is 2-ohm tolerant, giving designers headroom when paralleling K-array loudspeaker loads in larger arrays.
