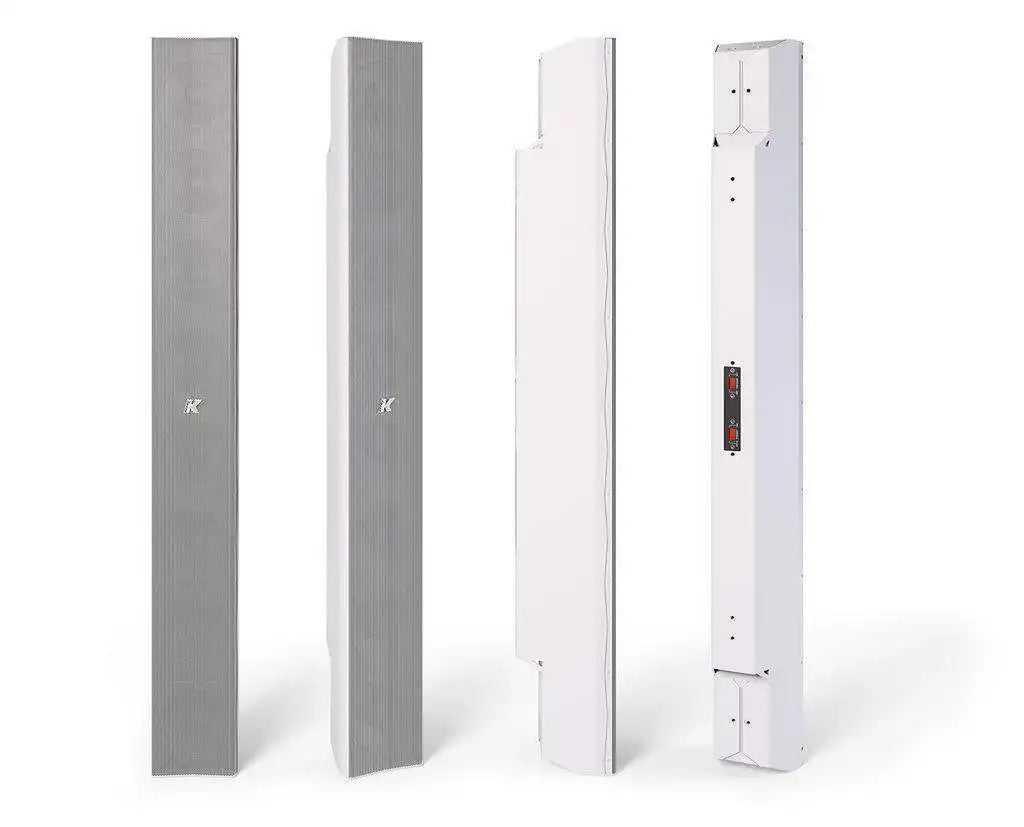

K-Array Kayman KY102W – White Variable Beam Line Array

Product Overview

The K-Array Kayman KY102W is a white variable beam line array element built for commercial AV installations where high output must blend into light-toned architecture. This stainless steel column line array houses eight 4-inch neodymium woofers in a one-meter enclosure, delivering up to 138 dB peak SPL with adjustable 7°–30° vertical by 90° horizontal coverage. Its IP64 rating qualifies it as an outdoor-rated column speaker for auditoriums, houses of worship, and government facilities with white or bright interior finishes. This is the white finish; the same element is available as the Kayman KY102 in black.

Product Description

The KY102W is the white-finish version of the most powerful column in K-Array's slim line array portfolio, specified when integrators need maximum output, premium sound quality, and a visually quiet profile against white walls, columns, or proscenium surfaces. Eight closely spaced 4-inch neodymium magnet woofers behave as a true line source with 120 Hz – 20 kHz response, and a full-range preset extends response to 70 Hz – 20 kHz where the system must run without external subwoofers. Variable beam control lets installers set vertical coverage anywhere between 7° and 30° to match throw distance and seating depth, while selectable 8-ohm or 32-ohm impedance simplifies loading multiple elements on shared amplifier channels. SpeakON NL4 connectors provide signal in and loop-through wiring for vertical and horizontal array configurations built with K-Array rigging accessories — connecting hardware is sold separately so each project specifies exactly the wall, pole, fly, or coupling hardware it needs. The stainless steel enclosure is rated IP64, upgradeable to IP65 with sealing accessories, so the white finish holds up in outdoor and humid installations as well as conditioned interiors. K-Array recommends Kommander amplification with dedicated KY102 presets, paired with Thunder or Rumble subwoofers for music-forward systems.

Key Features

• White Architectural Finish — The factory white enclosure disappears against light interiors, with custom RAL options available for exact color matching.
• Variable Beam Vertical Coverage — Adjustable 7°–30° vertical dispersion lets installers match the beam to throw distance and seating depth without DSP-based steering.
• 138 dB Peak Output — The most powerful Kayman column provides ample headroom for demanding speech and music reinforcement from a slim one-meter element.
• Eight 4-Inch Neodymium Woofers — Closely spaced drivers create true line source behavior with consistent 90° horizontal coverage across the audience.
• Full-Range Preset — An optional preset extends response to 70 Hz – 20 kHz, enabling subwoofer-free systems where program demands are moderate.
• Selectable 8/32-Ohm Impedance — Switchable impedance simplifies loading multiple elements on shared amplifier channels in larger arrays.
• SpeakON NL4 In and Through — Loop-through wiring supports clean daisy-chained vertical or horizontal line array configurations.
• IP64 Stainless Steel Enclosure — Outdoor-rated construction, upgradeable to IP65 with sealing accessories, suits exterior and humid installations.
• Complete Rigging Ecosystem — Dedicated K-Array hardware (sold separately) supports flying, wall mounting, pole mounting, and side-by-side coupling.

Typical Applications

• Auditoriums with white or light-toned interiors requiring high-output, low-profile line arrays
• House of worship sanctuaries needing intelligible, visually discreet reinforcement for speech and music
• Government spaces such as chambers and assembly halls with strict aesthetic requirements
• Multi-purpose rooms and all-hands rooms hosting varied speech and program events
• Commercial meeting spaces, including outdoor or semi-outdoor venues, leveraging the IP64 rating

Technical Specifications

Frequently Asked Questions

What amplifier should power the Kayman KY102W?

The KY102W is passive with 1200 W rated power and selectable 8/32-ohm impedance. K-Array recommends Kommander amplifiers, which carry factory presets — including the full-range preset — tuned for the element, but any professional amplifier with appropriate power and DSP can drive it.

Is connecting and rigging hardware included?

No. Connecting hardware is sold separately so each project can specify the correct K-Array accessories — wall brackets, pole mounts, fly bars, joining hardware, or side-by-side couplers. White-finish bracket versions are available to match the enclosure, and Creation Networks can help build the right rigging package for your design.

Can the KY102W be installed outdoors?

Yes. The stainless steel enclosure is rated IP64 for outdoor installation and can be upgraded to IP65 with K-Array's connector sealing accessories for fully exposed locations.

Does the KY102W need a subwoofer?

For speech and moderate program material, the full-range preset extends response to 70 Hz without a subwoofer. For music-forward systems, K-Array recommends pairing with Thunder or Rumble subwoofers for low-frequency extension.

How does it integrate into a commercial AV system?

Driven by K-Array Kommander electronics, the system gains control integration with Q-SYS, Crestron, and other platforms, plus Dante networking on supported amplifiers, fitting standard commercial AV integration practice.

What warranty applies to this product?

K-Array provides a 5-year manufacturer warranty, supported by Creation Networks as an authorized dealer. Browse the full range in our K-Array collection.
