K-Array Dragon KX12 – 12" Coaxial Point Source Speaker

Product Overview

The K-Array Dragon KX12 coaxial speaker is a compact 12-inch point source loudspeaker built for auditoriums, houses of worship, and fixed commercial installations that demand high output from a small, discreet enclosure. As a 12 inch coaxial point source loudspeaker and passive line array element, the KX12 works as a standalone box for front fill or main coverage, or joins with additional units to form scalable, directional arrays. Its stainless steel construction and adjustable-horn variable dispersion make it a strong choice for installed sound reinforcement where coverage must be tailored to the room. Integrators specifying a variable dispersion installation speaker get concert-level SPL in a 13.4-inch-wide cabinet.

Product Description

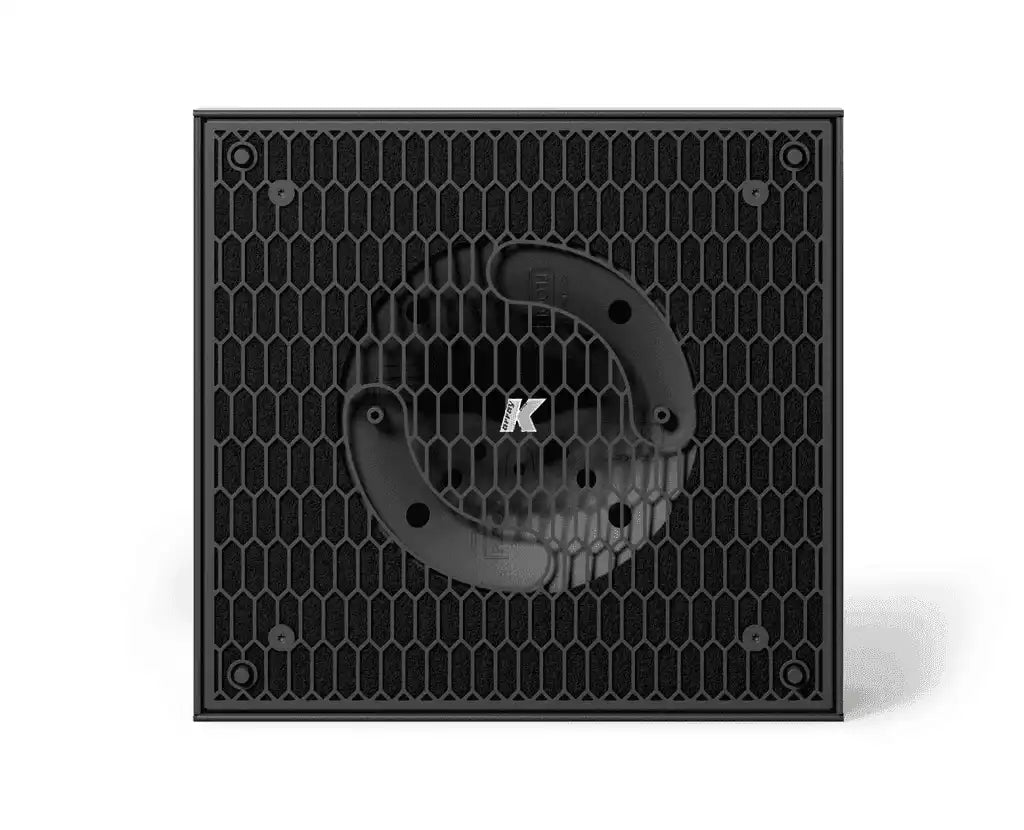

At the heart of the Dragon KX12 is a coaxial 12-inch woofer paired with a compression driver, delivering horn-loaded performance from 120 Hz to 18 kHz with a peak SPL of 133 dB. The rotatable horn provides user-adjustable dispersion, so a single model adapts to wide near-field coverage or tight long-throw patterns simply by reorienting the waveguide. In its current Mark I version, the KX12 supports software control and integrates K-Array's EBS (Electronic Beam Steering) technology, enabling directional and shapeable arrays when multiple cabinets are deployed together.

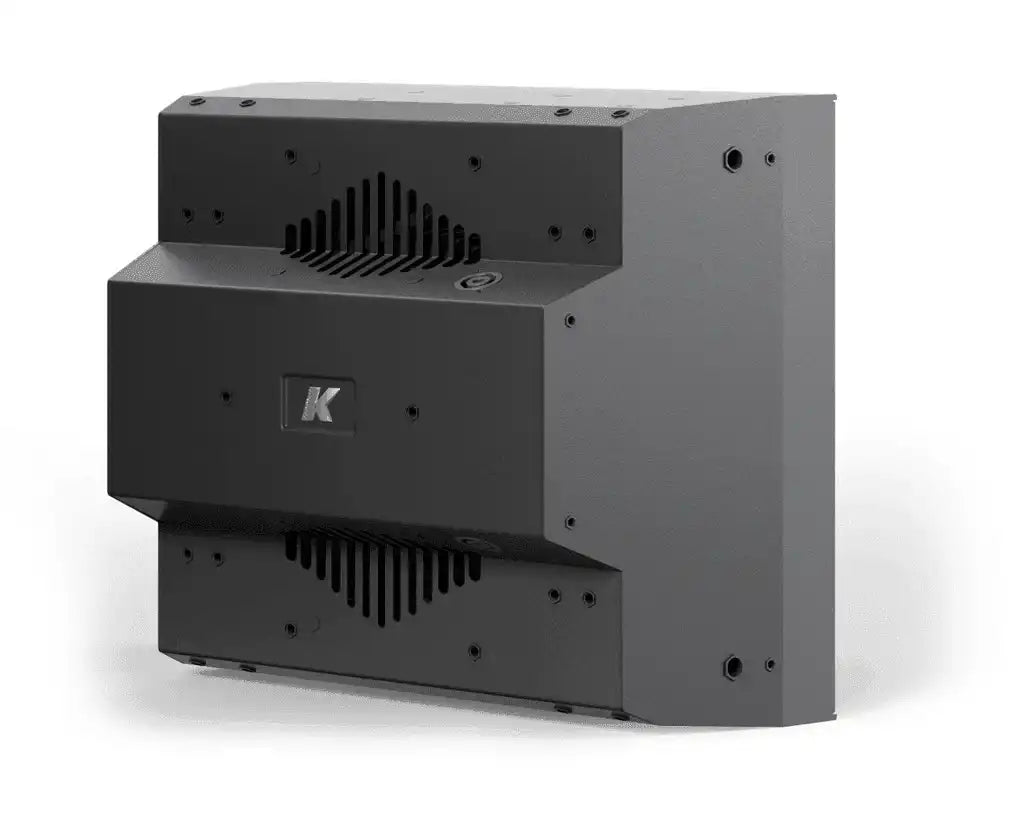

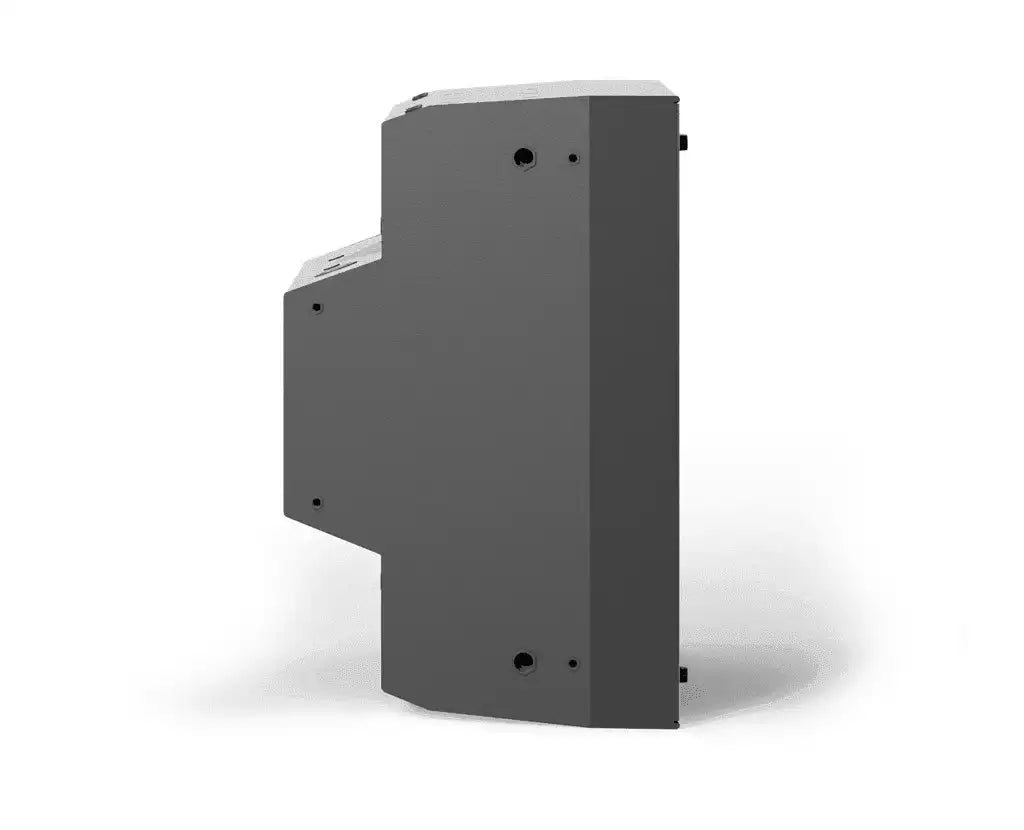

The rugged IP54-rated stainless steel enclosure measures 340 x 320 x 201 mm and weighs 12.2 kg, making single-person installation practical while withstanding demanding indoor and covered outdoor environments. Dual SpeakOn NL4 connectors with signal pass-through simplify wiring in distributed and arrayed configurations, and the 8-ohm passive design pairs with K-Array amplification carrying dedicated loudspeaker presets. A deep accessory ecosystem, including the K-UBRACKETKX12 U-bracket for wall and ceiling mounting, the K-FLYKX12 fly bar, K-JOINTKX12 array joints, and K-WALL2 series brackets, covers flying, stacking, wall, ceiling, and pole deployments. For bass extension, the KX12 is compatible with K-Array Thunder subwoofers. Explore companion products in the K-Array collection at Creation Networks.

Key Features

• Coaxial 12" Point Source Design — A coaxial 12-inch woofer with compression driver produces coherent, phase-aligned output from a single acoustic center for accurate imaging across the coverage area.
• 133 dB Peak SPL — The KX12 reaches concert-level output, providing generous headroom for speech and full-range music in medium and large venues.
• Adjustable Variable Dispersion Horn — The rotatable horn lets installers reorient the dispersion pattern on site, matching coverage to room geometry without changing models.
• Point Source or Array Deployment — Dedicated joining hardware allows the same cabinet to operate standalone or combine into directional line arrays for scalable coverage.
• EBS Beam Steering Support — In its Mark I version, the KX12 supports software control and Electronic Beam Steering for shapeable array coverage in acoustically challenging rooms.
• IP54 Stainless Steel Enclosure — The weather-resistant stainless steel cabinet handles humid, coastal, and covered outdoor installations that would degrade conventional wood enclosures.
• Compact, Installation-Friendly Format — At 340 x 320 x 201 mm and 12.2 kg, the cabinet rigs quickly and stays visually discreet against walls and ceilings.
• Comprehensive Rigging Ecosystem — Factory accessories including the K-UBRACKETKX12 U-bracket, K-FLYKX12 fly bar, and K-JOINTKX12 joints support flown, stacked, wall, ceiling, and pole-mounted deployments.
• Thunder Subwoofer Compatibility — The KX12 pairs with K-Array Thunder subwoofers to extend system response below its 120 Hz cutoff for full-range program material.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

Can the Dragon KX12 be used as a standalone speaker or only in arrays?

Both. The KX12 performs as a standalone point source for front fill, monitoring, or main coverage, and dedicated K-JOINTKX12 hardware lets multiple cabinets combine into directional line arrays.

What amplifier should drive the KX12?

The KX12 is a passive 8-ohm loudspeaker designed to be driven by K-Array amplifiers loaded with the dedicated loudspeaker preset, which ensures correct equalization and protection limiting.

How is the variable dispersion adjusted?

The horn is rotatable and user-adjustable, allowing the installer to orient the dispersion pattern for wide coverage or longer throw based on room geometry, without swapping hardware.

Is the KX12 suitable for outdoor or high-humidity installations?

Yes, within reason. The stainless steel enclosure carries an IP54 rating, and K-Array offers weatherproofing accessories such as the K-IP65KITA and K-IP65KITB caps for NL4 connectors in exposed locations.

What mounting options are available for fixed installation?

K-Array offers the K-UBRACKETKX12 U-bracket for wall and ceiling mounting, the K-WALL2 bracket family, the K-FLYKX12 fly bar with bumper for suspended arrays, and K-KCLAMP truss hardware.

Which subwoofers pair with the Dragon KX12?

The KX12 is compatible with K-Array Thunder subwoofers, which extend system response below the cabinet's 120 Hz low-frequency limit for full-range music reproduction.

What warranty applies to this loudspeaker?

K-Array backs its products with a published 5-year warranty policy, and Creation Networks provides commercial AV support throughout specification, purchase, and installation.
