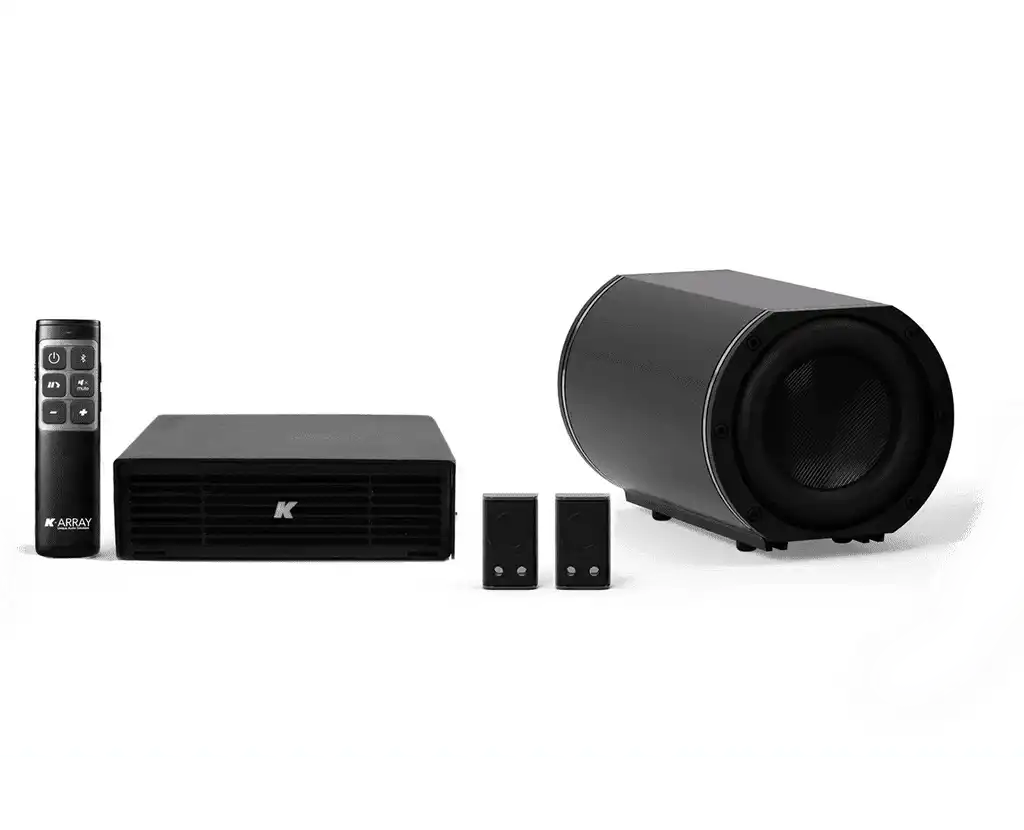

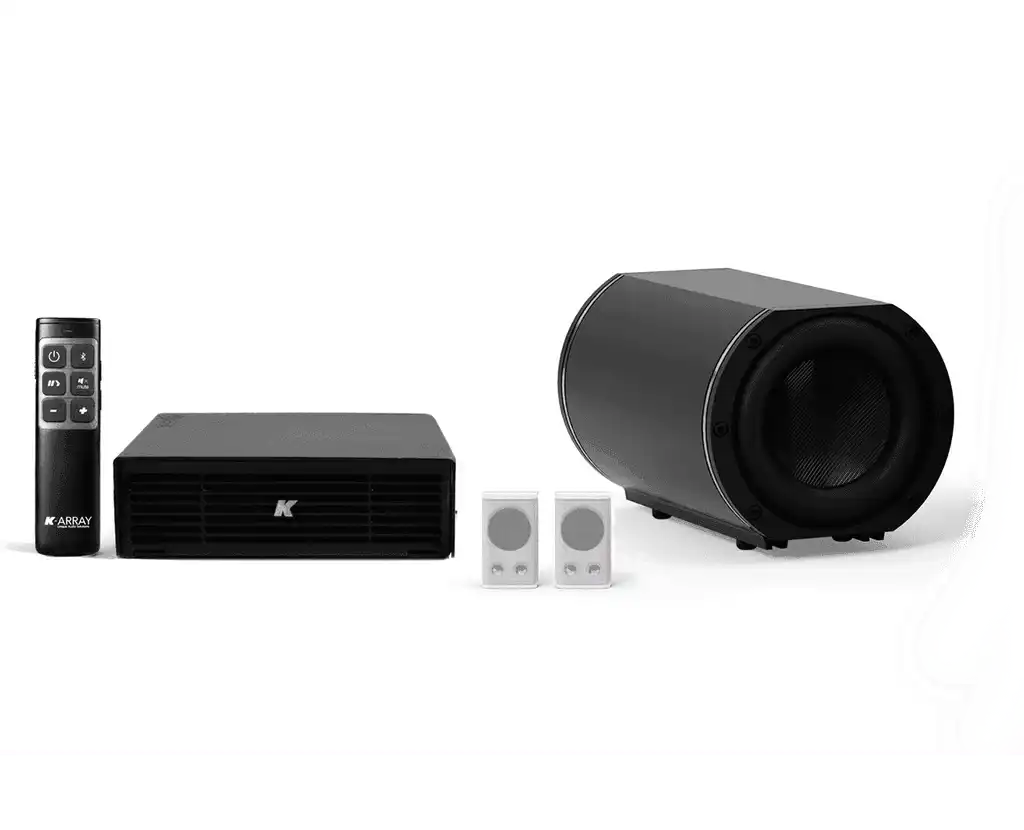

K-Array Azimut-KAMUT2L , Professional sound system composed of 2 KZ14-AZ + 1 KU44-2 + 1 KA02 + 1 K-REMUCTRL

GENERAL

• Type:

  Point source

• Transducers:

  0.5" neodymium magnet woofer

• Frequency Response:

  500 Hz – 18 kHz (-6 dB)

   ⁽¹⁾

• Max SPL:

  86 dB (peak)

   ⁽²⁾

• Rated Power:

  3.5 W

• Coverage:

  V. 140° | H. 140°

• Connectors:

  IN+ IN- screw terminals

• Nominal Impedance:

  16 Ω

HANDLING AND FINISHES

• Dimensions (W x H x D):

  22 x 37 x 11 mm (0.9 x 1.5 x 0.4 in)

• Weight:

  0.021 kg (0.046 lb)

• Material:

  Aluminum

• Colors:

  Black, White, Custom RAL

• Finishes:

  24K Gold, Polished

REGULATIONS

• IP Rating:

  IP64

• (1) With dedicated preset.
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.

GENERAL

• Type:

  Passive subwoofer

• Transducers:

  4" woofer + passive radiator

• Frequency Response:

  45 Hz - 150 / 500 Hz (-6 dB)


   ⁽¹⁾

• Max SPL:

  112 dB (peak)

   ⁽²⁾

• Rated Power:

  60 W

• Coverage:

  Omni

• Connectors:

  2PIN euroblock connector (included)

• Nominal Impedance:

  4 Ω

HANDLING AND FINISHES

• Dimensions (W x H x D):

  122 x 117 x 199 mm (4.8 x 4.6 x 7.8 in)

• Weight:

  1.5 kg (3.31 lb)

• Material:

  Aluminum

• Colors:

  Black

• Finishes:

  Powder Matte

REGULATIONS

• IP Rating:

  IP64

• (1) With dedicated preset
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.

GENERAL

• Type:

  4ch switching mode, Class D Amplifier

• Output Power:

  4x 50W @ 4Ω

   ⁽¹⁾

• Impedance:

  minimum 4 Ω (2 Ω PBTL)

• Frequency Response:

  20 Hz - 20 kHz (±1 dB)

• Connections:

  3.5 mm jack unBAL analog stereo input,
  2x BAL input: Phoenix MC 1.5/ 3-ST-3.81,
  TOSLINK optical input,
  4x user selectable GPIO,
  4x USB-A 2.0,
  1x RJ45 Ethernet,
  Bluetooth 4.1 Low Energy
  Wi-Fi IEEE 802.11 b/g/n

• Built-in DSP:

  Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets

• Remote Control:

  Wi-Fi and Ethernet dedicated APP and Desktop software

POWER HANDLING

• Protections:

  Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter.

• MAIN Operating Range:

  Dedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

• Power Consumption:

  20 W @ 4 Ω load, 1/8 Rated Power (Pink Noise)

HANDLING AND FINISHES

• Colors:

  Black

• Material:

  Aluminum

• Dimensions (W x H x D):

  144 x 46 x 144 mm (5.7 x 1.8 x 5.7 in)

• IP Rating:

  0.5 kg (1.1 lb)

REGULATIONS

• IP Rating:

  IP20

• (1) CTA-2006 Standard single channel driven

• New materials and design are introduced into existing products without previous notice.

• Present systems may differ in some respects from those presented in this catalogue.
