Jupiter Systems Pana 81 21:9 Ultra-Wide 81" 5K Commercial Touchscreen LCD Display

Availability: Call for Availability
Availability: Direct Ship
Jupiter Systems SKU: PANA81T
No reviews

Description

 

When it comes to enterprise-level display solutions, the Pana 81 21:9 Ultra-Wide 81" 5K Commercial Touchscreen LCD Display from Jupiter Systems delivers exceptional quality at a size that can significantly impact sales and productivity. The wide 21:9 aspect ratio coupled with the huge 81" display, equates to a screen area you can measure in feet. In a landscape orientation within government or corporate conference rooms, remote video of participants and presentation material can be more easily viewed simultaneously. In customer-facing spaces, marketing can display eye-catching visuals and full-length ads in portrait orientation. Everything displayed looks brilliant with 5K60 HDR support and local dimming, and easily viewable with a 178° viewing angle and anti-glare treatment.

 Microsoft Teams The 21:9 wide aspect ratio and 81" display size are ideal for a Microsoft Teams Signature meeting configuration and can optimize Front Row mode for maximum immersion and interaction during meetings. Power Your Presentation With a USB-C output capable of providing up to 65W of power, the PANA81D allows you to connect and operate a laptop PC or other devices to deliver presentations or give the display access to streaming content. SimpleShare Works with SimpleShare, a software platform tailored to a screen of this size and aspect ratio, offering one-touch launching of video conference meetings, presentation software, screen capture, and more. Additional Features
  • 5K60 5120 x 2160 IPS LCD Panel
  • Touchscreen Enabled
  • 21:9 Wide Aspect Ratio
  • 178° Anti-Glare Viewing Angle
  • Local Dimming
  • Microsoft Teams Signature Compatible
  • 1 x 65W USB-C Output
  • 1 x HDMI 2.0 & 1 x DisplayPort 1.4 Input
  • 4 x USB-A 2.0 Inputs

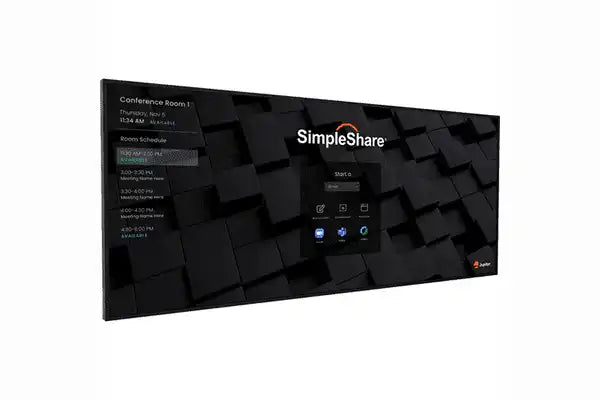

  • Works with SimpleShare Software Platform
  • Dual 15W Speakers Built-In

Jupiter Systems PANA 81 Specs

 Display
Size 81"
Panel Type IPS-Type LCD
Aspect Ratio 21:9
Display Orientation Landscape, Portrait
Resolution 5120 x 2160
Maximum Brightness 650 nits / cd/m2
HDR Compatibility HDR10
Contrast Ratio 4000:1
Response Time 8 ms
Refresh Rate 60 Hz
Viewing Angle (H x V) 178 x 178°
Screen Area 75.6 x 32.7" / 192.0 x 83.1 cm
Pixels Per Inch (ppi) 69 ppi
Finish Anti-Glare / Matte
Video
TV Tuner No
Connectivity
Inputs 1 x HDMI (2.0)
1 x DisplayPort (1.4)
1 x TOSLINK Optical
Outputs 1 x DisplayPort (DisplayPort 1.4)
1 x 1/8" / 3.5 mm (Analog Audio)
HDCP Support Yes, Version 2.2
Wi-Fi None
Bluetooth None
USB Ports 1 x USB-C Unspecified Version (Power)
4 x USB-A 2.0
Ethernet Ports 1 x RJ45 (Unspecified Ethernet)
Other I/O 1 x DE-9/DB-9 Serial (RS-232C) Control
Number of OPS/Expansion Slots 1
Speaker
Built-In Speakers Yes, 2 x 15 W
Hardware
Mobile App Compatible No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Media Card Reader None
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Electrical
Power Consumption Typical: 302.0 W
Maximum: 500.0 W
Standby: 0.5 W
Packaging Info
Package Weight 107 lb
Box Dimensions (LxWxH) 84 x 40 x 10"
