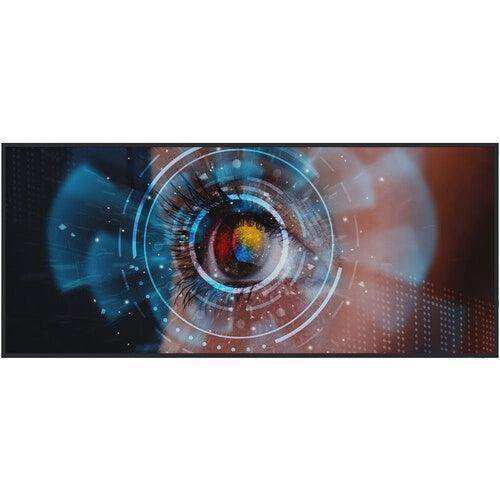

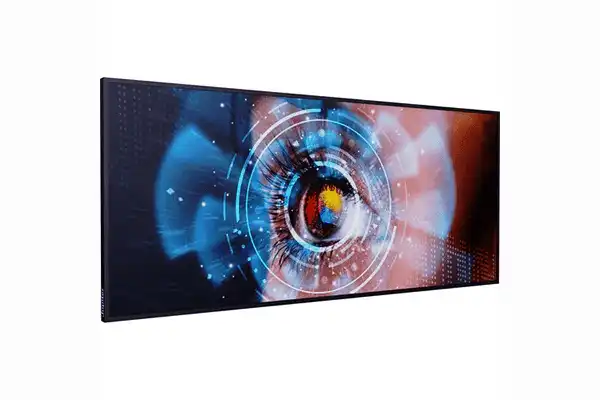

Jupiter Pana 81 – 81" 5K 21:9 Ultrawide Commercial LCD Display

Product Overview

The Jupiter Pana 81 is an 81-inch ultrawide commercial display offering native 5K resolution (5120×2160) in a 21:9 aspect ratio designed for commercial meeting rooms, boardrooms, and training environments. It is the only commercially available 81-inch 21:9 ultrawide LCD display on the market, providing a compact ultrawide display installation profile that fits in spaces where conventional large-format 16:9 panels are too tall. This 21:9 5K ultrawide LCD display delivers 700 nits of brightness, 10,000:1 contrast, and a rated 50,000-hour panel lifetime for reliable commercial-grade operation. For AV integrators specifying a 5K ultrawide commercial monitor for meeting rooms, the Pana 81 offers the connectivity breadth and commercial construction required for permanent installation.

Product Description

The Jupiter Pana 81 addresses a consistent gap in the commercial display market: the need for a wide-format display that fits the horizontal real estate of a conference table without the vertical height penalty of a 16:9 panel. At 75.6 inches wide and 32.7 inches tall, the Pana 81 presents content across a natural landscape without dominating the wall in rooms with 8- or 9-foot ceilings.

The 5K native panel renders over 11 million pixels, supporting multiple simultaneous content windows — two standard 1080p streams side-by-side, a full 4K stream alongside supporting content, or a single expansive canvas for visualization and data work. The 21:9 5K ultrawide LCD display format is particularly effective for collaborative review, training content, and executive presentation contexts where showing multiple content sources without windowing is a priority.

At 700 nits with local dimming, the Pana 81 maintains image integrity in high-ambient-light conference rooms. The 10,000:1 contrast ratio produces clean blacks and well-separated midtones even in rooms with mixed lighting. The 8ms response time and 178° viewing angle ensure consistent viewing quality for participants seated at varying distances and angles around a conference table.

Built-in 2×15W stereo speakers and S/PDIF optical output cover basic audio requirements for smaller rooms without requiring a separate audio system. For rooms with AV infrastructure, RS232 and Ethernet ports support integration with Crestron, AMX, Extron, and similar control platforms. The optional OPS slot accepts the Jupiter Pana OPS Module for all-in-one deployment.

Key Features

• Only 81" Commercial Ultrawide LCD — No other manufacturer produces an 81-inch 21:9 commercial display, making this the sole option for this screen category.
• Native 5K Resolution — 5120×2160 panel renders over 11 million pixels for sharp, detailed display of multiple content sources side by side.
• Compact Ultrawide Profile — At 32.7 inches tall, the 21:9 format fits in standard conference rooms where a 16:9 display of comparable diagonal would exceed ceiling clearance.
• 700 Nits with Local Dimming — Commercial-grade brightness sustains image quality in high-ambient-light meeting environments.
• USB-C with 65W Power Delivery — Single-cable BYOD connection handles video and laptop charging without adapters or additional power supplies.
• DisplayPort 1.4 with MST — Multi-Stream Transport supports daisy-chaining additional displays from a single DisplayPort output.
• RS232 and Ethernet Control — Supports integration with commercial control systems from Crestron, AMX, Extron, and similar platforms.
• Optional OPS Slot — Accepts the Jupiter Pana OPS Module for all-in-one operation without external PC hardware.
• Built-In Stereo Speakers — 2×15W speakers and S/PDIF optical output cover room audio requirements in smaller spaces without a separate audio system.
• 50,000+ Hour Rated Lifetime — Commercial panel construction rated for extended daily operation in permanent installation environments.

Typical Applications

• Conference rooms and boardrooms requiring a huddle room ultrawide display commercial solution
• Corporate training rooms displaying multiple content streams simultaneously
• Executive meeting spaces with side-by-side document review
• Digital signage deployments requiring high-resolution ultrawide format
• Commercial meeting spaces replacing dual-display or projection setups
• AV integration projects specifying compact ultrawide display installation

Technical Specifications

Frequently Asked Questions

How does the Pana 81 differ from the Pana 81T?

The Pana 81 (SKU: PANA81D) is the non-touch model. It shares the same 5K 21:9 panel, brightness, connectivity, and OPS slot as the Pana 81T (SKU: PANA81T), but does not include the 20-point capacitive touch overlay or edge-to-edge frameless glass. The Pana 81 is the appropriate choice for applications where touch interaction is not required, such as digital signage, passive presentation displays, or rooms where a separate touch device handles interaction.

What sources are compatible with the Pana 81?

The Pana 81 accepts input via DisplayPort 1.4, HDMI 2.0, and USB-C. It is compatible with any source capable of outputting 5K 21:9 (5120×2160) or any standard resolution scaled to the panel. Standard 4K, 1080p, and other resolutions display correctly with appropriate scaling. HDCP 2.2 support is included for content-protected sources.

What control system protocols does the Pana 81 support?

RS232 and Ethernet ports are available for third-party control system integration. This supports platforms including Crestron, AMX, Extron, Q-SYS, and other systems with RS232 or IP-based control capability. Contact Creation Networks for control driver availability for your specific platform.

Can the Pana 81 be used for digital signage applications?

Yes. The 5K 21:9 format is well-suited for commercial digital signage where the ultrawide canvas provides differentiated visual impact in lobbies, retail environments, and public-facing installations. With the optional OPS module installed, the display runs a Windows-based signage player without external hardware.

What mounting hardware is needed?

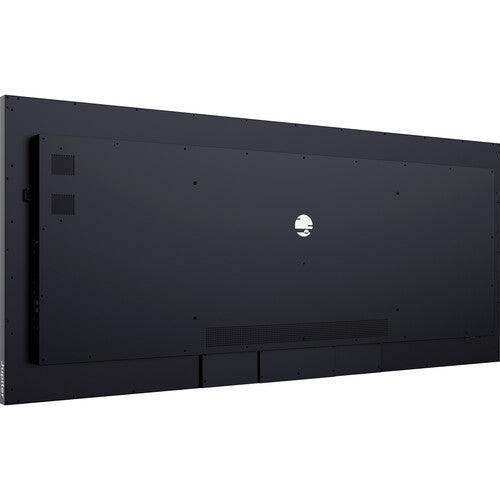

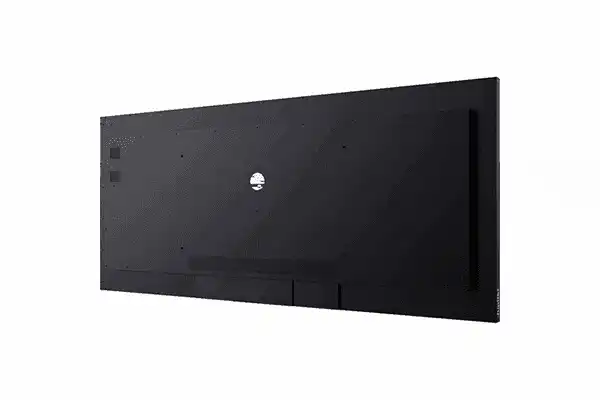

The Pana 81 uses a 800×400mm VESA mount pattern and weighs 77 lbs. A commercially rated VESA 800×400 wall mount rated for the display weight is required. Given the 75.6-inch width, installers should verify wall framing and use a mount designed for large-format commercial displays. Creation Networks can assist with mounting solution selection.

Is the OPS slot mandatory or optional?

The OPS slot is optional. The Pana 81 operates fully as a display without any module installed. The OPS slot is populated only when a self-contained all-in-one deployment is desired. The Jupiter Pana OPS Module (sold separately, SKU: OPS) installs directly into the slot with no external cabling.

What warranty and support terms apply?

Warranty is provided by Jupiter Systems. Contact Creation Networks at creationnetworks.net for current warranty terms, authorized service options, and extended coverage availability for commercial installations.
