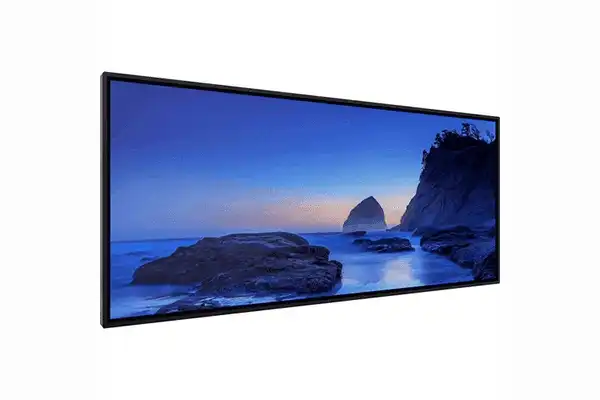

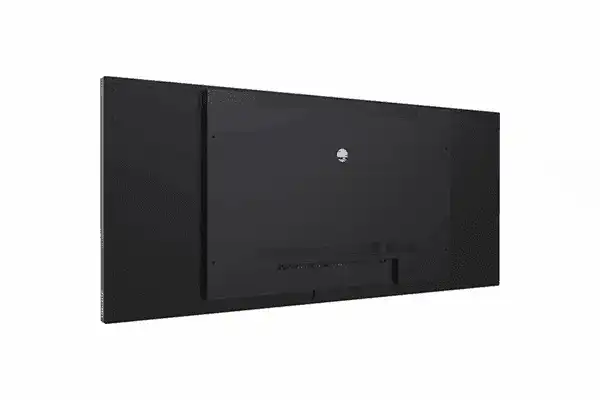

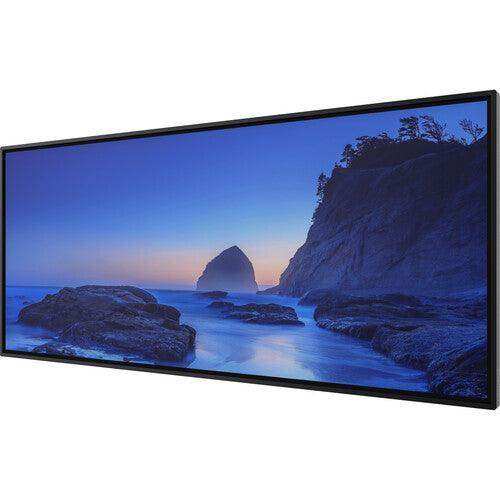

Jupiter Systems Pana 105 21:9 105" 5K Ultra-Wide Commercial Touchscreen LCD Display

Jupiter Systems SKU: PANA105T
No reviews

Description

Pana 105's 21:9 ultra-wide 5K resolution offers a modern feature to the traditional display industry. Our 8-foot wide Pana 105 screen maximizes team efficiency, encouraging collaboration and interaction within the workspace.

Enterprises and industrial companies seeking to utilize visualization technology for their own merit have reacted enthusiastically to the 21:9 format of the Pana 105. CIOs have found that this format has allowed them to outshine their competitors, secure new clients and draw in top talent, making it a popular choice for all parties.

Lightweight and maneuverable, the Pana is ideal for retrofits as all sizes fit into a commercial service elevator and can be mounted using standard industry hardware without reinforced concrete or steel backing. Pana’s lower infrastructure costs equates to a lower cost of ownership as a result of easy retrofit, reduced energy consumption and affordable price point. All Pana displays are Energy Star certified.

21:9 Panoramic
The extra wide form by our natural human ability to see wider than we see taller.

5K Resolution
Pana provides 33% more pixels with 5K resolution giving the user more real estate in which to work.

Interactive User Experience
Touch enables the expectation for interactive autonomy, speed and ease-of-use. Pana interactive displays are touch driven by multiple, simultaneous collaborators.

Built for Human Interaction
More pertinent information gets placed in our visual sweet spot increasing our comprehension and productivity. And all the pixels are placed where everyone on the team can reach them preserving our dignity among our peers of not having to overreach or bend over to interact with the display.

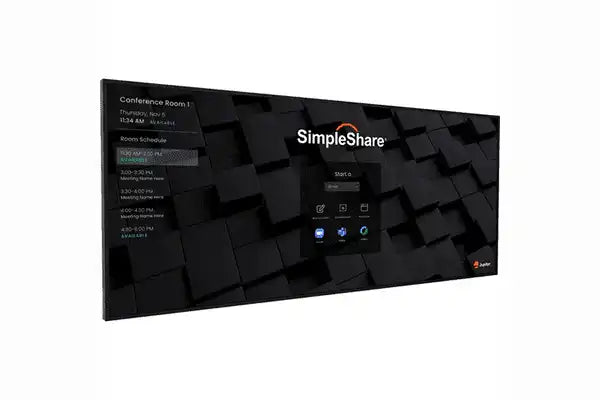

Interactivity through SimpleShare® Jupiter’s proprietary SimpleShare software enables intuitive interaction optimized for Pana displays. The platform provides quick and easy access to your daily workflow.

collaboration and critical
data visualization

HDR certified.
Crystal clear 5K LCD display

Touch Enablded
USB-C hub with charging
Portrait or landscape
Direct-bonding touch for Pana 105
Metal-mesh capacitive for Pana 81
SimpleShare® collaboration software enabled

Data Sheet

  • 21:9 Panoramic The extra wide form factor is inspired by our natural human ability to see wider than we see taller.
  • 5K Resolution Pana provides 33% more pixels with 5K resolution giving the user more real estate in which to work.
  • Interactive User Experience Touch enables the expectation for interactive autonomy, speed and ease-of-use. Pana interactive displays are touch driven by multiple, simultaneous collaborators.
  • Built for Human Interaction More pertinent information gets placed in our visual sweet spot increasing our comprehension and productivity. And all the pixels are placed where everyone on the team can reach them preserving our dignity among our peers of not having to overreach or bend over to interact with the display.
  • Interactivity through SimpleShare® Jupiter’s proprietary SimpleShare software enables intuitive interaction optimized for Pana displays. The platform provides quick and easy access to your daily workflow.
Display
Size 105"
Panel Type IPS-Type LCD
Aspect Ratio 21:9
Display Orientation Landscape, Portrait
Resolution 5120 x 2160
Maximum Brightness 650 nits / cd/m2
HDR Compatibility HDR10
Contrast Ratio 4000:1
Response Time 8 ms
Refresh Rate 60 Hz
Viewing Angle (H x V) 178 x 178°
Screen Area 96 x 40.8" / 243.8 x 103.6 cm
Pixels Per Inch (ppi) 53 ppi
Finish Anti-Glare / Matte
Video
TV Tuner No
Connectivity
Inputs 1 x HDMI (2.0)
1 x DisplayPort (1.4)
1 x TOSLINK Optical
Outputs 1 x DisplayPort (DisplayPort 1.4)
1 x 1/8" / 3.5 mm (Analog Audio)
HDCP Support Yes, Version 2.2
Wi-Fi None
Bluetooth None
USB Ports 1 x USB-C Unspecified Version (Power)
4 x USB-A 2.0
Ethernet Ports 1 x RJ45 (Unspecified Ethernet)
Other I/O 1 x DE-9/DB-9 Serial (RS-232C) Control
Number of OPS/Expansion Slots 1
Speaker
Built-In Speakers Yes, 2 x 15 W
Hardware
Mobile App Compatible No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Media Card Reader None
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Electrical
Power Consumption Typical: 312.0 W
Maximum: 600.0 W
Standby: 0.5 W
Packaging Info
Package Weight 191.25 lb
Box Dimensions (LxWxH) 106 x 55.5 x 13"
