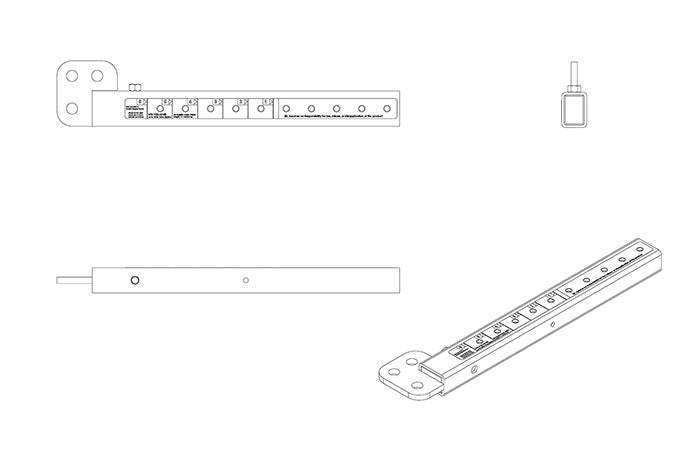

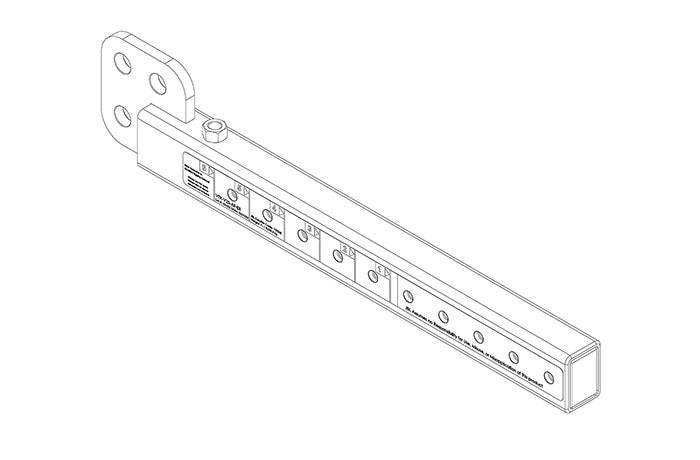

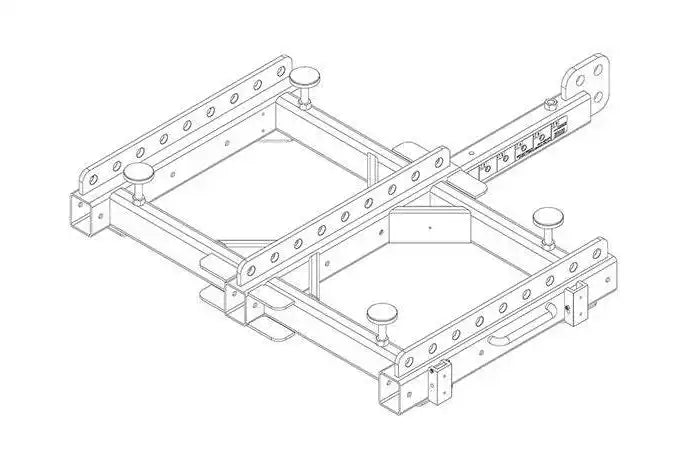

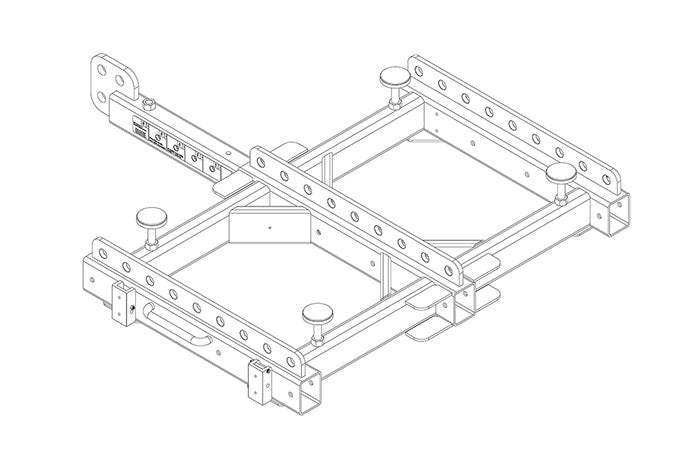

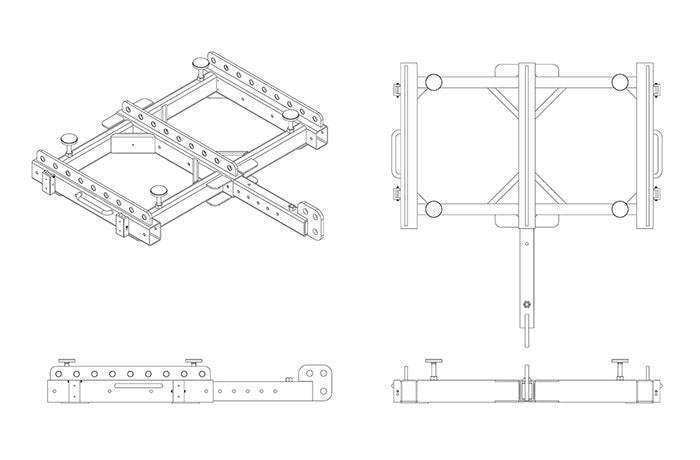

Extension Bar accessory used in conjunction with the VTX-V25-AF array frame for deploying VTX V25 series systems in either compression or tension mode. Five extension bar attachment options provide variable pick point separation (2-point suspension) and added flexibility for single point suspension. The extension bar can be front- or rear-mounted for increased array up-tilt or down-tilt, respectively. When rear-mounted, provides an attachment point for compression suspension. A single extension bar can be installed in the array frame central tube, or alternatively, a pair of extension bars can be front or rear-mounted in left/right array frame tubes. Single or dual extension bars can also be front- or rear-mounted in ground stack applications for extra stability and a wider range of array tilt angle options. Dual extension bars can also be front-and rear-mounted for compression suspension when increased array up-tilt is required.
Features
- Compatible with VTX-V25-AF
- 2 x pick points available for single point suspension
- 1 x pick point available for VTX-V25-LH level hoist attachment
- Supports up to 24 cabinets (array geometry dependent)
- Pick point shackle size: 5/8” or 3/4”
- 1 x VTX-V25-AF-EB extension bar
- 1 x height-adjustable leveling foot for ground stack applications
- 2 x Quick Release Pins (QRP) for securing the extension bar to the array frame
