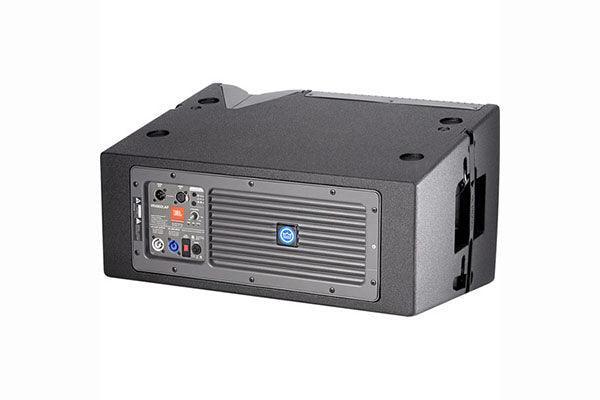

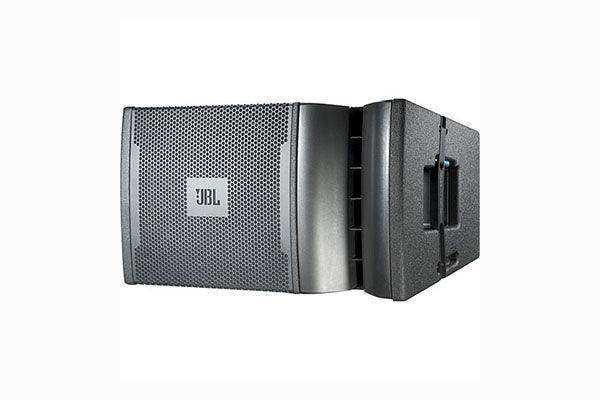

JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System (Black)

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: VRX932LAP
No reviews
Price:
$3,355.00 $5,210.00

Description

The black JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System is designed for playback and sound reinforcement in small to mid-sized venues.

The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design.

  • Built-in JBL Drivepack DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
  • JBL's exclusive neodymium magned Differential Drive woofer for high-power capacity and light-weight.
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".
Configuration Active 2-Way
Total Power Capacity 1750 W Peak
875 W RMS
Amplifier Power Rating LF:
1 x 750 W RMS
HF:
1 x 125 W RMS
Amplifier Class Class-D
Drivers
HF Driver 3 x 1.5" / 38.1 mm Horn-Loaded Compression Driver
LF Driver 1 x 12" / 304.8 mm Woofer
LF Voice Coil Dual
Magnet HF:
Neodymium
LF:
Neodymium
Performance
Frequency Range 57 Hz to 20 kHz -10 dB
Frequency Response 75 Hz to 20 kHz ±3 dB
Maximum SPL 136 dB
Coverage Angle 100° H x 15° V
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced Line Input
1 x XLR 3-Pin Male Balanced Line Thru
Power
AC Input Power User Selectable:
120 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x powerCON Input (Locking)
1 x powerCON Output (Locking)
Current Consumption 120 VAC:
6 A (Max)
240 VAC:
3 A (Max)
Physical
Mounting 1 x 1.42" / 36 mm Pole Socket (Dual Angle, Bottom)
2 x Fly Point
Cooling Heatsink
Construction Material Plywood
Dimensions 13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm
Weight 52 lb / 24 kg
