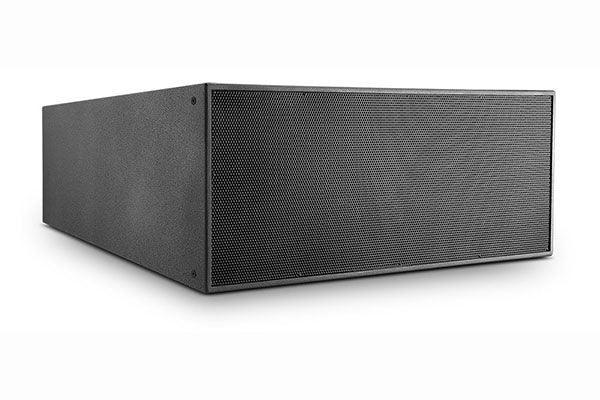

JBL VLA601I – Three-Way Permanent Install Line Array Module (Standard Output, 60°)

Product Overview

The JBL VLA601I is the standard-output variant of the Variable Line Array series, a three-way permanent-install line array module engineered for long-throw commercial venue sound reinforcement. Featuring 2 × 15-inch LF drivers, 2 × 8-inch MF drivers, and 3 × 1.5-inch exit HF compression drivers in a 60-degree horizontal coverage configuration, the VLA601I delivers 147.2 dB maximum SPL at 1 meter across a frequency range of 41 Hz to 20 kHz. The VLA601I is the lower-driver-count sibling of the high-output VLA601HI — appropriate for installations where the full high-output driver complement of the HI variant is not required, but the same 60-degree horizontal coverage and VLA modular rigging architecture are specified. Optional JBL WRC and WRX weatherization are available for outdoor and semi-outdoor permanent venues.

Product Description

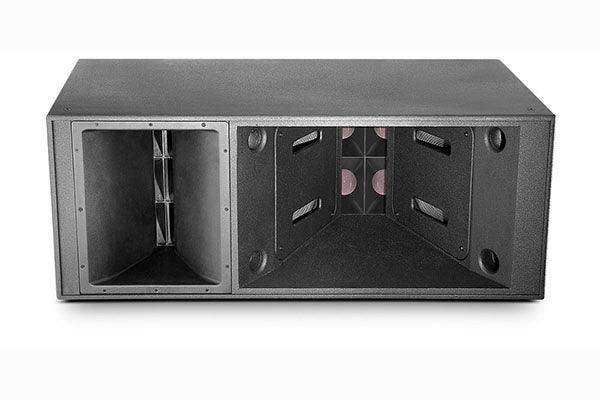

The VLA601I uses the same JBL 2265H Neodymium Differential Drive 15-inch LF drivers as the HI variant, but with 2 × JBL 2169H 8-inch MF drivers and 3 × JBL 2432H 1.5-inch exit HF compression drivers — delivering 147.2 dB peak SPL versus the HI's 150.7 dB. Power handling is 1,000W (LF), 400W (MF), and 160W (HF) continuous AES. The 60-degree horizontal coverage pattern is maintained consistently from 500 Hz to 16 kHz. Comprehensive suspension rigging with 16 attachment points supports scalable multi-cabinet line array configurations for arenas, auditoriums, large houses of worship, and outdoor amphitheatres. DuraFlex-finished exterior-grade Baltic birch plywood enclosure construction provides long-term durability in fixed installations. The VLA601I can be combined with 30-degree and 90-degree VLA modules within the same array for complex horizontal coverage mapping across varied venue geometries.

Key Features

• 60° Horizontal Coverage Pattern — Consistent nominal 60-degree horizontal dispersion from 500 Hz to 16 kHz provides predictable coverage planning for large commercial venues.
• Three-Way Standard Output Configuration — 2 × 15" LF, 2 × 8" MF, and 3 × 1.5" exit HF provide full-range commercial reinforcement suited to installations not requiring the HI variant's maximum output.
• 147.2 dB Peak SPL — High-output commercial-grade performance for large-venue permanent installations.
• VLA Series Rigging Architecture — 16 suspension attachment points support scalable multi-cabinet array configurations for arenas, auditoriums, and large houses of worship.
• Neodymium Differential Drive Technology — High-output low-weight transducer design across all driver sections for rigging-sensitive commercial installations.
• Mixable VLA Array — Compatible with 30-degree and 90-degree VLA modules for variable horizontal coverage configurations in complex venues.
• Optional WRC/WRX Weatherization — Factory weather-protection treatment enables outdoor and semi-outdoor permanent installation.

Typical Applications

• House of worship — large sanctuaries requiring scalable line array systems with 60-degree horizontal coverage
• Auditorium — performing arts and multipurpose auditoriums requiring permanent-install line array coverage
• Government space — large assembly halls requiring permanent high-output reinforcement systems
• All-hands room — large corporate assembly spaces requiring high-SPL full-range line array coverage
• Multi-purpose room — arenas and multipurpose venues using scalable VLA arrays for varied event configurations

Technical Specifications

Competitor Comparison

What's in the Box

• JBL VLA601I three-way line array module (standard output, 60°)
• Rigging hardware and suspension attachment components
• Documentation and installation guide

Frequently Asked Questions

What is the difference between the VLA601I and VLA601HI?

Both are 60-degree VLA series modules with the same LF driver. The VLA601HI (High Output) adds 4 × 8" MF and 6 × HF drivers for higher SPL (150.7 dB vs 147.2 dB). Choose the VLA601HI for maximum output applications; choose the VLA601I for installations where the standard driver complement is sufficient for the coverage distance and SPL requirements.

Does the VLA601I require external amplification?

Yes. The VLA601I is passive and requires external amplification and crossover processing. Contact Creation Networks for system design recommendations.

What warranty applies?

JBL Professional products carry a limited manufacturer warranty. Contact Creation Networks for commercial warranty coordination.
