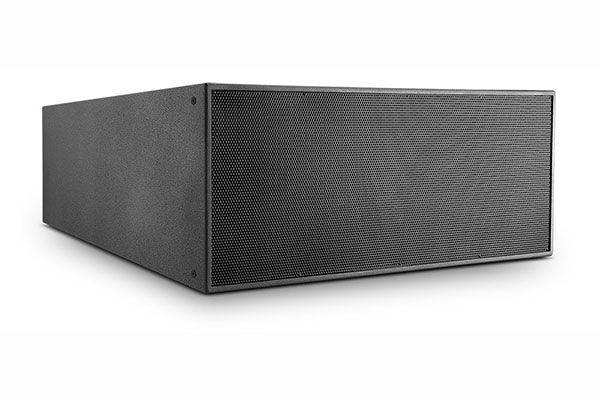

JBL VLA601HI – High-Output Three-Way Permanent Install Line Array Module

Product Overview

The JBL VLA601HI is the high-output variant of the Variable Line Array series, a three-way permanent-install line array module engineered for large-venue sound reinforcement at extended throw distances beyond the capability of conventional point-source loudspeaker designs. Featuring 2 × 15-inch LF drivers, 4 × 8-inch MF drivers, and 6 × 1.5-inch exit compression HF drivers, the VLA601HI delivers maximum SPL of 150.7 dB at 1 meter with a frequency range of 41 Hz to 20 kHz. Designed for commercial AV integrators specifying scalable line array systems in auditoriums, arenas, large houses of worship, and outdoor venues, the VLA601HI includes comprehensive rigging points for multi-cabinet array configurations. Optional JBL WRC and WRX weather protection is available for outdoor or semi-outdoor fixed installations.

Product Description

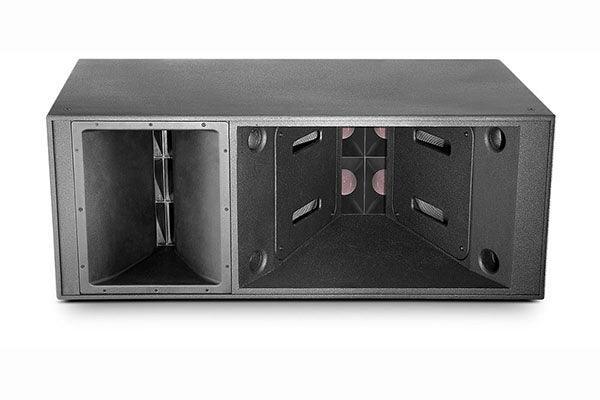

The VLA601HI is purpose-built for permanent installation applications where sustained high output and extended throw distance are required — settings where consumer or lightweight commercial loudspeakers cannot maintain intelligibility or coverage uniformity across the audience area. The three-way driver configuration uses JBL Neodymium Differential Drive technology across all three frequency sections: 2 × JBL 2265H LF drivers with dual 3-inch voice coils, 4 × JBL 2169H MF drivers with dual 3-inch voice coils, and 6 × JBL 2432H 1.5-inch exit compression drivers for high frequencies. System AES power handling is 1,000W (LF), 550W (MF), and 300W (HF), with nominal LF impedance of 4 ohms. The 60-degree horizontal coverage pattern is consistent from 500 Hz to 16 kHz, and vertical coverage varies with array size and cabinet count. Enclosure construction uses 18mm and 16mm exterior-grade Baltic birch plywood with DuraFlex finish or optional fiberglass, with 16 suspension rigging attachment points supporting scalable multi-cabinet configurations. The WRC/WRX weatherization options extend deployment capability to outdoor amphitheatres, festival stages, and covered open-air venues requiring long-term environmental protection.

Key Features

• Three-Way Driver Configuration — Dedicated LF, MF, and HF driver sections deliver full-range commercial-grade sound reinforcement with extended frequency response from 41 Hz to 20 kHz.
• High-Output VLA Series Design — 6 HF + 4 MF + 2 LF drivers per cabinet achieve 150.7 dB peak SPL, suited to large-venue applications requiring maximum output and throw distance.
• Neodymium Differential Drive Technology — Advanced transducer design across all three driver sections delivers high output with reduced cabinet weight for rigging-constrained permanent installations.
• Comprehensive Rigging System — 16 suspension attachment points enable scalable multi-cabinet line array configurations for arenas, auditoriums, and large houses of worship.
• 60° Consistent Horizontal Coverage — Nominal 60-degree horizontal pattern maintained from 500 Hz to 16 kHz ensures predictable coverage planning in large commercial venues.
• DuraFlex Enclosure Finish — Rugged exterior finish with 18mm/16mm Baltic birch plywood construction provides long-term durability in demanding fixed installation environments.
• Optional WRC/WRX Weatherization — Factory weather-protection options enable outdoor and semi-outdoor permanent installations without field-modification.
• Scalable Array Configurations — VLA601HI modules can be combined with JBL VLA Series sub-bass and fill loudspeakers for complete scalable system design.

Typical Applications

• House of worship — large sanctuary main PA systems requiring high-SPL scalable line array coverage with extended low-frequency reinforcement
• Auditorium — performing arts, concert, and multipurpose auditoriums requiring permanent-install line array systems with broad throw distance
• All-hands room — large corporate assembly spaces requiring high-SPL full-range audio coverage across large audience footprints
• Broadcast studio — live recording and broadcast facilities requiring high-output reference monitoring or front-of-house loudspeaker systems
• Government space — large legislative assembly halls requiring permanent high-output reinforcement systems with architectural integration
• Multi-purpose room — large arenas and multipurpose venues requiring scalable line array systems adaptable to varied event configurations

Technical Specifications

Competitor Comparison

What's in the Box

• JBL VLA601HI three-way line array module (C5-MOD-FLIPSHELF-31IN-HPL-FLAX-GAUZE configuration)
• Rigging hardware and suspension attachment components
• Documentation and installation guide

Frequently Asked Questions

How many VLA601HI cabinets are needed per array?

Array size depends on venue geometry, throw distance, and required coverage angle. JBL provides array design tools and system design support for sizing VLA configurations. Contact Creation Networks for consultation on system design for your specific venue or project.

Does the VLA601HI require external amplification?

Yes. The VLA601HI is a passive three-way loudspeaker requiring external amplification and crossover processing. It is designed to be driven by JBL's recommended amplifier and DSP ecosystem for optimized performance in commercial AV installations.

Is the VLA601HI suitable for outdoor permanent installations?

Yes, with the optional WRC or WRX factory weather-protection treatments, the VLA601HI is suitable for outdoor and semi-outdoor permanent installations including amphitheatres, festival stages, and covered open-air venues. Confirm the appropriate weatherization level with Creation Networks for your project.

What amplifier and DSP system is recommended for the VLA601HI?

JBL Professional recommends pairing the VLA series with JBL HiQnet-compatible amplifiers and DSP processors for optimized system performance. Contact Creation Networks for a complete system specification recommendation for your installation.

What warranty applies to the VLA601HI?

JBL Professional products carry a limited manufacturer warranty. Commercial installation terms should be confirmed with an authorized distributor at the time of purchase. Creation Networks supports warranty coordination for commercial AV projects.
