JBL VLA-C2100-GR Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive (Gray)

JBL VLA-C2100-GR – 100° Wide-Coverage Line Array, Gray

Product Overview

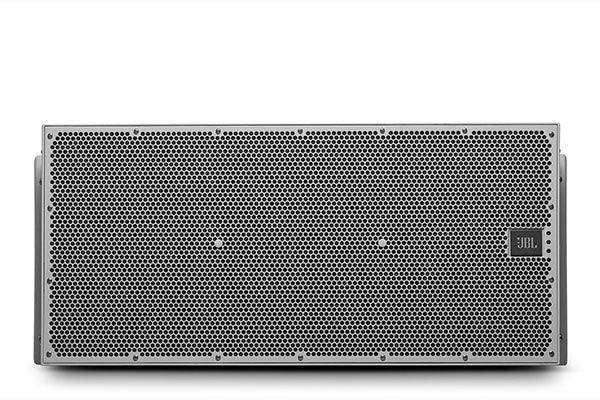

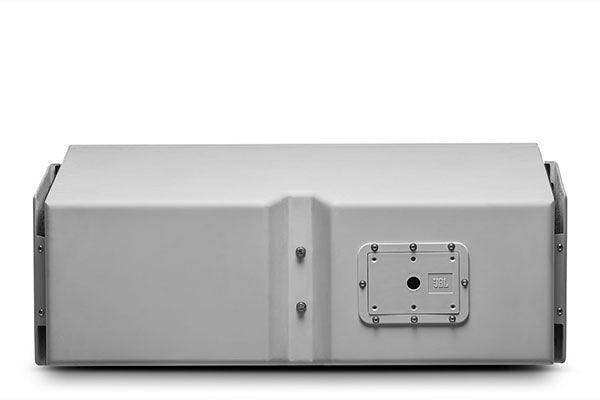

The JBL VLA-C2100-GR is the gray-finish version of JBL's wide-coverage two-way, horn-loaded line array module, designed for permanent installation in arenas, stadiums, and houses of worship. It provides a 100° horizontal coverage pattern for broad, even sound dispersion across large audience areas, combining dual 10-inch Differential Drive® woofers with three D2415 compression drivers in a weatherized IP55 enclosure. The gray finish suits venues with lighter ceilings or architectural surfaces where loudspeakers should blend into the background.

Product Description

The VLA-C2100-GR uses three JBL D2415 compression drivers with 1.5-inch annular diaphragms and neodymium motors for high-sensitivity, detailed high-frequency reproduction across the wide horn pattern. Dual 10-inch Differential Drive® woofers with 3-inch voice coils handle low frequencies with controlled, low-distortion output and efficient power handling. The 100° horizontal dispersion is the defining feature versus the 65° VLA-C265: it covers wide seating bowls and fan-shaped rooms with fewer enclosures.

The enclosure is constructed from multi-layer fiberglass with internal birch plywood bracing and a hydrophobic mesh grille, rated IP55 for dust and water resistance in outdoor installations. The module supports bi-amp or passive operation, and it integrates with other VLA Compact Series products, including the 65° VLA-C265 and the VLA-C125S subwoofer, enabling scalable arrays that mix coverage patterns. A flexible rigging system with multiple inter-enclosure angle options supports precise array shaping. Functionally, the GR variant is identical to the black VLA-C2100; only the finish differs.

Key Features

• Wide 100° horizontal horn coverage — broad, even dispersion for maximum audience reach.
• Dual 10-inch Differential Drive® LF drivers — deep, controlled bass with efficient power handling.
• Triple D2415 compression drivers — 1.5-inch diaphragms and neodymium motors for precise highs.
• IP55-rated enclosure — weather resistance for outdoor and exposed installations.
• Fiberglass and steel construction — hydrophobic mesh grille protection for durability.
• Bi-amp or passive operation — flexibility in amplification and system headroom.
• VLA Compact Series compatibility — integrates with VLA-C265 and VLA-C125S subwoofer.
• Flexible rigging — multiple inter-enclosure angle options for accurate array shaping.
• Gray finish — blends with lighter ceilings and architectural surfaces.

Typical Applications

• Wide seating bowls and fan-shaped arenas requiring broad horizontal coverage.
• Houses of worship and performing arts centers with wide audience areas.
• Outdoor venues needing IP55-rated, weather-resistant loudspeakers.
• Mixed-coverage arrays combining 100° and 65° modules.

Technical Specifications

Competitor Comparison

The VLA-C2100-GR offers a fixed 100° pattern with the practical advantage of mixing 100° and 65° VLA Compact modules in one array on standard Crown DCi amplification, plus a gray finish option not common among proprietary active platforms like the d&b V12 or L-Acoustics A15 Wide.

What's in the Box

• JBL VLA-C2100-GR line array module (gray finish)
• Integrated rigging hardware
• Product documentation

Frequently Asked Questions

How does the GR model differ from the black VLA-C2100? They are functionally identical; the GR suffix indicates a gray enclosure finish for venues with lighter architectural surfaces.

What coverage does it provide? A wide 100° horizontal pattern for broad audience areas. The VLA-C265 offers a narrower 65° pattern for longer throw.

Can it be combined with other VLA modules? Yes. It is part of the VLA Compact Series and mixes with the VLA-C265 and VLA-C125S subwoofer for scalable, mixed-coverage arrays.

Is it rated for outdoor use? Yes. The IP55 fiberglass enclosure with hydrophobic mesh grille resists dust and water.

For array design and amplifier matching, contact the Creation Networks team at creationnetworks.net.
