JBL VTX V25-II-CS Full-Size 3-Way High-Directivity Line Array with ...

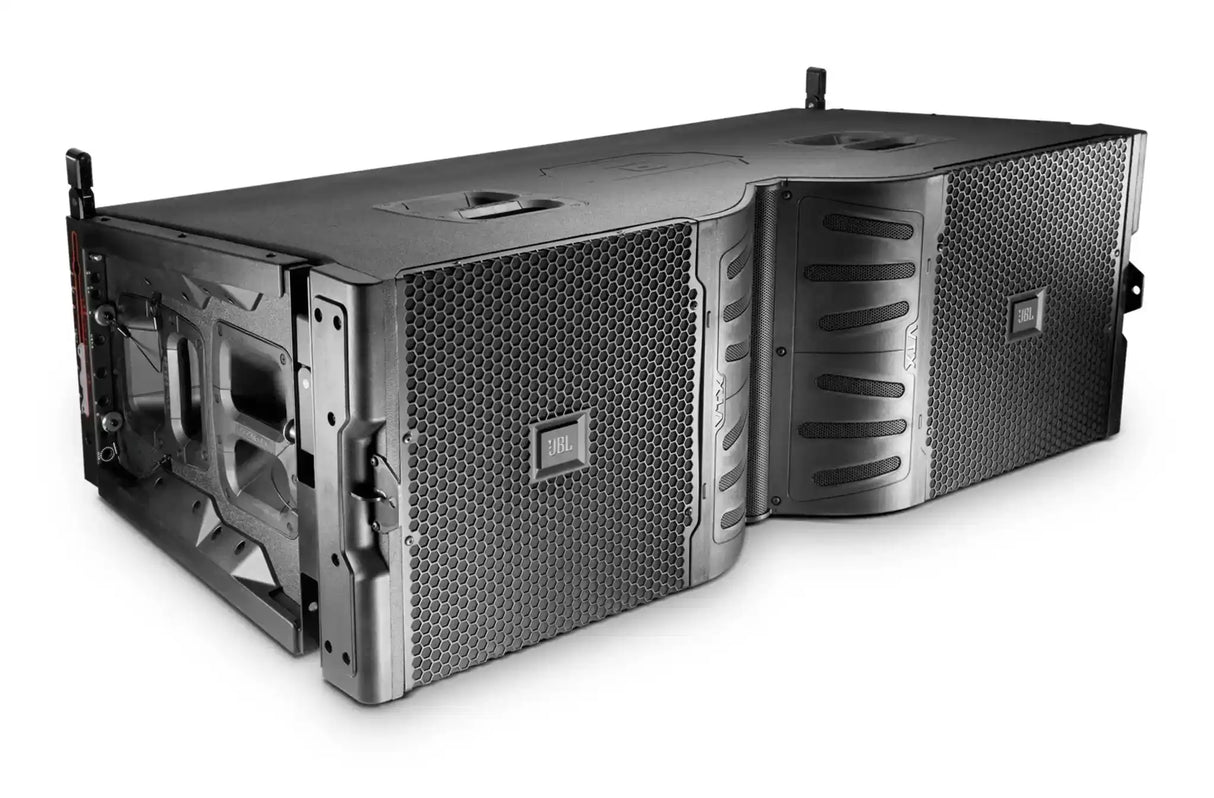

The JBL VTX V25-II-CS is a full-size, high-directivity 3-way line array element engineered for professional audio applications demanding exceptional power, clarity, and coverage. This advanced loudspeaker incorporates JBL’s 4th Generation HF Waveguide technology, a revolutionary D2 dual-diaphragm, dual-voice-coil compression driver, and patented Radiation Boundary Integrator® (RBI) to deliver unmatched sonic performance across a wide frequency range.
The V25-II-CS model features JBL’s new compression suspension system, which allows for safe, precise vertical deployment and efficient transportation. Its aluminum front baffles reduce cabinet height and weight while improving heat dissipation for high-power operation. Optimized accessories provide flexibility for touring, performing arts facilities, stadiums, and large-scale live events. With JBL HiQnet Performance Manager™ and V5 processing via Crown I-Tech HD or VRACK, this line array element enables fine-tuned system configuration and control, delivering consistent, high-quality sound across extensive listening areas.

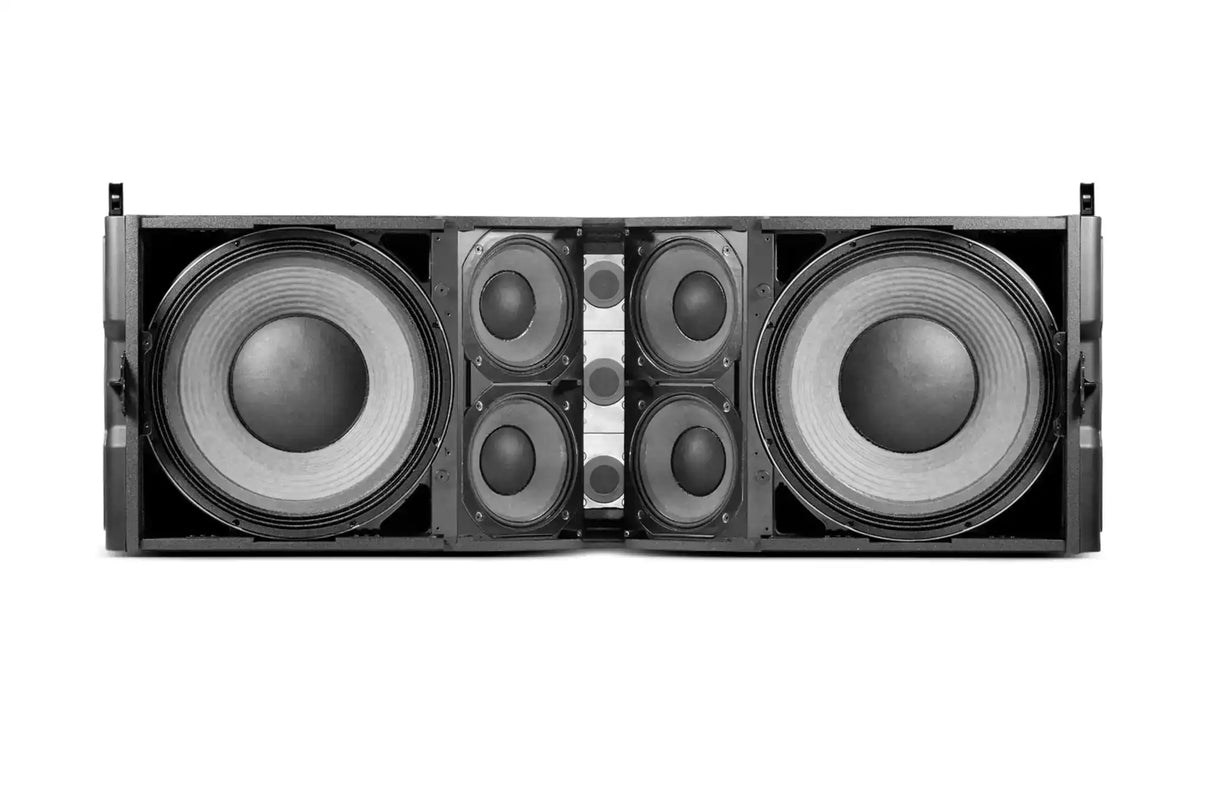

The V25-II-CS is designed to provide high output, with peak SPL ratings reaching 149.5 dB in the HF range, 140.5 dB for mid frequencies, and 141 dB in the LF range. Its three-way design includes dual 15-inch woofers, four 8-inch mid-frequency drivers, and three 1.5-inch high-frequency D2 compression drivers, ensuring detailed, accurate audio reproduction. The enclosure combines cast aluminum front baffles and Finnish birch plywood with a durable black DuraFlex™ finish and recessed handles for easy handling. Adjustable inter-enclosure angles from 0 to 9 degrees offer precise array flexibility for various applications. The VTX V25-II-CS represents the pinnacle of JBL’s line array technology, providing professional-grade performance for the most demanding audio environments.
Features:
-
Full-size 3-way high-directivity line array with D2 dual-diaphragm, dual-voice-coil HF drivers
-
4th Generation HF Waveguide technology for consistent coverage
-
JBL patented Radiation Boundary Integrator® (RBI) for superior low-frequency performance
-
V25 compression suspension system for safe vertical deployment
-

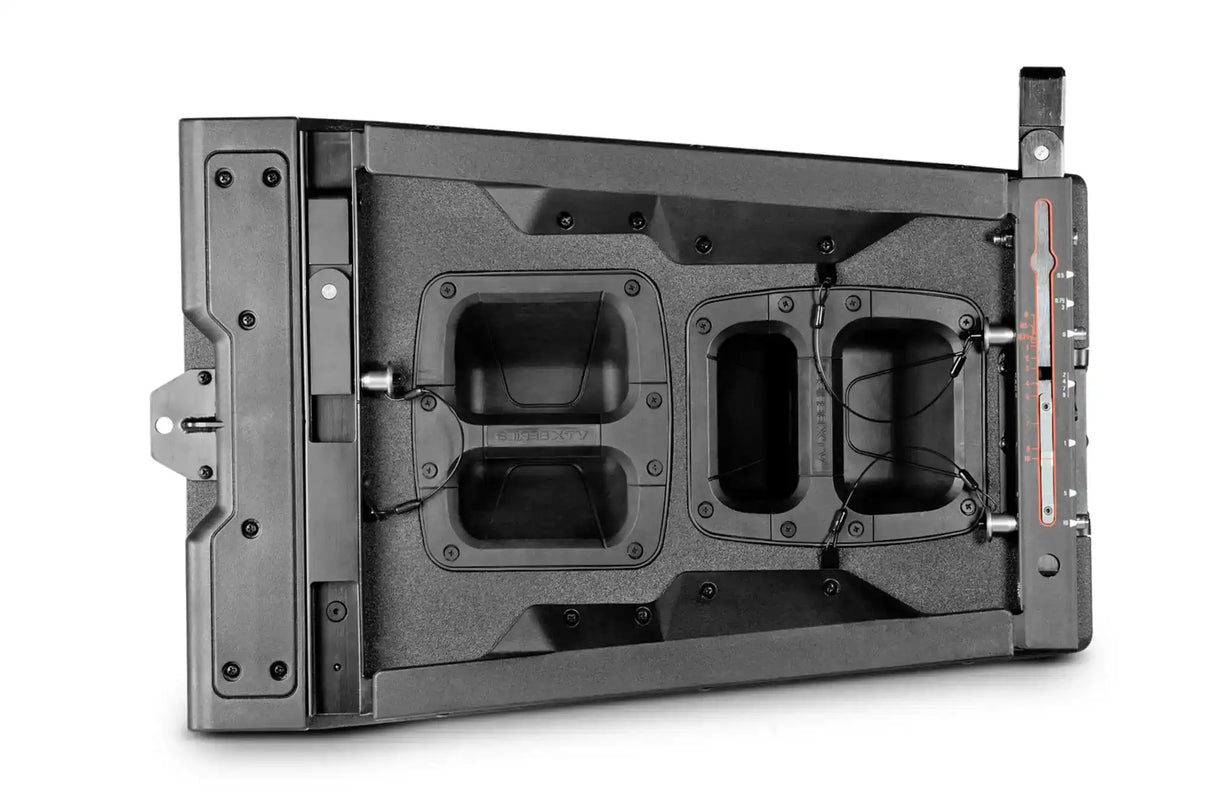

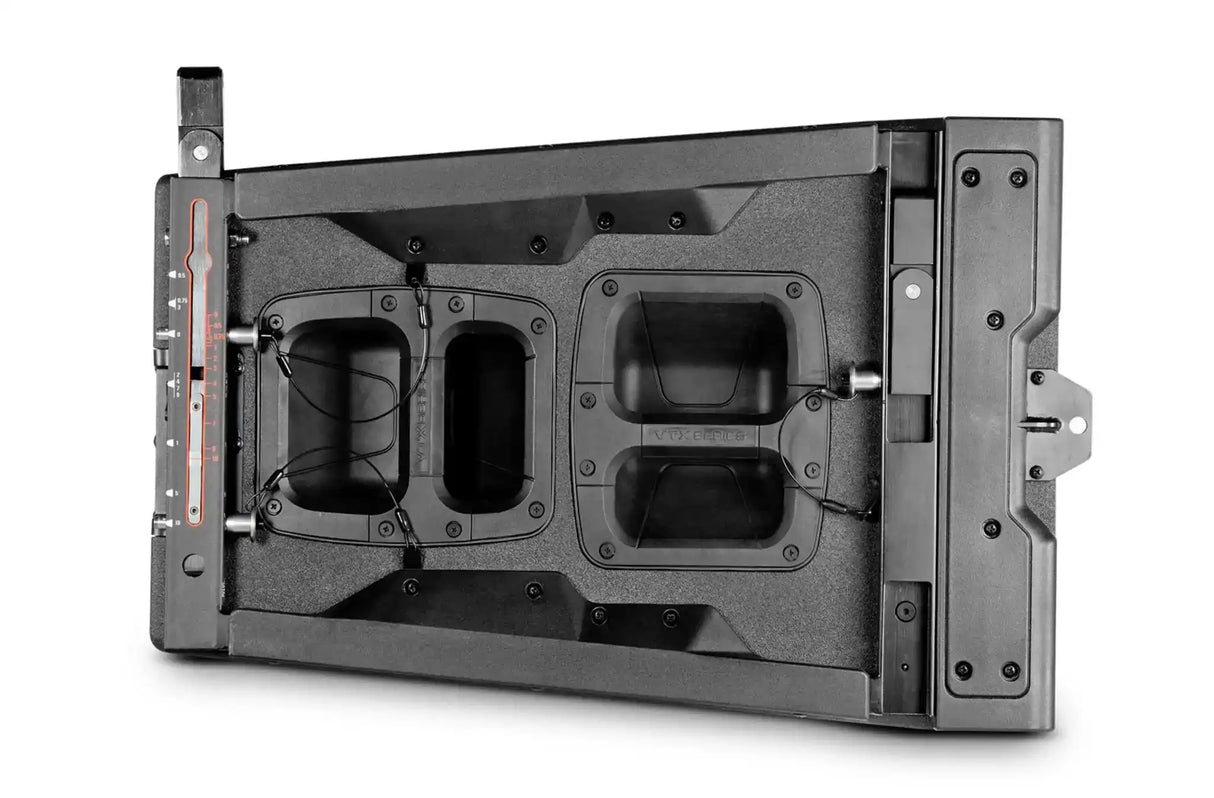

Aluminum front baffles for reduced cabinet height, weight, and improved heat transfer
-
Crown I-Tech HD or VRACK V5 processing compatibility
-
HiQnet Performance Manager™ for system configuration and control
-
Peak output: LF 141 dB, MF 140.5 dB, HF 149.5 dB
-
Inter-enclosure angles: 0, 0.5, 0.75, 1, 2, 3, 4, 5, 6, 9 degrees
Specifications Table:
| Specification | Detail |
|---|---|
| System Type | Full-size 3-way high-directivity line array element |
| Frequency Range (-10 dB) | 35 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 90° nominal (200 Hz – 16 kHz) |
| LF Driver | 2 x JBL 2267H 15-inch |
| MF Driver | 4 x JBL 2168H 8-inch |
| HF Driver | 3 x JBL 2430K D2 dual-diaphragm, dual voice coil |
| System Amplification | Crown Audio I-Tech HD |
| Nominal Impedance | LF: 2x 8 Ω, MF: 8 Ω, HF: 8 Ω |
| Maximum Peak Output | LF: 141 dB, MF: 140.5 dB, HF: 149.5 dB |
| Enclosure | Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish |
| Inter-enclosure Angle | 0 – 9° adjustable |
| Dimensions (H x W x D) | 414 x 1223 x 614 mm (16.3 x 48.2 x 24.2 in) |
| Net Weight | 82.6 kg (182 lb) |
Compare Table:
| Feature | V25-II | V25-II-CS |
|---|---|---|
| Suspension System | Fixed angle tension | Compression suspension |
| Waveguide | 4th Gen HF | 4th Gen HF |
| Maximum HF SPL | 149.5 dB | 149.5 dB |
| Inter-enclosure Flexibility | Limited | 0 – 9° adjustable |
| Front Baffle | Aluminum | Aluminum |
| Recommended Applications | Touring, large venues | Touring, large venues with vertical deployment |
