JBL VTX F35/95 Dual 15" 3-Way High-Performance Loudspeaker

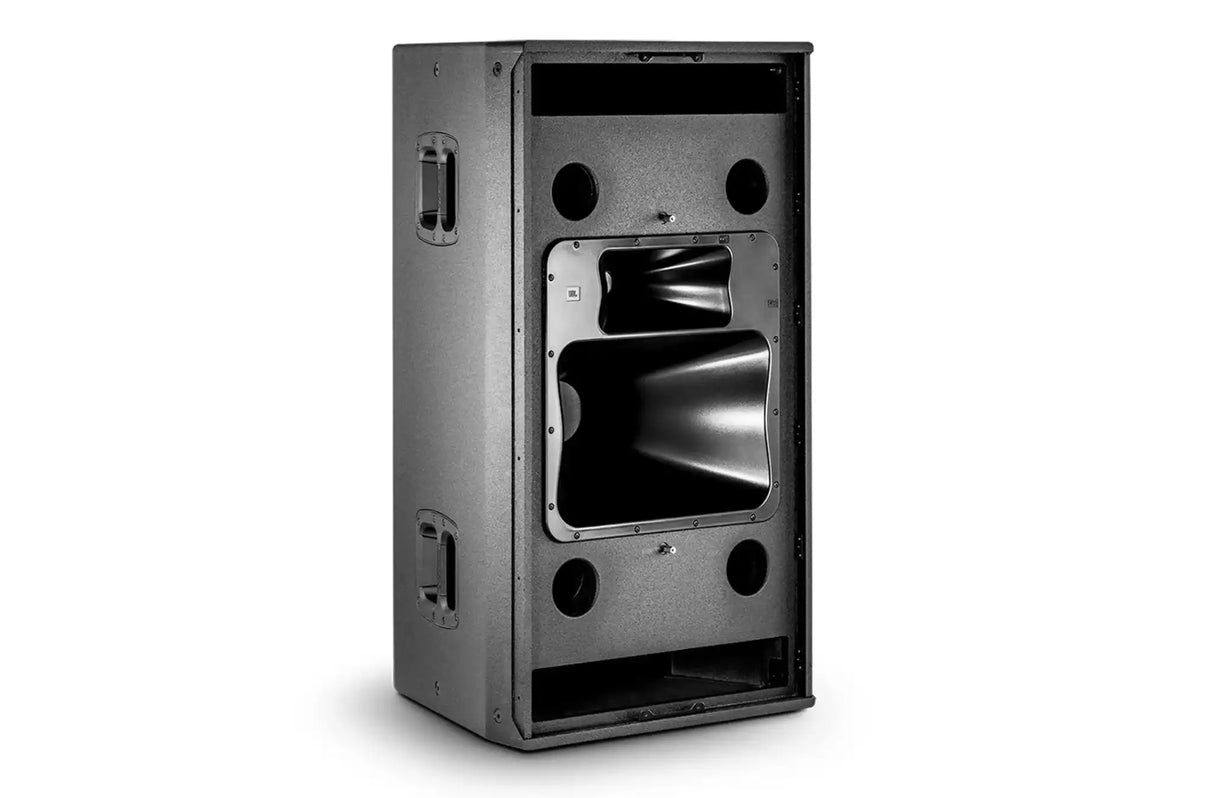

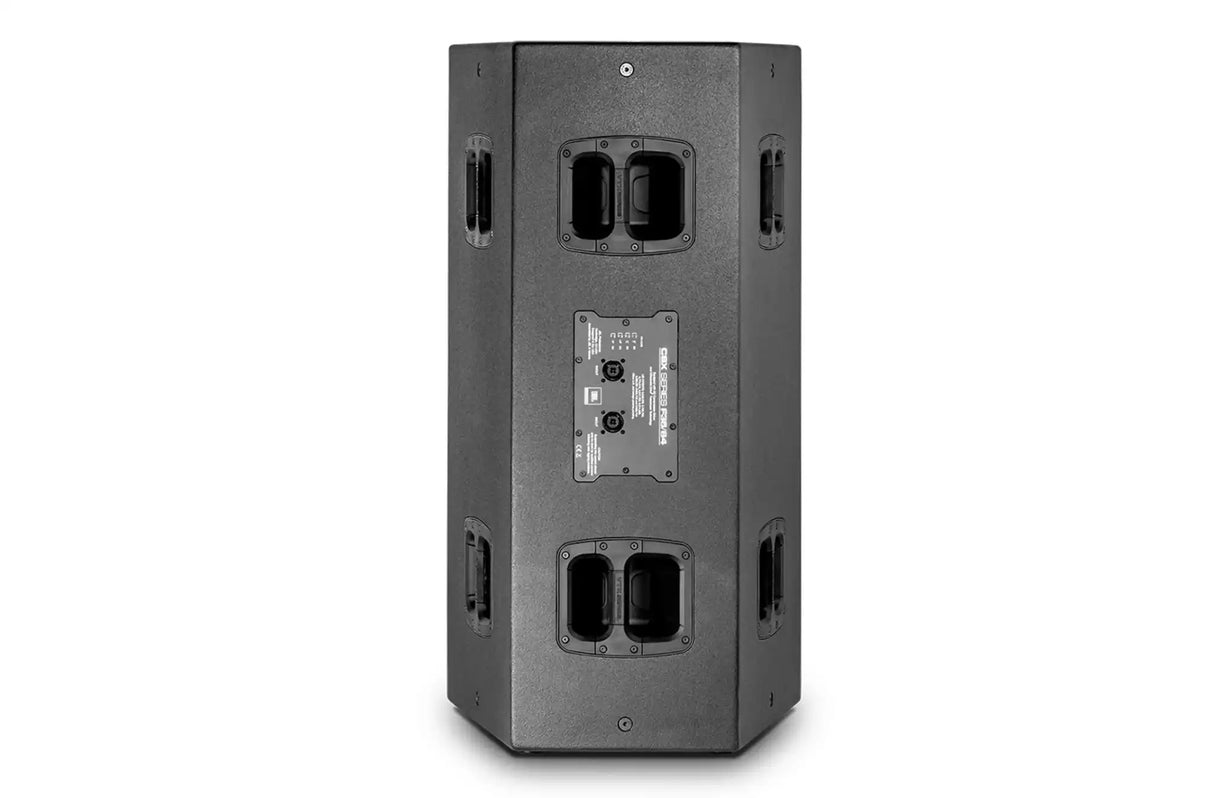

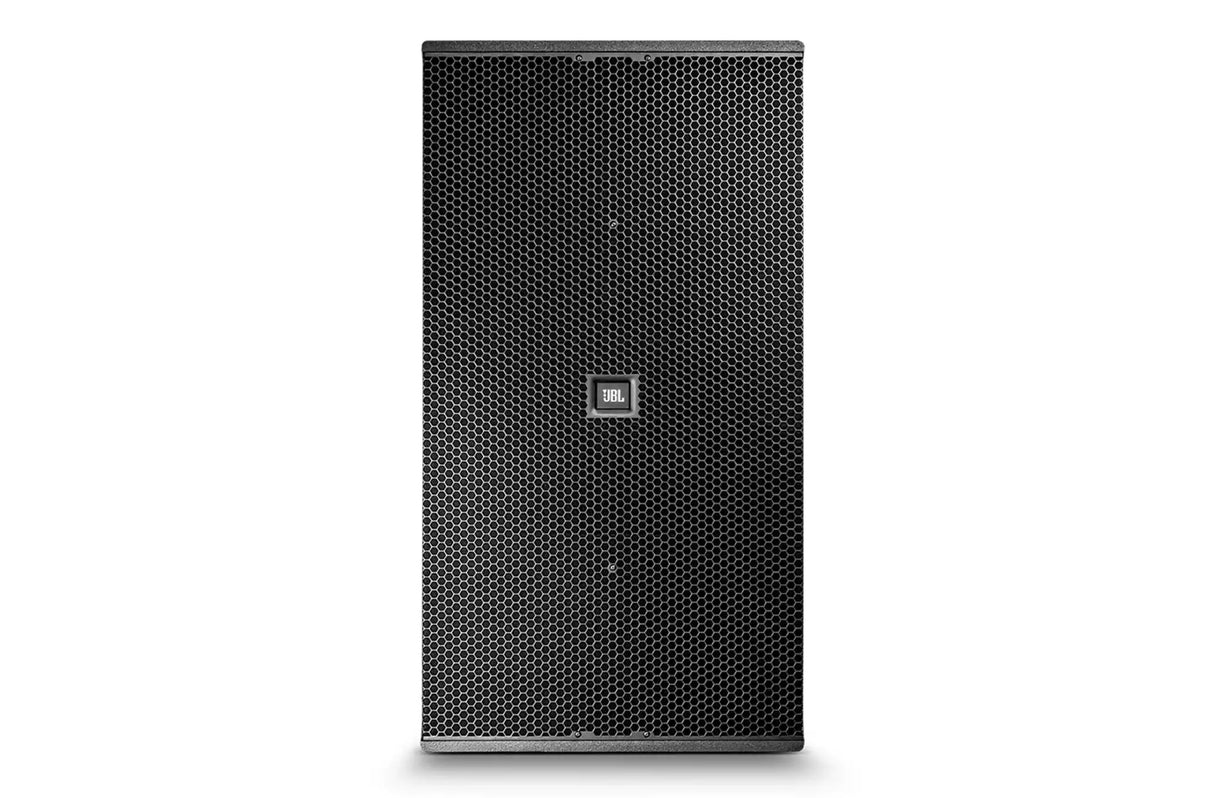

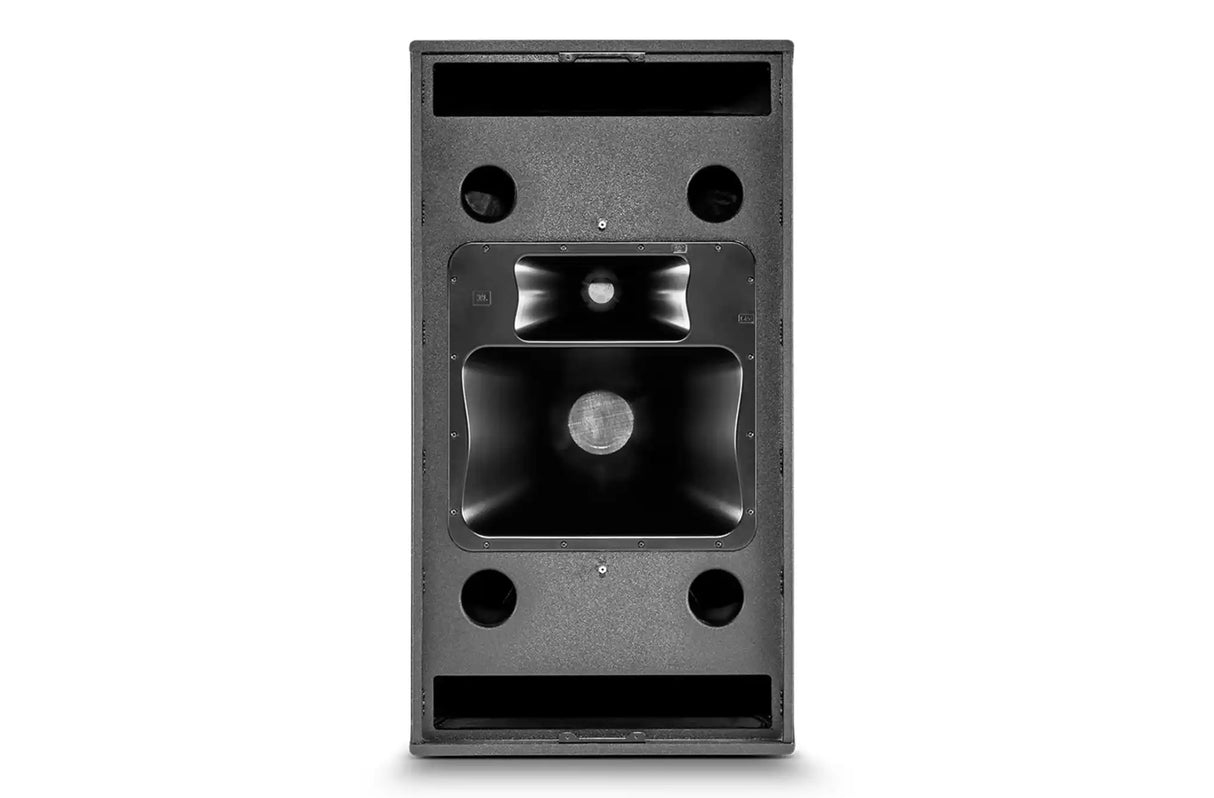

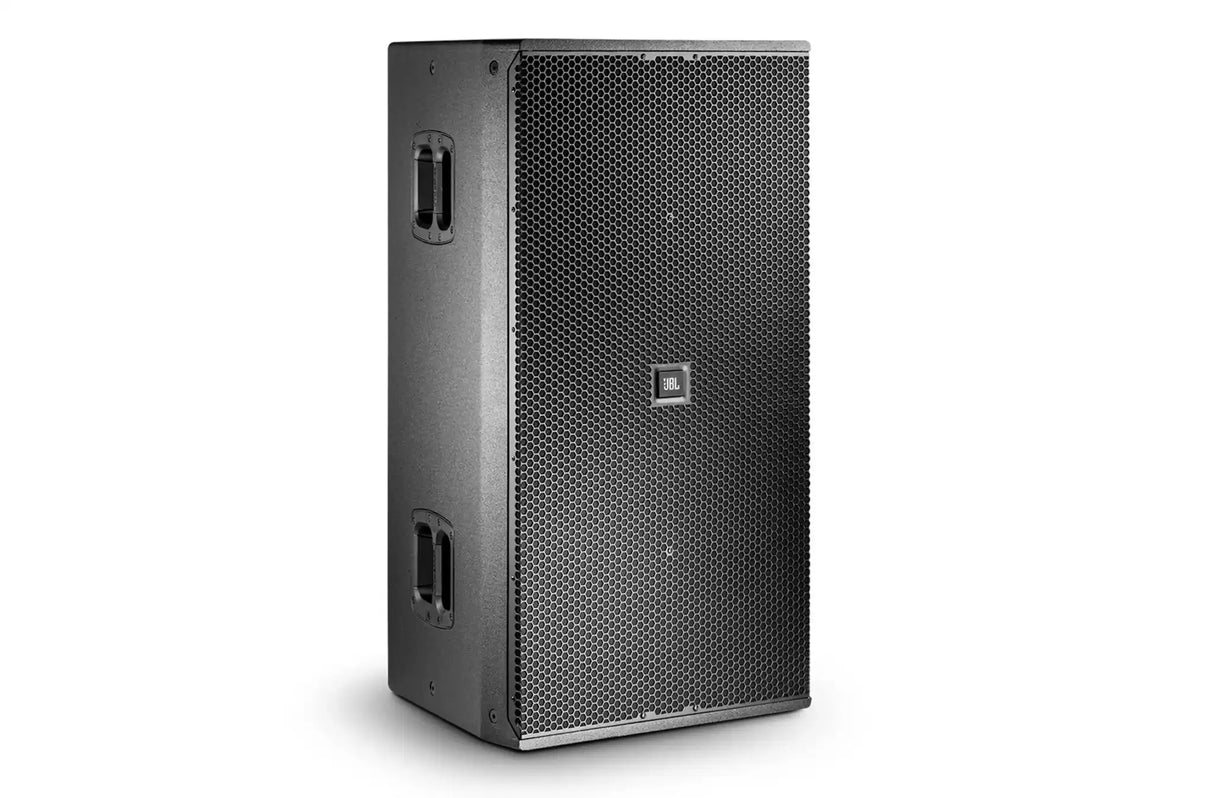

The JBL VTX F35/95 is a high-output, dual 15" 3-way loudspeaker engineered for professional live sound and installed applications. Featuring JBL’s Differential Drive™ technology, dual neodymium magnet drivers, and a revolutionary D2 dual-diaphragm high-frequency compression driver, the F35/95 delivers exceptional clarity, power, and long-throw performance in a compact trapezoidal enclosure.
Optimized for use with Crown Audio I-Tech HD series amplification and V5 system processing, this loudspeaker offers precise coverage control, low distortion, and flexibility in both flown and ground-stacked deployments. Multiple M10 attachment points enable secure suspension, while a rugged 11-ply Finnish birch plywood cabinet with black DuraFlex™ finish ensures durability.
Features:
-
Dual 15" LF drivers with 76 mm dual voice coil, Differential Drive™ technology
-
8" MF driver with dual 76 mm voice coil, Neodymium Differential Drive®
-
D2 dual-diaphragm HF compression driver with dual 76 mm voice coil
-
High-power 3-way design with 90° x 50° rotatable coverage
-
Multiple M10 attachment points for flexible suspension options
-
V5 system integration with Crown Audio I-Tech HD or 4x3500HD amplifiers
-
Rugged 18 mm, 11-ply Finnish birch plywood enclosure with black DuraFlex™ finish
-
Powder-coated steel grille with acoustically transparent black cloth backing
Specifications Table:
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 39 Hz – 18 kHz |
| Coverage Pattern (-6 dB) | 90° Horizontal x 50° Vertical |
| System Input Power Rating | LF: 2 x 800 W / MF: 270 W / HF: 100 W (Continuous IEC / 100 hrs) |
| Maximum Peak Output | 143 dB |
| System Processing | Crown Audio I-Tech HD Series / I-Tech 4x3500HD |
| System Impedance | LF: 2 x 8 Ω / MF: 8 Ω / HF: 8 Ω |
| LF Driver | 2 x JBL 2265H, 15", dual 76 mm voice coil, NDD®, Direct Cooled™ |
| MF Driver | 1 x JBL 2169H, 8", dual 76 mm voice coil, NDD®, Direct Cooled™ |
| HF Driver | 1 x D2430H, D2 dual diaphragm, dual 76 mm voice coil |
| Enclosure | 18 mm, 11-ply Finnish birch plywood, black DuraFlex™ finish |
| Grille | Powder-coated 14 gauge hex-perforated steel with acoustically transparent cloth |
| Input Connectors | 2x Neutrik Speakon NL-8 |
| Dimensions (H x W x D) | 1051.5 x 568.9 x 528.3 mm (41.4 x 22.4 x 20.8 in) |
| Net Weight | 52.6 kg (116 lbs) |
