JBL VTX F15 15" Bi-Amplified 2-Way Loudspeaker

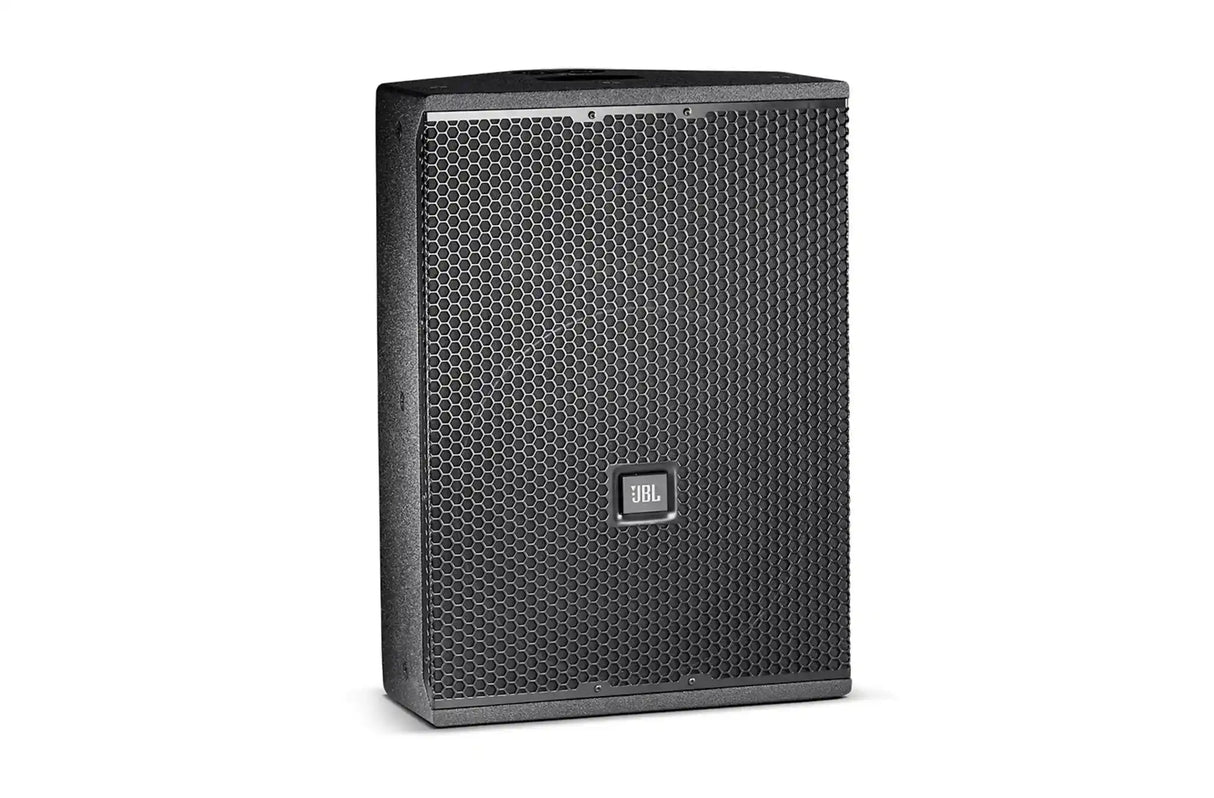

The JBL VTX F15 is a premium 15" bi-amplified 2-way loudspeaker, engineered for professional sound reinforcement applications. It combines a Differential Drive® 15" woofer with a D2430K D2 Dual Diaphragm Dual Voice Coil compression driver, delivering high-output, full-range audio with exceptional clarity and impact. Ideal as a standalone FOH system, satellite/subwoofer combination with the VTX F18S, or as a stage monitor/fill speaker, the F15 provides flexible deployment for theaters, clubs, auditoriums, and live performance venues.
Featuring a 90° x 50° Progressive Transition™ Waveguide, BSS Audio OmniDriveHD V5 Processing, and compatibility with Crown ITechHD and VRack amplification, the VTX F15 ensures optimized frequency, phase response, and precise pattern control.
Features:
-

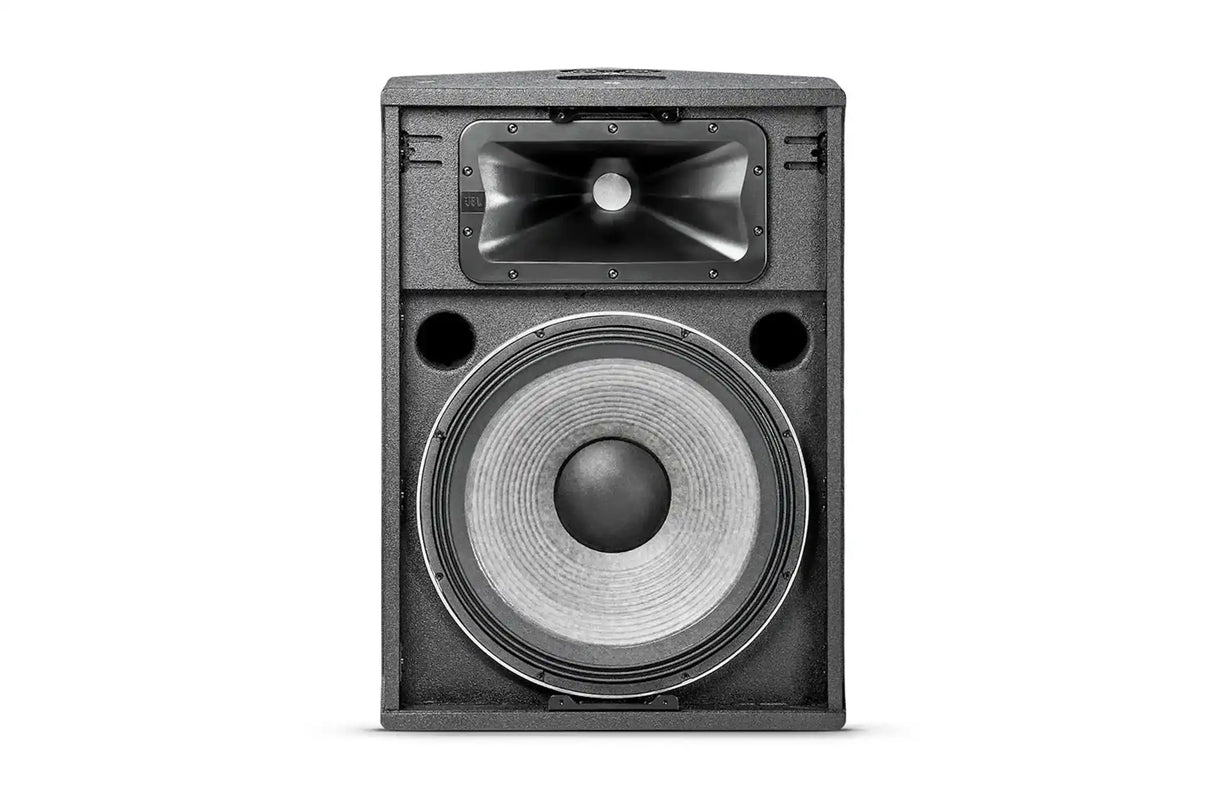

15" 2265H Dual 3" Voice Coil Neodymium Differential Drive® woofer, Direct Cooled™
-
D2430K D2 Dual Diaphragm Dual Voice Coil compression driver
-
Bi-amplified 2-way system with BSS OmniDriveHD V5 processing
-
Progressive Transition™ 90° x 50° Waveguide for optimal pattern control
-
High sensitivity: 98 dB LF / 108 dB HF
-
Nominal impedance: LF 8 Ω / HF 20 Ω
-
AES power: 1000 W LF / 200 W HF continuous, 4000 W LF / 800 W HF peak
-

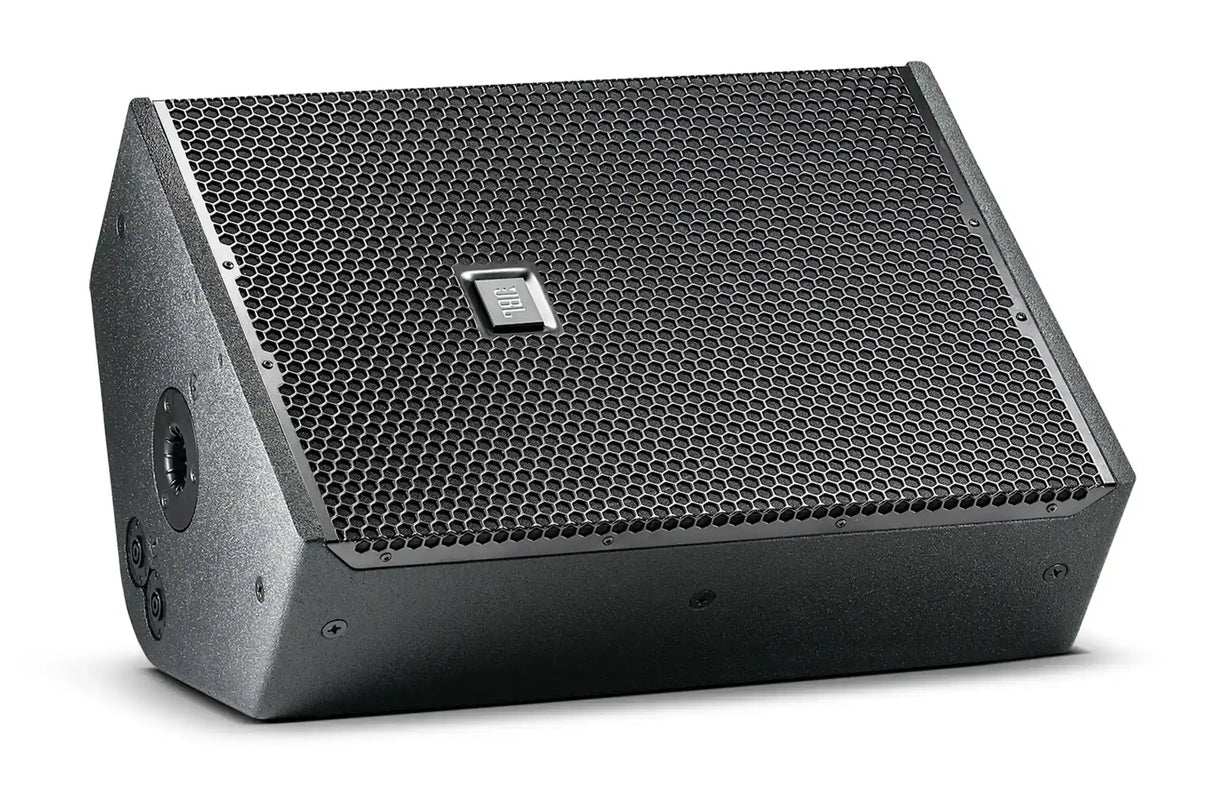

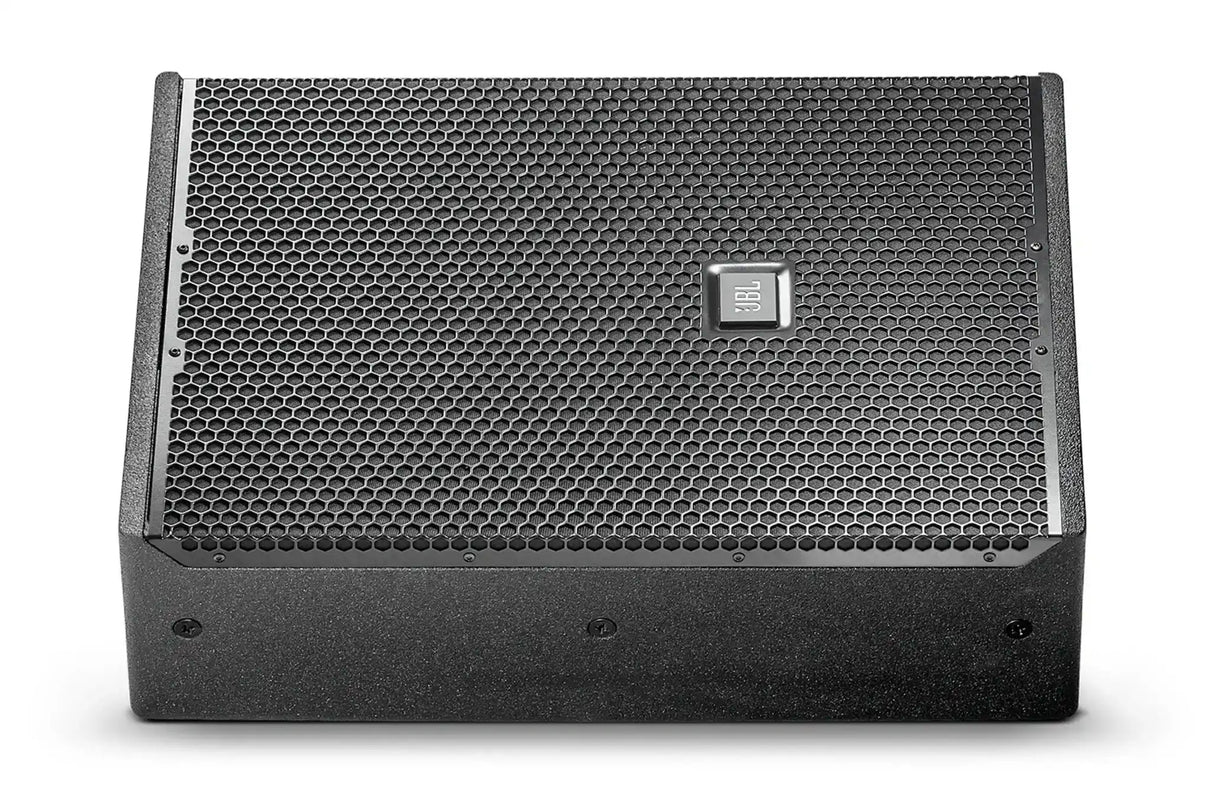

Symmetrical stage monitor cabinet (53° angle) in 18 mm, 11-ply Baltic birch plywood
-

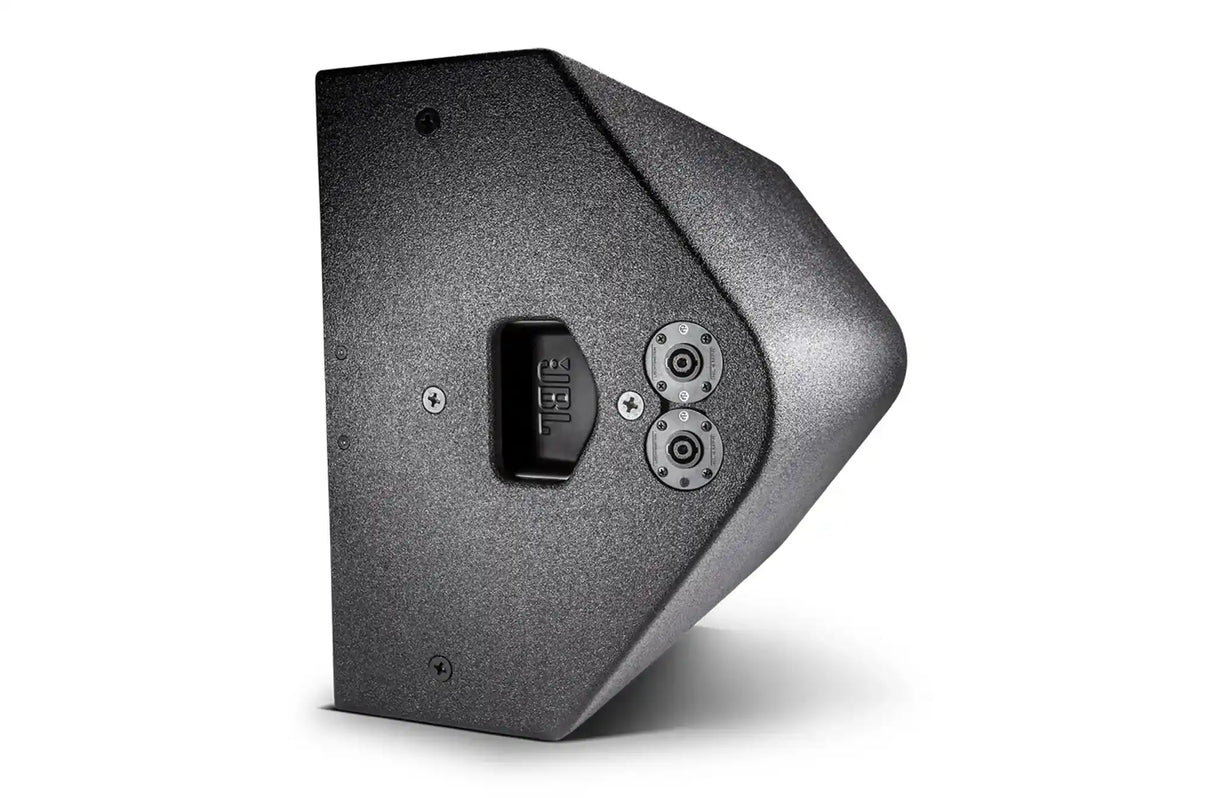

Pole mount socket, integral recessed handle, and multiple M10 mounting points
Specifications Table:
| Specification | Detail |
|---|---|
| System Type | 2-Way Bi-Amplified Loudspeaker with 15” Differential Drive® Woofer |
| LF Driver | 1 x 2265H, 15" Dual 3" Voice Coil, Neodymium Differential Drive®, Direct Cooled™ |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Frequency Range (-10 dB) | 43 Hz – 21.5 kHz (short throw), 42 Hz – 21.5 kHz (monitor mode) |
| Frequency Response (±3 dB) | 59 Hz – 20 kHz (short throw), 58 Hz – 20 kHz (monitor mode) |
| Sensitivity | 98 dB LF / 108 dB HF |
| Nominal Impedance | LF 8 Ω / HF 20 Ω |
| AES Power Rating | 1000 W LF / 200 W HF continuous, 4000 W LF / 800 W HF peak |
| Maximum SPL | 134 dB (Preset: VTX F15 80) |
| Coverage Pattern | 90° x 50° |
| Dimensions (H x W x D) | 640.1 x 457.2 x 327.7 mm (25.2 x 18 x 12.9 in) |
| Net Weight | 22.9 kg (50.5 lbs) |
| Enclosure | 18 mm, 11-ply Baltic birch plywood, black DuraFlex™ finish; symmetrical stage monitor |
| Suspension / Mounting | Pole mount socket (35 mm), 16 x M10 points, optional U-bracket/extension rod |
