JBL VTX DELTA Plate – Universal JBL Line Array Rigging Accessory

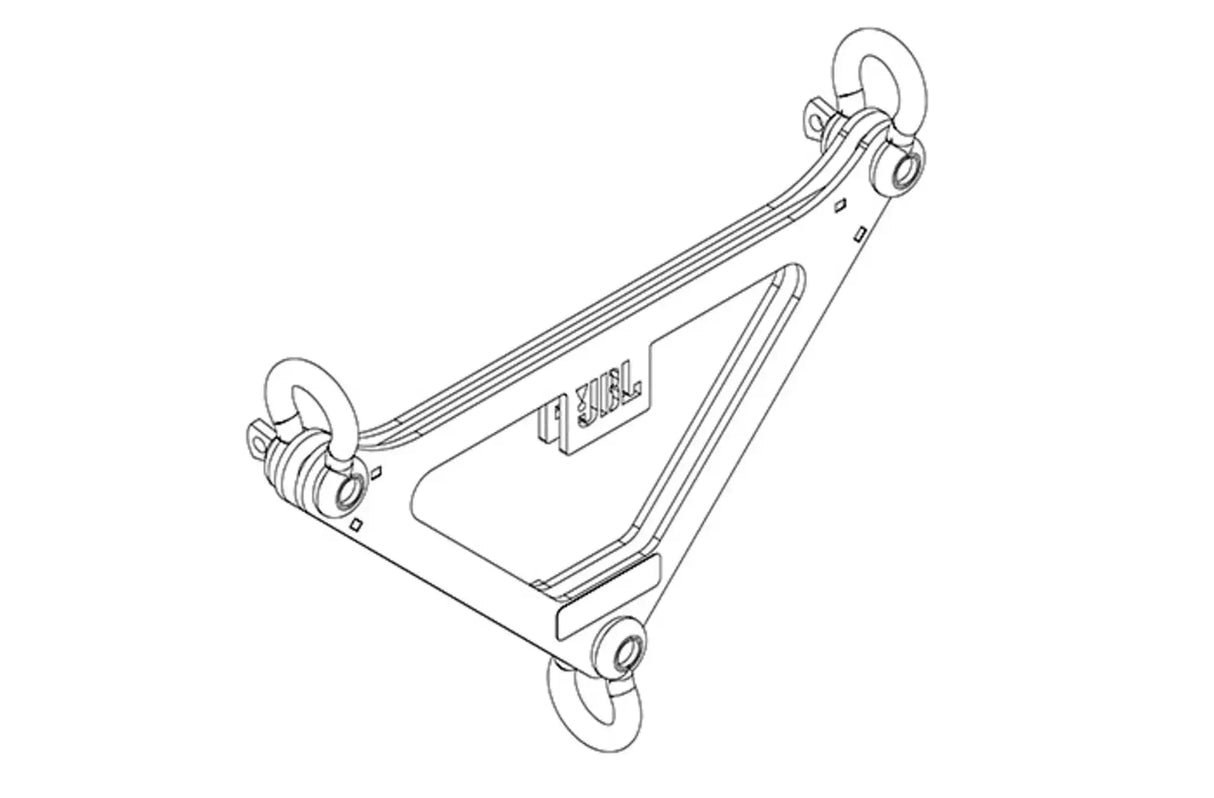

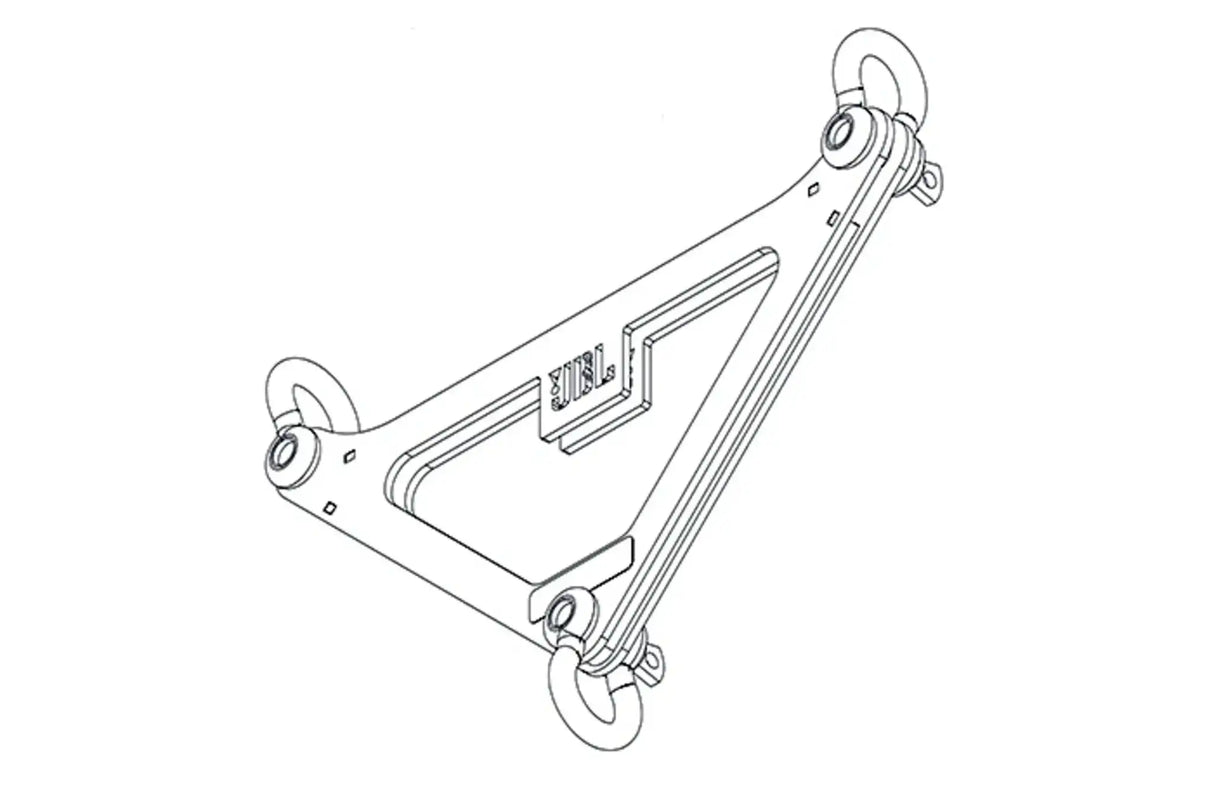

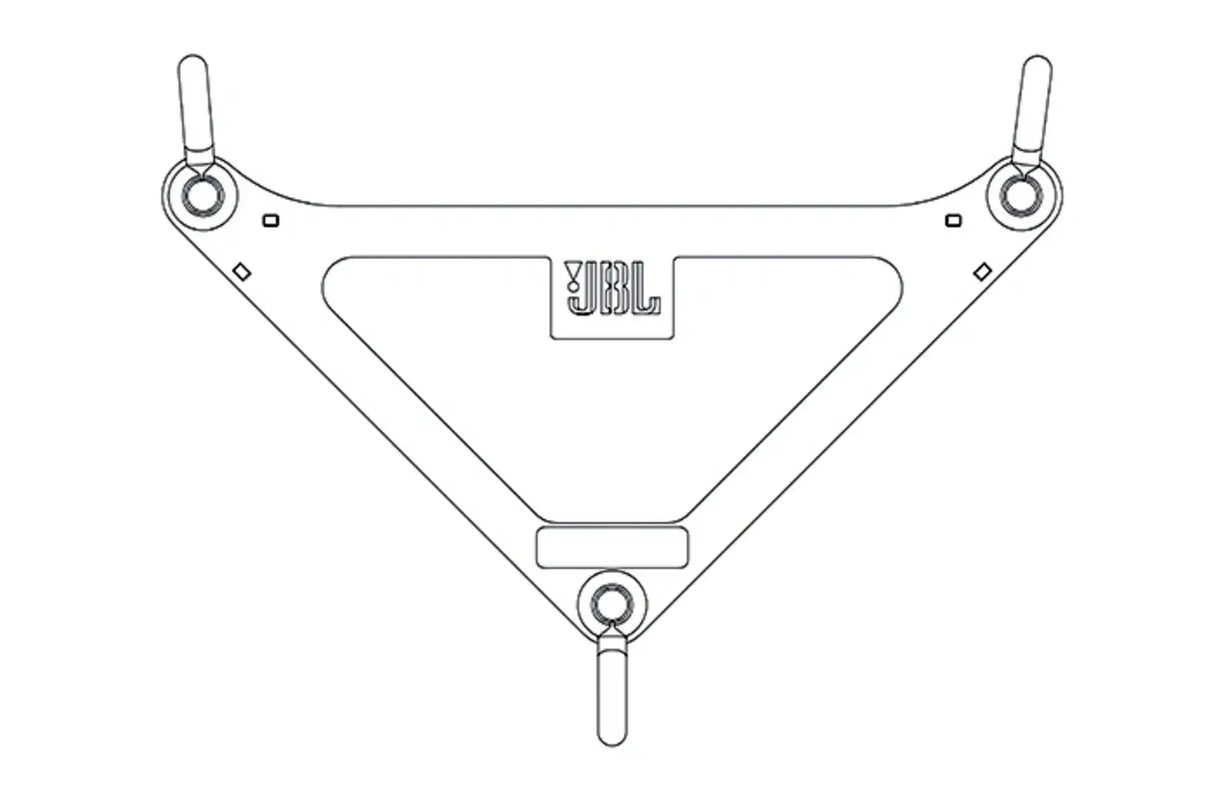

The VTX DELTA Plate is a precision-engineered rigging accessory designed to provide exceptional control and stability for JBL line array systems. Crafted from high-grade steel with an anti-corrosion coating and finished in a sleek black powder coat, this lightweight plate ensures durability without adding unnecessary weight to your setup. The VTX DELTA Plate allows for accurate horizontal aiming of line arrays, supporting up to 24 JBL enclosures with ease. Its design enables adjustments of up to ±10 degrees, giving audio engineers the flexibility to achieve optimal coverage and performance in any venue.
This accessory also offers practical weight distribution capabilities, accommodating two pick points with a recommended spacing of 1 meter (3.3 feet). Each plate comes with three 5/8-inch shackles, allowing secure attachment to chain motors or rigging hardware. The compact dimensions and modest net weight of 5.2 kg (11.5 lbs) make the VTX DELTA Plate an essential tool for professional touring, fixed installations, and any application where precise line array alignment is critical. Compatible with all JBL line array products, this accessory seamlessly integrates into existing systems, ensuring both safety and efficiency. Whether you're setting up a small venue or a large-scale concert, the VTX DELTA Plate provides the versatility and reliability needed for superior sound performance.
Features:
-
High-quality universal delta plate for JBL line arrays
-
Supports up to 24 JBL enclosures
-
Horizontal adjustment range of ±10 degrees
-
Distributes array weight across two pick points (recommended 1-meter spacing)
-
Lightweight and durable steel construction with black powder coat
-
Includes three 5/8-inch shackles for secure attachment
-
Compatible with all JBL line array products
Specifications Table:
| Specification | Details |
|---|---|
| Construction | Steel with anti-corrosion coating |
| Finish | Black powder coat |
| Compatible Shackle Size | 5/8-inch |
| Working Load Limit | 2000 kg (4410 lbs) |
| Dimensions (H x W x D) | 305 mm x 559 mm x 25 mm (12.0 in x 22.0 in x 0.9 in) |
| Net Weight | 5.2 kg (11.5 lbs) |
| Included | 1 VTX DELTA Plate, 3 x 5/8 in shackles |
Compare Table:
| Feature | VTX DELTA Plate | Standard Rigging Plate | Notes |
|---|---|---|---|
| Max Enclosures Supported | 24 | 16 | VTX DELTA supports larger arrays |
| Horizontal Adjustment | ±10° | ±5° | Greater flexibility in aiming |
| Material | Steel with anti-corrosion coating | Steel | Anti-corrosion coating extends durability |
| Weight | 5.2 kg | 7.0 kg | Lighter, easier to handle |
| Included Hardware | 3 x 5/8 in shackles | 2 shackles | Additional shackles for secure attachment |
