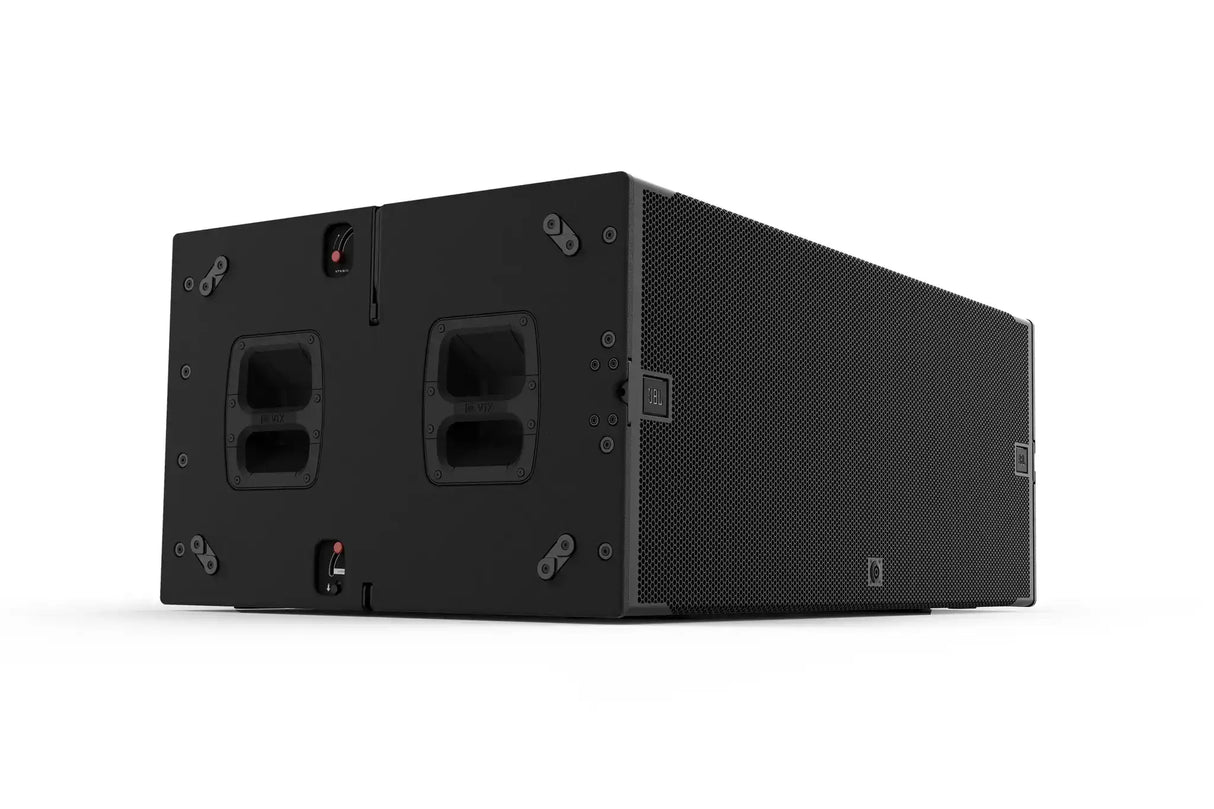

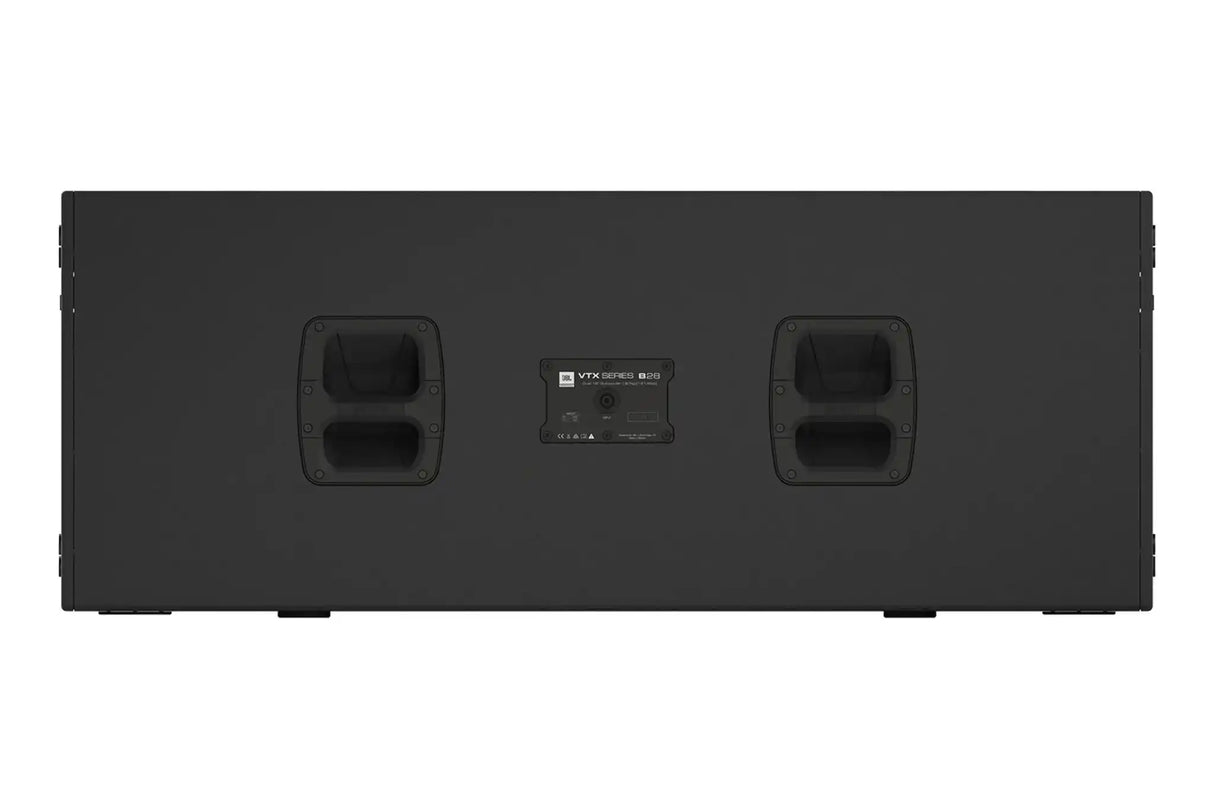

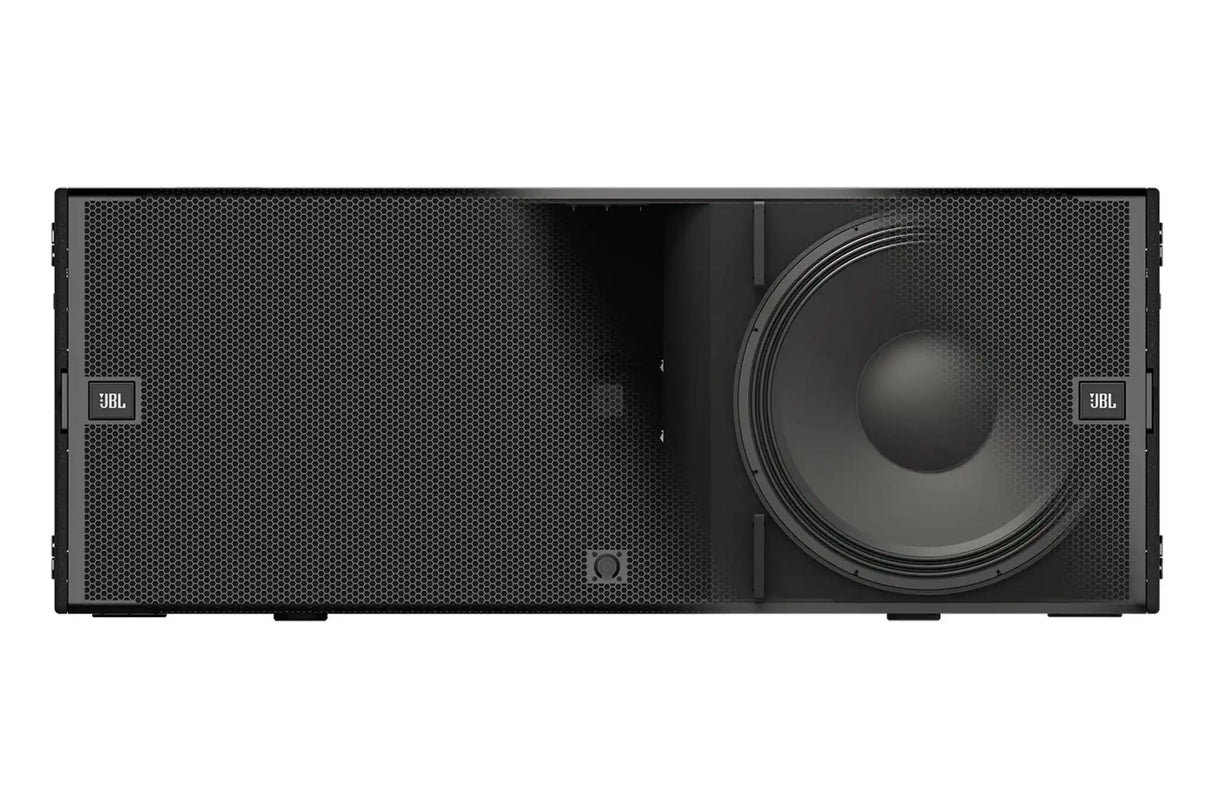

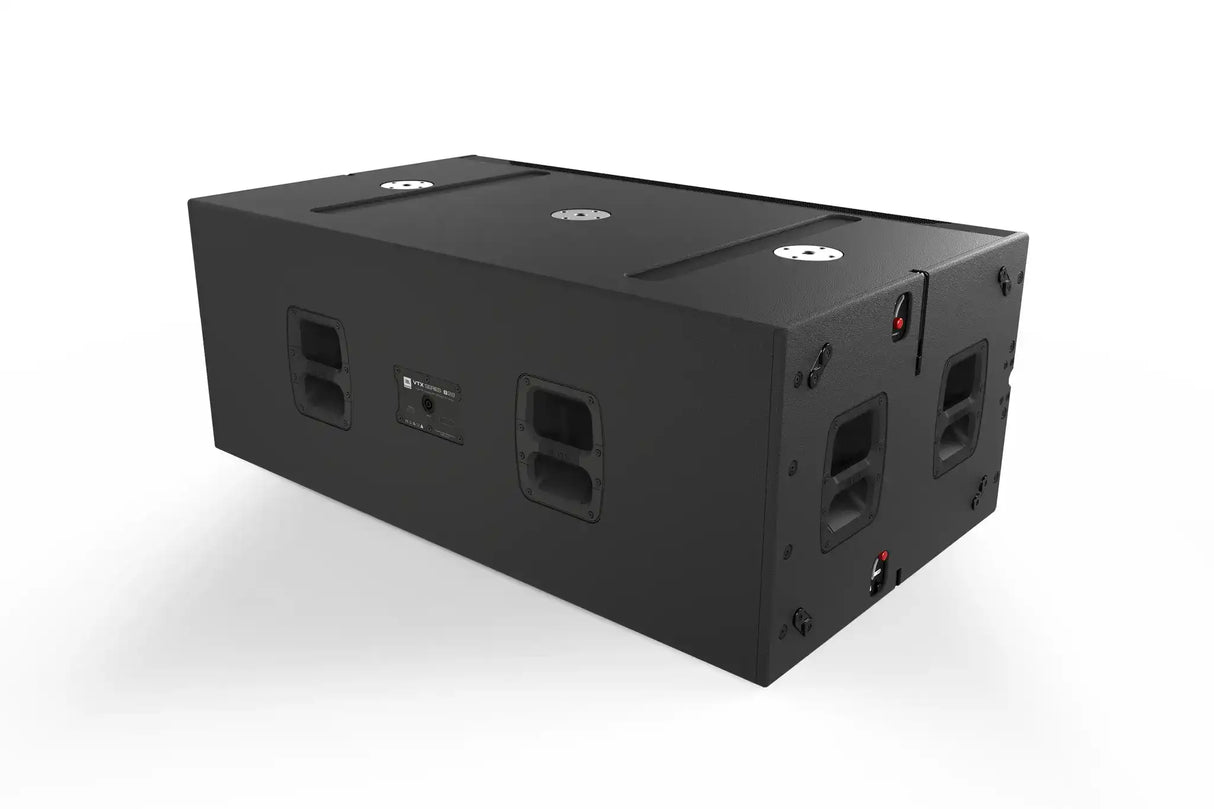

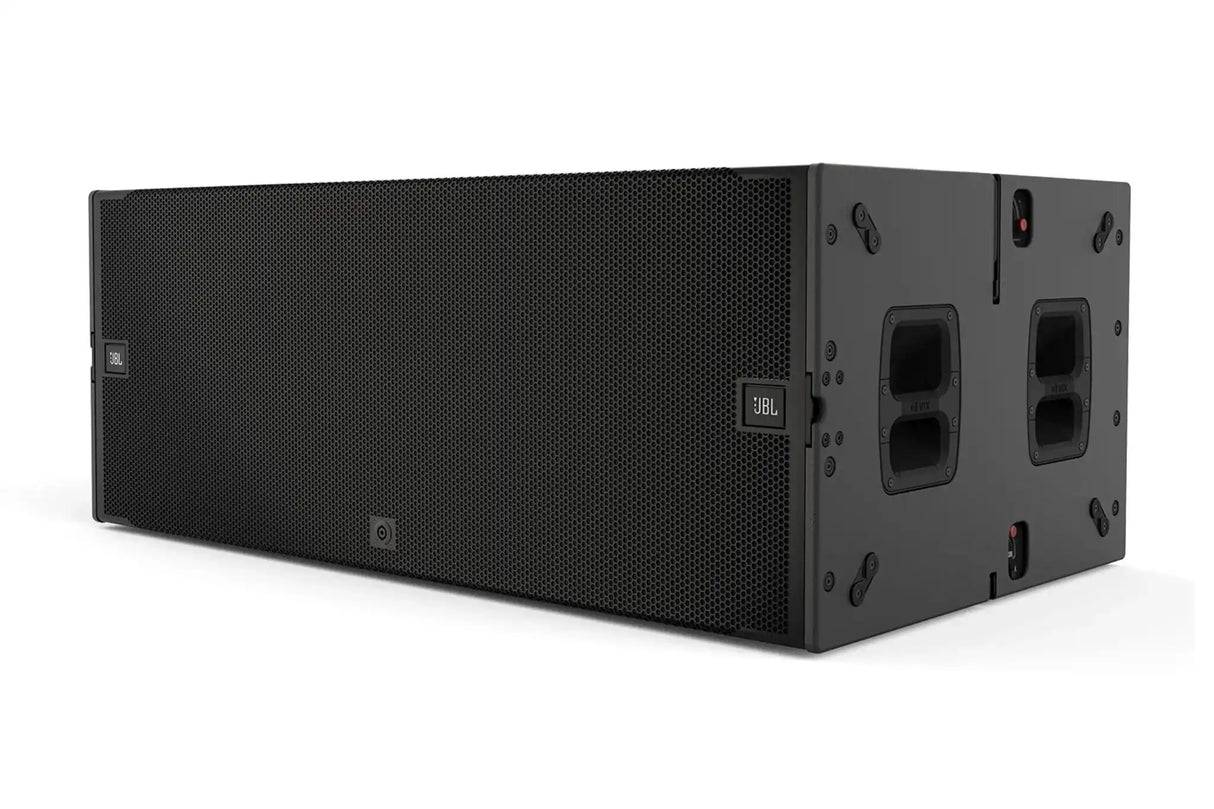

JBL VTX B28 – Arrayable Dual 18-Inch Professional Subwoofer
The JBL VTX B28 is a state-of-the-art dual 18-inch subwoofer engineered to deliver unparalleled low-frequency performance for the world’s most demanding sound reinforcement applications. Designed to seamlessly integrate with JBL’s flagship VTX full-range systems, the B28 offers professional-grade audio clarity, deep bass extension, and versatile deployment options for rental, AV, touring, and high-end fixed installations.
Equipped with JBL Differential Drive transducers and a large, double-flared port, the VTX B28 achieves extended low-frequency output while minimizing turbulence, ensuring clear, linear bass down to 25 Hz. The FEA-optimized enclosure, constructed from durable Finnish birch plywood with a Black DuraFlex™ finish, balances rugged touring durability with precise acoustical performance. Handling is made simple with four recessed handles, allowing for efficient transport and setup.

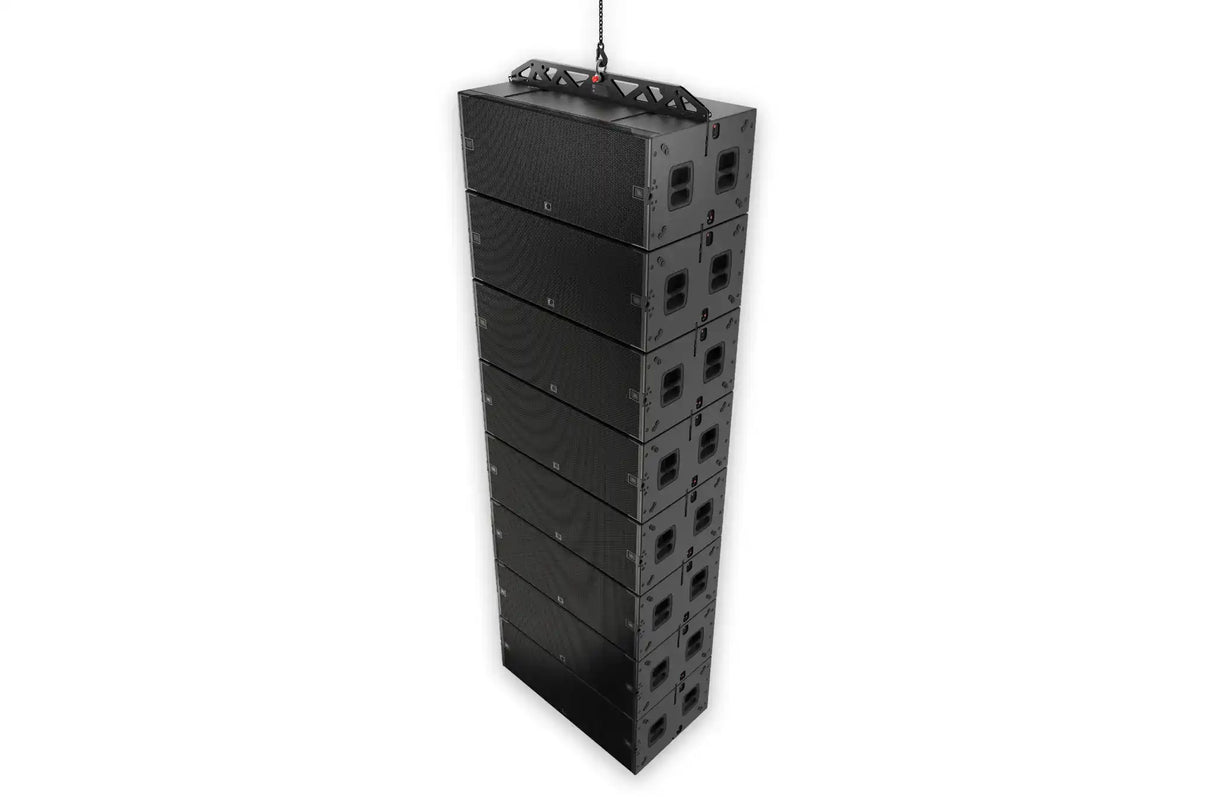

The VTX B28 offers both omnidirectional and cardioid deployment, giving engineers flexibility in creating customized sound coverage. Its simple two-point spring-loaded rigging system enables flown arrays of up to 16 enclosures, while three M20 pole mounts allow integration with A12, A8, and V20 base plates for secure ground-stacked configurations. The system is powered exclusively by Crown I-Tech HD amplifiers and fully integrates with JBL’s software ecosystem for precise system control.
Additional features such as front and rear NL4 connectors, acoustical compatibility with all VTX full-range products, and a wide array of optional accessories make the VTX B28 a complete solution for high-output low-frequency reinforcement. Whether flown, ground-stacked, or used in omnidirectional or cardioid modes, the VTX B28 delivers the transparency, power, and reliability that professional audio demands.
Features:
-
Transparent, linear bass response down to 25 Hz
-
Dual JBL 2288H-M 18-inch Differential Drive woofers
-
Large double-flared port for extended low-frequency output and reduced turbulence
-
Simple two-point spring-loaded rigging system for flown arrays
-
FEA-optimized Finnish birch plywood enclosure with Black DuraFlex™ finish
-
Front and rear NL4 connectors for versatile connectivity
-
Supports omnidirectional and cardioid configurations
-
Acoustically compatible with all VTX full-range products
-
Flexible accessory options for ground-stacked and flown setups
Specifications Table:
| Specification | Details |
|---|---|
| Frequency Range (-10 dB) | 25 Hz – 80 Hz (Preset: VTX B28 80) |
| Coverage Pattern | Omnidirectional or Cardioid |
| Maximum Peak Output | 141 dB (Preset: VTX B28 80) |
| System Amplification | Crown I-Tech HD |
| System Impedance | 4 ohms |
| LF Driver | 2 × JBL 2288H-M 18-inch Differential Drive woofers |
| Enclosure | Finnish birch plywood, Black DuraFlex™ finish, four recessed handles |
| Suspension / Mounting | Captive suspension plates, captive pins, spring-loaded mechanism, 2-step safety lock |
| Dimensions (H x W x D) | 508 mm x 1324 mm x 750 mm (20 in x 52.1 in x 29.5 in) |
| Net Weight | 87 kg (191.8 lbs) |
Compare Table:
| Feature | VTX B28 | Standard Dual 18” Subwoofer | Notes |
|---|---|---|---|
| Low-Frequency Extension | 25 Hz | 30–35 Hz | Deeper bass output |
| Peak Output | 141 dB | 135–138 dB | Higher SPL for larger venues |
| Rigging | Two-point spring-loaded | Manual rigging | Faster, safer flown arrays |
| Deployment Modes | Omnidirectional / Cardioid | Omnidirectional only | Flexible coverage patterns |
| System Integration | Fully integrated with VTX & Crown I-Tech HD | Limited | Seamless software and amp control |
| Enclosure | Finnish birch plywood, DuraFlex™ | Standard plywood | Enhanced durability and touring reliability |
| Weight | 87 kg | 90–100 kg | Optimized for transport and handling |
