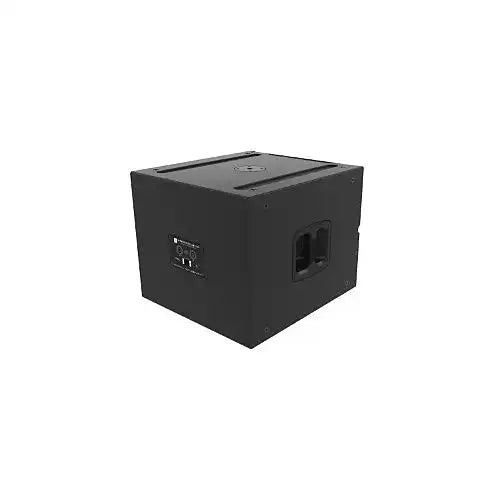

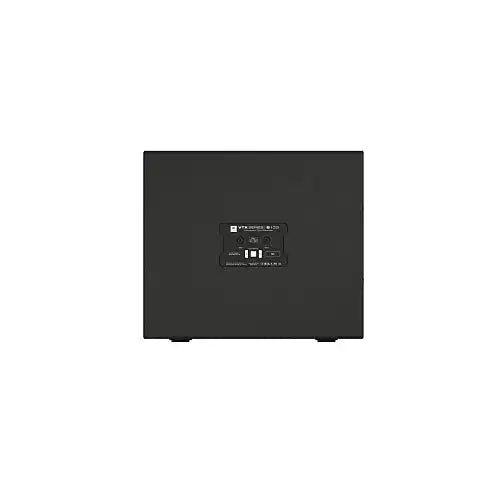

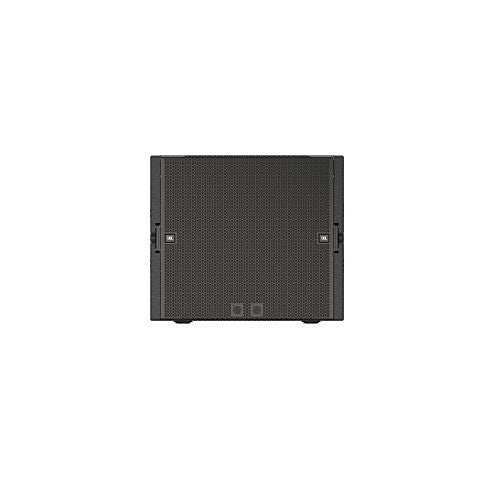

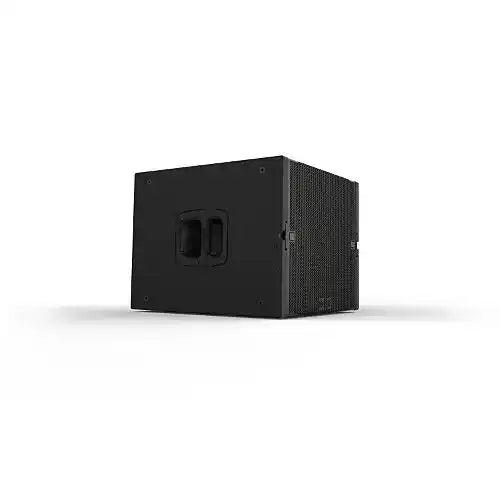

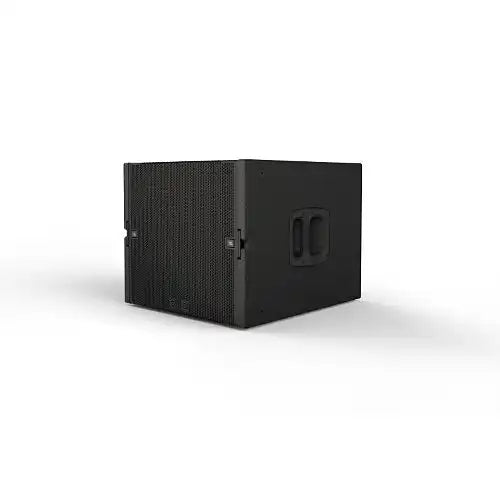

JBL VTX B15G – Compact 15-Inch Subwoofer for Professional Sound
The JBL VTX B15G Compact Subwoofer delivers premium low-frequency performance in a compact, tour-ready footprint, extending the power of VTX full-range sound reinforcement systems. Designed for rental companies, touring acts, theaters, houses of worship, and other professional audio applications, the B15G provides the sonic impact of larger subwoofers while saving valuable stage and transport space.
Featuring a high-performance 15-inch Differential Drive® woofer with dual voice coils and dual gap neodymium magnets, the B15G combines long excursion capability with enhanced cooling, ensuring consistent performance during high-output events. Proprietary SlipStream™ double-flared low-frequency ports reduce turbulence and extend bass response, while allowing the system to produce clear, powerful lows in compact enclosures. The B15G supports both omnidirectional and cardioid array configurations, making it versatile for a range of audio setups. Front and rear NL4 speakON® connectors simplify cable management, and a rear panel switch allows channel selection for minimal cabling.
Constructed from exterior-grade birch plywood with a black DuraFlex™ impact-resistant finish, the B15G is built to withstand the rigors of touring and outdoor installations. Its IP55 rating, metal components with anti-corrosion coatings, and robust powder-coated steel grille ensure reliability under demanding conditions. Compatible with VTX A6 and A8 arrays, the B15G can be used in flown or ground-stacked configurations when paired with the appropriate base plate accessory. With JBL engineering and innovation at its core, the B15G offers a compact, flexible, and powerful solution for delivering high-quality low-frequency sound anywhere.
Features
-
Compact 15-inch subwoofer with robust low-end performance
-
15-inch JBL 2285H Differential Drive® woofer with dual 4-inch voice coils
-
SlipStream™ double-flared low-frequency ports for reduced turbulence
-
Supports omnidirectional or cardioid array configurations
-
16 M10 attachment points for suspension using eyebolts
-
Front and rear NL4 speakON® connectors for flexible cabling
-
High-grade exterior birch plywood construction with black DuraFlex™ finish
-
IP55-rated for dust and water resistance, MIL-STD-810 UV protection
-
Powder-coated steel grille with acoustically transparent cloth
-
Ideal for small to mid-size VTX system deployments
Specifications
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 35 Hz – 95 Hz (Preset: 80 Hz) |
| Frequency Range (±3 dB) | 42 Hz – 80 Hz (Preset: 80 Hz) |
| Maximum Peak Output | 132 dB |
| System Power Rating | 1300 W Continuous (IEC/100 hr) |
| System Type | Passive Subwoofer |
| LF Driver | 1 × JBL 2285H 15", dual 4" voice coils, neodymium Differential Drive® |
| Coverage Pattern Options | Omnidirectional or Cardioid |
| Enclosure | 15–24 mm exterior-grade birch plywood, black DuraFlex™ finish |
| Handles | 2 integral recessed handles |
| Suspension Points | 16 × M10 eyebolts |
| Grille | Powder-coated 16-gauge hex perforated steel with cloth backing |
| Connectors | 4 × Neutrik speakON® STXX NL4, selectable Pin 1 ± / Pin 2 ± |
| Dimensions (H x W x D) | 446 × 536 × 587 mm (18.4 × 21.1 × 23.1 in) |
| Net Weight | 33.5 kg (74 lbs) |
| Shipping Weight | 39.5 kg (87 lbs) |
Compare Table
| Feature | VTX B15G Compact Subwoofer | VTX B15 Standard Subwoofer |
|---|---|---|
| Woofer Size | 15-inch | 15-inch |
| Differential Drive | Yes | Yes |
| Rigging Hardware | None | Included |
| Coverage Options | Omni/Cardioid | Omni/Cardioid |
| Max Peak Output | 132 dB | 132 dB |
| Frequency Range (-10 dB) | 35–95 Hz | 35–95 Hz |
| Construction | Exterior-grade birch plywood, DuraFlex™ | Exterior-grade birch plywood, DuraFlex™ |
| IP Rating | IP55 | IP55 |
