JBL VTX A6 MF – Mini Frame Mount Accessory for VTX A6 and B15
The JBL VTX A6 MF Mini Frame is a compact and lightweight suspension solution designed for smaller VTX A6 and VTX B15 arrays. Engineered for professional audio applications, this versatile mini frame provides secure single-point or side-by-side suspension, making it ideal for rental houses, corporate events, theaters, and live music venues. Its precision design allows for controlled tilting and safe, efficient deployment of smaller line array configurations.

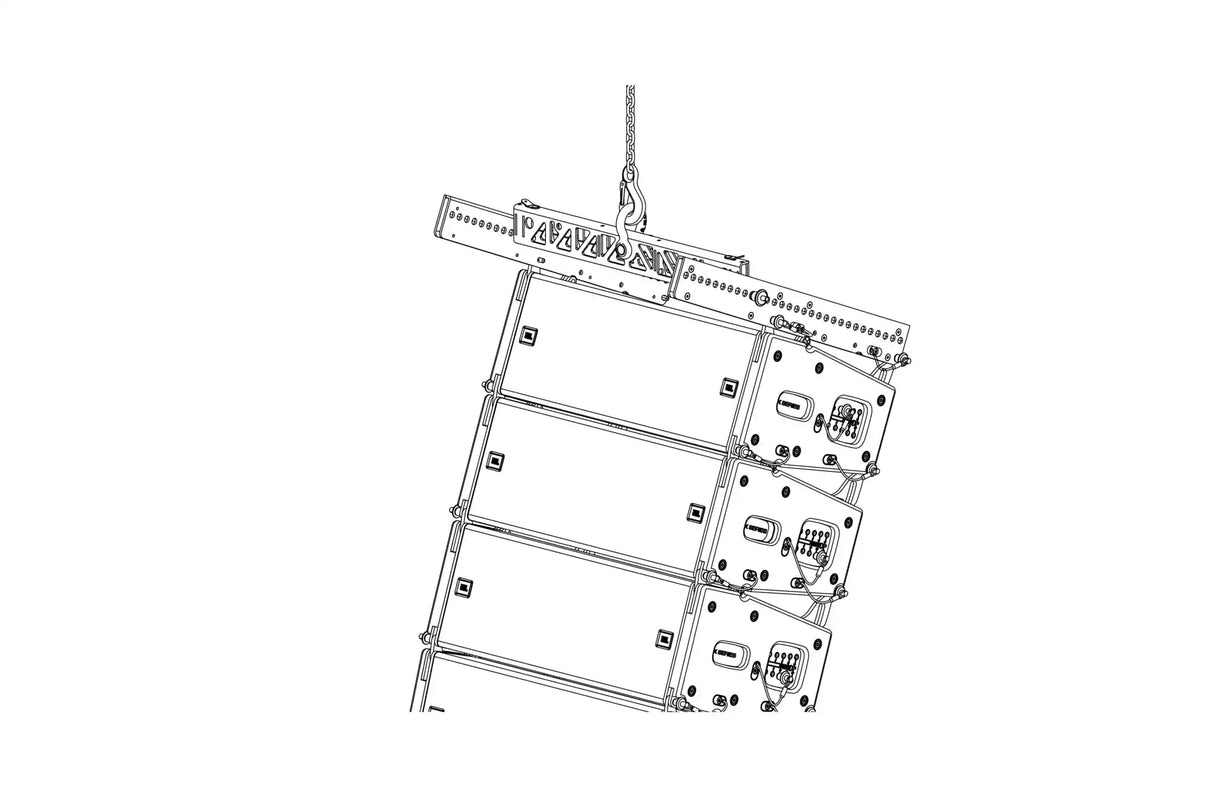

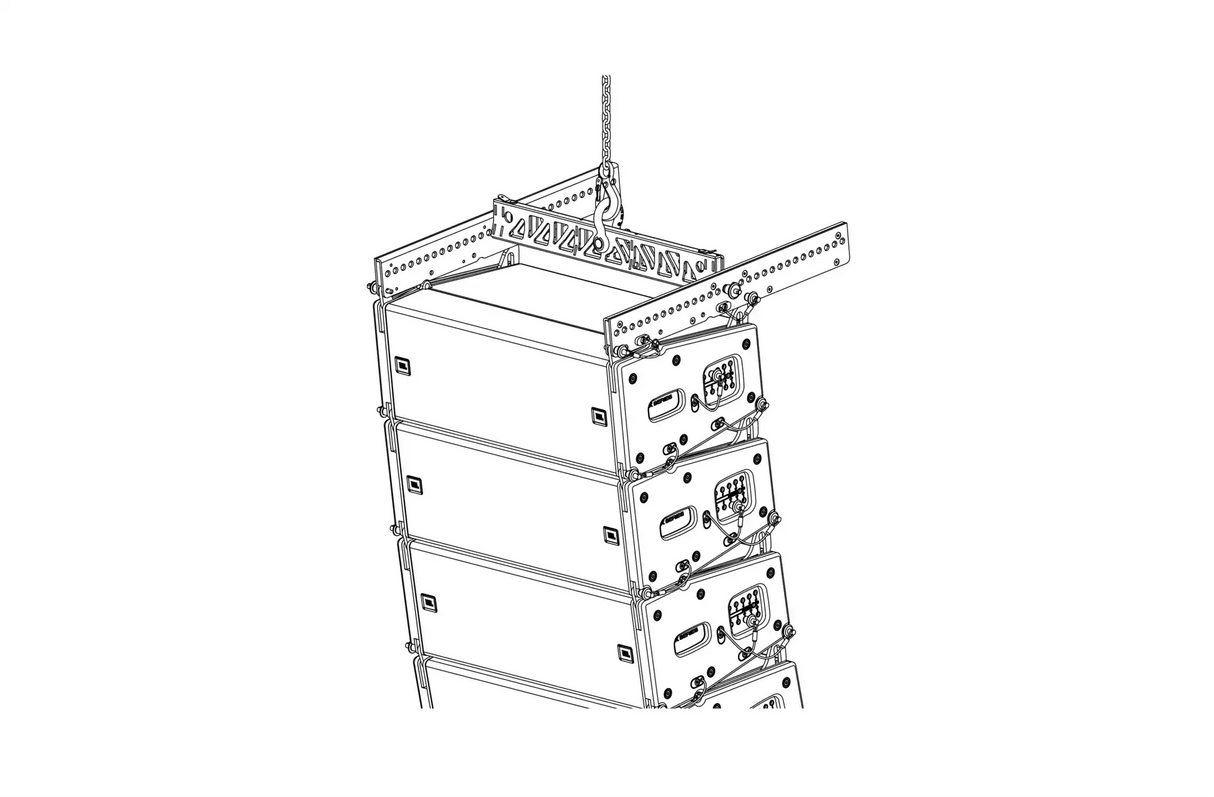

Constructed from high-grade steel with a durable black powder coat finish, the VTX A6 MF supports up to 24 VTX A6 or 12 VTX B15 enclosures. The three-piece collapsible design—comprising two side arms and a spreader bar—offers excellent portability and storage convenience. For single-point applications, the frame works in conjunction with the VTX RC500 Rotating Clamp, allowing arrays to be safely suspended from standard trusses or pipes. Side-by-side pick points enable flexible rigging on telescopic boom lifts or other aerial setups, while a 0.5° pick-point resolution ensures precise angle adjustments for optimal coverage.
The spreader bar can be pinned to one of 30 positions on the side arms, giving users complete control over array tilt. When not in use, the three components collapse and lock together for compact storage. With its rugged construction, ease of use, and compatibility with a broad range of VTX system components, the JBL VTX A6 MF Mini Frame is an essential accessory for professional sound reinforcement teams looking to deploy high-quality line array arrays safely and efficiently.
Features
-
Compact and lightweight design for easy transport and setup
-
Compatible with VTX A6 and VTX B15 line array speakers
-
Supports up to 24 VTX A6 or 12 VTX B15 cabinets
-
Single-point and side-by-side pick-point suspension options
-
0.5° pick-point resolution for precise angle adjustment
-

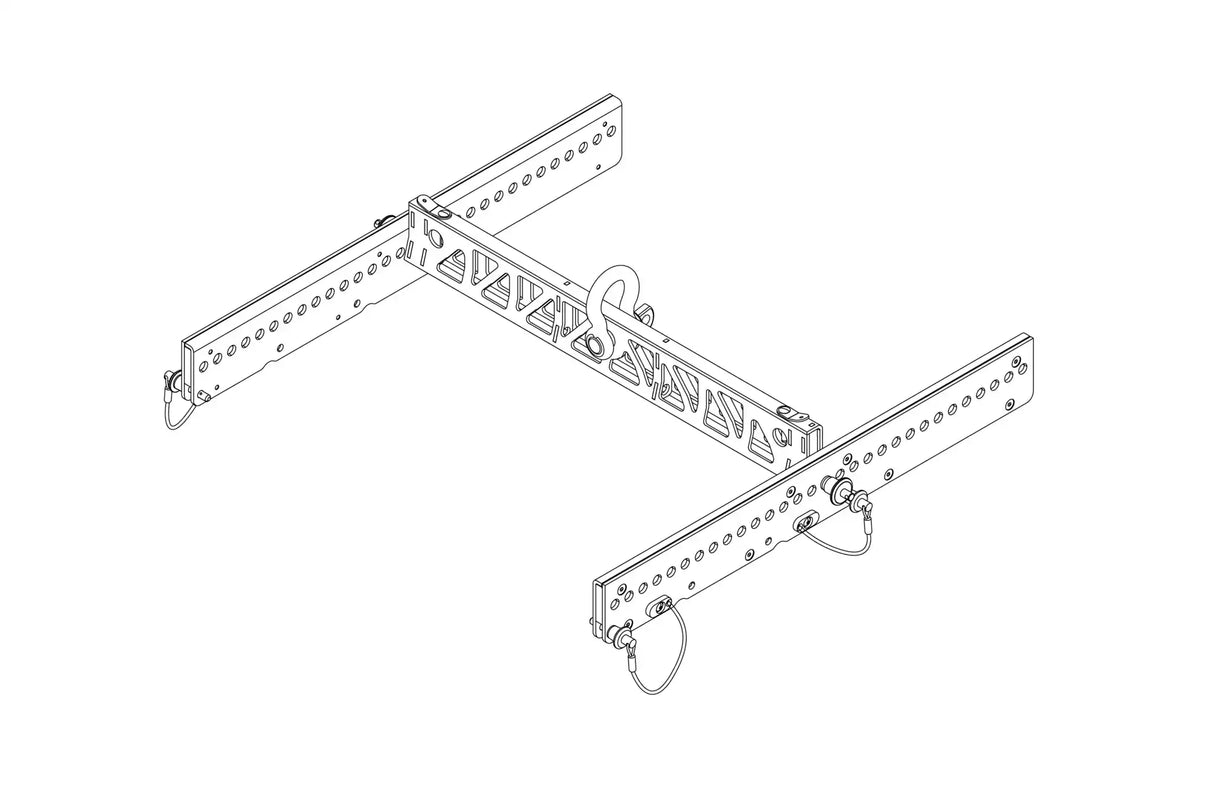

Three-part collapsible design for convenient storage
-
Compatible with 1/2-inch shackles
-
Durable black powder-coated high-grade steel construction
-

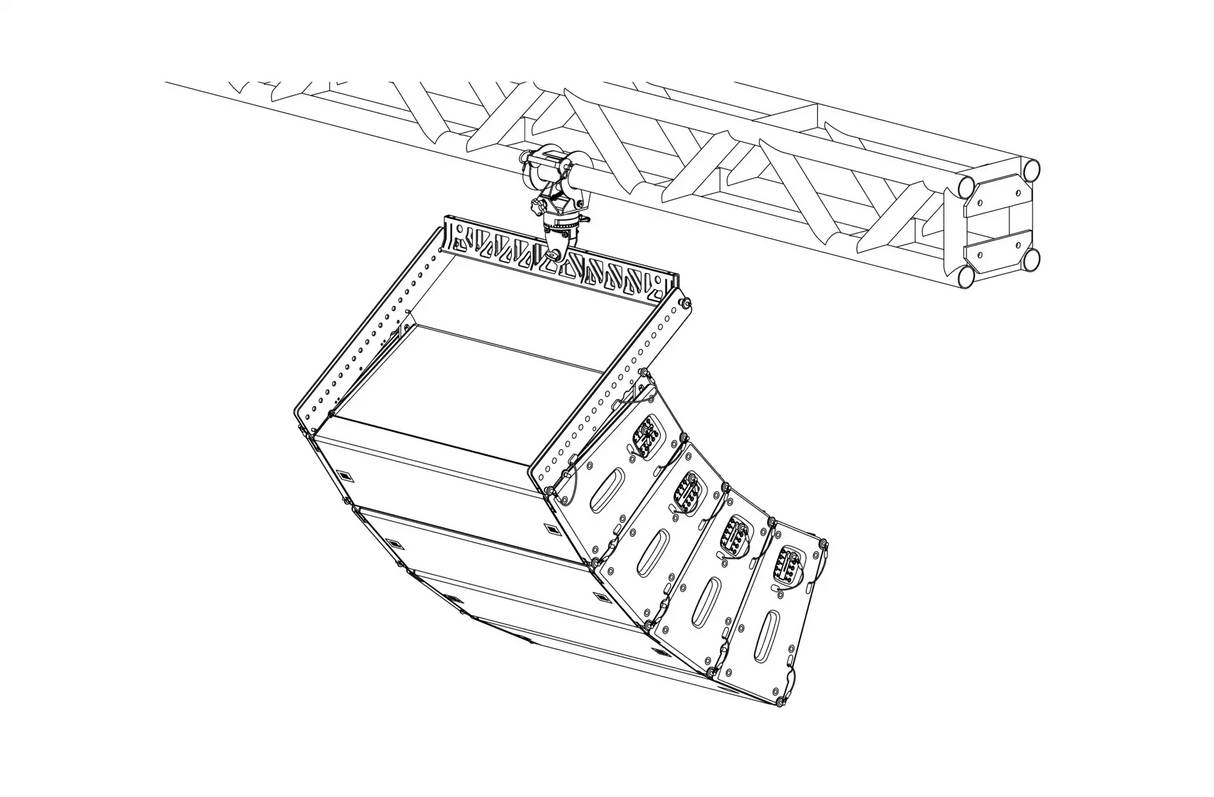

Works with VTX RC500 Rotating Clamp for single-point suspension
-
Ideal for trusses, pipes, and telescopic boom lift applications
Specifications
| Specification | Detail |
|---|---|
| Device Supported | Line Array Speaker, Subwoofer |
| Maximum Array Limit | 24 × VTX A6 / 12 × VTX B15 |
| Pick-Point Options | Single-point, Side-by-side |
| Pick-Point Resolution | 0.5° |
| Material | High-grade steel |
| Finish | Black powder coat |
| Components Included | 2 × side arms, 1 × spreader bar, 1 × 1/2-inch shackle |
| Dimensions (H x W x D) | 3.4" × 20" × 20" (86 mm × 508 mm × 508 mm) |
| Weight | 11.6 lb (5.3 kg) |
| Shackle Compatibility | 1/2 in |
Compare Table
| Feature | VTX A6 MF Mini Frame | VTX A6 BP Base Plate | VTX A6 Accessory Cover |
|---|---|---|---|
| Compatible Devices | VTX A6, VTX B15 | VTX A6 | VTX V25 |
| Max Cabinets Supported | 24 A6 / 12 B15 | 8 A6 | 1 |
| Suspension Type | Single-point / Side-by-side | Ground stack / Pole mount | Protective transport |
| Pick-Point Resolution | 0.5° | N/A | N/A |
| Portability | Collapsible design | Fixed | Padded cover |
