JBL VTX A12 AF EB – Extension Bar for Array Frame

The JBL VTX A12 AF EB Extension Bar is a dedicated accessory designed to expand the functionality of the VTX A12 AF Array Frame. Engineered for versatility, it provides support for single-point, front-to-back, and side-by-side suspension methods, making it an essential tool for achieving precise and flexible rigging configurations in professional line array deployments.

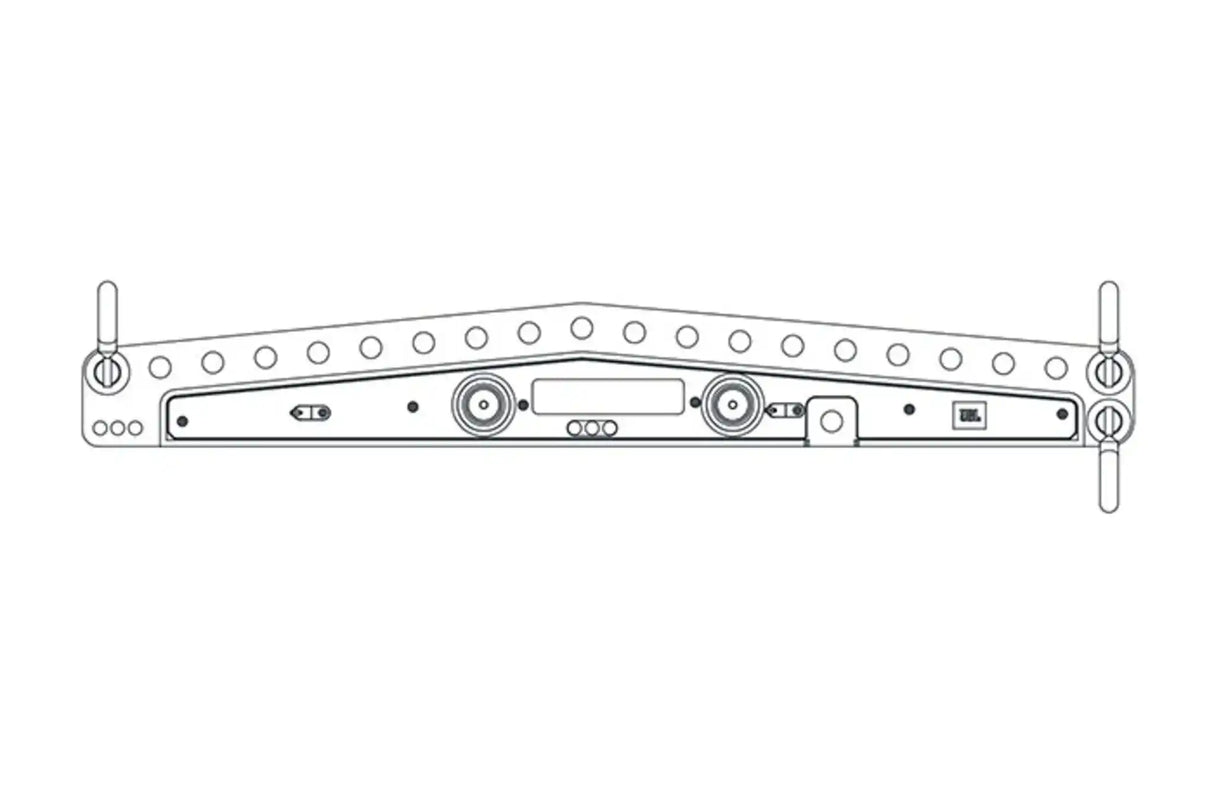

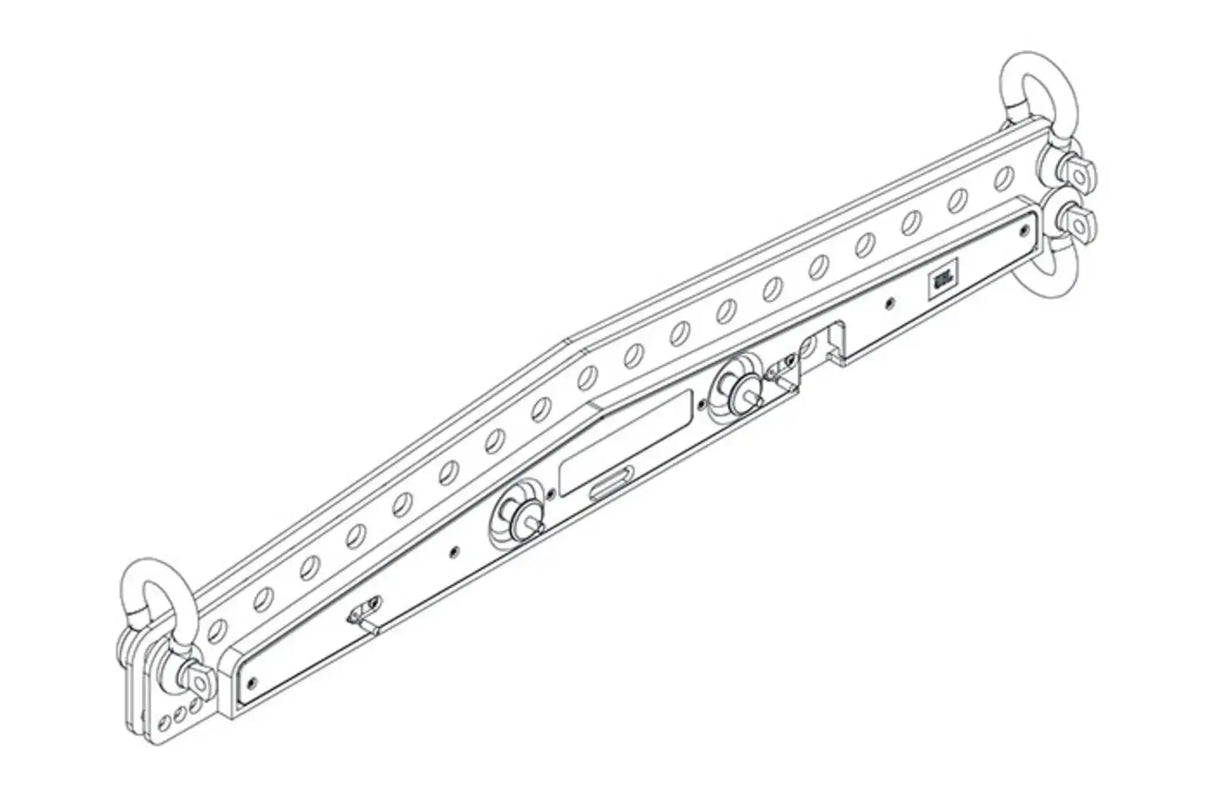

Constructed from high-grade steel with an anti-corrosion coating and finished in a durable black powder coat, the A12 AF EB ensures long-term reliability and strength. It includes three connection points that allow for fine control of shackle positioning, giving system engineers the ability to achieve 0.5-degree pick-point resolution for maximum aiming accuracy. The extension bar can be installed to extend either the front or rear of the array frame, enabling both up-tilt and down-tilt aiming options that go beyond the capabilities of the frame alone.

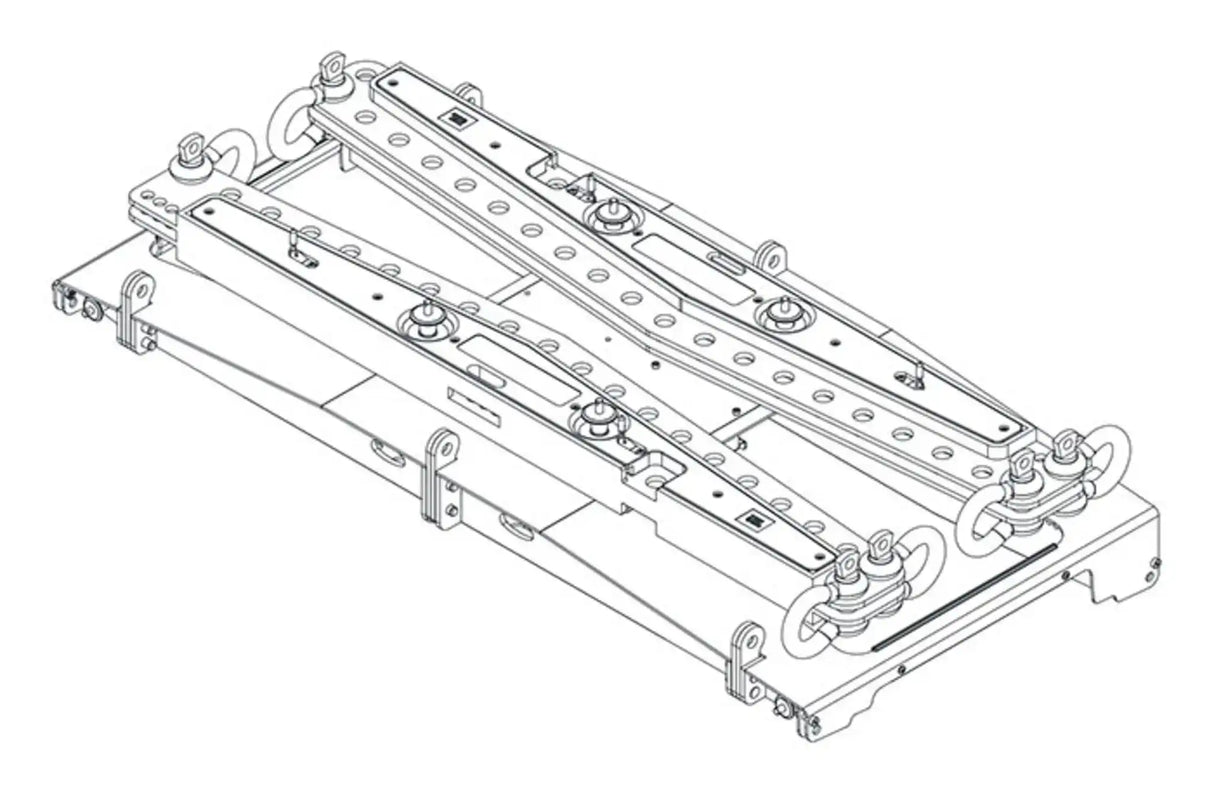

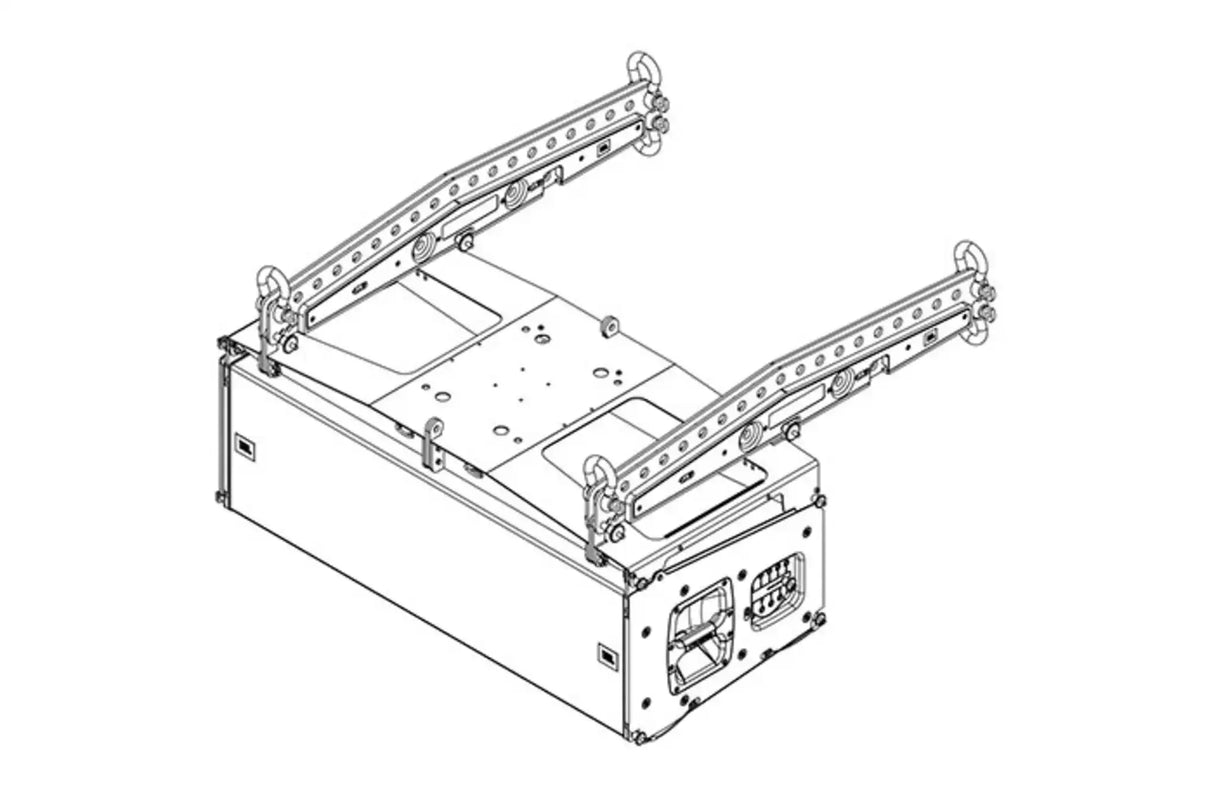

The extension bar integrates seamlessly with the VTX A12 AF Array Frame and is designed for convenient transport and storage—fitting neatly above the main frame when not in use. Supporting up to 24 VTX A12 enclosures under maximum load conditions (12 for safe limit applications), it ensures both power and safety in demanding professional environments. Complete with shackles, attachment brackets, and screws, the A12 AF EB provides a ready-to-use solution for production companies, rental houses, and fixed installations requiring advanced suspension options.

Features:

• Extension Bar for use with VTX A12 AF Array Frame

• Enables single-point, front-to-back, or side-by-side suspension

• Precise 0.5° pick-point resolution

• Supports up to (24) VTX A12 enclosures (12 safe limit)

• High-grade steel with anti-corrosion coating and plastic side covers

• Lightweight, durable design with compact storage capability

• Compatible with standard 5/8 in shackles (included)
