JBL Professional VLA-C265-BK 2-Way Horn-Loaded Line Array Speaker System, 65° Horizontal Coverage, Black

JBL VLA-C265-BK – 65° Horn-Loaded Line Array, Black

Product Overview

The JBL Professional VLA-C265-BK is the black-finish version of JBL's compact two-way, horn-loaded line array module, designed for permanent installation in arenas, stadiums, and houses of worship. It delivers a precise 65° horizontal pattern for high-intelligibility, long-throw coverage, combining dual 10-inch Differential Drive® woofers with a three-driver compression high-frequency section. The IP55-rated weatherized enclosure makes it suitable for both indoor and outdoor permanent systems where consistent projection is required.

Product Description

The high-frequency section of the VLA-C265-BK uses three D2415 compression drivers with 1.5-inch annular diaphragms, 1.5-inch voice coils, and neodymium motors for maximum sensitivity and clarity. Low frequencies are produced by dual 10-inch Differential Drive® woofers with 3-inch voice coils, delivering controlled, impactful bass with efficient power handling. The result is a coherent two-way response that holds up in large, acoustically demanding spaces, whether the module operates alone, in a distributed cluster, or as part of a full line array.

Built with multi-layer reinforced fiberglass, internal bracing, and powder-coated 14-gauge steel grilles, the enclosure carries an IP55 rating for dust and water resistance. The VLA-C265-BK supports passive or bi-amp operation, giving system designers control over amplifier channel count and headroom, and its integrated rigging system provides multiple inter-box angle options for accurate array configuration. The black finish suits venues where loudspeakers must visually recede into darker ceilings, trusses, or architectural backgrounds. The 65° horizontal pattern targets narrower, longer-throw coverage; a 100° option is available in the VLA-C2100.

Key Features

• Two-way full-range line array module — optimized for permanent installation in large venues.
• Dual 10-inch Differential Drive® woofers — 3-inch voice coils for powerful, controlled low frequencies.
• Triple D2415 compression drivers — 1.5-inch annular diaphragms and neodymium motors for clear highs.

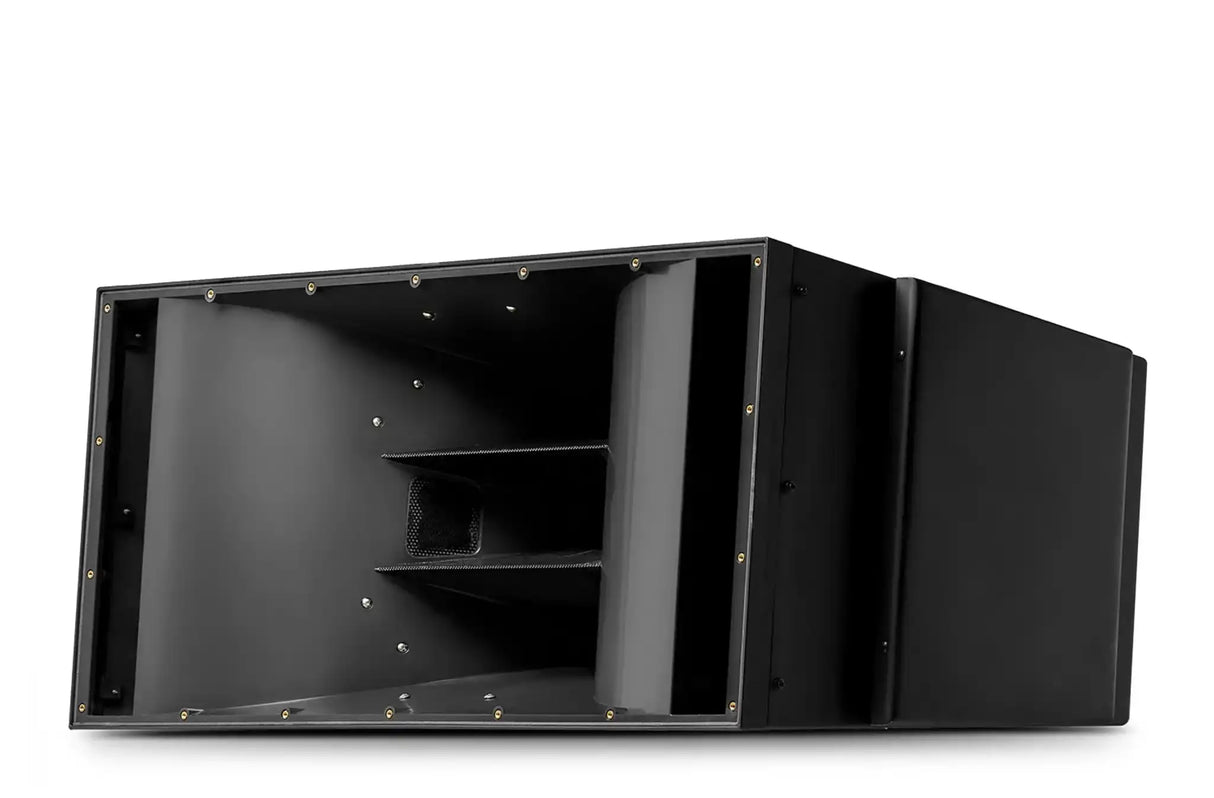

• 65° horizontal horn coverage — precise pattern control for focused, long-throw zones.
• IP55-rated enclosure — dust and water resistance for outdoor and exposed installs.
• Reinforced fiberglass with powder-coated steel grilles — durable construction for demanding environments.
• Passive or bi-amp operation — flexibility to match amplifier count and headroom goals.
• Integrated rigging system — multiple inter-box angles for precise array setup.
• Black finish — low visual profile against dark trusses and ceilings.

Typical Applications

• Arenas, stadiums, and large sports facilities requiring long-throw coverage.
• Houses of worship and performing arts centers needing controlled directivity.
• Outdoor venues where IP55 weather resistance is essential.
• Distributed clusters and full-scale line arrays in dark architectural settings.

Technical Specifications

Competitor Comparison

Among 65°-class install line arrays, the VLA-C265-BK stands out for its IP55 weather rating, passive/bi-amp flexibility, and availability in black or gray to match venue aesthetics. Compared with the fixed-pattern L-Acoustics A15 Focus or the variable d&b V-Series, it offers a defined 65° pattern with standard Crown DCi amplification rather than a proprietary active-only ecosystem.

What's in the Box

• JBL VLA-C265-BK line array module (black finish)
• Integrated rigging hardware
• Product documentation

Frequently Asked Questions

How does the VLA-C265-BK differ from the gray model? The two are functionally identical; the BK suffix indicates a black enclosure finish, chosen where loudspeakers should blend with dark ceilings or trusses.

What coverage angle does it provide? A fixed 65° horizontal pattern for focused, long-throw coverage. The VLA-C2100 provides a wider 100° pattern for broad audience areas.

Is it rated for outdoor use? Yes. The IP55 enclosure with powder-coated steel grilles resists dust and water for outdoor and exposed installations.

Can it run passively? Yes. It supports both passive and bi-amp operation, letting designers balance amplifier channel count against maximum SPL.

For system design and amplifier selection, contact the Creation Networks team at creationnetworks.net.
