JBL VLA-C2100 – 2-Way Horn-Loaded Line Array, 100° Coverage

Product Overview

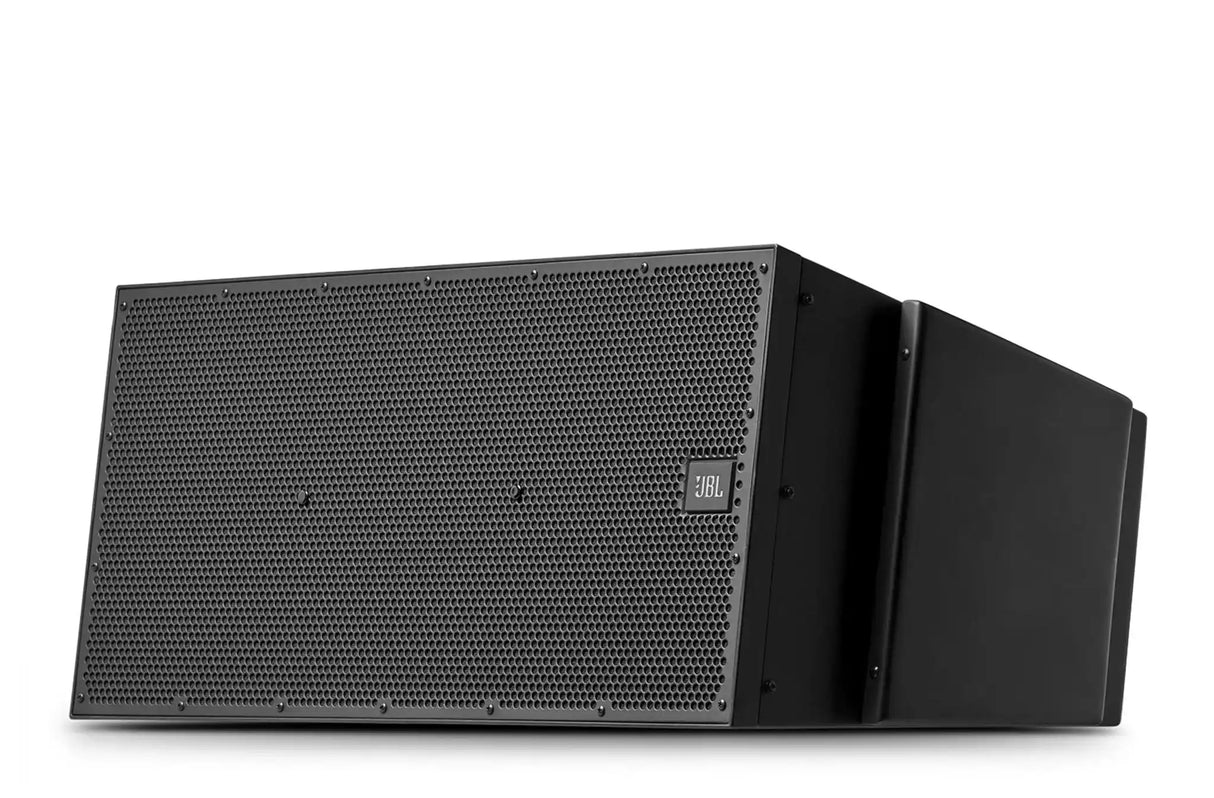

The JBL VLA-C2100 is a two-way, horn-loaded line array speaker module built for permanent commercial sound reinforcement in large venues that require broad horizontal coverage. Its 100° horizontal dispersion pattern distributes sound evenly across wide seating areas — fan-shaped bowls, broad worship sanctuaries, and multi-purpose halls — where a narrower module would leave audience zones at the edges under-served. The VLA-C2100 combines dual 10-inch Differential Drive woofers with three D2415 compression drivers in an IP55-rated enclosure, and it integrates directly into JBL VLA Compact Series arrays alongside the 65° VLA-C265 and the VLA-C125S subwoofer module. For integrators and system designers specifying a JBL horn-loaded line array speaker for wide-coverage permanent installations, the VLA-C2100 is the wide-pattern module in the VLA Compact family.

Product Description

The high-frequency section of the VLA-C2100 uses three JBL D2415 compression drivers, each with a 1.5-inch annular diaphragm, 1.5-inch voice coil, and neodymium magnet assembly. The annular (ring-radiator) diaphragm geometry extends usable high-frequency output and reduces distortion compared with conventional dome or cone radiators, contributing to speech intelligibility across the wide 100° coverage arc. The low-frequency section pairs two 10-inch JBL 2261 Differential Drive woofers — dual 3-inch voice coils per driver — for bass output with low thermal compression across extended operating periods.

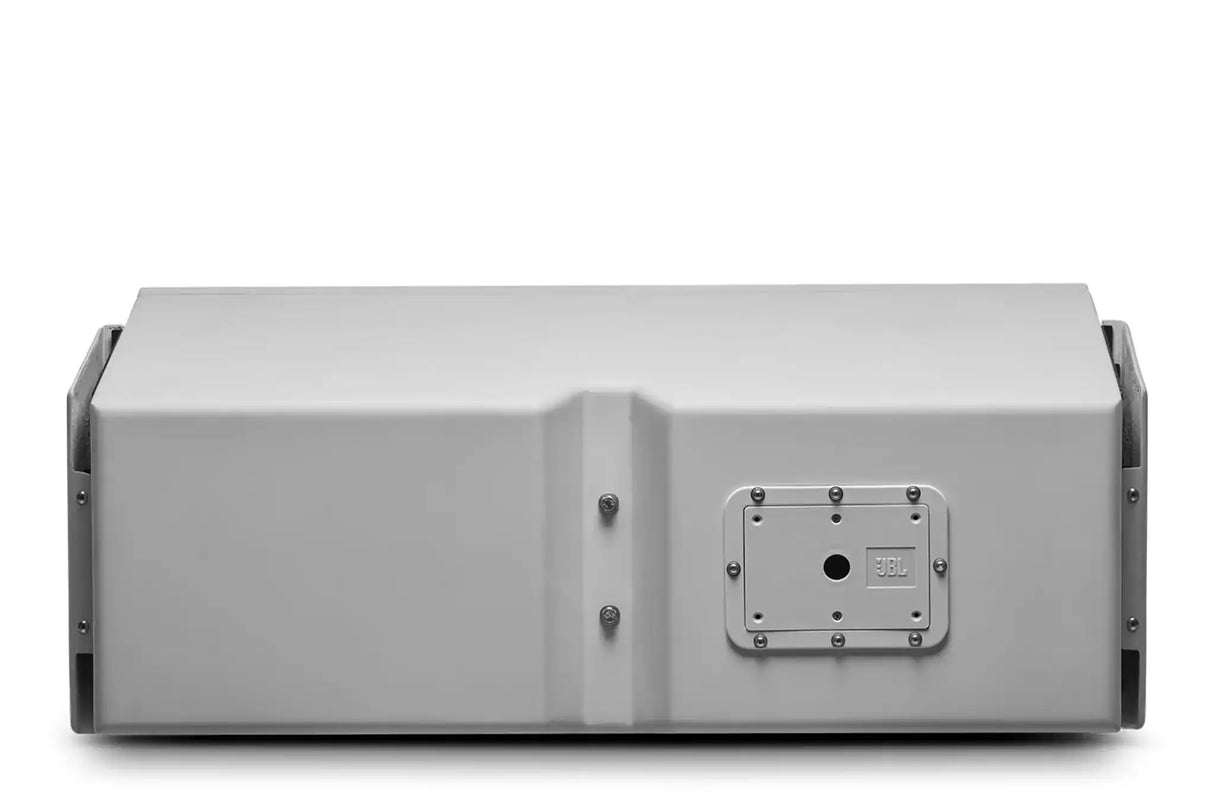

The enclosure supports both passive and bi-amp operation. Passive mode reduces amplifier channel count in cost-sensitive installs; bi-amp mode maximizes headroom and allows independent processing of the LF and HF sections, which is the preferred configuration when using Crown DCi amplifiers with onboard DSP. The fiberglass shell with internal birch plywood bracing and hydrophobic mesh grille meets IP55, supporting outdoor rigged installations as well as indoor arenas and covered amphitheaters.

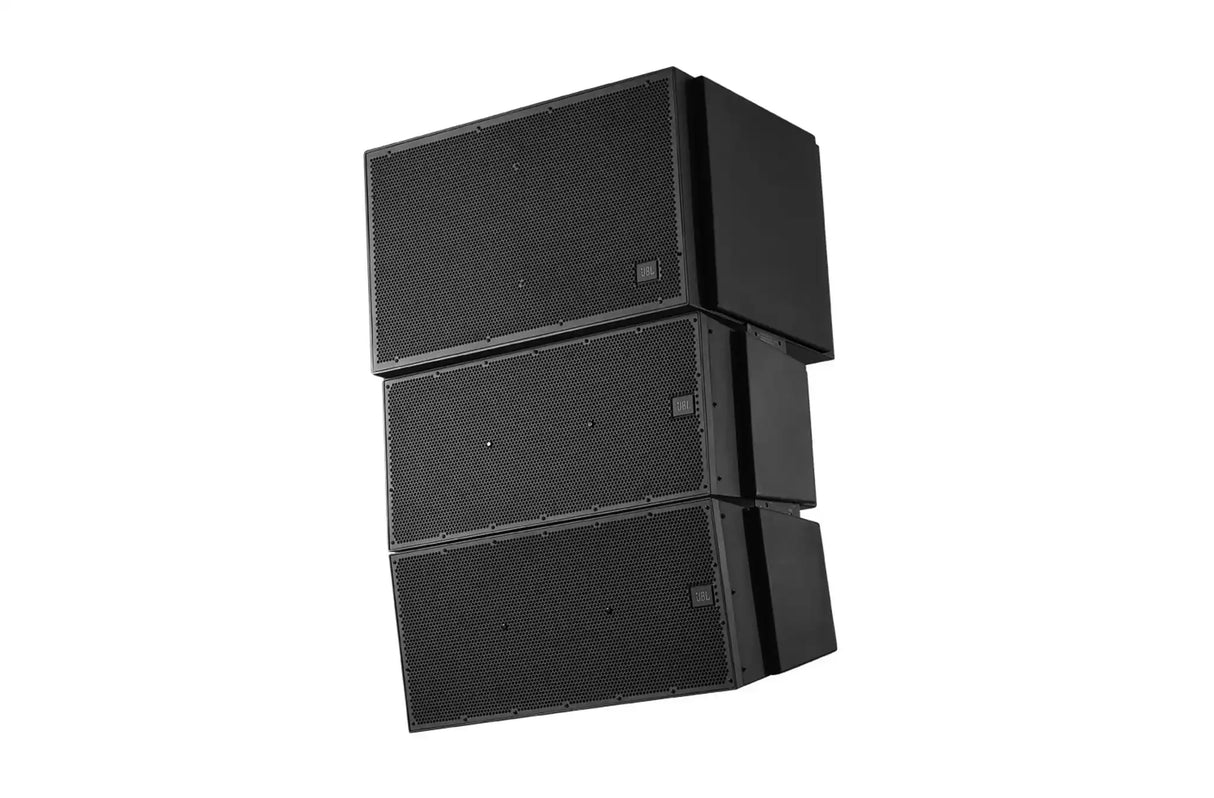

The defining design choice in the VLA-C2100 is the 100° horizontal pattern. Within the VLA Compact Series, the VLA-C265 provides a tighter 65° pattern suited to long-throw zones; the VLA-C2100’s wider throw is specified where audience width exceeds the practical reach of a narrower module. System designers can mix both modules in the same flown array — combining 100° and 65° modules at different vertical angles to match the array’s coverage to complex seating geometry. Integrated rigging hardware provides multiple inter-enclosure angle options for this kind of tailored configuration.

Key Features

• 100° Horizontal Coverage Pattern — Wide, even dispersion across broad seating areas; the wide-pattern counterpart to the 65° VLA-C265 in mixed-coverage arrays.
• Triple D2415 Compression Drivers — Three 1.5-inch annular-diaphragm HF drivers per module for high sensitivity and clear, detailed high-frequency output across the full coverage arc.
• Dual 10-Inch Differential Drive Woofers — Two JBL 2261 woofers with dual 3-inch voice coils deliver low-distortion LF output with reduced power compression under sustained drive.
• Two-Way Horn-Loaded Design — Horn loading increases efficiency and controls directivity, reducing power requirements relative to direct-radiator designs at equivalent SPL.
• Passive or Bi-Amp Operation — Bi-amp mode enables independent LF/HF processing via Crown DCi DSP; passive mode reduces amplifier channel count for budget-sensitive designs.
• IP55-Rated Weatherized Enclosure — Fiberglass construction with hydrophobic mesh grille rated for dust and water jet exposure in outdoor or semi-exposed installations.
• VLA Compact Series Integration — Designed to array with the 65° VLA-C265 and VLA-C125S subwoofer for complete scalable large-venue systems.
• Integrated Rigging Hardware — Multiple inter-enclosure angle options for accurate array shaping in complex venue geometries.
• Crown DCi Amplifier Ecosystem — Engineered for Crown DCi Series amplifiers with onboard DSP for system alignment, crossover, and limiting.

Typical Applications

• Arenas, stadiums, and large auditoriums with wide fan-shaped or bowl seating
• Houses of worship requiring broad horizontal coverage and high speech intelligibility
• Outdoor amphitheaters and large multi-purpose venues with permanent rigged arrays
• Mixed-coverage line arrays combining 100° VLA-C2100 and 65° VLA-C265 modules
• Performing arts centers and large-format conference or event spaces

Technical Specifications

Frequently Asked Questions

What is the difference between the VLA-C2100 and the VLA-C265?
The VLA-C2100 provides a 100° horizontal coverage pattern for wide audience areas; the VLA-C265 provides a 65° pattern for longer-throw, more focused zones. Both use the same dual 10-inch Differential Drive / triple D2415 compression driver platform and carry IP55 ratings. The two can be combined in a single array to match coverage to complex seating geometries.

Can VLA-C2100 and VLA-C265 modules be mixed in the same flown array?
Yes. Both modules belong to the VLA Compact Series and share the same rigging hardware, enclosure depth, and electrical characteristics. Mixing coverage patterns in a single array is a supported and commonly specified configuration.

Does the VLA-C2100 require active amplification?
No. It supports both passive and bi-amp operation. Passive operation requires fewer amplifier channels; bi-amp operation with Crown DCi amplifiers enables independent LF and HF processing through onboard DSP for more precise system alignment.

What subwoofer pairs with the VLA-C2100?
The JBL VLA-C125S dual 15-inch subwoofer is the dedicated low-frequency module for the VLA Compact Series. It is available at creationnetworks.net.

Is the VLA-C2100 rated for outdoor installation?
Yes. The IP55-rated fiberglass enclosure with hydrophobic mesh grille is designed for outdoor rigged installations including open-air stadiums, covered amphitheaters, and sports facilities.

How many VLA-C2100 modules are typically required for a venue?
Module count depends on venue geometry, target coverage angle, and required SPL. Array design should be modeled using JBL’s array prediction tools. Contact the Creation Networks team at creationnetworks.net for system design assistance.

What is the recommended amplifier for the VLA-C2100?
JBL specifies the Crown DCi Series amplifiers with onboard DSP, which provide the crossover filtering, limiting, and array processing presets required for VLA Compact Series systems.
