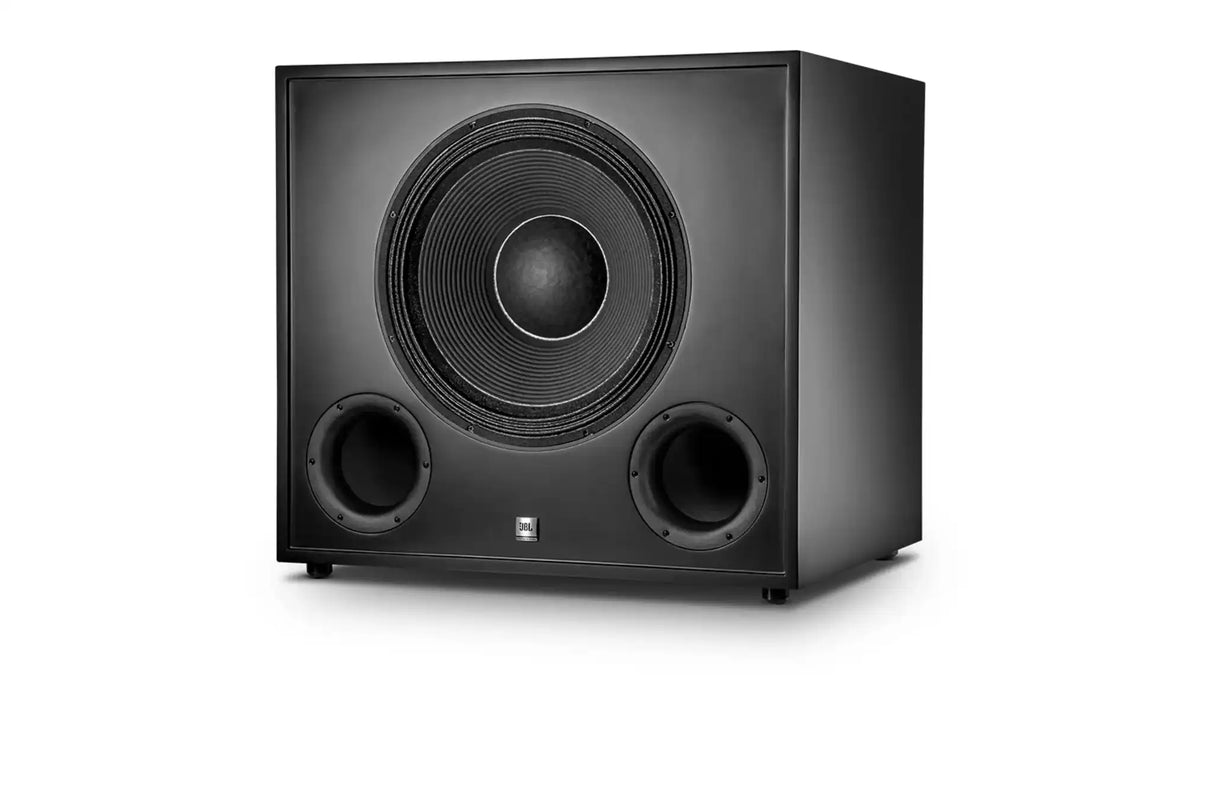

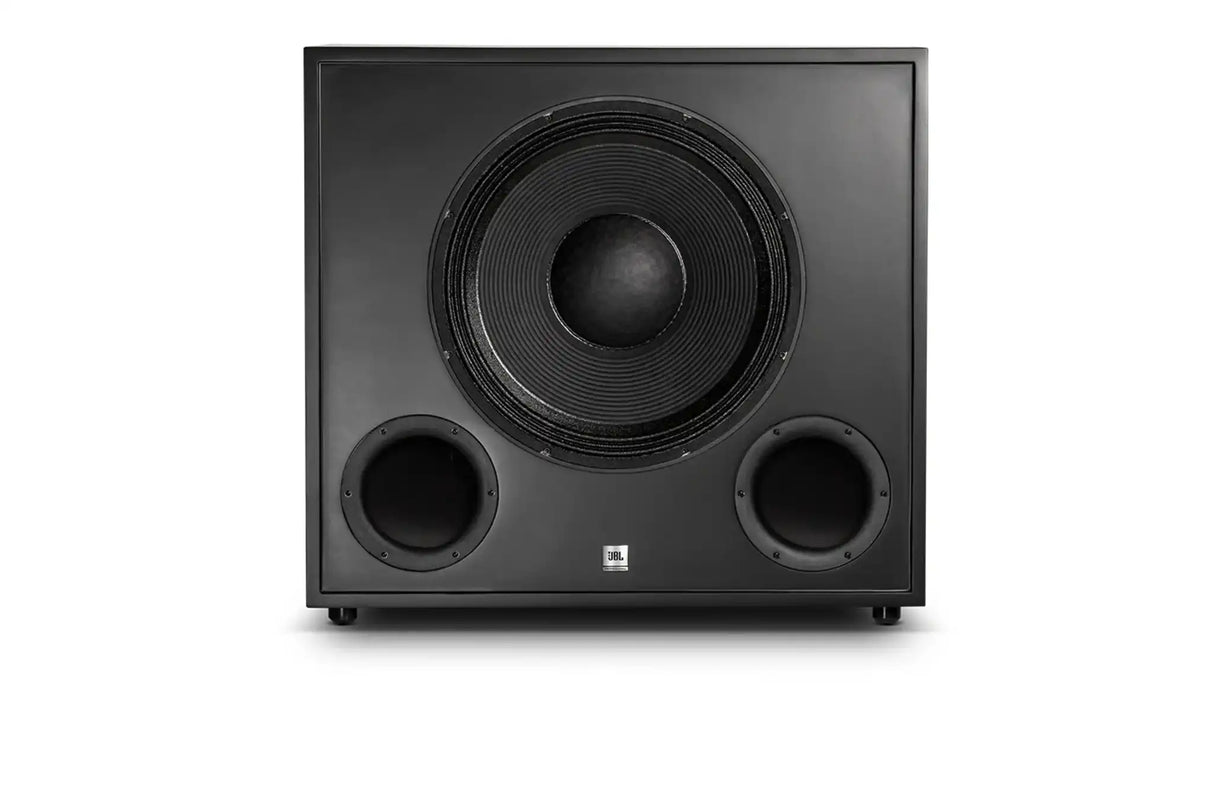

JBL SUB18 – 18-inch High-Output Studio Subwoofer

Product Overview

The JBL SUB18 is an 18-inch powered studio subwoofer built for professional monitoring environments that require extremely high continuous output and deep, accurate low-frequency reproduction. Designed as the primary subwoofer companion to the JBL M2 Master Reference Monitor, the SUB18 triples the M2 system’s LF output capability and extends in-room response below 18 Hz, covering sub-bass frequencies critical for music production, cinema post-production, and electronic music monitoring at reference levels. With a 137 dB peak SPL and an integrated Class D amplifier, the SUB18 handles full-spectrum low-frequency duties in large control rooms and dubbing stages without an external amp chassis.

Product Description

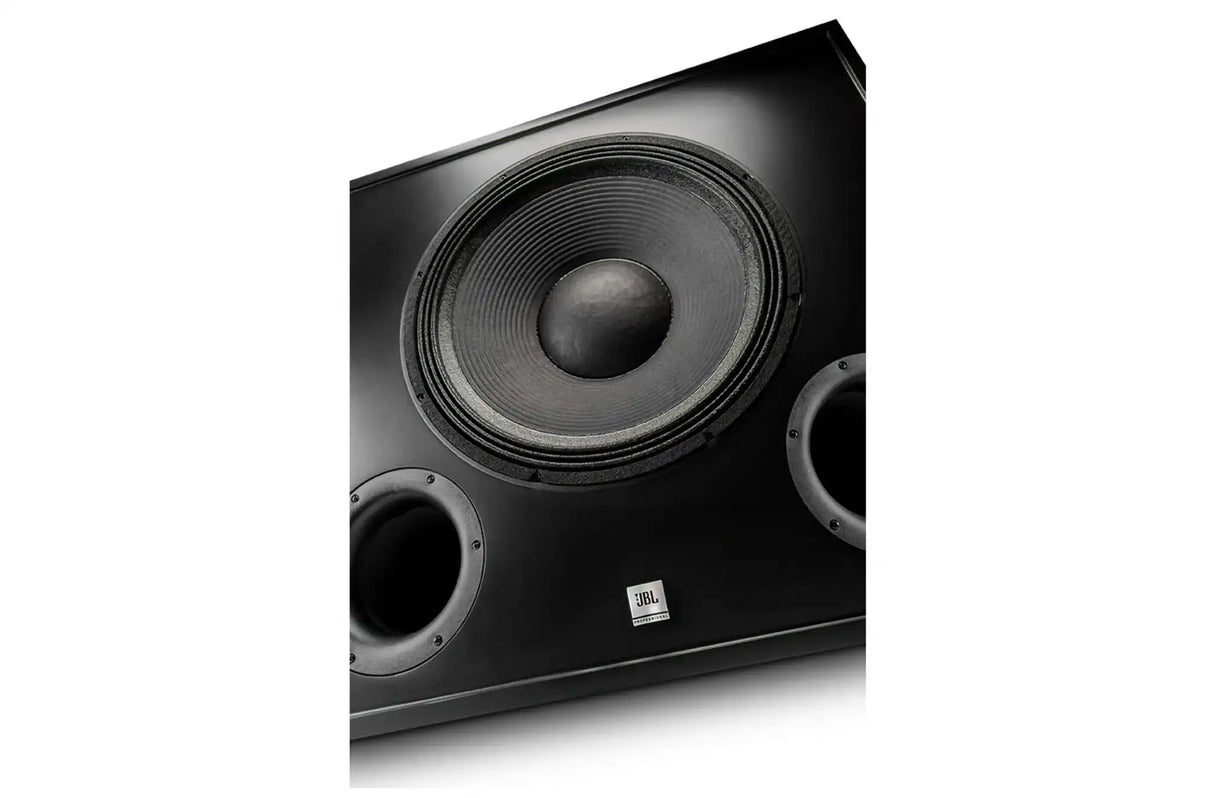

The SUB18’s transducer is the JBL 2269H Differential Drive driver — an 18-inch woofer using dual 4-inch voice coils, dual neodymium magnets, and Direct Cooled technology. The dual-coil, dual-magnet configuration dramatically reduces inductance and improves heat dissipation, enabling the driver to sustain high excursion at high power levels while maintaining low distortion. This design allows the SUB18 to reach the very low frequencies required for cinema LFE monitoring and bass-heavy music production.

Frequency response measured at ±3 dB reaches 18 Hz in half-space (2π) conditions, with the -10 dB point at 20.6 Hz and the -6 dB point at 23.1 Hz. These figures place the SUB18 in a class appropriate for projects where sub-bass accuracy down to the lower limit of human hearing is required. Maximum peak SPL is 137 dB, and the system input power rating is 2,000W continuous with 8,000W peak, giving the Class D amplifier ample headroom for transient peaks without compression.

Connectivity uses balanced XLR input and direct output for daisy-chaining or splitting the signal. A user-accessible menu system provides variable low-pass filter adjustment, system performance monitoring via LED indicators, and access to sound-enhancing presets. The enclosure is built from 15 mm eucalyptus plywood with a Chemline Polyurea finish and a tour-grade steel grille — construction appropriate for both fixed installation and high-demand touring use. An M20 threaded pole mount enables stacking with full-range loudspeakers, and M10 fly points support suspension for flown configurations.

Key Features

• 18-inch 2269H Differential Drive driver — dual 4-inch voice coils, dual neodymium magnets, and Direct Cooled technology for high excursion with low distortion.
• In-room frequency response to 18 Hz (±3 dB) — covers cinema LFE and electronic music sub-bass down to the threshold of human hearing.
• 137 dB peak SPL — handles reference-level monitoring in large dubbing stages and control rooms without limiting.
• Integrated Class D amplifier — 2,000W continuous / 8,000W peak — eliminates the need for an external amp chassis.
• Variable user-adjustable low-pass filter — menu-controlled LPF for precise crossover integration with full-range monitors.
• Balanced XLR input and direct output — supports daisy-chain signal routing to additional subwoofers or monitors.
• M20 pole mount and M10 fly points — flexible deployment for ground-stacked and flown configurations.
• 15 mm eucalyptus plywood with Chemline Polyurea finish — durable, acoustically inert enclosure construction for fixed and touring applications.
• Compatible with JBL M2 system — designed to integrate directly with the M2 Master Reference Monitor for extended LF coverage.

Typical Applications

• Broadcast studio and cinema dubbing stage subwoofer for reference-level monitoring
• Music production and mastering studio LF extension with JBL M2 monitors
• Electronic music production requiring accurate sub-bass reproduction below 20 Hz
• Auditorium and multi-purpose room main system subwoofer for high-output events

Technical Specifications

Frequently Asked Questions

Does the SUB18 require external amplification? No. The SUB18 has an integrated Class D amplifier rated at 2,000W continuous and 8,000W peak. It connects directly to balanced XLR sources.

Is the SUB18 designed to pair with the JBL M2? Yes. The SUB18 is JBL’s specified subwoofer companion to the M2 Master Reference Monitor. When integrated correctly, the SUB18 triples the M2 system’s low-frequency output capability. Contact Creation Networks for system configuration and crossover alignment guidance.

What crossover frequency should be used? The SUB18 includes a user-adjustable variable low-pass filter. The correct crossover point depends on the full-range monitors in use and the room. JBL recommends DSP-based alignment for the M2 + SUB18 system; Crown iTech amplifiers with M2 tuning presets include the necessary crossover settings.

Can the SUB18 be flown or ground-stacked? Yes. The SUB18 includes an M20 threaded pole mount for stacking full-range speakers on top, and M10 fly points for rigged, suspended configurations.

What is the SUB18’s lowest usable frequency? Measured in half-space (2π) conditions, the SUB18 is flat (±3 dB) to 18 Hz. The -10 dB point is 20.6 Hz, covering the full range of cinema LFE content and sub-bass in electronic music production.

Is the SUB18 suitable for live sound as well as studio use? Yes. The rugged eucalyptus plywood enclosure with Chemline Polyurea finish and tour-grade steel grille make it suitable for both fixed studio installation and high-demand live sound or touring applications.
