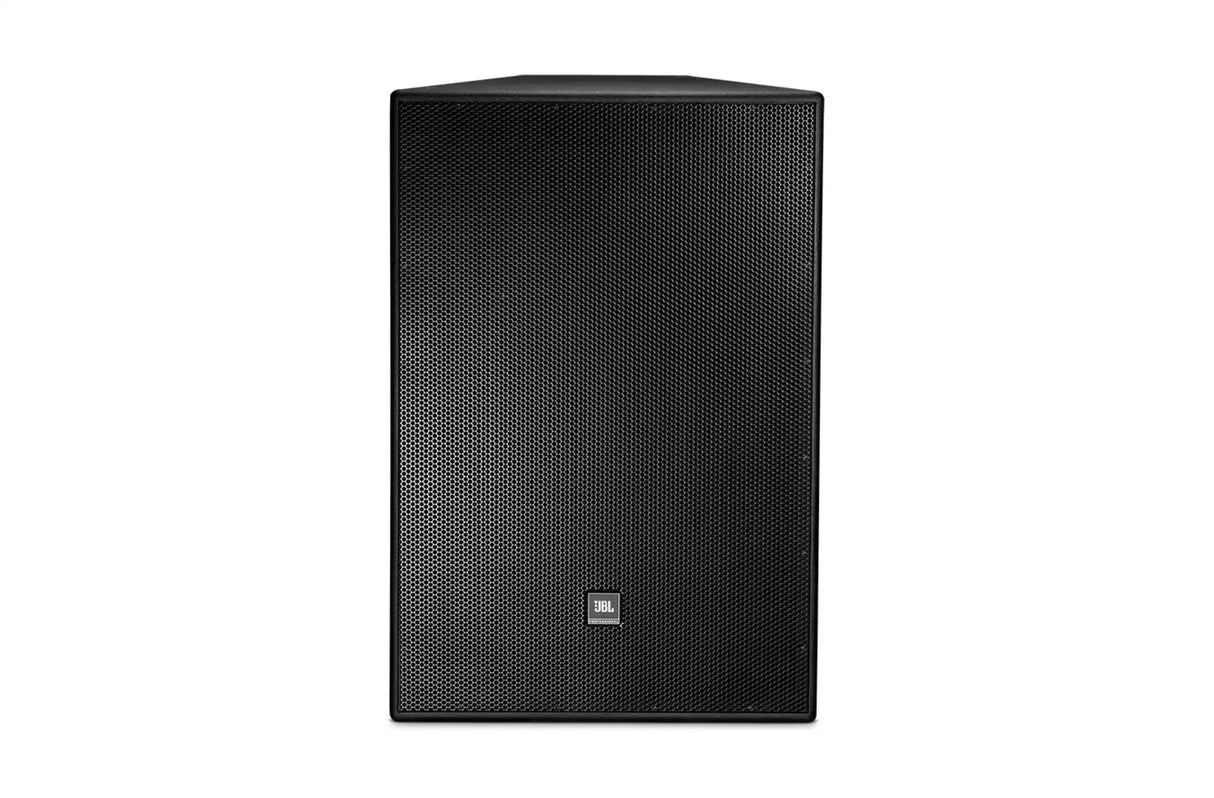

JBL PD6322/95 Dual 12-inch 3-Way Horn-Loaded Speaker – 90° x 50° Coverage

Product Overview

The JBL PD6322/95 is a dual 12-inch, three-way horn-loaded loudspeaker from the Precision Directivity series, purpose-built for high-output commercial sound reinforcement in large venues where pattern control and long-throw coverage are critical requirements. It produces over 104 dB SPL continuously at 50 meters (165 ft), making it a standalone primary system option or a scalable element in larger arrays for arenas, houses of worship, and transport terminals. The 90-degree by 50-degree JBL Precision Directivity horn-loaded speaker coverage pattern is maintained by PT Progressive Transition waveguides and can be reoriented by rotating the mid/high waveguide pack to suit horizontal or vertical cabinet placement. System designers specifying dual 12-inch three-way horn-loaded speakers for long-throw applications will find the PD6322/95's switchable tri-amp/bi-amp crossover and 20-point rigging system well-suited to complex installation geometries.

Product Description

Low-frequency reproduction uses dual 2206H 12-inch Differential Drive® woofers in a slot-loaded enclosure, extending usable response to 41 Hz (-10 dB) — deeper than most horn-loaded designs of this class. The midrange section employs a CMCD-82H cone midrange compression driver with an 8-inch cone and dual 3-inch voice coils, providing the high sensitivity needed for coverage at distance with low distortion. High-frequency projection comes from a 2432H large-format neodymium compression driver with a 1.5-inch exit, capable of 133 dB peak SPL, ensuring intelligible speech and clear treble detail across the coverage zone.

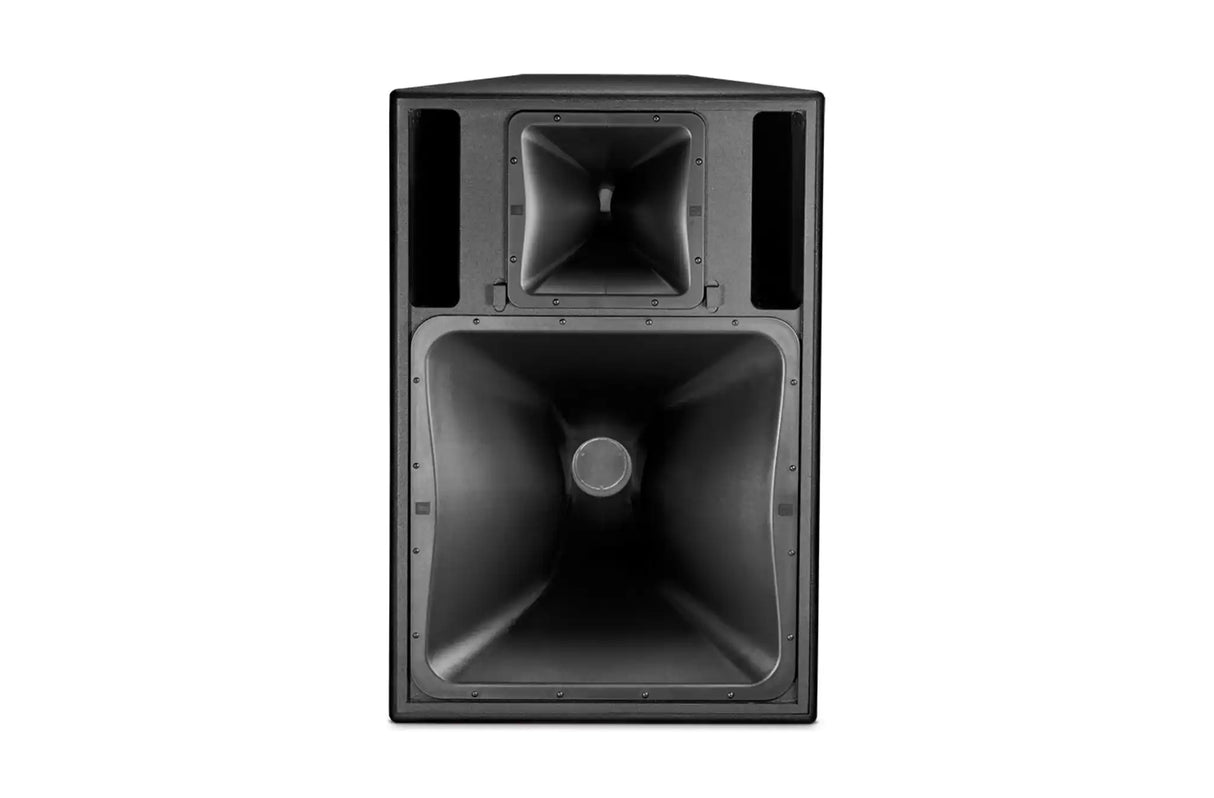

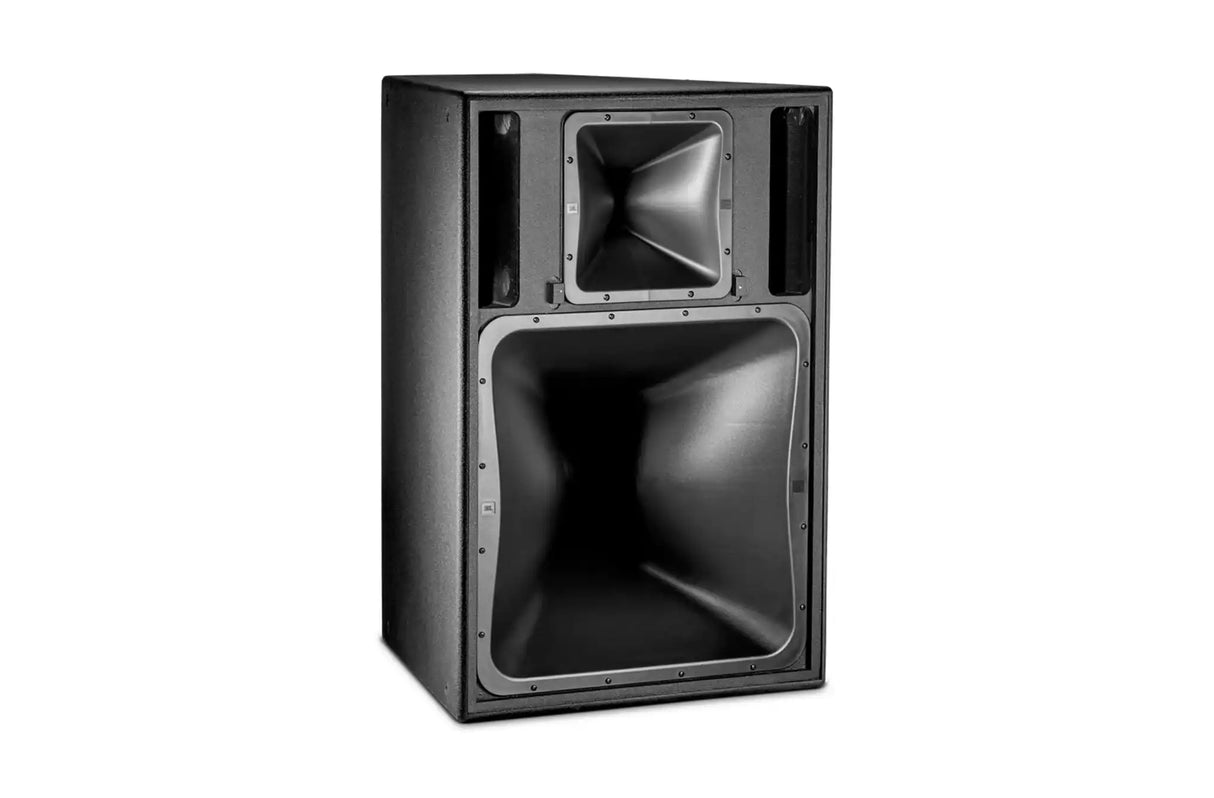

The passive crossover network is switchable between tri-amp and bi-amp configurations, giving system designers the choice between maximum amplifier flexibility and simplified cabling. PT Progressive Transition waveguides are shared across MF and HF sections, maintaining consistent pattern control through the crossover transition regions where many horn-loaded loudspeakers exhibit coverage irregularities. The rotatable waveguide pack is a practical feature for permanent installation: it allows the trapezoidal enclosure to be mounted in either orientation without sacrificing coverage geometry relative to the audience.

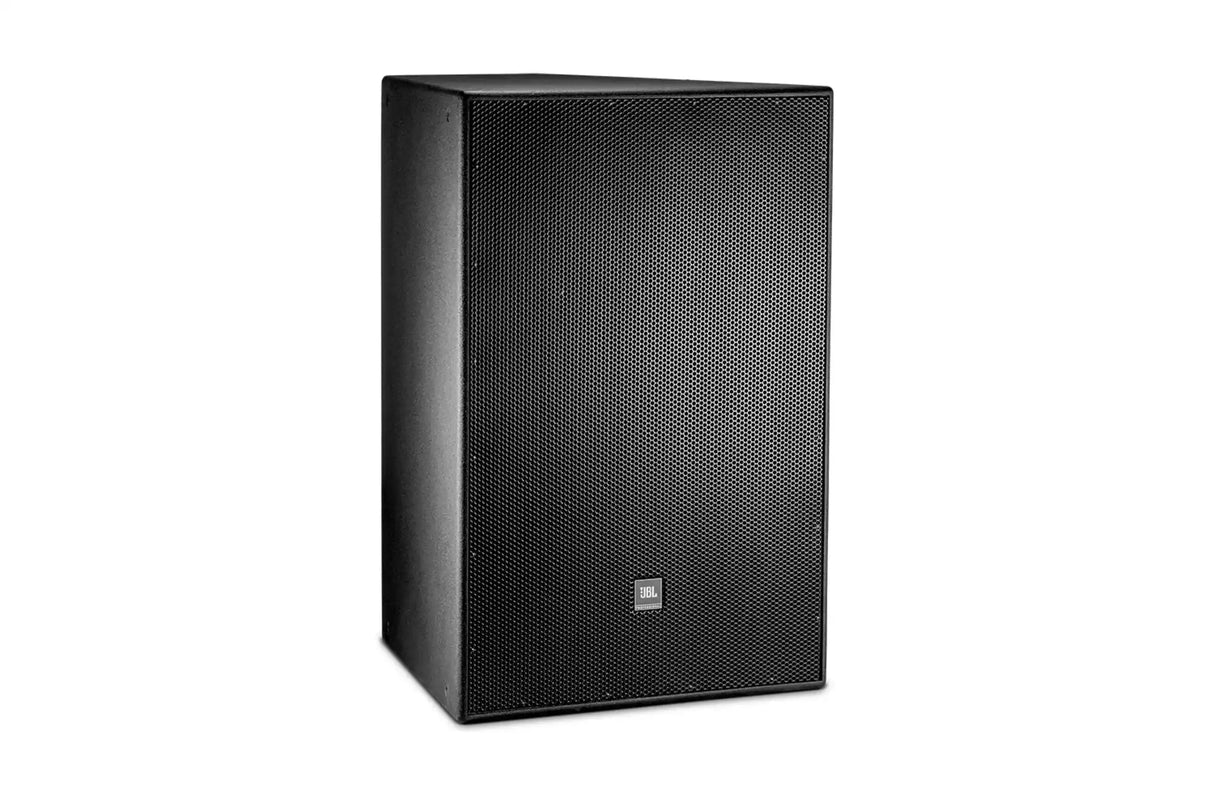

The trapezoidal enclosure is built from 16 mm 11-ply Finnish birch plywood with 20 M10-threaded suspension points distributed across the cabinet. NL8 Speakon® and barrier-strip input terminals support parallel loop-through for daisy-chaining in distributed systems. The standard model is rated for indoor use; optional WRC and WRX weather-resistant versions extend the design to outdoor and extreme-environment permanent installations.

Key Features

• Dual 2206H Differential Drive® LF Drivers — Slot-loaded 12-inch woofers extend low-frequency response to 41 Hz (-10 dB), deeper than most horn-loaded loudspeakers in this class.
• CMCD-82H Cone Midrange Compression Driver — 8-inch cone with dual 3-inch voice coils delivers high sensitivity and low harmonic distortion through the critical midrange band.
• 2432H Large-Format Neodymium HF Driver — 1.5-inch exit, 3-inch voice coil; 133 dB peak SPL ensures clear high-frequency projection at long throw distances.
• PT Progressive Transition Waveguides — Maintain consistent 90° × 50° coverage pattern through crossover regions, reducing the off-axis coloration common in horn-loaded designs.
• Rotatable Mid/High Waveguide Pack — Allows horizontal or vertical cabinet orientation in permanent installation without compromising coverage geometry or needing a different model.
• Switchable Tri-Amp / Bi-Amp Crossover — Passive crossover network configurable for three separate amplifier channels or consolidated bi-amp topology, adapting to available amplifier infrastructure.
• 20 M10 Suspension Points — Distributed across the cabinet for flexible suspended array configurations in arenas, large venues, and transport facilities.

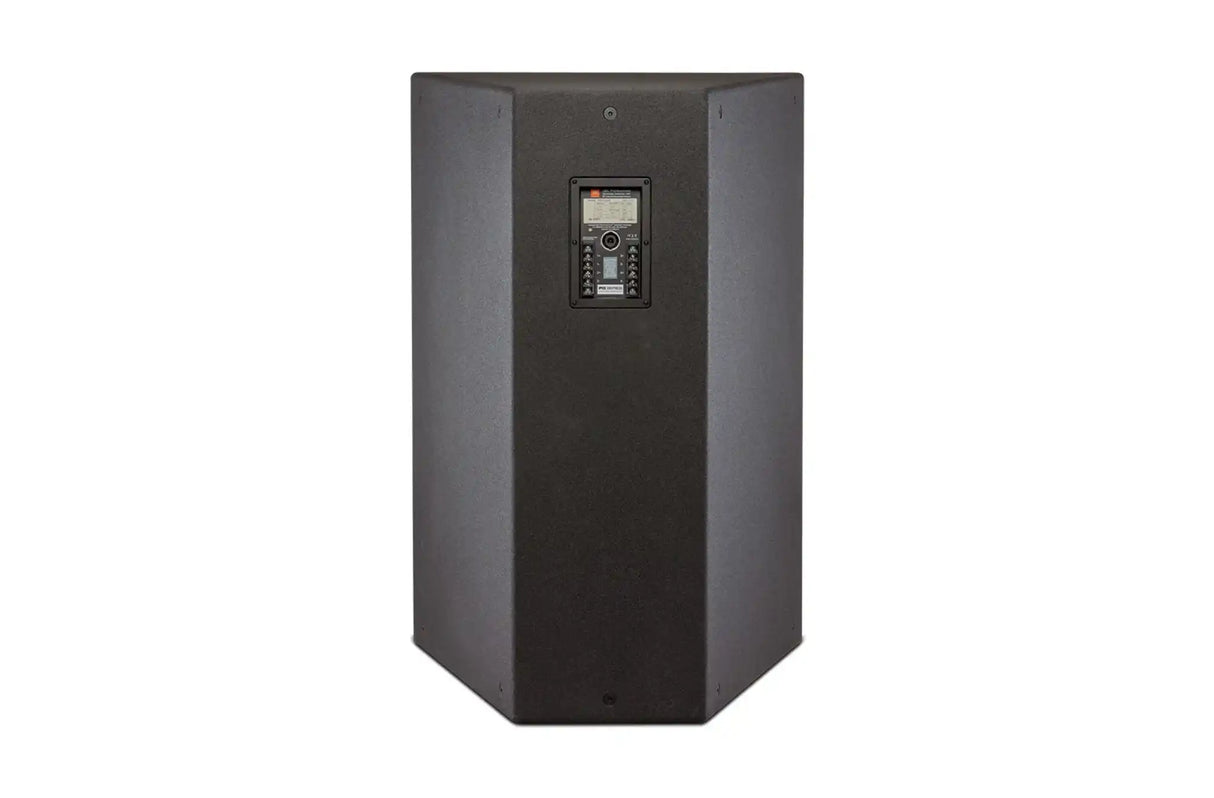

• NL8 Speakon® and Barrier-Strip Inputs — Parallel loop-through wiring simplifies multi-cabinet distributed system cabling.
• 16 mm 11-Ply Finnish Birch Plywood Enclosure — Trapezoidal cabinet design for array clustering; durable construction for permanent installation and touring.
• Optional WRC / WRX Weather Resistance — Extends deployment to outdoor permanent installations and extreme environmental conditions without requiring a separate outdoor product line.

Typical Applications

• House of worship main system for large sanctuaries requiring pattern-controlled coverage
• Auditorium primary reinforcement requiring long-throw horn-loaded performance
• Arena and performance venue main arrays with suspended rigging
• Government and civic facilities requiring high-intelligibility speech reinforcement
• Transport terminals and large public spaces needing durable, high-SPL coverage
• Outdoor permanent installations using optional WRC/WRX weather-resistant versions

Technical Specifications

Frequently Asked Questions

What does the "/95" in PD6322/95 mean? The designation indicates the nominal coverage pattern: 90 degrees horizontal by 50 degrees vertical. The rotatable mid- and high-frequency waveguide pack allows you to maintain this pattern whether the cabinet is installed horizontally or vertically, giving installers flexibility without requiring a different SKU.

Does the PD6322/95 require external amplification? Yes. It is a fully passive loudspeaker with no onboard amplifier. It requires external amplifiers matched to its impedance and power ratings: 1,200 W AES / 4,800 W peak for the LF section (4 Ω), and 300 W AES / 1,200 W peak for MF and HF sections (8 Ω each).

What is the difference between tri-amp and bi-amp modes? In tri-amp mode, separate amplifier channels drive the LF, MF, and HF drivers independently, giving maximum headroom and EQ flexibility for each band. In bi-amp mode, MF and HF are driven together through the passive high-frequency crossover, reducing the number of amplifier channels required. A rear-panel switch selects between modes.

Can the PD6322/95 be used outdoors? The standard model is rated for indoor use. Optional WRC (weather-resistant coating) and WRX (extreme weather fiberglass) versions are available for outdoor permanent installations and harsh environments. Contact Creation Networks to specify the appropriate variant for your project: creationnetworks.net.

How many cabinets can be arrayed and rigged together? The 20-point M10 suspension system supports clustered and flown array configurations. JBL provides rigging and splay data for PD Series arrays; consult a certified rigger and structural engineer for site-specific load calculations before any suspended installation.

What DSP processor is recommended for the PD6322/95? JBL and HARMAN offer system presets for the PD Series through BSS, Crown, and JBL DSP processors. The choice depends on amplifier topology (bi-amp vs. tri-amp) and the broader system design. The Creation Networks team can assist with processor selection and system commissioning.

Is the PD6322/95 compatible with JBL line array subwoofers? Yes. The PD6322/95 is commonly deployed with JBL PD Series subwoofers such as the PGSS subwoofer family for full-range system coverage. System crossover and time-alignment are handled at the DSP processor level.
