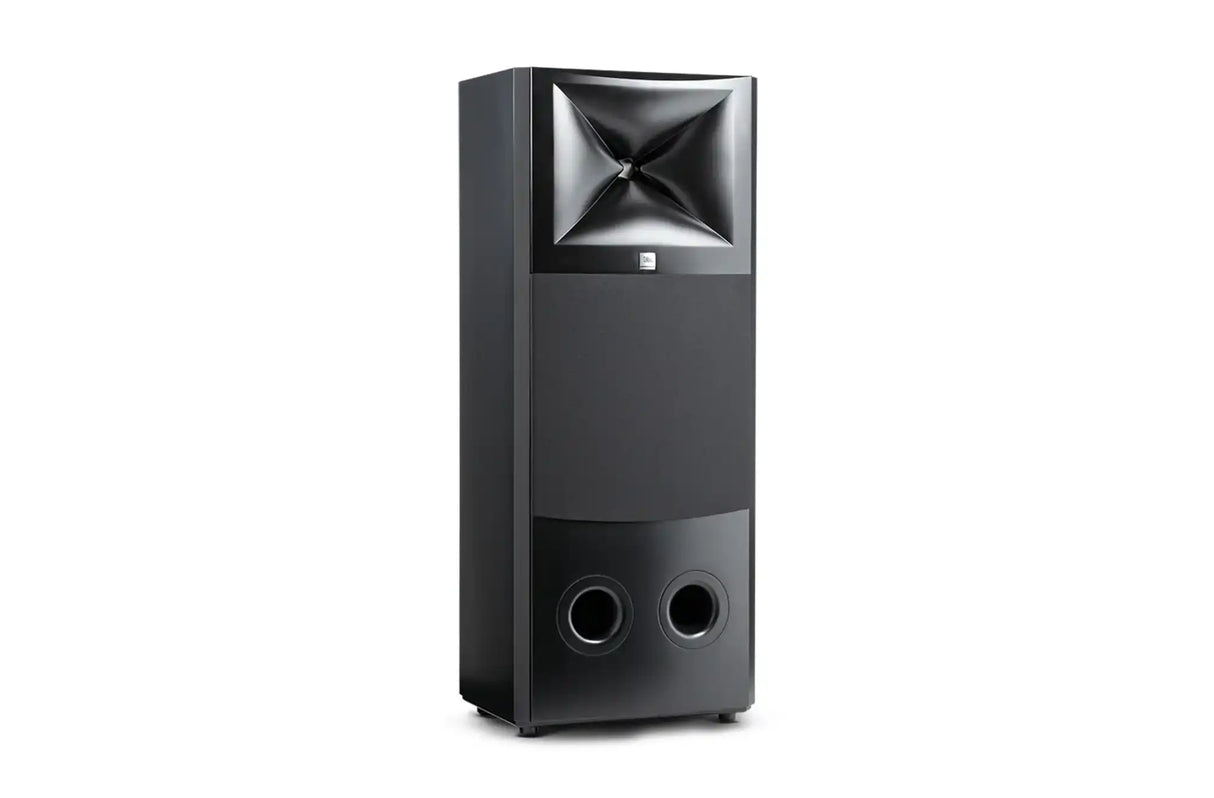

JBL M2 Master Reference Monitor – Floorstanding 2-Way Studio Speaker

Product Overview

The JBL M2 Master Reference Monitor is a passive, two-way free-standing loudspeaker built for professional music production, post-production, cinema, and broadcast control rooms where reference-grade accuracy is required. Combining a 15-inch 2216Nd Differential Drive woofer with a dual-diaphragm D2430K compression driver, the M2 delivers in-room frequency response from 20 Hz to 40 kHz with very low distortion and consistent directivity. The LSR (Linear Spatial Reference) design principle governs the coverage pattern — 120 degrees horizontal by 100 degrees vertical — to ensure uniform response across the listening position and into the room boundaries. For professional studio monitor applications demanding full-bandwidth accuracy and high SPL headroom, the M2 represents the reference-class standard in JBL’s main monitor lineup.

Product Description

The M2 is a passive design that requires external Crown amplification to operate. JBL specifies the Crown iTech 5000HD for a single M2 or the Crown 3x3500HD for a stereo pair, paired with the corresponding M2 system tuning presets loaded in the amplifier DSP. This approach gives facilities with established Crown rack infrastructure a straightforward integration path, while allowing the DSP to apply the M2’s matched crossover, equalization, and limiting for the transducers.

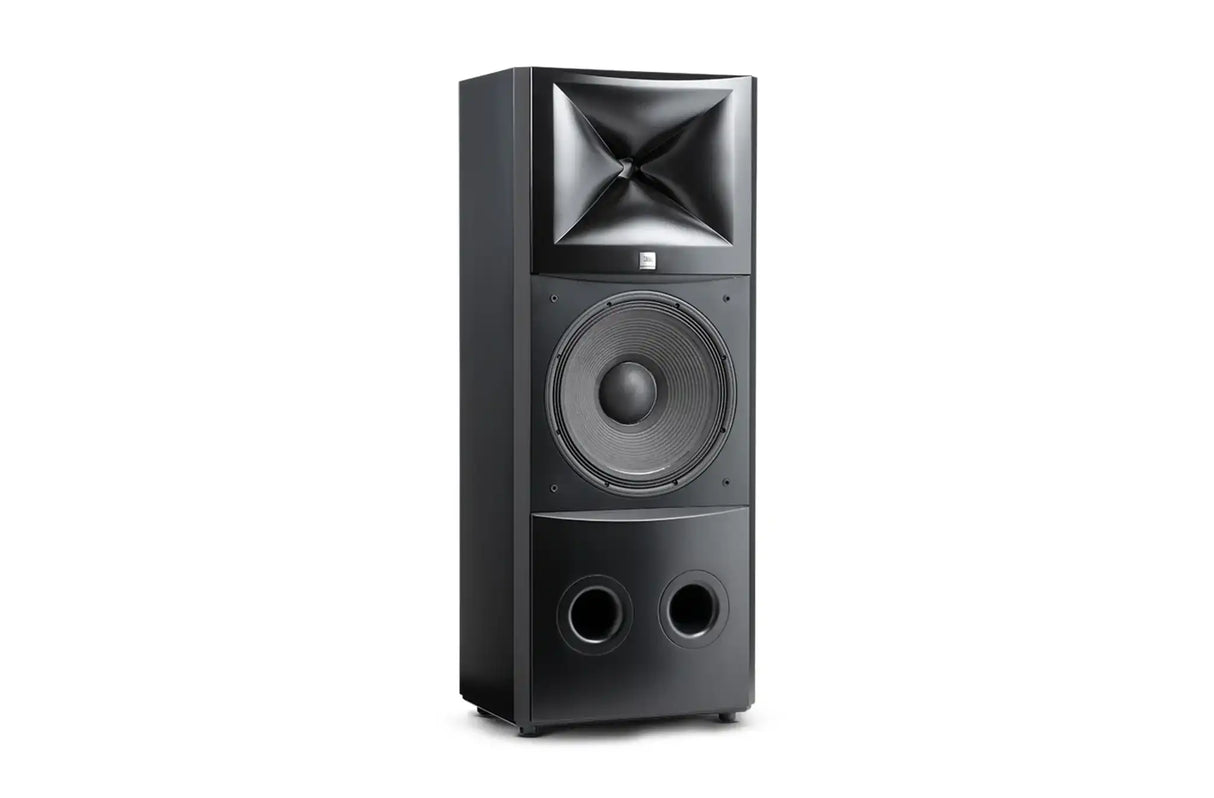

The low-frequency section uses JBL’s 15-inch 2216Nd Differential Drive woofer, which incorporates dual neodymium magnets and a dual voice coil arrangement to dramatically reduce inductance and improve power handling. The result is tighter, more controlled bass at high SPL with minimal power compression — a significant advantage in large rooms and dubbing stages where extended listening at high levels is routine. High frequencies are reproduced by the D2430K dual-diaphragm compression driver, which extends the HF response out to 40 kHz and maintains smooth, consistent frequency response without the breakup modes common to single-diaphragm designs.

Maximum continuous SPL is 117 dB with a 123 dB peak capability, giving the M2 the dynamic headroom for feature film and electronic music monitoring without limiting or clipping under normal studio conditions. The enclosure is constructed from 25 mm MDF with satin black lacquer and ships with a removable ABS grille. A patented low-frequency port geometry keeps the overall cabinet footprint relatively compact for a 15-inch reference system. The M2 can be deployed free-standing or soffit-mounted, accommodating both control room architectures.

Key Features

• 15-inch 2216Nd Differential Drive woofer — dual neodymium magnets and dual voice coil deliver extended LF with minimal power compression and low distortion at high SPL.
• Dual-diaphragm D2430K compression driver — smooth HF response extending to 40 kHz without single-diaphragm breakup artifacts.
• In-room frequency response 20 Hz – 40 kHz — full-bandwidth reference reproduction covering sub-bass through ultrasonic frequencies.
• LSR Linear Spatial Reference design — 120° H x 100° V coverage pattern tuned for uniform in-room response across the listening area.
• 117 dB continuous / 123 dB peak SPL — sufficient headroom for feature film, electronic music, and orchestral monitoring at reference levels.
• Passive design with Crown iTech amplification — pairs with Crown iTech 5000HD (single) or 3x3500HD (stereo pair) with matched system tuning presets.
• 25 mm MDF enclosure, satin black lacquer — rigid, damped cabinet construction minimizes resonance and coloration.
• Free-standing or soffit-mountable — supports both flush and free-standing control room deployments.
• Patented low-frequency port geometry — keeps cabinet footprint compact relative to driver size.

Typical Applications

• Broadcast studio main monitor for critical mixing and mastering
• Auditorium and cinema dubbing stage primary monitoring system
• Music recording and mixing studio reference monitor
• Post-production facility main monitor for film and television sound

Technical Specifications

Frequently Asked Questions

Does the M2 include an amplifier? No. The M2 is a passive loudspeaker and requires external Crown amplification. JBL specifies the Crown iTech 5000HD for a single monitor or the Crown 3x3500HD for a stereo pair. The amplifiers must be loaded with the M2 system tuning presets to apply the correct crossover, EQ, and protection curves.

Is the M2 sold as a single unit or a pair? This listing is for a single M2. A stereo or surround setup requires multiple units and corresponding amplification. Contact Creation Networks for pricing on matched pairs and amplification.

What makes it suitable for cinema dubbing stages? The 20 Hz – 40 kHz in-room response, 117 dB continuous SPL, and LSR-designed coverage pattern provide the full bandwidth and high headroom needed for feature film monitoring at reference levels in large rooms. Its consistent directivity also supports ITU-standard multichannel configurations.

Can the M2 be soffit-mounted? Yes. The M2 is designed for both free-standing and soffit-mounted deployment, accommodating flush control room designs with minimal front-wall diffraction.

Why does JBL use a dual-diaphragm compression driver for HF? The D2430K dual-diaphragm design eliminates the breakup modes that limit single-diaphragm compression drivers at high frequencies, enabling smooth response out to 40 kHz with consistent directivity across the crossover region.

What room size is the M2 suited for? The M2 is designed for large professional control rooms, dubbing stages, and broadcast facilities. For small-to-mid-size studios, JBL offers the 705P and 708P powered monitors. Contact Creation Networks for system design guidance.

Is Crown amplification available through Creation Networks? Yes. Creation Networks carries Crown iTech series amplifiers. Visit creationnetworks.net for current availability and system configuration support.
