JBL Intellivox HP-DS370 – High-Power Digitally Steerable Column Array

Product Overview

The JBL Intellivox HP-DS370 is a high-power digitally steerable column array loudspeaker engineered for large-venue speech reinforcement and high-SPL commercial audio installations. Delivering precise vertical beam control through DSP-driven steering technology, this system is purpose-built for environments where intelligibility over distance is critical—including large houses of worship, convention centers, auditoriums, and transportation terminals. The HP-DS370 integrates onboard digital signal processing with real-time beam steering to manage floor and ceiling reflections, maintaining consistent coverage across the listening plane. With its integrated amplifier and network control capability, it is a complete, rack-free deployment solution for demanding commercial AV projects.

Product Description

The JBL Intellivox HP-DS370 uses an array of 37 high-excursion drivers combined with JBL's Intellivox DSP platform to achieve vertical beam steering across a wide frequency range—enabling AV system designers to define precise tilt angles, beam width, and coverage zones without mechanical repositioning. The result is a digitally steerable loudspeaker that delivers uniform SPL and high speech intelligibility even in reverberant architectural environments. Each unit houses its own Class-D amplification, eliminating the need for external rack amplifiers and reducing system complexity on large-scale installs. Network control via standard Ethernet allows remote monitoring, firmware updates, and real-time parameter adjustment through compatible control systems. The column's slim architectural profile supports discreet integration into heritage buildings, modern boardrooms, and public spaces where aesthetics are a project requirement. Its high SPL output makes it equally suited to noise-challenged environments such as transit hubs and sports facilities where background noise rejection and throw distance are priorities for the integrator.

Key Features

• Digitally Steerable Vertical Beam — DSP-controlled beam steering adjusts vertical coverage angle and tilt without physical repositioning, allowing precise targeting of the listening plane.
• 37-Driver High-Power Array — High-excursion driver complement delivers extended SPL output suited to large-venue and high-ambient-noise commercial deployments.
• Integrated Class-D Amplification — Onboard amplifier eliminates external rack equipment, simplifying installation and reducing cable runs in complex AV systems.
• Onboard Intellivox DSP Platform — Real-time digital signal processing enables beam shaping, equalization, and coverage zone management from a single device.
• Ethernet Network Control — Standard network connectivity supports remote parameter adjustment, system monitoring, and firmware updates via compatible control platforms.

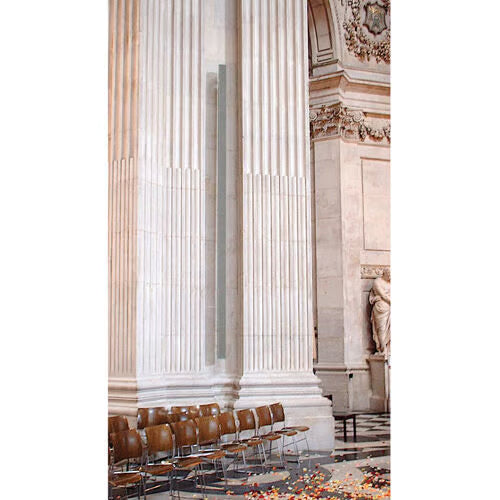

• Architectural Column Form Factor — Slim profile integrates into heritage, modern, and purpose-built commercial spaces where loudspeaker visibility must be minimized.
• High Speech Intelligibility — Beam control suppresses early reflections and manages reverberant energy, maintaining STI performance in acoustically challenging rooms.
• Scalable System Design — Compatible with other Intellivox and JBL Professional components for multi-zone and phased-array configurations in large-scale commercial AV systems.

Typical Applications

• House of worship — large sanctuaries requiring high-SPL coverage with controlled vertical dispersion to minimize balcony and floor reflections
• Auditorium — fixed installation speech and program reinforcement where beam steering replaces complex distributed loudspeaker arrays
• Convention center — multi-use ballrooms and exhibit halls with variable seating configurations requiring adaptable coverage zones
• Government space — legislative chambers, courtrooms, and public hearing rooms where speech intelligibility and architectural discretion are mandated
• Transportation terminal — high-ambient-noise environments including airports and rail stations requiring long-throw, high-SPL intelligible paging
• All-hands room — large corporate assembly spaces requiring consistent coverage from a single column array without distributed ceiling speaker infrastructure

Technical Specifications

Competitor Comparison

What's in the Box

• JBL Intellivox HP-DS370 column array loudspeaker
• Mounting hardware and brackets
• Documentation and setup guide

Frequently Asked Questions

What control systems are compatible with the Intellivox HP-DS370?

The HP-DS370 supports Ethernet-based network control and is compatible with standard commercial AV control platforms including those from Crestron, AMX, and Q-SYS, using the Intellivox control protocol. Confirm firmware version and driver availability with your control system integrator prior to specification.

Does the HP-DS370 require an external amplifier?

No. The HP-DS370 includes an integrated Class-D amplifier, eliminating the need for external rack amplification. This simplifies wiring and reduces equipment room requirements on large commercial installs.

How is beam steering configured on the HP-DS370?

Beam steering parameters—including vertical tilt angle, beam width, and coverage zone targeting—are configured via the Intellivox DSP software platform over the Ethernet control interface. No physical repositioning of the array is required after initial installation.

What is the warranty on JBL Professional Intellivox products?

JBL Professional products are backed by a limited warranty. Commercial installations should verify warranty terms and registration requirements with an authorized JBL Professional distributor. Contact Creation Networks for warranty support and service coordination.

Can multiple HP-DS370 units be networked for multi-zone coverage?

Yes. Multiple Intellivox units can be managed from a single network control interface, allowing zone-by-zone parameter management across large-venue or multi-room commercial AV deployments.

Is the HP-DS370 suitable for outdoor or semi-outdoor installations?

The HP-DS370 is designed for fixed indoor commercial installations. For outdoor or weatherized deployments, consult with a JBL Professional authorized representative regarding appropriate enclosure ratings and environmental specifications before specifying this product.
