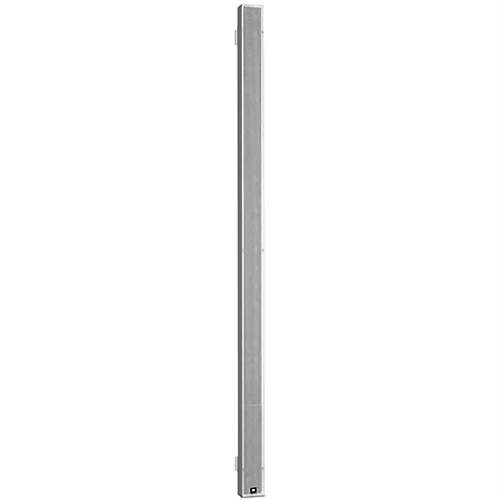

JBL Professional Intellivox-DSX280HD Beam-Shaping Self-Powered Column Loudspeaker
JBL Professional Intellivox-DSX280HD Beam-Shaping Self-Powered Column Loudspeaker is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL Professional Intellivox-DSX280HD Beam-Shaping Self-Powered Colu...
The JBL Professional Intellivox-DSX280HD is an advanced self-powered, beam-shaping column loudspeaker array designed to deliver exceptional speech intelligibility and musical clarity in acoustically challenging spaces. Compact yet powerful, this system extends coverage up to 35 meters with a constant sound pressure level, making it ideal for venues where clear, intelligible audio is critical.
At its core, the DSX280HD features twelve custom-engineered 4" loudspeakers and four independently driven 1" horn-loaded dome tweeters. These are powered by a 16-channel Class-D amplifier with a sophisticated switched-mode power supply, ensuring consistent, reliable performance. Its high-frequency beam control, enabled by individually driven tweeters, enhances horizontal dispersion while preserving clarity for both speech and music applications.
With integrated 32-bit floating-point DSP, the DSX280HD supports vertical beam shaping via DDS technology, volume control, delay (up to 20 seconds), and 8-band parametric EQ. The system also includes eight user-definable presets, accessible via third-party control devices, along with Automatic Volume Control (AVC) using the built-in ambient microphone. Advanced network-ready control is provided through JBL’s WinControl software, allowing precise beam steering, audio adjustments, and surveillance monitoring.
Designed for reliability, the DSX280HD incorporates integral system surveillance features to meet the requirements of voice alarm and life safety applications. Its slim, unobtrusive design integrates seamlessly into architecturally sensitive spaces, while the frequency range can be extended with JBL subwoofers for full-range sound reinforcement. Optional accessories and color-matching services allow further customization for specific installation needs.
Key Features:
-
Active beam-shaping, self-powered loudspeaker array
-
Twelve 4" drivers + four independently controlled 1" dome tweeters
-
16-channel Class-D amplifier with switched-mode power supply
-
Vertical beam shaping with DDS technology
-
Extended frequency response up to 18 kHz
-
32-bit floating-point DSP with 8-band parametric EQ
-
AVC via built-in ambient mic
-
Network-ready with WinControl software integration
-
Eight user-definable presets with password protection
-
Integral surveillance features for life safety applications
-
Slim, architecturally unobtrusive design
Applications:
-
Transportation hubs and concourses
-
Houses of worship
-
Lecture halls and theaters
-
Conference centers
-
Atriums and museums
-
Multi-purpose public spaces
Specifications Table:
| Category | Details |
|---|---|
| Manufacturer | JBL Professional |
| Model | Intellivox-DSX280HD |
| Type | Active Beam-Shaping Column Loudspeaker |
| Coverage Range | Up to 35 m (extended in favorable acoustics) |
| Drivers | 12 × 4" loudspeakers, 4 × 1" horn-loaded dome tweeters |
| Amplifier | 16-channel Class-D with switched-mode power supply |
| DSP | 32-bit floating point |
| Frequency Response | Up to 18 kHz |
| EQ | 8-band parametric |
| Presets | 8 user-definable, password protected |
| Delay | Up to 20 seconds |
| Control Software | WinControl (beam steering, processing, monitoring) |
| Volume Control | Yes |
| Automatic Volume Control | Yes, via built-in ambient mic |
| Surveillance Features | Integrated, life safety compliant |
| Finish/Color | RAL9010 (white) with color matching available |
| Options | External ambient noise/temperature sensor, multiple input configurations, full range of mounting accessories |
