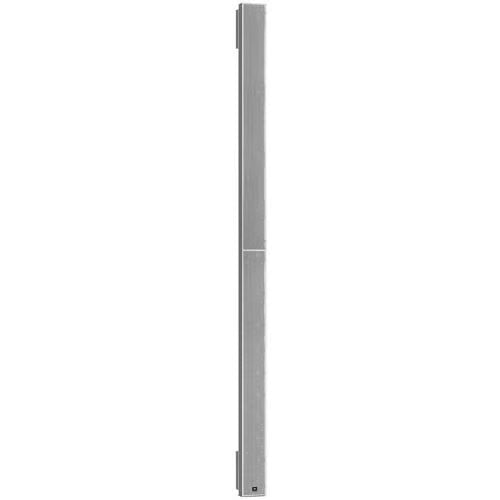

JBL Intellivox DSX380 HD Active Beam-Shaping Column Loudspeaker Array

The JBL Intellivox DSX380 HD is a high-performance, active beam-shaping column loudspeaker designed for professional audio installations in challenging acoustic environments. This slim, unobtrusive loudspeaker provides precise vertical beam control and wide horizontal coverage, making it ideal for lecture halls, theatres, atriums, museums, places of worship, and transport hubs.

Featuring sixteen high-efficiency 4" full-range drivers and four horn-loaded 1" dome tweeters, the DSX380 HD ensures superb speech intelligibility and high-fidelity music reproduction. Each driver is individually powered by a 16-channel Class-D amplifier with a sophisticated switch-mode power supply, providing reliable, long-term operation. The system incorporates JBL’s DDS (Digital Directivity Synthesis) technology, allowing precise vertical beam shaping to target sound exactly where it’s needed, reducing reflections and improving overall clarity.

The DSX380 HD includes a built-in DSP with 32-bit floating point processing, offering dual line inputs, volume control, delay up to 20 seconds, and an 8-band parametric EQ. Eight user-definable, password-protected presets can be recalled via third-party control devices. Additional features include automatic volume control via a built-in ambient microphone, network readiness, integral surveillance, and compatibility with acoustic simulation software such as DDA, Catt-Acoustic, Odeon, and EASE4.3.

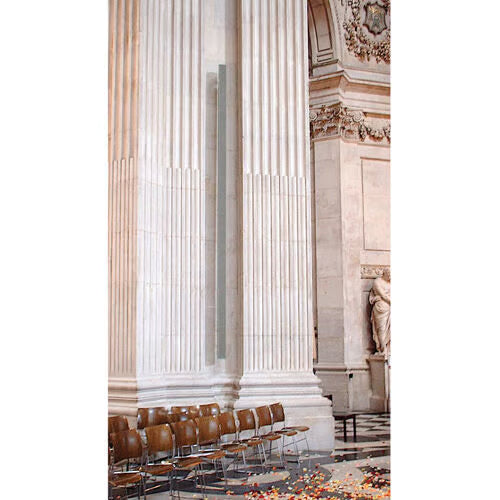

Finished in sleek white, the DSX380 HD integrates seamlessly into any architectural setting, providing a professional, visually unobtrusive solution. Its compact form and extended frequency range of 130 Hz to 18 kHz ensure consistent coverage, while its rugged construction supports demanding installation requirements.

Features:

• Active beam-shaping, self-powered column loudspeaker

• 16 × 4" full-range drivers, 4 × 1" horn-loaded dome tweeters

• 16-channel Class-D amplifier with switch-mode power supply

• DDS technology for precise vertical beam shaping

• Wide horizontal dispersion (130°)

• 32-bit floating point DSP

• Dual line inputs with block 6-pin connector

• Volume control and delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic volume control via built-in ambient mic

• Network ready and integral surveillance

• Compact, slim design for unobtrusive installation

• White finish, suitable for architectural integration
