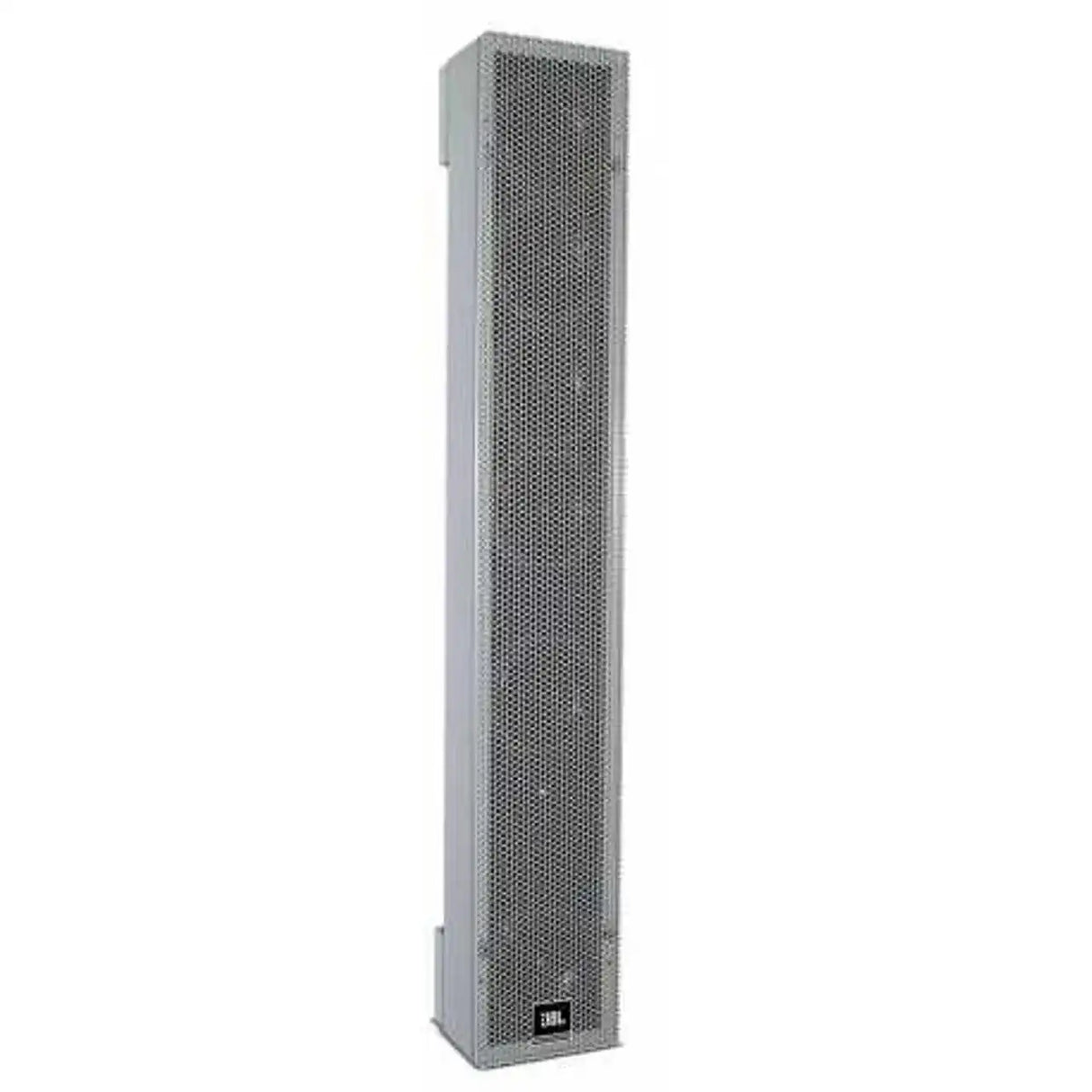

JBL Intellivox DC500 – Flagship Wall-Mount Digitally Steerable Column Array (Amp Top)

Product Overview

The JBL Intellivox DC500 (Amplifier at Top) is the flagship DDC series wall-mount digitally steerable column array, delivering 70-meter long-throw coverage with software-controlled vertical beam steering for large-venue fixed installations. Featuring 32 custom-designed 4-inch drivers and an integrated 16-channel Class-D amplifier mounted at the top of the array, the DC500 Amp Top is engineered for installations where upper-level wiring access or top-entry cable management is preferred. The DC500 is designed for AV integrators specifying flush wall-mount column systems in large conference halls, houses of worship, theatres, transportation terminals, and atriums where architectural integration and long-throw intelligibility are both critical. Its self-powered design eliminates external rack amplifiers, and onboard DSP provides full beam steering control through compatible software.

Product Description

The DC500 Amp Top configures its 16-channel Class-D amplifier at the upper end of the array — the preferred configuration for installations where AC power and signal wiring enters from the ceiling or upper wall. Thirty-two 4-inch full-range drivers are arranged per JBL's patented driver algorithm, optimizing both vertical beam steering precision and horizontal coverage consistency across large listening areas. Digitally steerable beam technology enables software-configurable vertical tilt and beam width, allowing AV system designers to target the audience plane without mechanical repositioning after installation. The switched-mode power supply ensures stable long-term operation in fixed commercial environments. Extended low-frequency response with subwoofer support makes the DC500 capable of both speech-primary and program audio applications in demanding reverberant spaces. Available in black and white, the slim column profile integrates into side-wall surfaces across varied commercial and institutional interiors.

Key Features

• Amplifier at Top Configuration — Top-mounted amplifier module suits installations where ceiling-drop or upper-wall wiring entry is required, simplifying cable management in the finished space.
• 32 × 4-inch Full-Range Driver Array — High driver density delivers consistent 70-meter coverage with precise SPL uniformity across large audience areas.
• Digitally Steerable Vertical Beam — Software-configurable vertical tilt and beam width allow precise targeting of the listening plane without physical repositioning of the array.
• Integrated 16-Channel Class-D Amplifier — Self-powered system eliminates external rack amplification, reducing equipment room requirements and installation complexity.
• Subwoofer-Extended Frequency Response — Extended low-frequency performance supports program audio applications alongside speech reinforcement in large commercial venues.
• Wall-Mount DDC Series Design — Engineered for flush and near-flush vertical wall installations in commercial spaces where projection-mounted loudspeakers are architecturally unsuitable.
• Dual Line Inputs — Supports primary and redundant signal feeds for resilient commercial AV system designs.
• Slim Architectural Profile — Available in black and white finishes for discreet integration into varied commercial interior environments.

Typical Applications

• Conference room — large conference and boardroom facilities requiring flush wall-mount long-throw column coverage with beam-steered intelligibility
• House of worship — large sanctuaries where side-wall column placement is preferred over ceiling or flown array configurations
• Auditorium — theatres and performing arts spaces requiring wall-integrated steerable columns with extended program audio frequency response
• Transportation terminal — airports and transit concourses requiring long-throw wall-mount paging coverage with minimal installation footprint
• Government space — legislative and assembly halls where flush wall integration and high intelligibility are architecturally mandated
• Multi-purpose room — large flexible-use commercial spaces requiring remotely reconfigurable vertical coverage from wall-mounted systems

Technical Specifications

Competitor Comparison

What's in the Box

• JBL Intellivox DC500 wall-mount column array loudspeaker (Amplifier at Top)
• Wall-mount hardware and installation brackets
• Power supply cable
• Documentation and setup guide

Frequently Asked Questions

What is the difference between the DC500 Amp Top and Amp Bottom?

Both the Amp Top and Amp Bottom configurations are electrically identical and deliver the same 70-meter coverage and DSP beam steering performance. The only difference is the physical location of the integrated amplifier module. Choose Amp Top when ceiling-drop or upper-wall wiring entry is preferred; choose Amp Bottom when lower-level wiring access is the practical installation approach.

Can the DC500 be installed horizontally?

The DC500 is designed for vertical wall-mount installation. Horizontal orientation would fundamentally alter the beam steering behavior, which is tuned for vertical axis control. Consult a JBL Professional representative or contact Creation Networks before specifying any non-standard mounting orientation.

Does the DC500 Amp Top need an external amplifier?

No. The DC500 is a fully active (self-powered) system with all amplification integrated within the column enclosure. It connects directly to line-level audio sources.

What control software manages the DC500's beam steering?

The DC500 uses DSP-based software for vertical beam steering, equalization, and system parameter management. Confirm software version requirements and third-party control integration compatibility with your AV system integrator or contact Creation Networks for project support.

What warranty applies to the DC500?

JBL Professional products carry a limited manufacturer warranty. Commercial installation terms should be confirmed with an authorized JBL distributor at purchase. Creation Networks supports warranty coordination for commercial AV projects.
