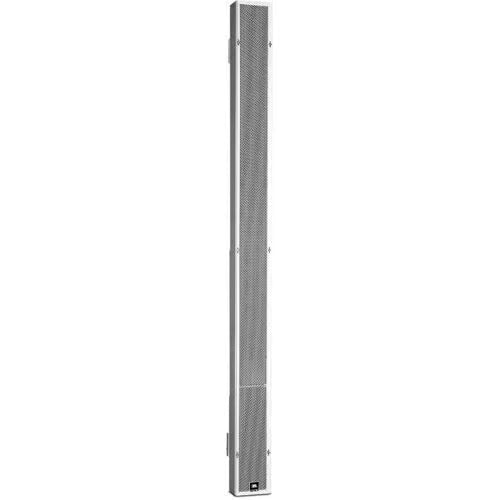

JBL Intellivox DSX180 – 2-Way Digitally Steerable Column Array (Amp Top, 115V)

Product Overview

The JBL Intellivox DSX180 (Amplifier at Top, 115V) is a 2-way self-powered digitally steerable column loudspeaker from the Intellivox 180 series, featuring an amplifier module positioned at the top of the array for installations where ceiling-entry wiring is the preferred cable routing approach. Sharing identical audio specifications with the standard DSX180 — 10 × 4-inch full-range drivers, 4 × 1-inch dome tweeters, 8-channel Class-D amplification, 32-bit DSP, and AVC via built-in ambient microphone — the Amp Top variant simplifies wiring in commercial installations with upper-wall or ceiling conduit infrastructure. It delivers consistent speech intelligibility coverage up to 25 meters with DDS software-controlled beam steering in lecture halls, conference facilities, transit hubs, and houses of worship.

Product Description

The DSX180 Amp Top places the integrated 8-channel Class-D amplifier at the upper end of the column, accommodating ceiling-drop or upper-wall wiring entry — the preferred configuration in commercial buildings where power and signal conduit runs from above. All audio specifications are identical to the standard DSX180: 2-way driver array with 10 full-range and 4 dome tweeter drivers, 32-bit DSP with 8-band EQ and up to 20 seconds of delay, 8 password-protected user presets, and AVC via built-in ambient microphone for dynamic output adjustment in variable-noise commercial environments. DDS (Digital Directivity Synthesis) vertical beam steering is controlled via WinControl software, enabling coverage zone configuration without physical adjustment after installation. The DSX180 Amp Top supports acoustic simulation in DDA, Catt-Acoustic, Odeon, and EASE 4.3 for pre-installation system design verification. The 115V switched-mode power supply is configured for North American commercial voltage standards.

Key Features

• Amplifier at Top — Top-mounted 8-channel Class-D amplifier accommodates ceiling-entry or upper-wall wiring, simplifying cable management in commercial fixed installations.
• 2-Way Driver Array — 10 × 4-inch full-range plus 4 × 1-inch dome tweeters provide extended HF dispersion and speech clarity for medium-range commercial AV applications.
• Automatic Volume Control (AVC) — Built-in ambient microphone dynamically adjusts output to maintain consistent intelligibility as background noise levels change.
• DDS Vertical Beam Steering — Software-controlled vertical beam shaping via WinControl enables precise audience targeting without mechanical adjustment after installation.
• 32-Bit Floating-Point DSP — Supports 8-band parametric EQ, up to 20 seconds of delay, and 8 password-protected presets onboard.
• Acoustic Simulation Support — Compatible with DDA, Catt-Acoustic, Odeon, and EASE 4.3 for pre-installation coverage modeling.
• 115V Switched-Mode Power Supply — Configured for North American commercial voltage standards.
• Slim Architectural Column Profile — Unobtrusive column design integrates into architecturally sensitive commercial spaces.

Typical Applications

• Conference room — medium conference facilities where ceiling-entry wiring is the building standard and AVC is required for variable ambient noise
• House of worship — sanctuaries requiring 25-meter beam-steered coverage with top-entry wiring access and automatic volume control
• Transportation terminal — airports and transit hubs requiring ceiling-wired column paging with AVC for high-ambient-noise environments
• Auditorium — lecture halls requiring beam-steered column coverage with ceiling conduit wiring infrastructure
• Training room — corporate and educational training spaces with upper-wall or ceiling wiring runs requiring consistent medium-range coverage
• Multi-purpose room — flexible commercial spaces needing remotely reconfigurable beam steering from ceiling-wired column installations

Technical Specifications

Competitor Comparison

What's in the Box

• JBL Intellivox DSX180 column loudspeaker (Amplifier at Top, 115V)
• Mounting hardware and installation brackets
• Power supply cable (115V)
• Documentation and setup guide

Frequently Asked Questions

What is the difference between the DSX180 Amp Top and standard DSX180?

Both models are acoustically and electrically identical. The Amp Top places the amplifier module at the top of the column for ceiling-entry wiring access. Choose the Amp Top when power and signal conduit enters from the ceiling or upper wall; choose the standard model when wiring enters from the lower wall or floor level.

Does the DSX180 Amp Top support voice alarm systems?

The DSX180 includes AVC and is designed for commercial speech reinforcement. For specific EN54 voice alarm certification and life safety compliance requirements, consult with Creation Networks or your JBL Professional representative prior to specification.

What simulation software is compatible with the DSX180?

The DSX180 provides simulation files for DDA, Catt-Acoustic, Odeon, and EASE 4.3, enabling pre-installation acoustic coverage and intelligibility modeling for commercial AV system design.

What warranty applies to the DSX180 Amp Top?

JBL Professional products carry a limited manufacturer warranty. Contact Creation Networks for commercial installation warranty support and coordination.
