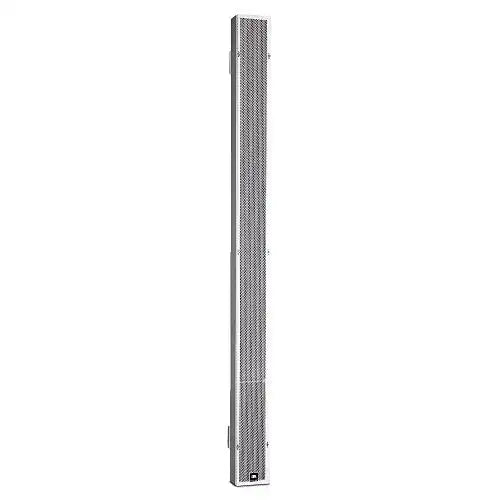

JBL Intellivox DS180 – Digitally Steerable Column Array (Amp Top, IVX-587021)

Product Overview

The JBL Intellivox DS180 (IVX-587021, Amplifier at Top) is a self-powered active beam-shaping column loudspeaker from the Intellivox DS series, engineered for speech intelligibility in commercial fixed installations requiring up to 25 meters of consistent SPL coverage. Featuring 12 custom 4-inch full-range drivers and an 8-channel Class-D amplifier with 32-bit floating-point DSP, the DS180 Amp Top is suited for lecture halls, conference facilities, houses of worship, transportation terminals, and atriums where vertical beam control is critical for managing reflections. The amplifier is positioned at the top of the column, simplifying ceiling-entry wiring for installations where power and signal conduit enter from above. WinControl software provides full DSP configuration, beam steering control, and system monitoring without mechanical adjustment of the installed column.

Product Description

The DS180 uses 12 custom 4-inch drivers arranged per JBL's patented algorithm for consistent horizontal coverage and precise vertical beam shaping. DDS (Digital Directivity Synthesis) technology enables software-configurable vertical coverage targeting, suppressing reflections in reverberant commercial spaces. The onboard 32-bit DSP includes user-definable presets via WinControl, up to 20 seconds of delay for multi-column time alignment, and dual line inputs for primary and redundant signal routing. The top-mounted 8-channel Class-D amplifier, powered by a switched-mode power supply, is the preferred configuration for installations where AC power and audio wiring enters from the ceiling or upper wall. The DS180 series produces wide horizontal dispersion with controlled vertical beam steering, maintaining speech intelligibility across the full coverage zone up to 25 meters. Available for integration with other DS and Intellivox series products in multi-zone commercial AV system designs.

Key Features

• Amplifier at Top — Top-mounted 8-channel Class-D amplifier simplifies ceiling-entry wiring for installations where conduit runs from above.
• 12 × 4-inch Full-Range Drivers — Patented driver arrangement delivers consistent SPL and speech intelligibility across 25-meter coverage distances.
• DDS Vertical Beam Steering — Software-controlled via WinControl, precisely targeting the listening plane and reducing reflections in reverberant spaces.
• 32-Bit Floating-Point DSP — Onboard processing supports user-definable presets, equalization, and system parameter management.
• Up to 20 Seconds Onboard Delay — Supports multi-column time alignment in distributed commercial AV systems.
• Dual Line Inputs — Supports primary and redundant signal routing for resilient commercial AV configurations.
• WinControl Software Integration — PC-based remote DSP management, beam steering configuration, and system monitoring.

Typical Applications

• Conference room — conference facilities requiring beam-steered column coverage with ceiling-entry wiring and DSP flexibility
• House of worship — sanctuaries requiring 25-meter beam-steered coverage from ceiling-wired column installations
• Transportation terminal — transit hubs requiring column paging with ceiling-entry cable routing
• Auditorium — lecture halls and performing arts venues requiring precise vertical beam control from ceiling-wired columns
• Training room — corporate and educational facilities requiring consistent medium-range coverage with DSP management

Technical Specifications

Competitor Comparison

What's in the Box

• JBL Intellivox DS180 column loudspeaker (Amplifier at Top, IVX-587021)
• Mounting hardware and installation brackets
• Power supply cable
• Documentation and setup guide

Frequently Asked Questions

What is the difference between DS180 IVX-587021 and IVX-587020?

Both are the same Intellivox DS180 model with identical audio specifications. IVX-587021 has the amplifier at the top for ceiling-entry wiring; IVX-587020 has the amplifier at the bottom for floor or lower-wall wiring. Select based on site conduit access points.

How does the DS180 differ from the DSX180?

The DSX180 is a 2-way design adding 4 × 1-inch dome tweeters for extended HF dispersion. The DS180 uses 12 × 4-inch full-range drivers in a single-way configuration — appropriate for speech-primary applications where dedicated HF drivers are not required.

What warranty applies?

JBL Professional products carry a limited manufacturer warranty. Contact Creation Networks for commercial warranty coordination.
