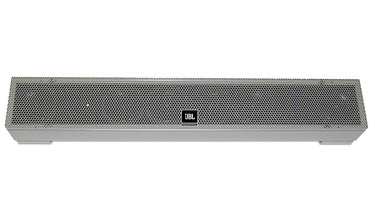

JBL Professional ADC-H90 Mark II Column Speaker – EN 54-24 Complian...
The JBL Professional ADC-H90 Mark II is a compact loudspeaker array engineered for 70V/100V distributed systems, ideal for public address and voice alarm applications. Designed to be mounted horizontally, this speaker is particularly suited for environments such as railway station platforms, long corridors, and terminals, where clear and intelligible audio coverage is essential.
Featuring six 4-inch full-range drivers, the ADC-H90 Mark II delivers a frequency response from 260 Hz to 11 kHz (+/-3 dB), ensuring natural and uncolored reproduction of both speech and background music. The speaker's fixed vertical dispersion of 130° and horizontal opening angle of 30° provide a focused acoustic signal aimed at the listener area, minimizing spillover and disturbance outside the intended coverage zone.
The ADC-H90 Mark II is EN 54-24 compliant, meeting stringent safety standards for life safety applications. It offers multiple transformer taps (100 W, 50 W, 25 W) to accommodate various installation requirements. The speaker's steel enclosure is powder-coated for durability and is available in standard colors RAL 9007 (grey) or RAL 9010 (white), with the speaker baffle in RAL 9011 (black).
With a sensitivity of 79 dB and a maximum SPL of 99 dB at 4 meters, the ADC-H90 Mark II ensures clear and consistent audio delivery over distances up to 15 meters. Its compact dimensions (134 x 865 x 92 mm) and weight of 10 kg (22 lbs) make it a versatile solution for installations where space and aesthetic considerations are paramount.
Features
-
Designed for horizontal mounting in 70V/100V distributed systems
-
EN 54-24 compliant for life safety applications
-
Horizontal opening angle of 30° and vertical dispersion of 130°
-
Frequency response from 260 Hz to 11 kHz (+/-3 dB)
-
Six 4-inch full-range drivers for clear audio reproduction
-
Multiple transformer taps (100 W, 50 W, 25 W) for flexible installation
-
Steel enclosure with powder-coated finish for durability
-
Available in standard colors RAL 9007 (grey) or RAL 9010 (white), with speaker baffle in RAL 9011 (black)
-
Pilot tone detection with green LED indicator
-
Compact dimensions (134 x 865 x 92 mm) and weight of 10 kg (22 lbs)
Specifications
| Specification | Details |
|---|---|
| Model | ADC-H90 Mark II |
| Frequency Response | 260 Hz – 11 kHz (+/-3 dB) |
| Sensitivity | 79 dB SPL (1 W / 4 m) |
| Maximum SPL | 99 dB SPL (100 W / 4 m) |
| Horizontal Coverage | 30° |
| Vertical Coverage | 130° |
| Steering Angle | 0° (horizontal) |
| Typical Throw Distance | Up to 15 m |
| Drivers | 6 x 4" full-range |
| Impedance Options | 100 Ω (100 W tap), 200 Ω (50 W tap), 400 Ω (25 W tap) |
| Transformer Taps | 100 W, 50 W, 25 W (100V only) |
| Control Switches | Highpass Filter (HPF active / Flat), EQ (active / Flat) |
| Pilot Tone Detection | Green LED indicator (20 kHz – 23 kHz, min. 6 Vrms) |
| Suggested Amplifiers | JBL 100 V IndustryAmp series |
| Enclosure Material | Steel, powder-coated |
| Mounting Points | 4 x M5 left and 4 x M5 right |
| Dimensions (H x W x D) | 134 x 865 x 92 mm (5.3” x 34.1” x 3.6”) |
| Weight | 10 kg (22 lbs) |
| Standard Colors | RAL 9007 (grey) / RAL 9010 (white) / RAL 9011 (black) |
Compare Table
| Feature | ADC-H90 Mark II | Similar Model A | Similar Model B |
|---|---|---|---|
| Horizontal Coverage | 30° | 40° | 50° |
| Vertical Coverage | 130° | 120° | 100° |
| Frequency Response | 260 Hz – 11 kHz | 200 Hz – 10 kHz | 300 Hz – 12 kHz |
| Impedance Options | 100 Ω, 200 Ω, 400 Ω | 8 Ω, 16 Ω | 100 Ω, 200 Ω |
| EN 54-24 Compliance | Yes | No | Yes |
| Mounting Orientation | Horizontal | Vertical | Horizontal |
| Pilot Tone Detection | Yes | No | Yes |
| Suggested Amplifiers | JBL IndustryAmp | Generic | JBL IndustryAmp |
