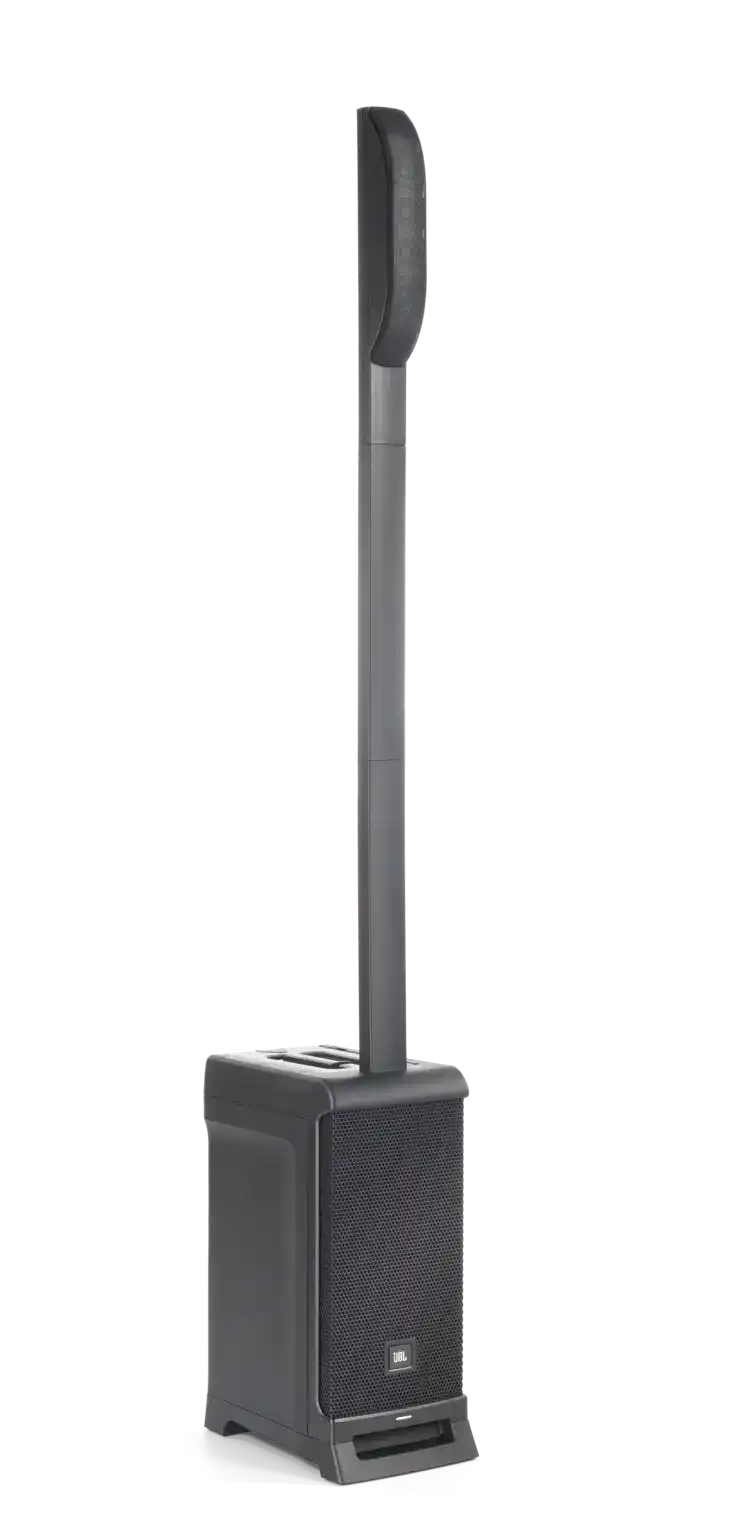

JBL IRX ONE – All-in-One Column PA with Built-In Mixer and Bluetooth

Product Overview

The JBL IRX ONE is a portable all-in-one column PA system designed for musicians, presenters, educators, and houses of worship who need professional-grade audio reinforcement in a single, self-contained unit. A C-shaped array of six 2-inch high-frequency drivers paired with an 8-inch bass-reflex woofer delivers full-range sound from 40 Hz to 20 kHz with wide, even front-to-back coverage. The integrated 3-channel mixer with XLR and ¼-inch inputs, 48V phantom power, Bluetooth 5.0, and dbx Automatic Feedback Suppression eliminates the need for a separate mixer or signal processor in most performance scenarios. For AV integrators and rental companies looking for a compact portable PA with built-in signal management, the IRX ONE offers all-in-one column PA convenience without sacrificing audio quality.

Product Description

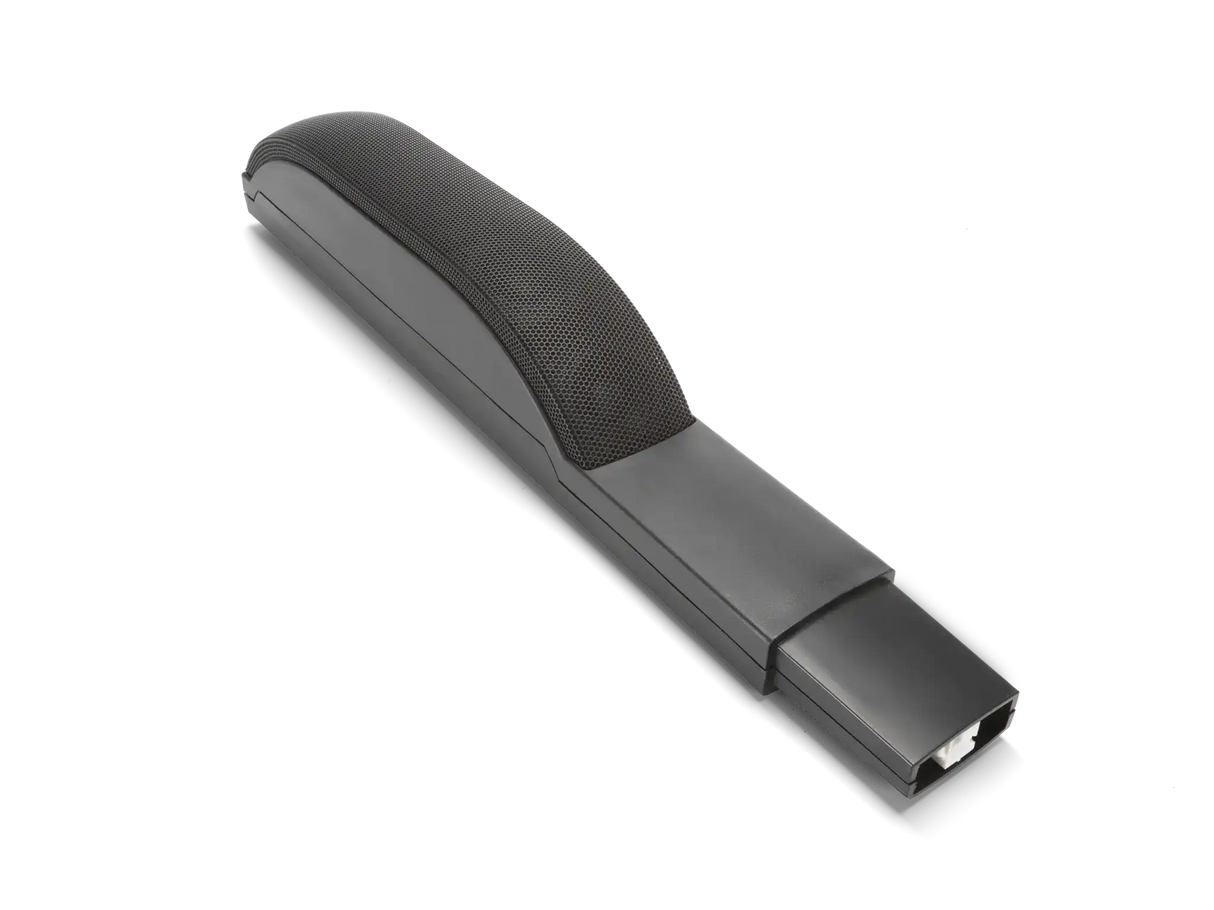

The IRX ONE’s column array design draws from concert line array principles to achieve consistent coverage from the front row to the back of the room. The six 2-inch HF drivers are arranged in a C-shaped configuration that widens dispersion and reduces the uneven hot spots common to traditional point-source portable speakers. The 8-inch bass-reflex woofer extends low-frequency response to 40 Hz, providing natural bass for both music playback and amplified instruments.

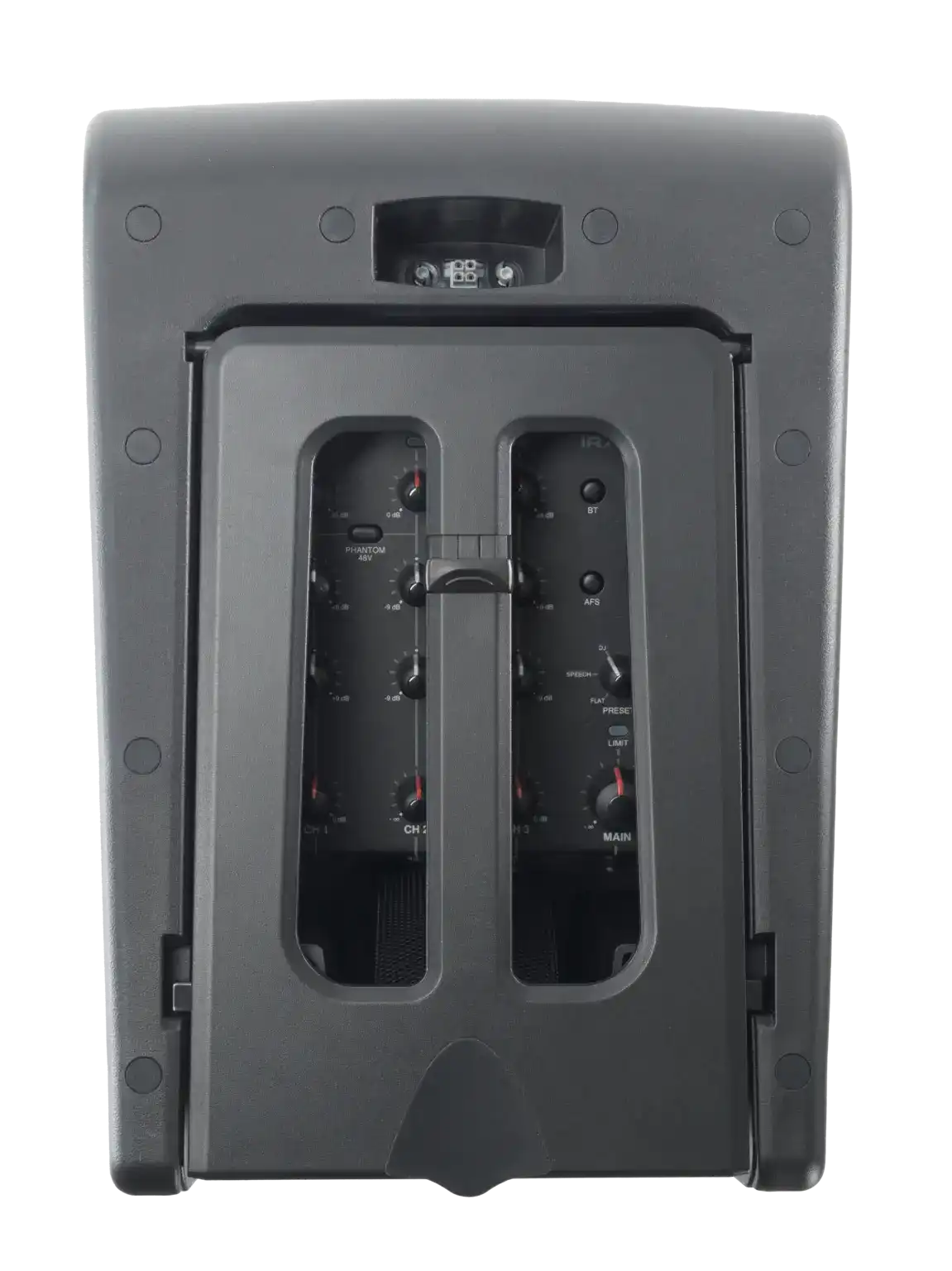

A built-in 3-channel mixer handles two microphone or line inputs via XLR and ¼-inch connectors with 48V phantom power for condenser microphones, plus a ¼-inch balanced mix output for connecting to additional speakers or a recording interface. Five system tuning presets allow quick optimization for speech, music, or mixed-use programs without requiring a laptop or external DSP. Soundcraft Easy Ducking automatically attenuates background music when speech is detected on a microphone input, a practical feature for presentations, ceremonies, and fitness classes.

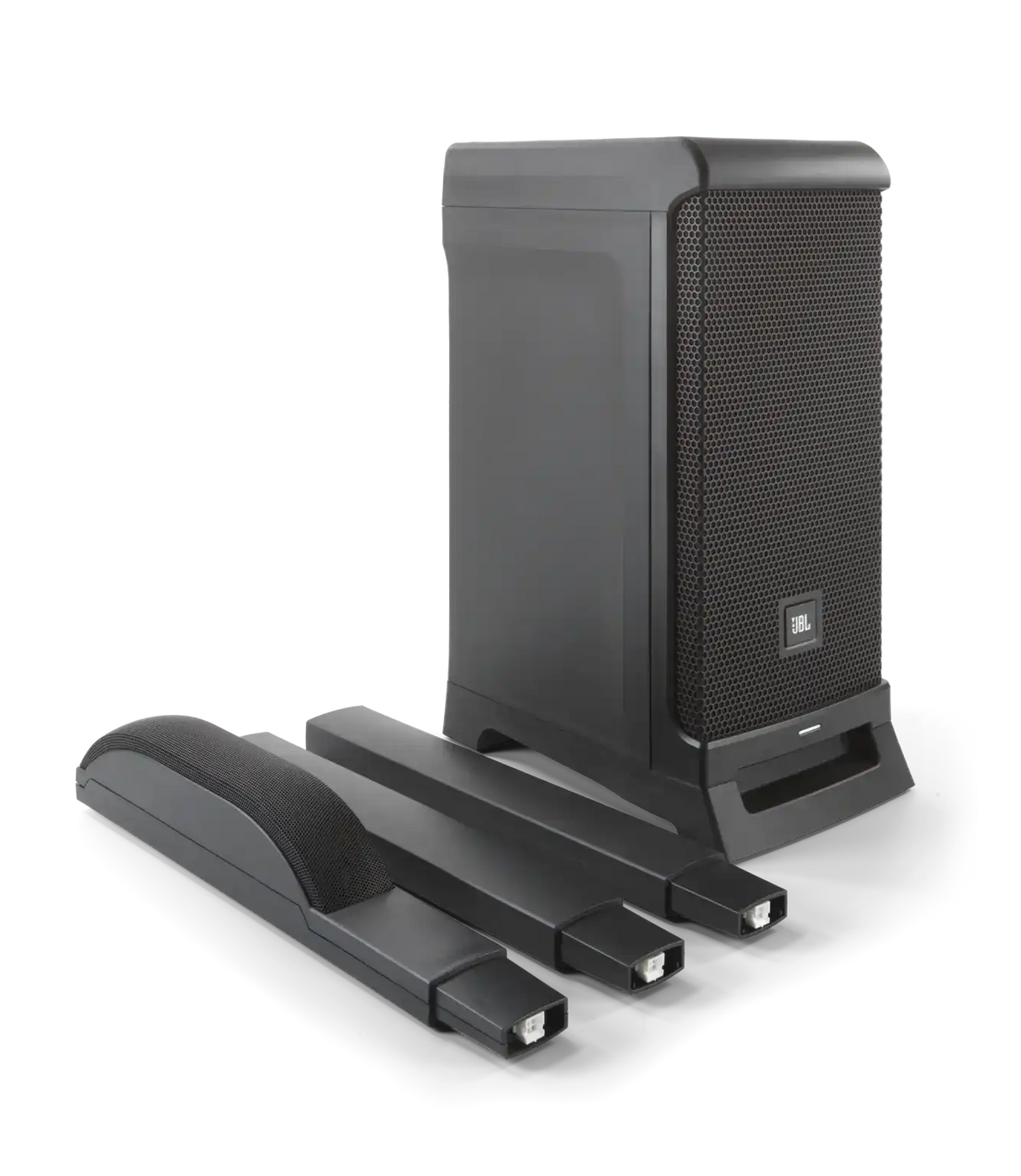

dbx Automatic Feedback Suppression runs continuously to detect and suppress feedback before it becomes disruptive. The system automatically recalibrates its tuning based on the number of column spacers deployed, maintaining consistent frequency response whether used in compact or extended array configuration. Column spacers and the array cabinet store inside the base unit for transport, and the ergonomic carry handle allows single-handed carry to and from the venue.

Key Features

• C-shaped array of six 2-inch HF drivers — wide, seamless front-to-back coverage with consistent tonal balance across the listening area.
• 8-inch bass-reflex woofer — full-range low-frequency response extending to 40 Hz for music and voice.
• 3-channel integrated mixer — XLR and ¼-inch inputs with 48V phantom power and ¼-inch balanced mix output.
• Five system tuning presets — optimized EQ curves for speech, music, and combined programs; no external DSP required.
• Soundcraft Easy Ducking — automatically lowers music playback when a microphone signal is detected.
• dbx Automatic Feedback Suppression — continuous real-time feedback detection and suppression.
• Bluetooth 5.0 audio streaming — wireless playback from phones, tablets, or laptops.
• Automatic column tuning adjustment — speaker calibrates its EQ based on deployed spacer configuration.
• Self-contained transport design — column spacers and array cabinet stow inside the base unit; single ergonomic carry handle.
• 3-year warranty — manufacturer warranty for commercial and touring use.

Typical Applications

• House of worship: portable PA for overflow rooms, outdoor services, and special events
• Conference room and all-hands room presentations requiring portable reinforcement
• Multi-purpose room events, lectures, and training sessions
• Auditorium and boardroom fill for breakout presentations
• Rental and staging inventory for corporate events and live performance

Technical Specifications

Frequently Asked Questions

Does the IRX ONE require a separate mixer? No. The built-in 3-channel mixer with XLR and ¼-inch inputs, 48V phantom power, and EQ presets handles most live and presentation scenarios without an external mixer. A ¼-inch balanced mix output is available for connecting to additional speakers or recording devices.

Can it be used with condenser microphones? Yes. The IRX ONE provides 48V phantom power on its XLR inputs, supporting standard condenser microphones.

How does the automatic feedback suppression work? The dbx AFS system continuously monitors the audio signal for feedback frequencies and applies narrow notch filters automatically, reducing gain at problem frequencies before feedback becomes audible.

What does Easy Ducking do? Soundcraft Easy Ducking detects when a microphone channel is active and automatically lowers the level of background music or playback sources, then restores full playback level when the microphone is silent. This is useful for presentations, worship, and event emcee applications.

Does the system adjust its sound based on how many column spacers are used? Yes. The IRX ONE automatically detects the deployed array configuration and applies appropriate EQ tuning, so the frequency response remains consistent regardless of whether the column is fully extended or compact.

Is it suitable for permanent installation? The IRX ONE is designed primarily for portable use. For permanent installed sound applications, contact Creation Networks for recommendations on JBL’s installed sound product lines.
