JBL Control 440CS/T 8" In-Ceiling Subwoofer – Premium Coverage Series
JBL Control 440CS/T 8" In-Ceiling Subwoofer – Premium Coverage Series is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL Control 440CS/T 8" In-Ceiling Subwoofer – Premium Coverage...

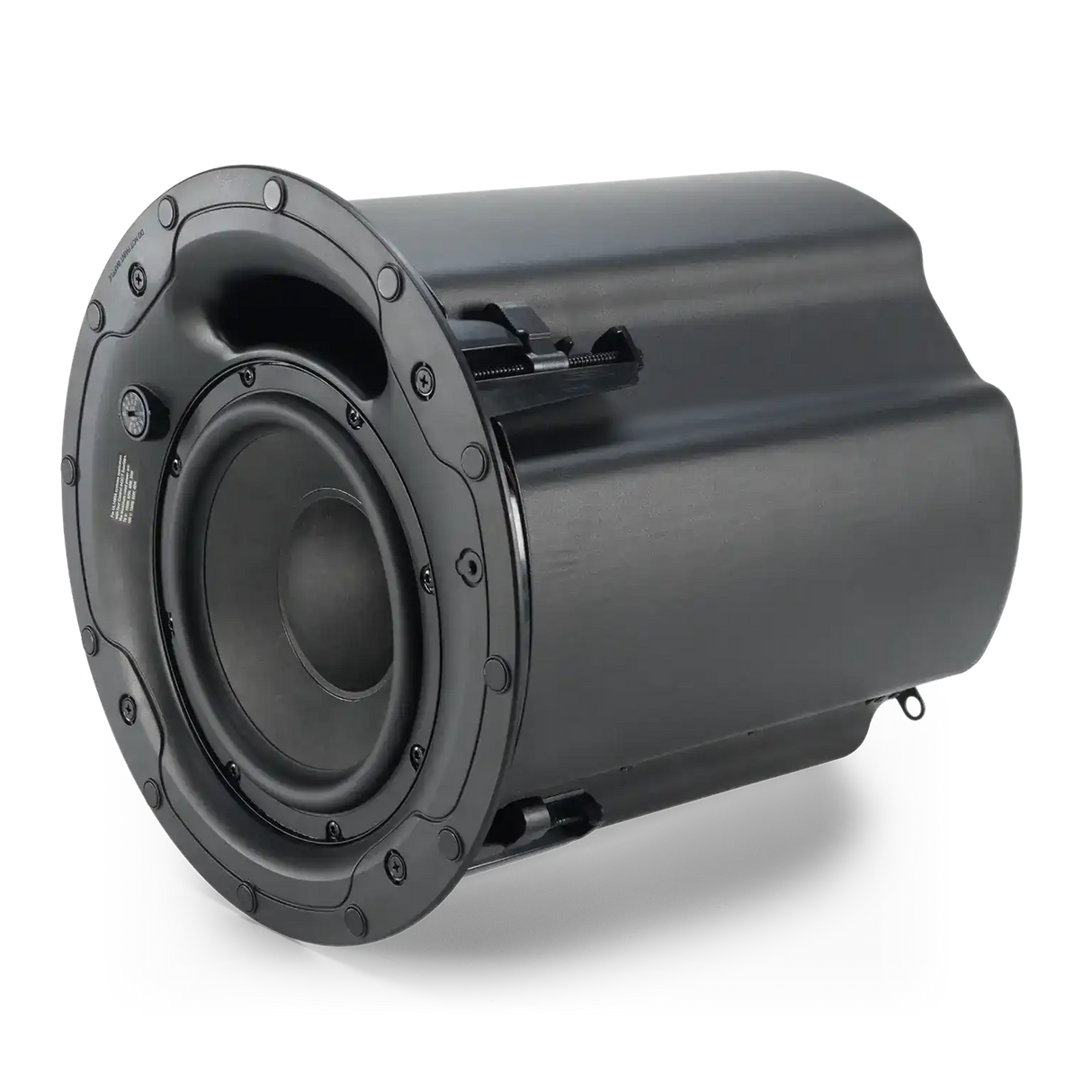

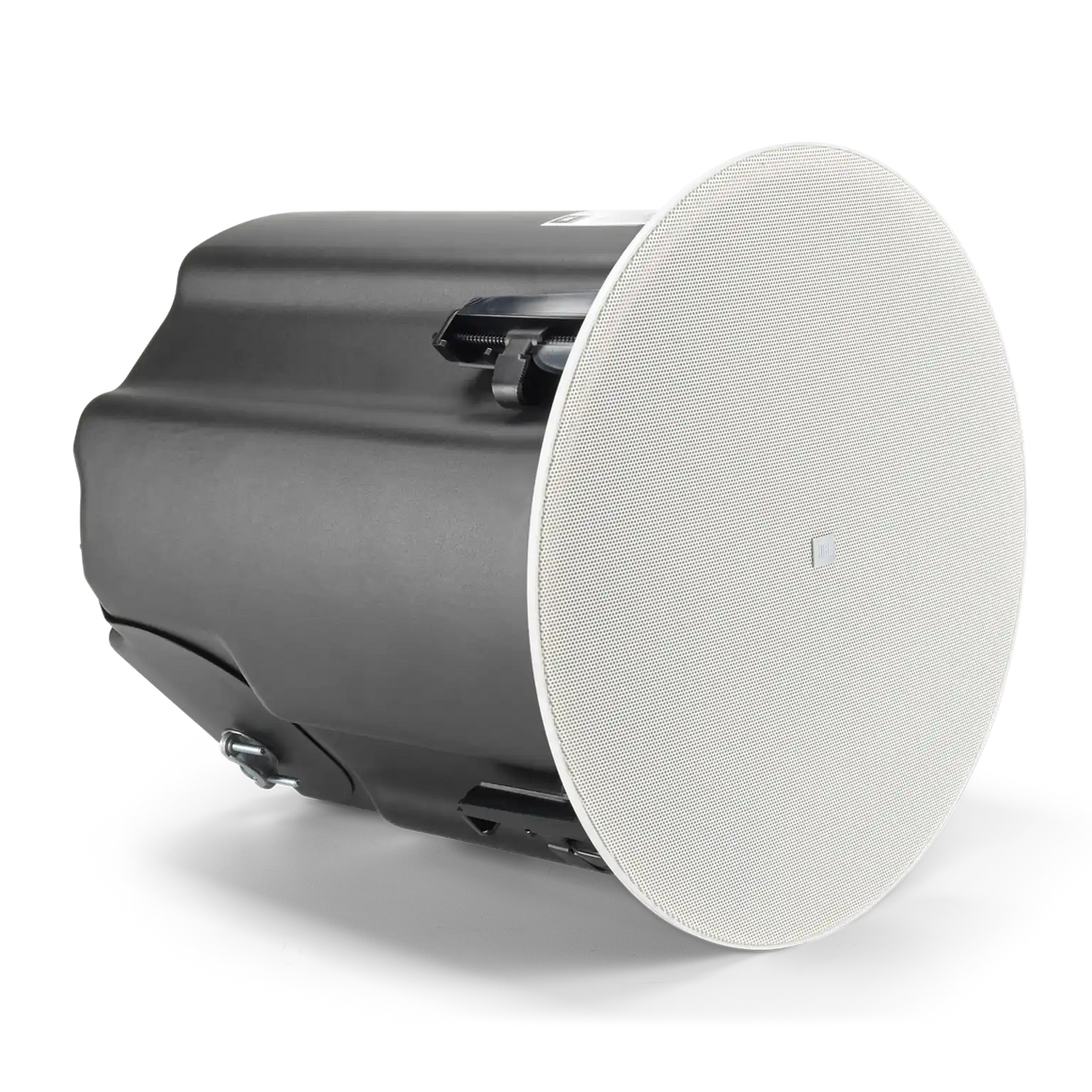

The JBL Control 440CS/T is a high-performance 8-inch in-ceiling subwoofer from JBL’s flagship Control 400 Premium Coverage Series. Engineered for professional audio environments, this subwoofer combines high power, low distortion, and a durable reinforced enclosure to deliver deep, warm bass in commercial, hospitality, and institutional spaces.

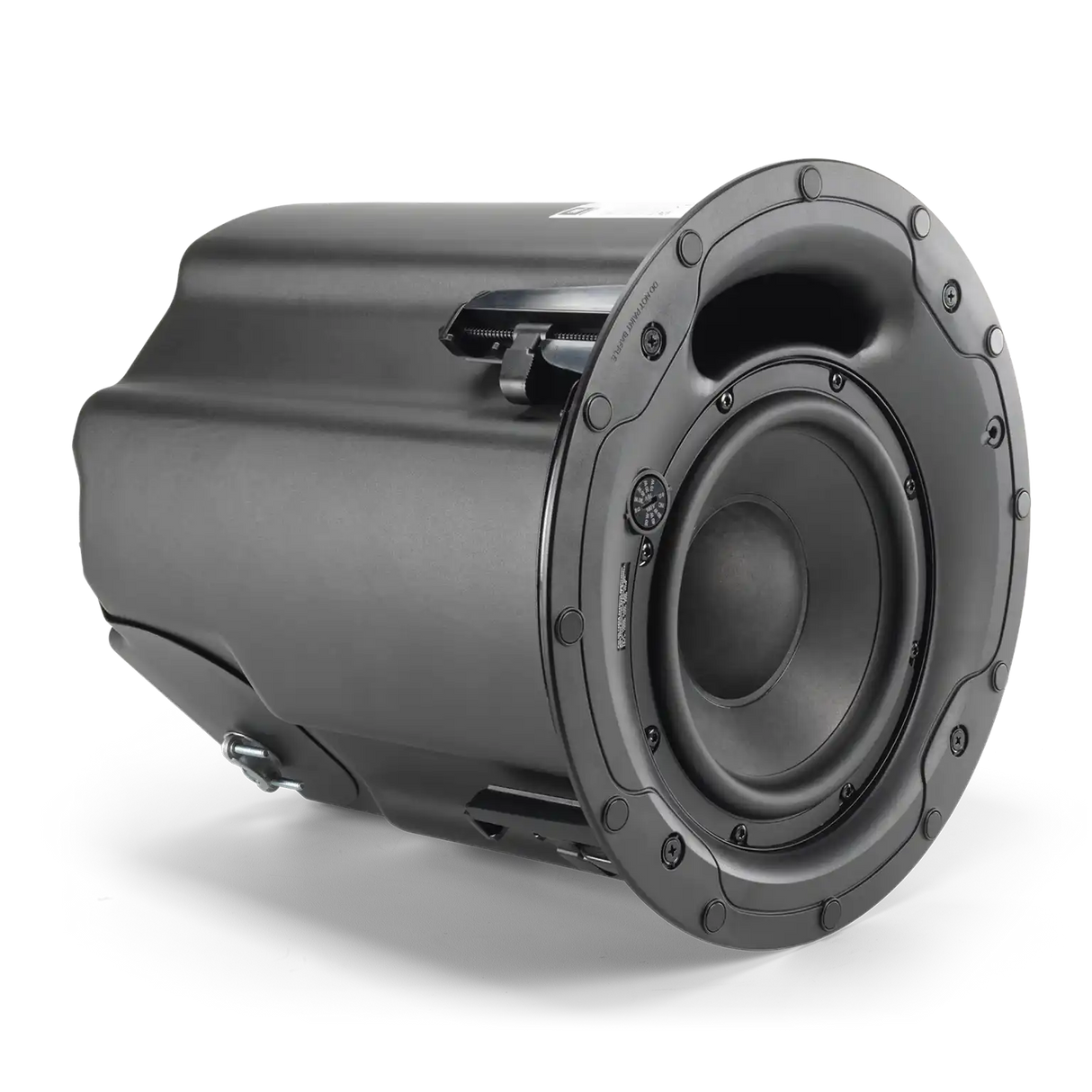

Designed for seamless integration with Control 400 Series satellites, the 440CS/T features a built-in passive crossover network, enabling it to function as part of a subwoofer-satellite system. Its integrated enclosure with large, tapered dual ports ensures smooth, extended low-frequency response, while the 8-inch treated paper cone woofer with SBR surround provides robust and consistent bass performance.
Installation is made efficient and repeatable with robust dogears accommodating a range of ceiling thicknesses, and terminal covers offering both top and side cable entry options. The full-face magnetic grille is paintable to match interior design aesthetics, with optional black and square grilles for additional customization. Supporting both low-impedance and 70V/100V distributed audio systems, the 440CS/T offers versatility in professional installations.
IP33 rated for protected ceiling environments and engineered for reliable long-term operation, the JBL Control 440CS/T ensures high-quality bass reinforcement wherever professional-grade in-ceiling sound is required.
Features
-

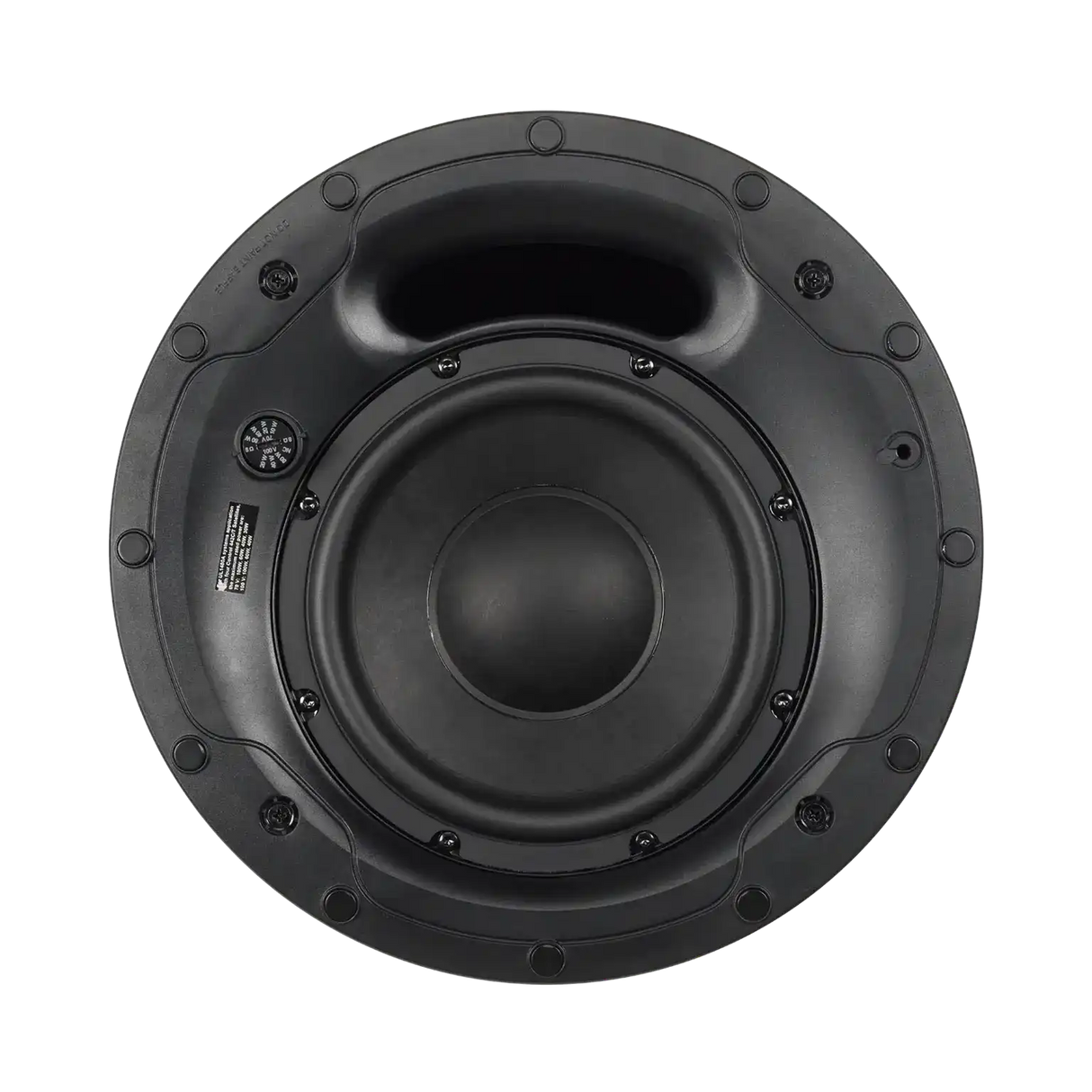

200 mm (8 in) woofer with SBR surround for deep bass
-
Integrated enclosure with dual tapered ports for smooth low-frequency response
-

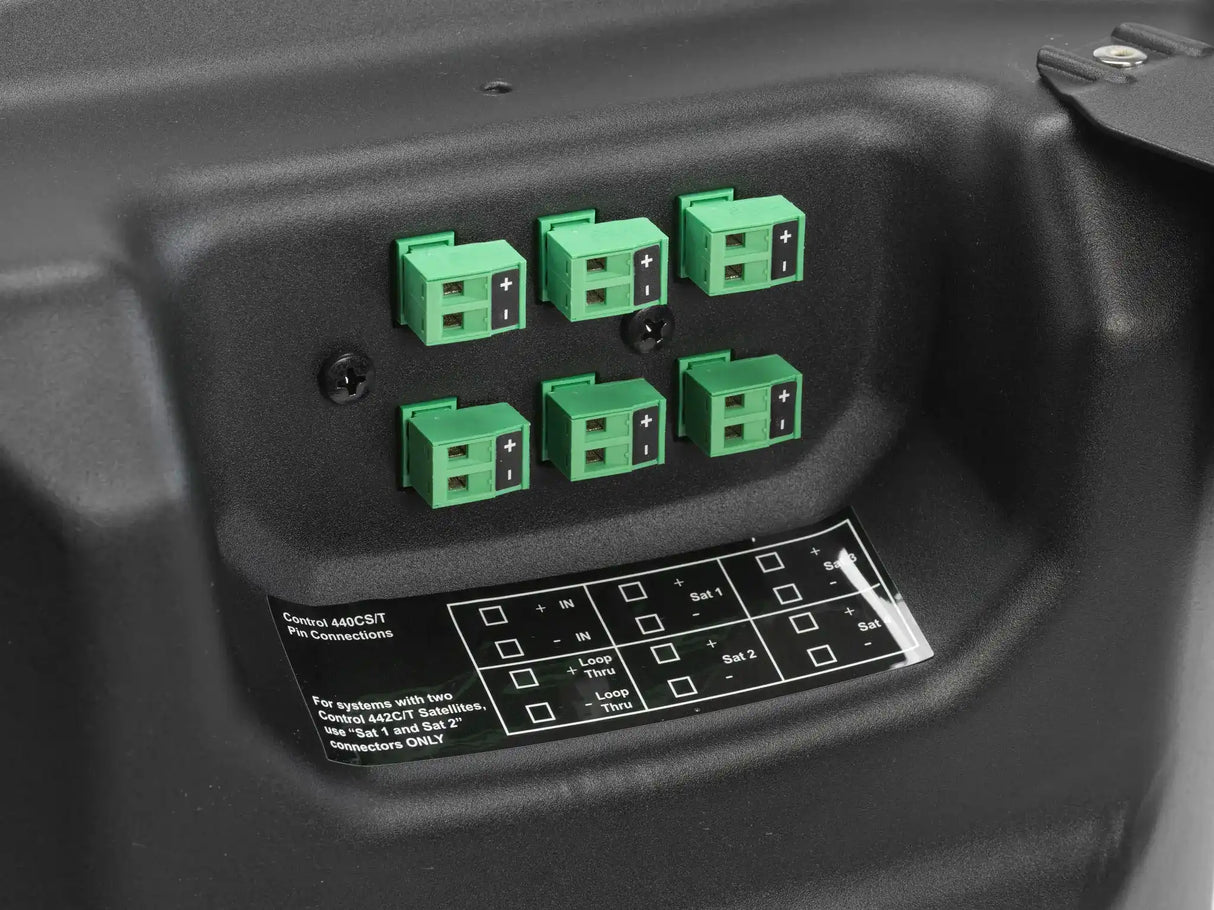

Built-in passive crossover for subwoofer-satellite integration
-
70V/100V multi-tap transformer, plus 8-ohm direct input
-

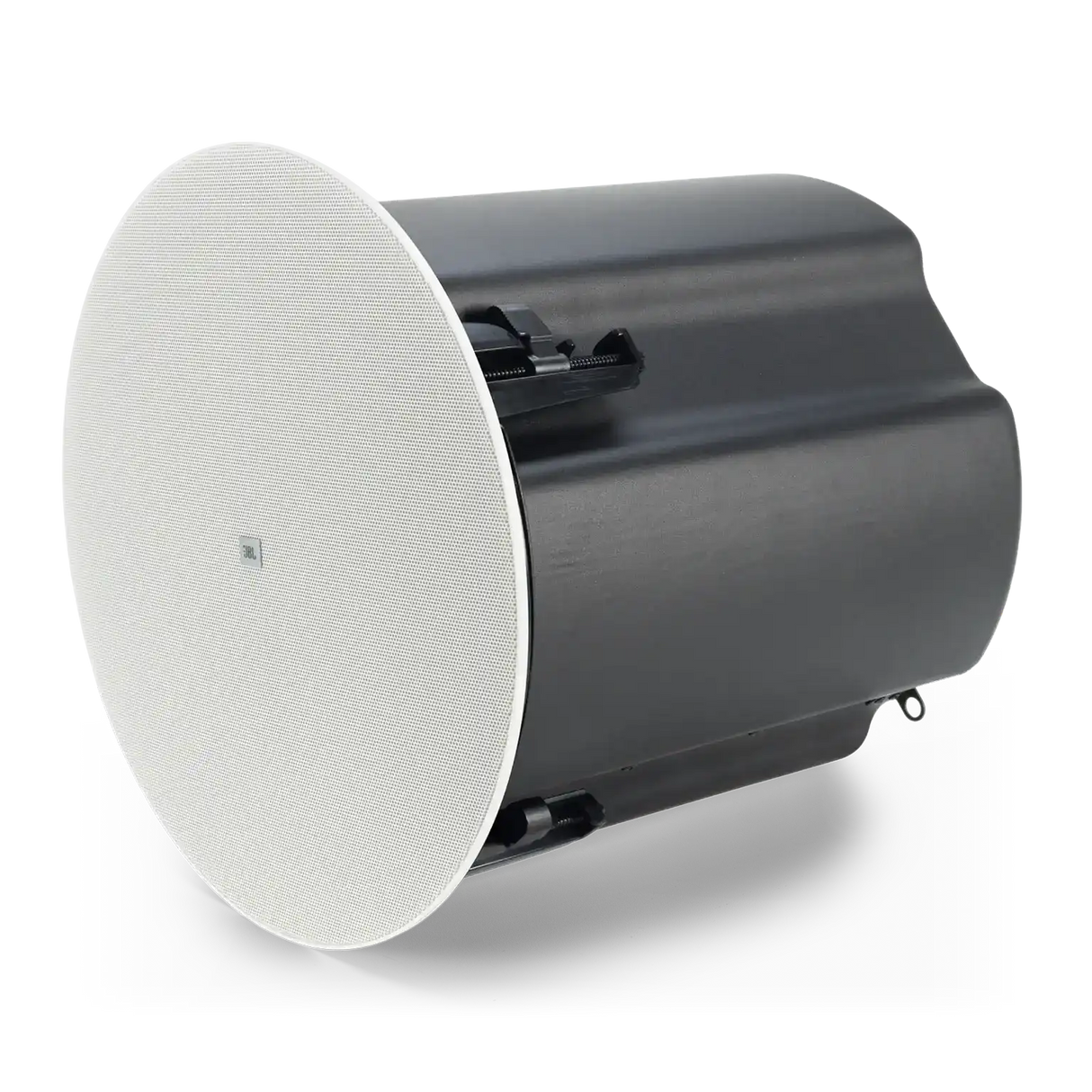

Full-face, paintable magnetic grille; optional black and square grilles available
-

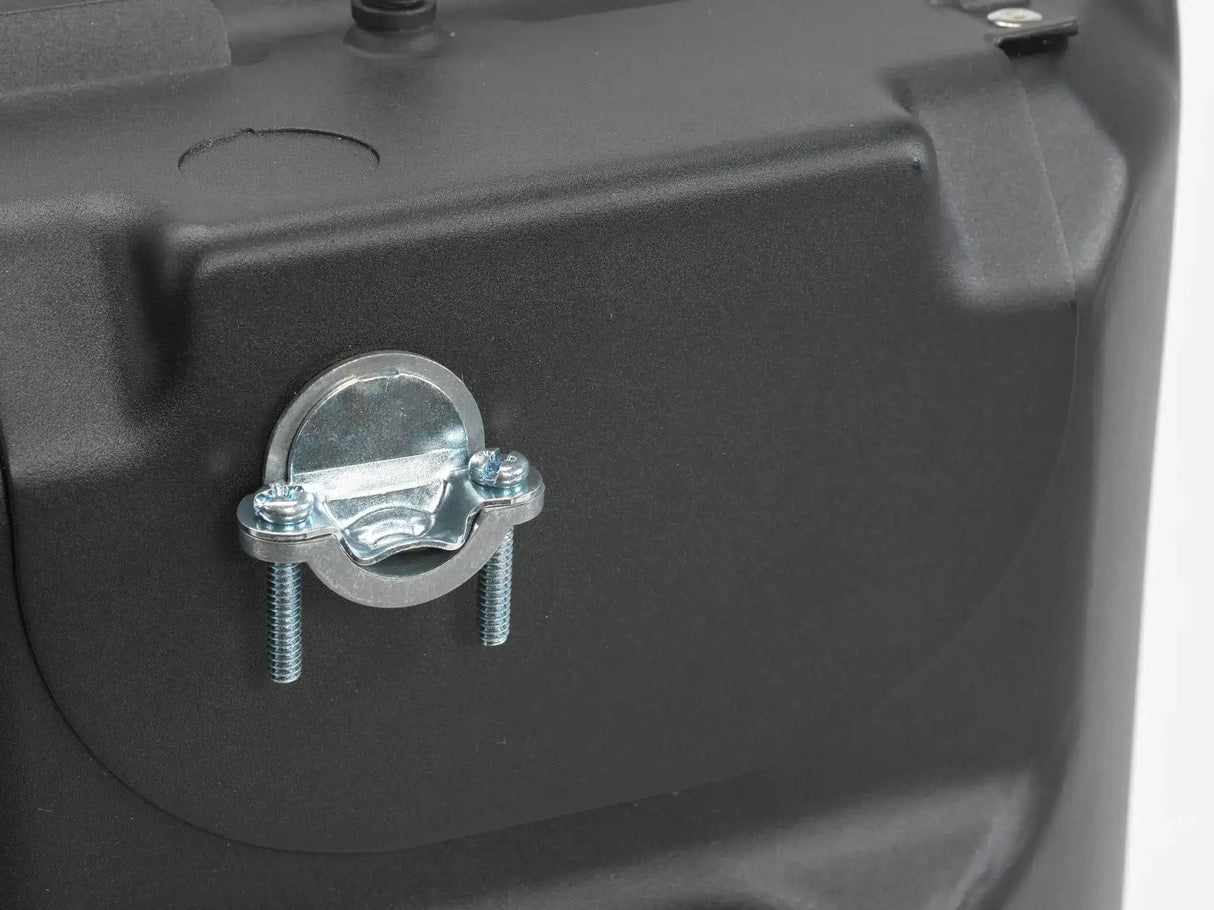

Top and side exit cable entry options
-

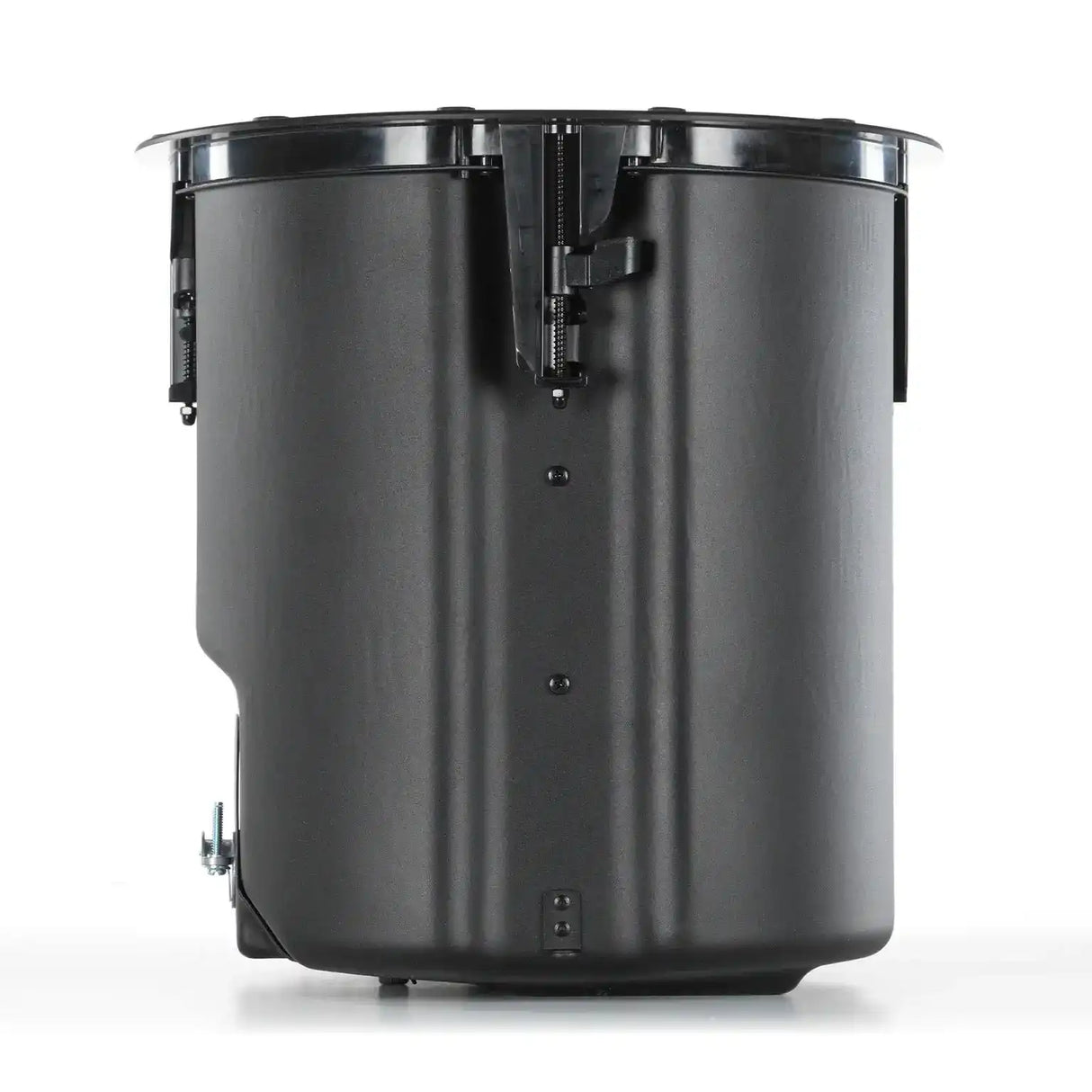

Robust dogears for various ceiling thicknesses
-
IP33 rated for protected ceiling environments
Specifications Table
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 32 Hz – 300 Hz |
| Power Capacity | 150 W (600 W Peak, 2 hr), 100 W (400 W Peak, 100 hr) |
| Sensitivity (1m/1W) | 95 dB (ceiling near corner, π/2 loading) |
| Maximum SPL (1m) | 117 dB continuous, 123 dB peak (π/2 loading) |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70V: 80 W, 40 W, 20 W, 10 W; 100V: 80 W, 40 W, 20 W |
| Drivers | 200 mm (8 in) treated paper cone with SBR surround, high-performance magnet |
| Ceiling Cutout Size | 307 mm (12.1 in) |
| Dimensions | 351 mm H x 342 mm dia.; 337 mm depth from ceiling tile bottom to backcan top |
| Safety Rating | UL 2043, NFPA 90A & 70, CSA C22.2 no. 205, UL 1480A |
| Environmental | IP33 per EN/IEC 60529; Operating Temp: 0° C – 45° C |
| Optional Accessories | JBL-MTC-440BG black round grille, JBL-MTC-440SG white square grille, JBL-MTC-419NC new construction bracket, JBL-MTC-419MR mud-ring bracket, JBL-MTC-48TRX4 tile rail |
| Color | White (RAL9003), paintable |
| Net Weight | 8.72 kg (19.22 lbs) |
| Shipping Weight | 25.02 kg per pair |
| SKU | JBL-C440CS/T |
Compare Table
| Feature | JBL Control 440CS/T | Other Control 400 Subwoofers |
|---|---|---|
| Driver Size | 8 in | 6 in or 12 in |
| Frequency Range | 32–300 Hz | Varies by model |
| Power Capacity | 150 W (600 W Peak) | Varies by model |
| Installation | Ceiling plenum, dogears, top/side cable entry | Similar features depending on size |
| Grille Options | Paintable magnetic, black, or square | Similar optional grilles |
| System Integration | Built-in passive crossover for subwoofer-satellite | Similar for other subwoofers |
